Bomb

os version: gcc version 7.3.0 (Ubuntu 7.3.0-16ubuntu3)

Before this lab, we need read some articles:

PAY ATTENTION: because we just self-study, so we just need find the result of bomb, rather than care scores mentioned by README.

Structure

Initially, The directory only had three files:

  • README: An introduce file, although it help nothing.
  • bomb: A .exe file
  • bomb.c: Source code for the main bomb routine

Then, we should execute objdump -d bomb > bomb.asm and get a assembly code file called bomb.asm. And execute objdump -t bomb > bomb-symbol-table.asm to get symbol table of bomb.

begin with odjdump and gdb

One of the aim of bomb lab is teach us how to debug c file. So let us learn the basics tools:

  • gdb: the GUN debugger, it can trace through a program line by line, examine memory and register, look at both the source code and assembly code, set breakpoints, set memory watch points, and write scripts.
  • objdump: A command-line program for displaying various information about object files on Unix-like os.

solution

phase_1

Compare two strings, and in the file bomb.asm, we can find a function called phase_1 which code is following:

0000000000400ee0 <phase_1>:
  400ee0: 48 83 ec 08           sub    $0x8,%rsp
  400ee4: be 00 24 40 00        mov    $0x402400,%esi
  400ee9: e8 4a 04 00 00        callq  401338 <strings_not_equal>
  400eee: 85 c0                 test   %eax,%eax
  400ef0: 74 05                 je     400ef7 <phase_1+0x17>
  400ef2: e8 43 05 00 00        callq  40143a <explode_bomb>
  400ef7: 48 83 c4 08           add    $0x8,%rsp
  400efb: c3                    retq

And we can infer the compared data is in 0x402400, so we need view it's content.

Execute command x/s 0x402400, we get the result of phase_1:

Border relations with Canada have never been better.

Input above strings, then get the info:

Phase 1 defused. How about the next one?

Ok, Let's go!

phase_2

Then we check function phase_2.

And the code is:

0000000000400efc <phase_2>:
  400efc: 55                    push   %rbp
  400efd: 53                    push   %rbx
  400efe: 48 83 ec 28           sub    $0x28,%rsp
  400f02: 48 89 e6              mov    %rsp,%rsi
  400f05: e8 52 05 00 00        callq  40145c <read_six_numbers>
  400f0a: 83 3c 24 01           cmpl   $0x1,(%rsp)
  400f0e: 74 20                 je     400f30 <phase_2+0x34>
  400f10: e8 25 05 00 00        callq  40143a <explode_bomb>
  400f15: eb 19                 jmp    400f30 <phase_2+0x34>
  400f17: 8b 43 fc              mov    -0x4(%rbx),%eax
  400f1a: 01 c0                 add    %eax,%eax
  400f1c: 39 03                 cmp    %eax,(%rbx)
  400f1e: 74 05                 je     400f25 <phase_2+0x29>
  400f20: e8 15 05 00 00        callq  40143a <explode_bomb>
  400f25: 48 83 c3 04           add    $0x4,%rbx
  400f29: 48 39 eb              cmp    %rbp,%rbx
  400f2c: 75 e9                 jne    400f17 <phase_2+0x1b>
  400f2e: eb 0c                 jmp    400f3c <phase_2+0x40>
  400f30: 48 8d 5c 24 04        lea    0x4(%rsp),%rbx
  400f35: 48 8d 6c 24 18        lea    0x18(%rsp),%rbp
  400f3a: eb db                 jmp    400f17 <phase_2+0x1b>
  400f3c: 48 83 c4 28           add    $0x28,%rsp
  400f40: 5b                    pop    %rbx
  400f41: 5d                    pop    %rbp
  400f42: c3                    retq

Firstly, from 400f05: e8 52 05 00 00 callq 40145c <read_six_numbers> we can infer that we need input six number, otherwise we will trigger bomb in read_six_number.

Here, I think we need read the function read_six_number, we can infer that the %rsp point the first number lastly.

Secondly, the first number should be 1(400f0a to 400f0e), because it not will meet bomb.

And then, because we can know that the second number should be more than twice of first number, so it's 2(and store in M[%rbx]).

After, we know that %rbp is the number which not belong input(we can't control it value)! So there is a loop during 0x400f17 - 0x400f2c, and infer that we know the latter number is twice as large as the former.

So, the result is:

1 2 4 8 16 32

Input above strings, then get the info:

That's number 2. Keep going!

Ok, Let's go!

phase_3

From the code we can infer that it's a swtich statement.

Firstly, we should know function __isoc99_sscanf return the number of input items successfully matched and assigned(reference)

400f5b: e8 90 fc ff ff        callq  400bf0 <__isoc99_sscanf@plt>
400f60: 83 f8 01              cmp    $0x1,%eax
400f63: 7f 05                 jg     400f6a <phase_3+0x27>
400f65: e8 d0 04 00 00        callq  40143a <explode_bomb>

So, we should input two chars at least.

And then, 0x8(%rsp) point at the third arguments. We know that it must less or equal 7.(because the number of branch is 7)

And then:

  • input command x/a 0x402470 in GDB( now, %rax is 0), we know *0x402470's value is 0x400f7c.
  • input command x/a 0x402478 in GDB( now, %rax is 1), we know *0x402478's value is 0x400fb9.
  • input command x/a 0x402480 in GDB( now, %rax is 2), we know *0x402480's value is 0x400f83.
  • input command x/a 0x402488 in GDB( now, %rax is 3), we know *0x402488's value is 0x400f8a.
  • input command x/a 0x402490 in GDB( now, %rax is 4), we know *0x402490's value is 0x400f91.
  • input command x/a 0x402498 in GDB( now, %rax is 5), we know *0x402498's value is 0x400f98.
  • input command x/a 0x4024a0 in GDB( now, %rax is 6), we know *0x4024a0's value is 0x400f9f.
  • input command x/a 0x4024a8 in GDB( now, %rax is 7), we know *0x4024a8's value is 0x400fa6.

so, the result is one of the following:

  • 0 0xcf -> 0 207
  • 1 0x137 -> 1 311
  • 2 0x2c3 -> 2 707
  • 3 0x100 -> 3 256
  • 4 0x185 -> 4 389
  • 5 0xce -> 5 206
  • 6 0x2aa -> 6 682
  • 7 0x147 -> 7 327

So, we can input:

0 207

Input above strings, then get the info:

Halfway there!

phase_4

Firstly, we should input two chars and the reason is same as phase_3.

And because:

40102e: 83 7c 24 08 0e        cmpl   $0xe,0x8(%rsp)
401033: 76 05                 jbe    40103a <phase_4+0x2e>

we know the first input is 14.

And then:

40103a: ba 0e 00 00 00        mov    $0xe,%edx
40103f: be 00 00 00 00        mov    $0x0,%esi
401044: 8b 7c 24 08           mov    0x8(%rsp),%edi
401048: e8 81 ff ff ff        callq  400fce <func4>

means execute func4(a,0,14); where a <= 14, meanwhile, because

40104d: 85 c0                 test   %eax,%eax
40104f: 75 07                 jne    401058 <phase_4+0x4c>
401051: 83 7c 24 0c 00        cmpl   $0x0,0xc(%rsp)
401056: 74 05                 je     40105d <phase_4+0x51>
401058: e8 dd 03 00 00        callq  40143a <explode_bomb

we know the func4 return value should be 0.

Look at fun4(a,b,c), it's a recursive function.

and a is %edi, b is %esi, c is %edx， and the pseudo code is:

// pay attention, it's reference value
func4( a, b ,c) {
    t1 = c - b;          // %eax
    t2 = t1>>31;         // %ecx, and it's logical right shift
    t1 = (t1 + t2) >> 1; // %eax, and it's arithmetic right shift
    t2 = b + t1;         // %ecx
    if( t2 == a) {
      return 0;
    }
    if( t2 < a) {
        a = t2 + 1;      // %esi
        func(a,b,c);
        t1 = 1 + 2 * t1; // %eax;
        return t1;
    }
    else {
        c = t2 - 1;      // %edx
        func4(a,b,c);
        t1 = t1 * 2;     // %eax
        return t1;
    }
}

And we can infer that a is 7, so the result of phase_4 is:

7 0

And feedback:

So you got that one. Try this one.

phase_5

First, from code:

40107f: 83 f8 06              cmp    $0x6,%eax
401082: 74 4e                 je     4010d2 <phase_5+0x70>
401084: e8 b1 03 00 00        callq  40143a <explode_bomb>

We know that input string length is 6.

And the function can write:

phase_5(s){
    if( s.length != 6) {
        bomb();
        return ;
    }
    t1 = 0;                     // %eax
    while( t1 != 6) {
        t2 = &s;                // %rbx
        t3 = *(t2 + t1) & 0xff; // %ecx
        t4 = &%rsp;             // (%rsp)
        *t4 = t3;
        t5 = *t4 & 0xf;         // %rdx
        t5 = *(t5 + 0x4024b0) & 0xff // %edx
        t1 + 0x10 + t4 = t5;
        t1 = t1 + 1;
    }
    *(&%rsp + 0x16) = 0;
    if( strings_not_equal( *(&%rsp + 16), 'flyers' )) {
        bomb();
        return ;
    }
}

And we print the 0x4024b0 content by input command: x/s 0x4024b0, the output is: maduiersnfotvbylSo you think you can stop the bomb with ctrl-c, do you?

And the table is :

b0 b1 b2 b3 b4 b5 b6 b7 b8 b9 ba bb bc bd be bf
m a d u i e r s n f o t v b y l

The flyers is correspnding to 9fe567.

And because of f and e ascii code are 0x66 and 0x65, which result of &0xf is 6 and 5 respectively.

We can use char ? and > (ascii code is 3f and 3e, which result of &0xf is f and e respectively), rather than f and e.

So the result is:

9?>567

And the output is:

Good work! On to the next...

phase_6

First, from the code 401106: e8 51 03 00 00 callq 40145c <read_six_numbers> we know that need input six numbers.

And the flowchar is similar that:

// input %rsi
phase_6(input) {
    a,b,c,d,e,f = read_six_numbers(input);
    // a        (%rsp), should less or equal 5
    // b     0x4(%rsp)
    // c     0x8(%rsp)
    // d     0xc(%rsp)
    // e    0x10(%rsp)
    // f    0x14(%rsp)

    //%rsp: 0x7fffffffe2d0
    t9 = %rsp;  // %r13
    t0 = &a;    // %r14
    t2 = 0;     // %r12d
    t8 = t9;    // %rbp, line3
    t1 = a - 1; // %eax
    if( t1 > 5) {
      bomb();
      return ;
    }
    t2 = t2 + 1;  // %12d
    if( t2 == 6) {
        t3 = (%rsp) + 0x18    // %rsi
        t4 = t0;              // %rax
        t5 = 7;               // %ecx
        do {
            // means:
            // a = 7 - a
            // b = 7 - b
            // c = 7 - c
            // d = 7 - d
            // e = 7 - e
            // f = 7 - f
            t6 = t5 - *t4;        // %edx
            *t4 = t6;             // (%rax) <-> a
            t4 = t4 + 4;          // %rax   <-> &b
        } while (t4 != t3);
        t3 = 0;              // %esi
        t5 = *(t3 + %rsp);   // %ecx
        if( t5 <= 1) {
            t6 = 0x6032d0;              // %edx
            *(%rsp + 0x20 + 2 * t3) = t6;
            t3 = t3 + 4;                // %rsi
            if( t3 === 0x18) {                  // line 4
                t7 = M[(%rsp) + 0x20]   // %rbx
                t4 = (%rsp) + 0x28      // %rax
                t3 = (%rsp) + 0x50      // %rsi
                t5 = t7;                // %rcx
                t6 = *t4;               // %rdx
                M[t5 + 8] = t6;
                t4 = t4 + 8             // %rax
                if( t4 == t3) {
                    M[t6 + 8] = 0;
                    t8 = 5;             // %ebp
                    t4 = M[t7 + 0x8];   // %rax, line1
                    t4 = *t4;           // %eax
                    if( *t7 >= t4) {
                        t7 = M[t7 + 0x8]; // %rbx
                        t8 = t8 - 1;      // %ebp
                        if( t8 != 0) {
                            goto line1;
                        }
                    }
                    else {
                        bomb();
                        return ;
                    }

                }
            }
        }
        else {  // t5 > 1
            t4 = 1;         // %eax
            t6 = 0x6032d0;  // %edx, 0x6032d0 is the begin of node
            do {
                t6 = *(t6 + 0x8);   // %rdx
                t4 = t4 + 1;        // %eax
            } while (t4 != t5)
            *(%rsp + 0x20 + 2 * t3) = t6;
            t3 = t3 + 1;    // %rsi
            goto line4;
        }
    }
    else {          // t2 != 6
        // means:
        // a != b
        // a != c
        // a != d
        // a != e
        // a != f
        // b != c
        // b != d
        // b != e
        // b != f
        // c != d
        // c != e
        // c != f
        // d != e
        // d != f
        t7 = t2;    // %ebx
        t4 = t7;    // %rax, line2
        t4 = *(4 * t4 + %rsp)  // %rax
        if( *(%rsp + 4 * t4) == *t8) {
            bomb();
            return ;
        }
        t7 = t7 + 1; // %ebx
        if( t7 <= 5) {
            goto line2;
        }
        t9 = t9 + 4;
        goto line3;
    }
}

In the line 0x41176, and the value of $rdx, we can infer there has a link. And the node length is 16.

And link infos:

node name address first 4 bit second 4 bit second 8 bit
node1 0x6032d0 0x14c 1 0x6032e0
node2 0x6032e0 0x0a8 2 0x6032f0
node3 0x6032f0 0x39c 3 0x603300
node4 0x603300 0x2b3 4 0x603310
node5 0x603310 0x1dd 5 0x603320
node6 0x603320 0x1bb 6 0x0

So, the structure of node is:

struct LinkNode{
    int data;
    int num;
    long* node;
};

And then 0x4011d0 reverse the list. Run after the line 0x40115e, from following code, we know the node is order by the largest to the smallest.

4011e7: 7d 05                 jge    4011ee <phase_6+0xfa>

And from above table we can infer that:

node3.data > node4.data > node5.data > node6.data > node1.data > node2.data.

And because $7 - x$, we so should input:

4 3 2 1 6 5

And feedback information is:

Congratulations! You've defused the bomb!

But we don't completed all.

secret_phase

In the function phase_defused, we can find entry of secret_phase.

And set breakpoints b *0x4015e1, so that we can entry this function.

And look at following code:

4015f0: be 19 26 40 00        mov    $0x402619,%esi
4015f5: bf 70 38 60 00        mov    $0x603870,%edi
4015fa: e8 f1 f5 ff ff        callq  400bf0 <__isoc99_sscanf@plt>

and execute step by step(command si), we can get info:

s=0x603870 <input_strings+240> "7 0 ", format=0x402619 "%d %d %s"

so, the phase_4 input need add a new string argument.

And in line 0x401609, there has a string compare, we should look the value of ($rdi), and using command x/s $rdi get the value DrEvil.

so, modify input 7 0 to 7 0 DrEvil.

Then output is:

Curses, you've found the secret phase! But finding it and solving it are quite different...

In the function secret_phase, we need input a string which included a number infer from function strtol, and the number must greater than or equal to 1 and less or equal to 0x3e8.( line 0x40125a ~ 0x401267).

Secondly, the address of 0x6030f0 pointer a tree struct because if we input command x/60a 0x6030f0, we can get:

0x6030f0 <n1>:  0x24    0x603110 <n21>
0x603100 <n1+16>:       0x603130 <n22>  0x0
0x603110 <n21>: 0x8     0x603190 <n31>
0x603120 <n21+16>:      0x603150 <n32>  0x0
0x603130 <n22>: 0x32    0x603170 <n33>
0x603140 <n22+16>:      0x6031b0 <n34>  0x0
0x603150 <n32>: 0x16    0x603270 <n43>
0x603160 <n32+16>:      0x603230 <n44>  0x0
0x603170 <n33>: 0x2d    0x6031d0 <n45>
0x603180 <n33+16>:      0x603290 <n46>  0x0
0x603190 <n31>: 0x6     0x6031f0 <n41>
0x6031a0 <n31+16>:      0x603250 <n42>  0x0
0x6031b0 <n34>: 0x6b    0x603210 <n47>
0x6031c0 <n34+16>:      0x6032b0 <n48>  0x0
0x6031d0 <n45>: 0x28    0x0
0x6031e0 <n45+16>:      0x0     0x0
0x6031f0 <n41>: 0x1     0x0
0x603200 <n41+16>:      0x0     0x0
0x603210 <n47>: 0x63    0x0
0x603220 <n47+16>:      0x0     0x0
0x603230 <n44>: 0x23    0x0
0x603240 <n44+16>:      0x0     0x0
0x603250 <n42>: 0x7     0x0
0x603260 <n42+16>:      0x0     0x0
0x603270 <n43>: 0x14    0x0
0x603280 <n43+16>:      0x0     0x0
0x603290 <n46>: 0x2f    0x0
0x6032a0 <n46+16>:      0x0     0x0
0x6032b0 <n48>: 0x3e9   0x0
0x6032c0 <n48+16>:      0x0     0x0

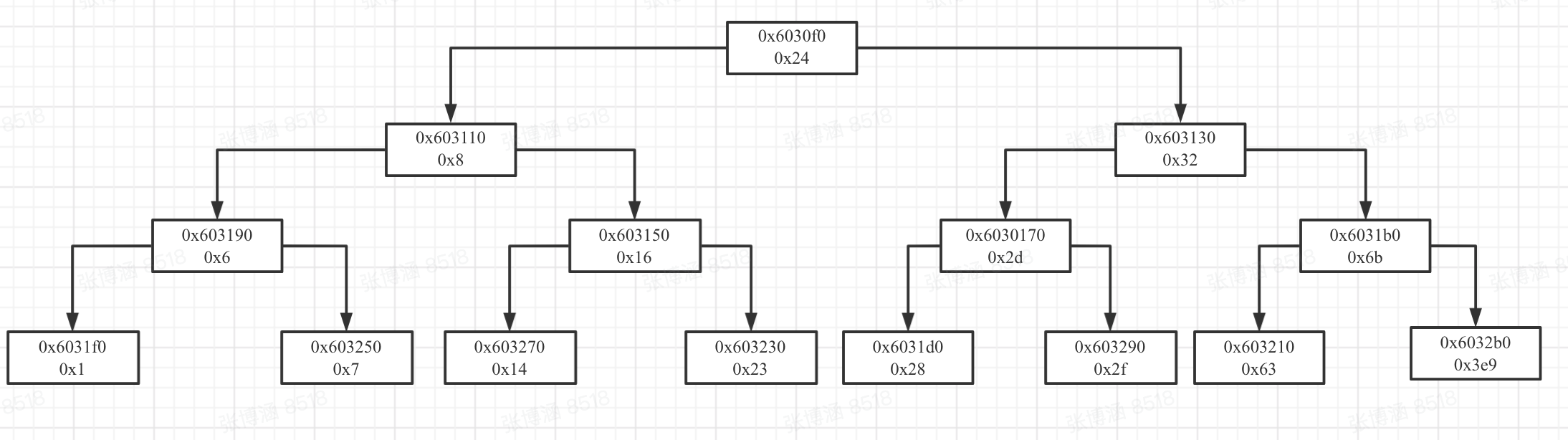

And the struct is:

tree

And from the code:

401273: e8 8c ff ff ff        callq  401204 <fun7>
401278: 83 f8 02              cmp    $0x2,%eax
40127b: 74 05                 je     401282 <secret_phase+0x40>
40127d: e8 b8 01 00 00        callq  40143a <explode_bomb>

we know the result of fun7 should be 2.

And then from fun7, the code can translate to:

func7(a, b){
    // a %rdi
    // b %rsi, input number
    if( a == 0) {
        return -1;
    }
    t1 = *a; // %edx;
    if( t1 - b <= 0) {
        t2 = 0;  // %eax
        if( t1 - b == 0) {  // we can infer that we must input some lead node value
            return t2;
        }
        else {
            a = *(a + 16); // %rdi, a = a.right
            fun7(a,b);
            t2 = 1 + 2 * t2; // %eax
            return t2;
        }
        t2 = t2 + t2;   // %eax
        return t2;
    }
    else {
        a = *(a + 8);   // %eax,  a = a.left
        fun7(a,b);
        t2 = t2 + t2;
        return t2;
    }
}

In order to get return value 2, the path should be left -> right -> right.

Ok, the result if 0x14, namely 20.

20

output:

Wow! You've defused the secret stage! Congratulations! You've defused the bomb!
