Ace Data Cloud Facilitator X402

Ace Data Cloud runs Facilitator X402 as the production settlement engine behind the X402 payment protocol. The service is publicly available at https://facilitator.acedata.cloud and ties into the wider Ace Data Cloud platform at https://platform.acedata.cloud.

X402 at a glance

x402 is an open protocol that brings stablecoin payments to plain HTTP by reviving status code 402 Payment Required:

• Clients obtain payment instructions through a standard HTTP response, then respond with a typed authorization.
• Signatures use EIP-712 typed data so destination, amount, validity window, and nonce are all cryptographically bound.
• Nonces eliminate replay; facilitators store each authorization before allowing settlement.
• Usage-based pricing, micropayments, and machine-to-machine scenarios become first-class—with no accounts, API keys, or session management.

Why it matters

Web-scale applications and AI agents need instant, programmable settlement. Legacy payment flows are slow and require pre-established credentials. x402 embeds payment in the request–response cycle, enabling trust-minimized pay-per-request experiences with the reach of the public internet.

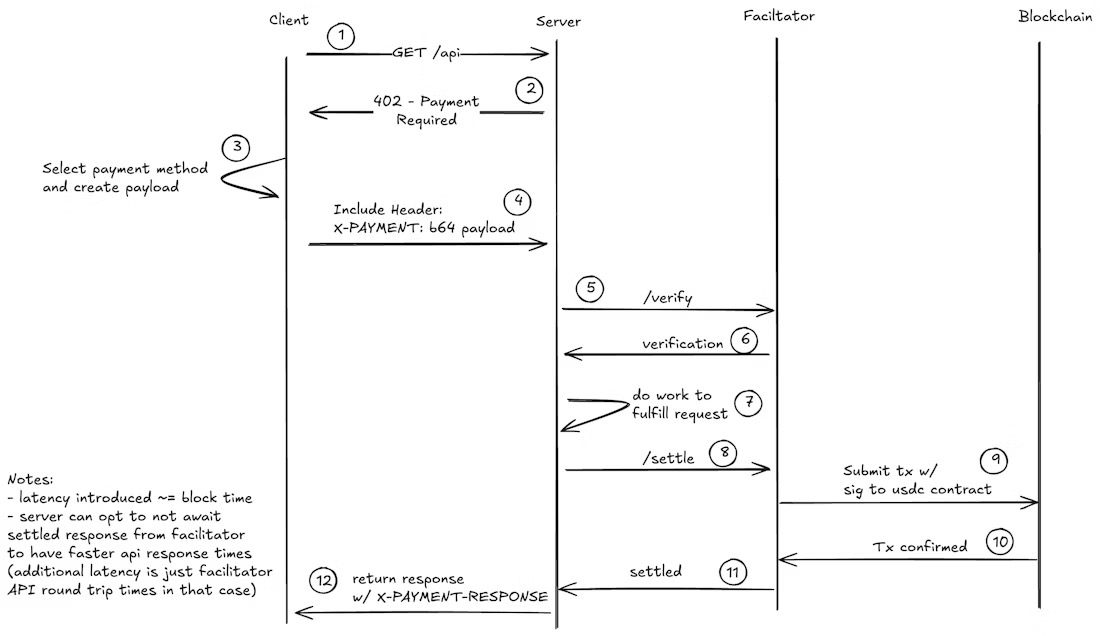

Protocol flow

1. The client requests a protected resource.
2. The server returns HTTP 402 with x402 paymentRequirements.
3. The client signs a TransferWithAuthorization payload and sends it back.
4. Facilitator X402 verifies, settles on-chain, and the resource is released.

Facilitator capabilities

• Authorization verification – POST /verify checks payload integrity and signature, enforces caps/validity, and persists the nonce for replay protection.
• Settlement execution – POST /settle re-validates the stored authorization, invokes transferWithAuthorization, waits for the receipt, and marks the record as settled.
• Operational endpoints – / serves a facilitator overview for humans, while /healthz exposes a JSON probe for L7 load balancers.
• Web3 integration – Configurable RPC endpoint, gas limits, and optional EIP-1559 fees. Supports any stablecoin contract address supplied in the request.
• Automated delivery – .github/workflows/deploy.yaml builds & deploys to Kubernetes using deploy/run.sh and the manifests under deploy/production/.

Configuration

Environment variables govern runtime behaviour (see the supplied .env).

Variable	Description	Required	Default
APP_ENV	Environment (local, production, …)	No	local
APP_SECRET_KEY	Django secret key	Yes	—
PGSQL_HOST, PGSQL_PORT, PGSQL_USER, PGSQL_PASSWORD, PGSQL_DATABASE_FACILITATOR	PostgreSQL connection info	Yes	—
X402_RPC_URL	RPC endpoint used for settlement transactions	Yes	—
X402_SIGNER_PRIVATE_KEY	Private key used to sign settlements	Yes	—
X402_SIGNER_ADDRESS	Optional explicit signer address	No	derived from key
X402_GAS_LIMIT	Gas limit applied to settlements	No	250000
X402_TX_TIMEOUT_SECONDS	Timeout (seconds) waiting for receipts	No	120
X402_MAX_FEE_PER_GAS_WEI	Max fee per gas (EIP-1559)	No	0 (use legacy gas price)
X402_MAX_PRIORITY_FEE_PER_GAS_WEI	Priority fee per gas (EIP-1559)	No	0

Callers are responsible for restricting pay_to, asset, and network values in payloads to approved destinations.

Development workflow

# install dependencies
pip install -r <(poetry export -f requirements.txt --without-hashes)
# or
poetry install

# apply migrations
python manage.py migrate

# start locally
python manage.py runserver 0.0.0.0:8008

Containers and deployment

• docker-compose build && docker-compose up runs the service with uvicorn core.asgi:application --host 0.0.0.0 --port 8000.
• Kubernetes manifests live under deploy/production. Use deploy/run.sh during CI/CD to substitute the build number and apply.
• The GitHub Actions workflow .github/workflows/deploy.yaml handles build → push → rollout to the Ace Data Cloud cluster.

API quick reference

POST /verify
Content-Type: application/json

{
  "paymentPayload": { ... },
  "paymentRequirements": { ... }
}

Response:

{ "isValid": true, "invalidReason": null, "payer": "0x..." }

POST /settle

Response on success:

{
  "success": true,
  "transaction": "0xabc123...",
  "network": "base",
  "payer": "0x..."
}

Failures return success: false with errorReason explaining validation failures, replay detection, RPC timeouts, or on-chain reverts.

Repository layout

FacilitatorBackend/
├── core/
├── x402f/
├── deploy/
├── Dockerfile
├── docker-compose.yaml
├── pyproject.toml
└── README.md

Production footprint and contact

• Facilitator endpoint: https://facilitator.acedata.cloud
• Ace Data Cloud platform: https://platform.acedata.cloud
• Updates and coordination: https://x.com/acedatacloud
