Fixes #226.
"Use full WMM with date and altitude" from #81.

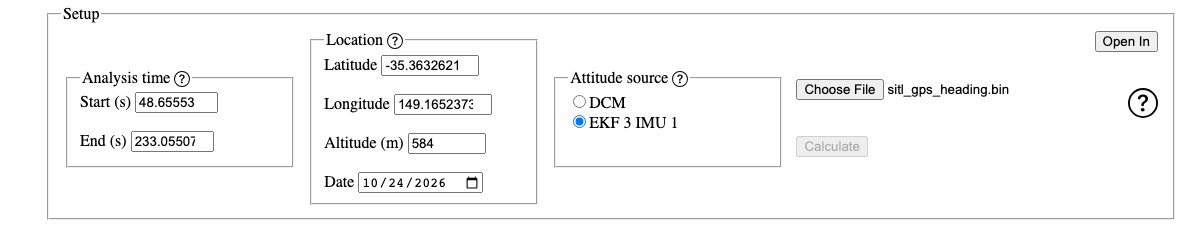

wmm.jsnow evaluates the WMM2025 spherical harmonic model (degree 12, with secular variation) instead of interpolating the 10 deg declination/inclination/intensity tables. The coefficients are embedded from NOAA'sWMM2025.COF, which is public domain. The implementation was checked against both published test sets: the 12 points inWMM2025_TEST_VALUES.txtmatch to the 0.1 nT rounding, and the 100 points in the.COFzip'sWMM2025_TestValues.txt(lat -87 to 89, 2025.0 to 2029.5, 0 to 100 km) match to within 0.001 nT.ORGN,POSorAHRS_ORIGIN_ALT). The date comes from the first GPS week/time in the log, or is the current date if there is none. All can be edited.expected_earth_field()returns the same fields as before (vector in mGauss NED, intensity, declination, inclination), so the fit code is unchanged.Compared with the tables on three logs, the expected field differs by about 2 mGauss (0.4%) and declination by 0.1 to 0.25 deg, so fitted offsets move by 1 to 2 mGauss. This also moves MAGFit away from the firmware's
AP_Declinationtables. Logs from before 2025 use the model extrapolated backwards.Position throughout the flight (the next item on the list) will follow separately on top of this.
