RadixView

RadixView shows the KV cache of a running SGLang server. It subscribes to the server's ZMQ event stream, logs every block the server stores or evicts, and draws the resulting radix tree as a web page at http://<host>:8765.

A block is the unit a KV event reports: page_size tokens, multiplied by dcp_size when decode context parallelism is on.

RadixView can run on a different machine from the GPU server. It does not route requests, and it does not read the server's radix tree in-process.

Install

Python 3.10 or newer.

pip install radixview

This installs the radixview command. From a checkout of this repository, pip install -e . installs that same command from the working tree.

Try the demo

No GPU and no model required. The demo is part of the repository, not the pip package. From a checkout:

python -m examples.demo

Open http://127.0.0.1:8765, or http://<host>:8765 from another machine. The demo fills the tree with synthetic agent traffic: one shared system prompt, many sessions, a few regenerated turns, and eviction once the cache is full.

Option	Default	Meaning
--blocks	400	How many blocks the cache keeps
--port	8765	Port for the page. 0 picks a free port

Prompt text for the demo is in examples/demo/corpus.json, and the generator is examples/demo/traffic.py. The library imports neither.

Watch an SGLang server

Start SGLang with KV events bound on a wildcard host such as *:

python -m sglang.launch_server \
  --model-path MODEL_PATH \
  --kv-events-config '{"publisher":"zmq","endpoint":"tcp://*:5557"}'

SGLang binds its publisher only on a wildcard host. With a concrete host such as tcp://127.0.0.1:5557 it connects out instead, nothing can subscribe to it, and RadixView exits with a hint.

Then, from this machine or another one that can reach the server:

radixview --server http://GPU_HOST:30000

Option	Default	Meaning
--server	http://127.0.0.1:30000	Base URL of the SGLang HTTP server
--api-key	none	Needed when SGLang was started with --api-key
--view-port	8765	Port for the page, on every interface. 0 picks a free port

Open http://<the host running RadixView>:8765.

RadixView reads /server_info to find one ZMQ endpoint per data-parallel (DP) rank, and turns stored token ids back into text through the server's /detokenize endpoint. The machine running RadixView must reach:

• GPU_HOST:30000, the SGLang HTTP port.
• GPU_HOST:5557 up to 5557 + dp_size - 1, one ZMQ port per DP rank.

Each event is logged like this, shown without the timestamp and logger name:

dp=0 seq=42 stored blocks=1 tokens=64 block_size=64 medium=GPU parent=1137640873890580499 hash=-2285270490815386373
  User: How do I handle GPU quota?
dp=0 seq=43 removed blocks=2 medium=GPU hashes=[-2285270490815386373, 5188292320627455716]
dp=0 seq=44 cleared

A skipped sequence number is logged as a gap. A sequence number that goes backwards is logged as a publisher restart.

Start RadixView before the traffic you care about, or restart SGLang after RadixView is up. Blocks stored before RadixView subscribed are not in the stream. Their descendants hang off a dashed placeholder node.

Security

The ZMQ events carry prompt token ids, and the page serves the decoded prompt text. Neither is encrypted or authenticated, and the page listens on every interface. Keep the ZMQ ports and --view-port on a trusted network.

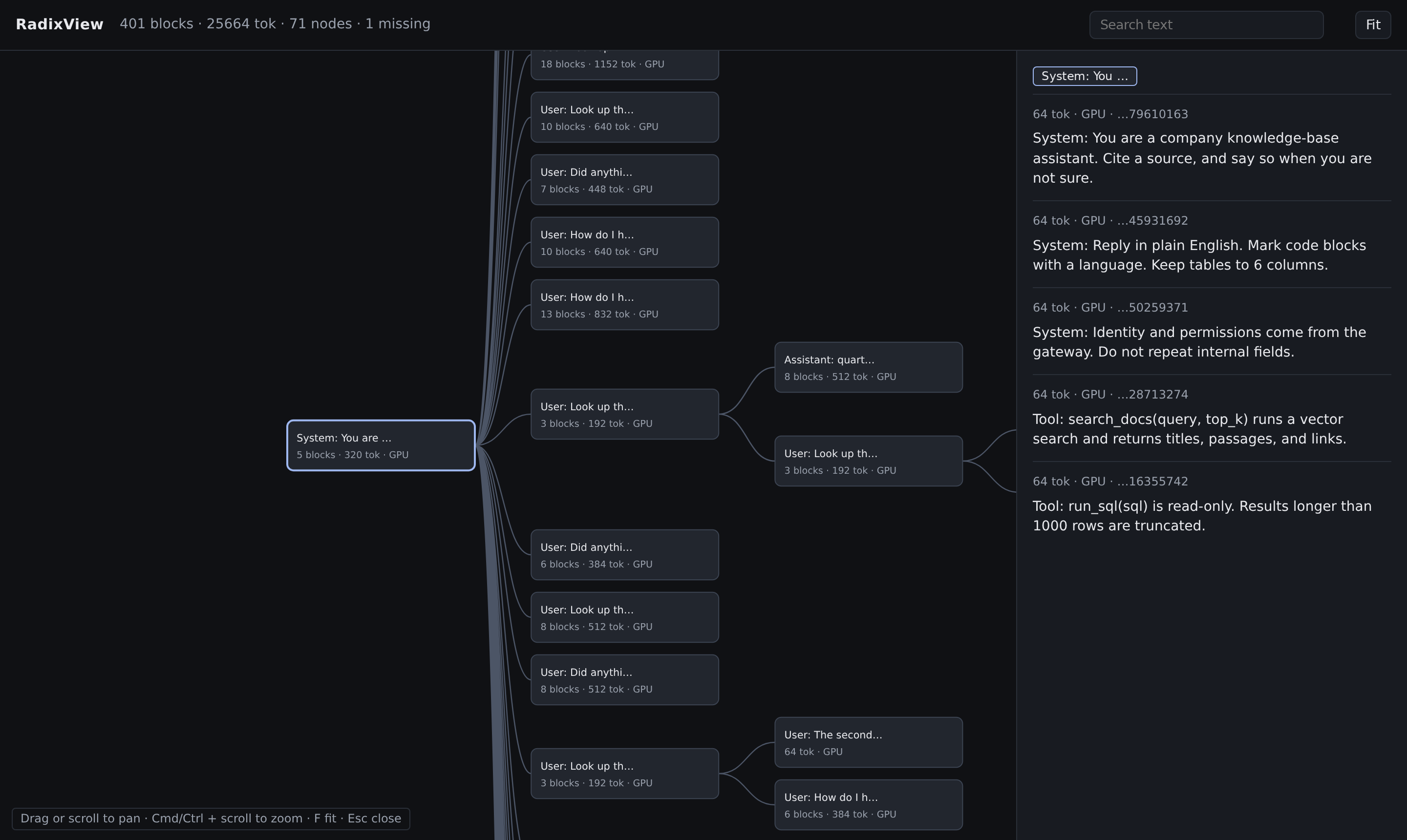

Reading the page

The tree reads left to right, like a prompt. A straight chain of blocks collapses into one node; every branch point starts a new node. Each node shows the start of its text, then its block count, token count, and storage medium (such as GPU or CPU_PINNED).

Click a node to open the side panel. It shows the path from the root and the full text of every block in the node. The search box matches the full block text, not only the preview. Search hits are outlined in green, and the selected node and its path from the root in blue.

Drag or scroll to pan. Cmd/Ctrl + scroll zooms. F fits the whole tree. Esc closes the side panel.

Development

pip install -e ".[dev]"
pre-commit install
pre-commit run --all-files
python -m unittest discover -s tests

Style follows SGLang: Apache-2.0 file headers, ruff format at line length 88, isort with the black profile, and ruff rules F401, F821, F823, and UP037. Ruff's C901 keeps every function's cyclomatic complexity below 10.

The page tests run under Node, through tests/test_web.py, on snapshots generated from the demo. They are skipped when node is not installed. Running the page itself does not need Node.

Path	Contents
radixview/cli.py, config.py	The radixview command and its options
radixview/discover.py	Finding ZMQ endpoints in /server_info
radixview/fetch.py	HTTP requests to SGLang. Loopback hosts skip http_proxy
radixview/wire.py	Decoding an event batch and formatting the log line
radixview/subscribe.py	The ZMQ subscriber
radixview/text.py	/detokenize
radixview/tree.py	The radix tree built from events
radixview/server.py	The page and /api/*
radixview/serve.py	Wiring the subscriber, the tree, and the page together
radixview/web/	The page. No build step. Labels are in web/js/format.mjs
examples/demo/	Synthetic traffic. Not part of the library
tests/	Python tests. tests/web/ tests the page modules

radixview/web/js/layout.mjs, viewport.mjs, and render.mjs are pure and have no DOM. main.mjs wires them to the page.

License

Apache License 2.0. See LICENSE.
