Generate FastAPI + SQLModel + FastCRUD + SQLAdmin applications from a DBML schema.

dbml-to-sqlmodel turns a DBML database schema into a ready-to-run, modular FastAPI project: SQLModel models, FastCRUD routers, an optional SQLAdmin panel, and a wired-up application — in a single command.

Features

• Generate SQLModel models from a DBML schema
• Auto-generate CRUD routers powered by FastCRUD
• Produce a FastAPI application with ready-to-use endpoints
• Optional SQLAdmin admin panel
• Preview mode to inspect changes before applying them
• Protection for your manual edits in generated files (USER_MODIFIED marker)
• Reverse conversion: generated code back to DBML
• Interactive CLI and direct commands

Requirements

• Python 3.11+
• uv (recommended) or any other Python environment manager

Installation

Code generation only

pip install dbml-to-sqlmodel

To run the generated applications

# Install with runtime dependencies
pip install "dbml-to-sqlmodel[runtime]"

# Or install the runtime dependencies separately in your project
pip install "fastapi[all]" sqlmodel fastcrud sqladmin aiosqlite

# Or, when working inside this repository
uv sync --extra runtime

Quick Start

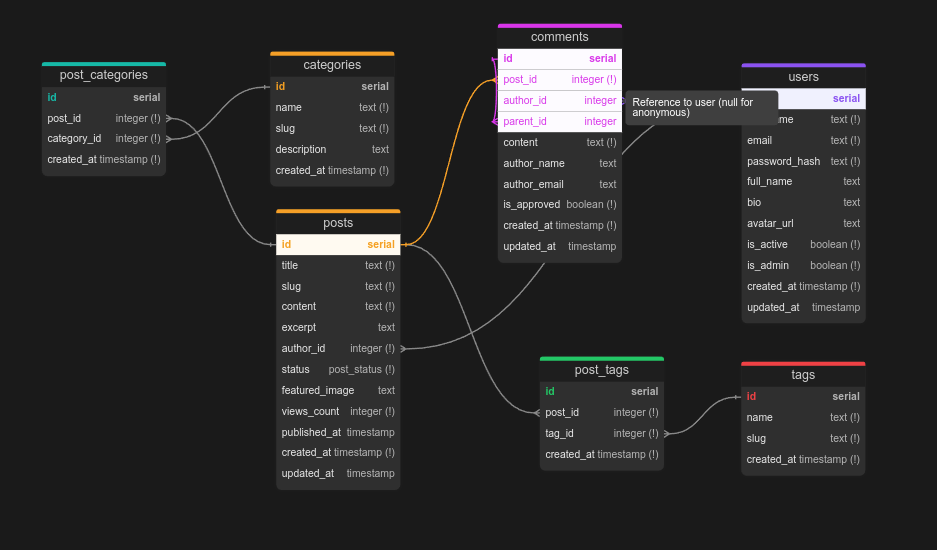

1. Create a DBML schema

Create a schema.dbml file describing your database. For example:

Table users {
  id integer [primary key]
  username varchar(255) [not null, unique]
  email varchar(255) [not null, unique]
  created_at timestamp [default: `now()`]
}

Table posts {
  id integer [primary key]
  title varchar(255) [not null]
  content text
  user_id integer [ref: > users.id]
  created_at timestamp [default: `now()`]
}

2. Generate the application

dbml-to-sqlmodel generate schema.dbml -o output

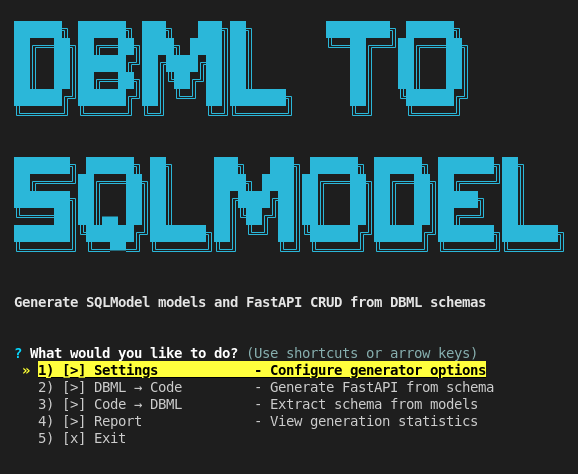

Or launch the interactive mode:

dbml-to-sqlmodel
# or the alternative command
dbml2sm

After generation, all SQLModel objects and their FastCRUD routers are created automatically in the target directory.

3. Configure the environment

cd output
echo "DATABASE_URL=sqlite+aiosqlite:///./database.db" > .env

# Install the runtime dependencies if they are not installed yet
pip install "dbml-to-sqlmodel[runtime]"

4. Run the application

python main.py

# From this repository you can also run it via Make.
# `make run` first installs the runtime dependencies (uv sync --extra runtime)
# and then starts the server; `make dev` does the same with hot reload.
make run

5. Open it in the browser

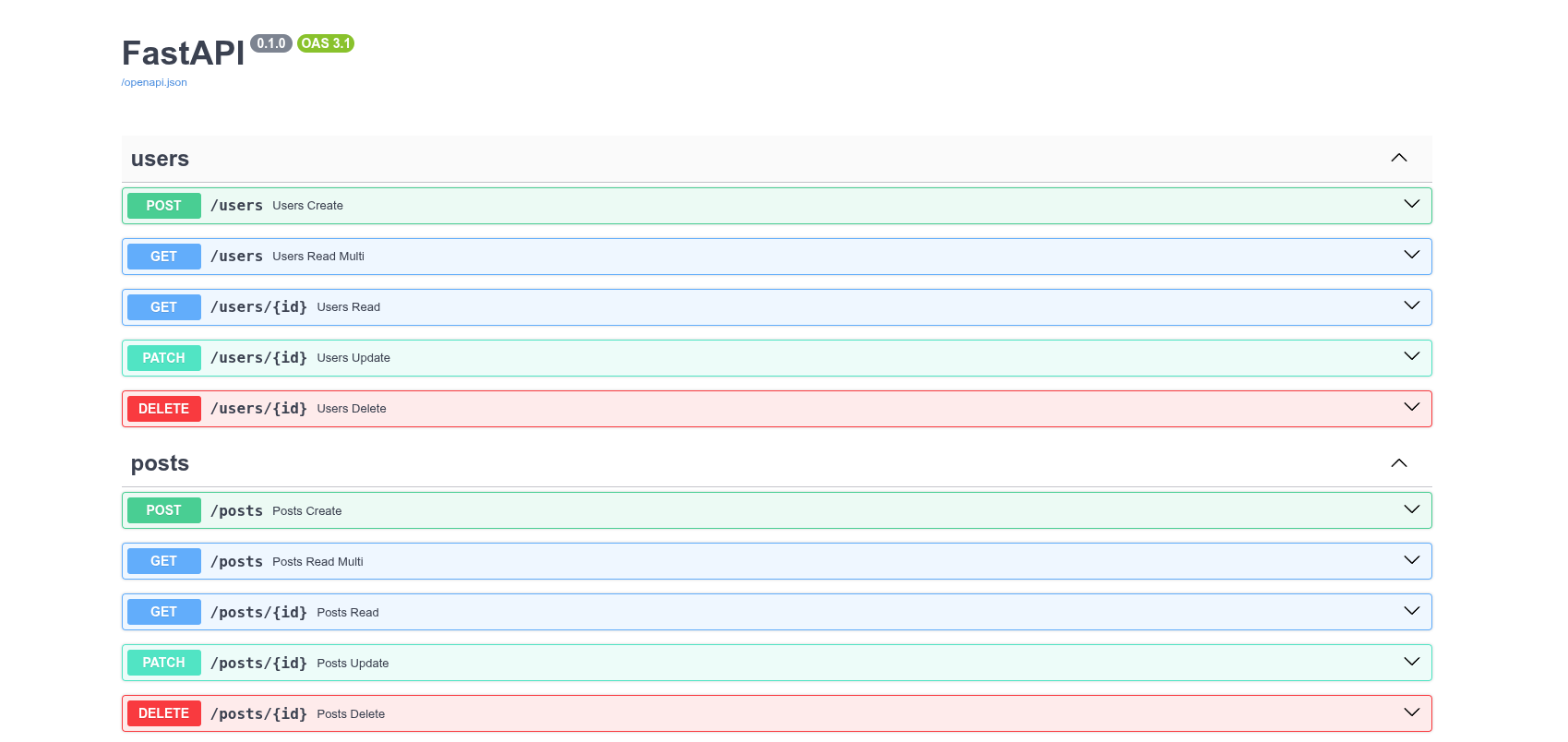

• API documentation: http://localhost:8001/docs

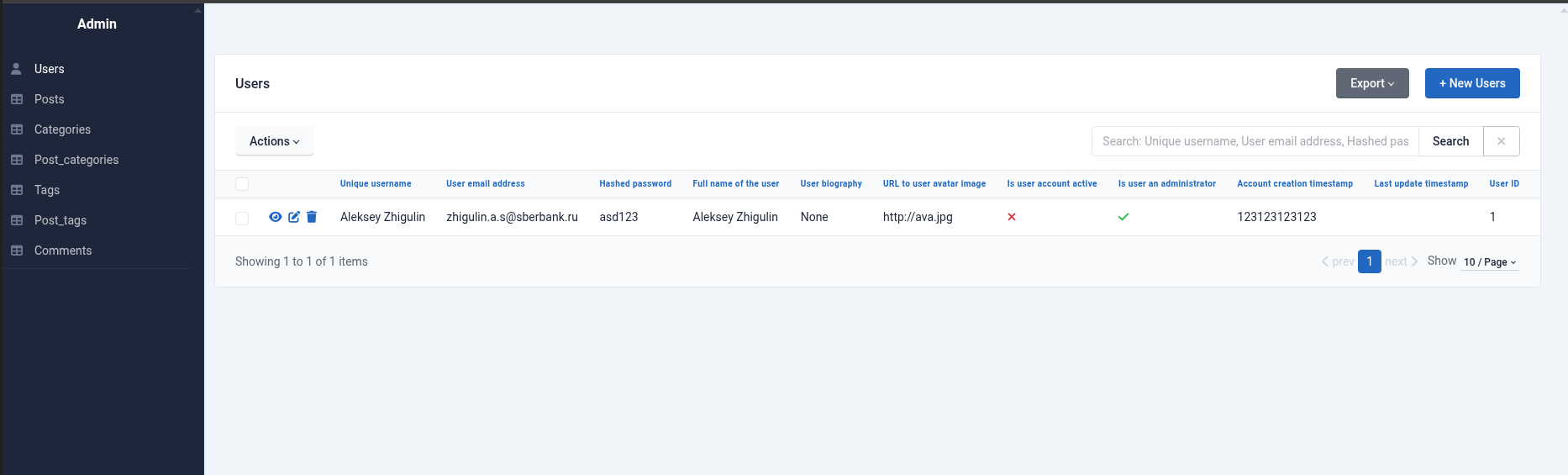

• SQLAdmin panel: http://localhost:8001/admin

Generated Structure

The generator produces a modular project with a dedicated directory per table:

output/
├── main.py              # FastAPI application
├── admin.py             # SQLAdmin configuration
├── requirements.txt     # Dependencies
└── models/
    ├── __init__.py      # Exports all models
    ├── users/
    │   ├── model.py     # SQLModel classes (Users, UsersCreate, UsersUpdate)
    │   ├── crud.py      # FastCRUD router
    │   └── __init__.py
    ├── posts/
    │   ├── model.py
    │   ├── crud.py
    │   └── __init__.py
    └── ... (one directory per table)

For a detailed description of the structure, see the CLI Guide.

Using It in Your Own Project

dbml-to-sqlmodel is a code generator: you need it while developing (to scaffold and regenerate code from your schema), but the running application never imports it. The recommended setup is therefore:

• add the generator itself as a development dependency, and
• add the libraries the generated app uses as your project's runtime dependencies.

1. Add the generator as a dev dependency

# uv (recommended)
uv add --dev dbml-to-sqlmodel

# Poetry
poetry add --group dev dbml-to-sqlmodel

# pip (e.g. into requirements-dev.txt)
pip install dbml-to-sqlmodel

2. Add the runtime libraries the generated app needs

The generated project imports FastAPI, SQLModel, FastCRUD, SQLAdmin and an async database driver. Add them as regular (runtime) dependencies of your project:

uv add "fastapi[all]" sqlmodel fastcrud sqladmin aiosqlite greenlet

greenlet is required by SQLAlchemy's async engine and is not auto-installed on every platform/Python combination, so add it explicitly — otherwise the app fails to start with the greenlet library is required.

3. Recommended workflow

1. Keep schema.dbml under version control and treat it as the single source of truth.
2. Regenerate the code whenever the schema changes:

   uv run dbml-to-sqlmodel generate schema.dbml -o output

3. Preview the changes before applying them to an existing project:

   uv run dbml-to-sqlmodel preview schema.dbml -o output

4. Protect any file you edit by hand with a # USER_MODIFIED marker (see Protecting Your Modifications); such files are kept on regeneration unless you pass --force.
5. If you adjusted the models by hand, you can sync the schema back from the code:

   uv run dbml-to-sqlmodel code-to-dbml output -o schema.dbml

6. Commit both schema.dbml and the generated code so the repository stays reproducible.

CLI Usage

Full CLI reference: CLI Guide.

Quick Commands

Everywhere dbml-to-sqlmodel can be replaced with the shorter dbml2sm.

# Interactive CLI mode
dbml-to-sqlmodel

# Generate the application
dbml-to-sqlmodel generate schema.dbml -o output

# Preview changes
dbml-to-sqlmodel preview schema.dbml

# Schema information
dbml-to-sqlmodel info schema.dbml

# Reverse conversion: code -> DBML
dbml-to-sqlmodel code-to-dbml output -o schema.dbml

# Show the installed version
dbml-to-sqlmodel --version

Configuration

Environment Variables

Create a .env file in the project root:

DATABASE_URL=sqlite+aiosqlite:///./database.db

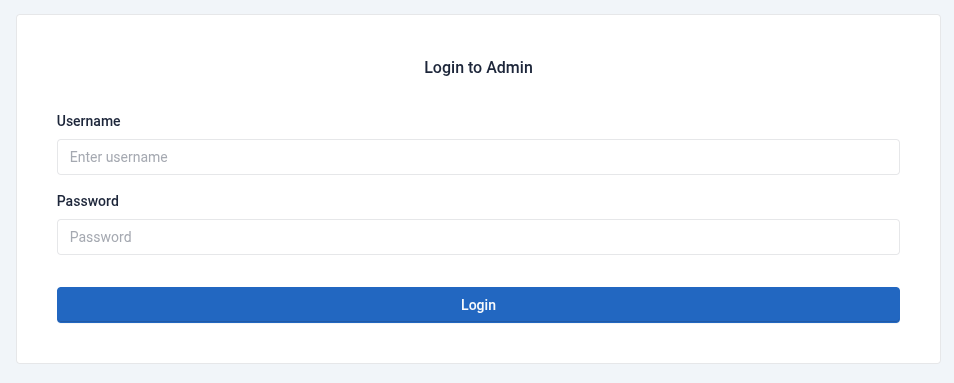

SQLAdmin Authentication

To enable authentication for the admin panel:

dbml-to-sqlmodel generate schema.dbml --admin-auth

Add the following to .env:

ADMIN_USER=admin
ADMIN_PASS=your-secure-password
ADMIN_SECRET=your-secret-key-must-be-at-least-32-characters-long

Other configuration options are described in the CLI Guide.

Protecting Your Modifications

If you edit generated files and want to protect them from being overwritten on regeneration, add the following comment at the top of the file:

# USER_MODIFIED

Files with this marker are not overwritten unless you pass the --force flag.

Table Relationships

Supported relationship types:

• One-to-Many: ref: > table.column
• Many-to-One: ref: < table.column
• One-to-One: ref: - table.column

Example:

Table posts {
  id integer [primary key]
  user_id integer [ref: > users.id]  // Many-to-One
}

Documentation

• CLI Guide — full command reference and usage examples
• Changelog
• Contributing

Contributing

Contributions are welcome! Please read the contributing guidelines before opening a pull request.

License

This project is licensed under the terms of the MIT License.
