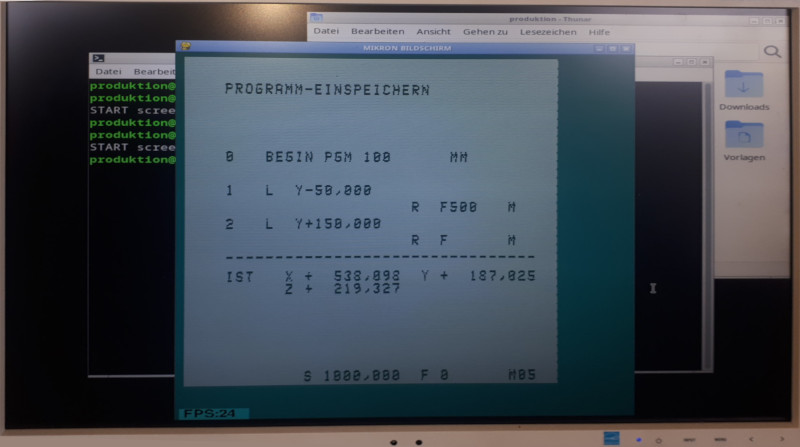

to replace old-monitor with minipc
capture framerate is slow ! no realtime ! 1/3 FPS
supportet signals
- Heidenhein TNC 150: SCREEN BE110
comming soon
- Sinumerik 810m
- ..
Prerequisites
- Operating System: Debian like OS
- xfce4-desktop or openbox
- min 2x CPU cores i3 2Ghz
- a Hardware USB Logic analyzer 8CH 24MHz !
install software on debian execute as root
apt install sigrok-firmware-fx2lafw sigrok-cli
apt install python3-pygame
# optional
apt install sigrok pulseview
apt install screen
record a frame sample for archive
# read all screen frame from file recorded with
# self.cmd="sigrok-cli --driver=fx2lafw --channels D0=f,D1=h,D2=v --config samplerate=8m --samples=1700k"
clone git repo
git clone https://github.com/flo932/crt-screen-video-grabber.git
start programm
cd crt-screen-video-grabber
python3 screen2.py
# optional startup script
sh start.sh
see pinout in doc/
example:frame sync,line sync,pixel pin... voltage divider from 6v to 3v

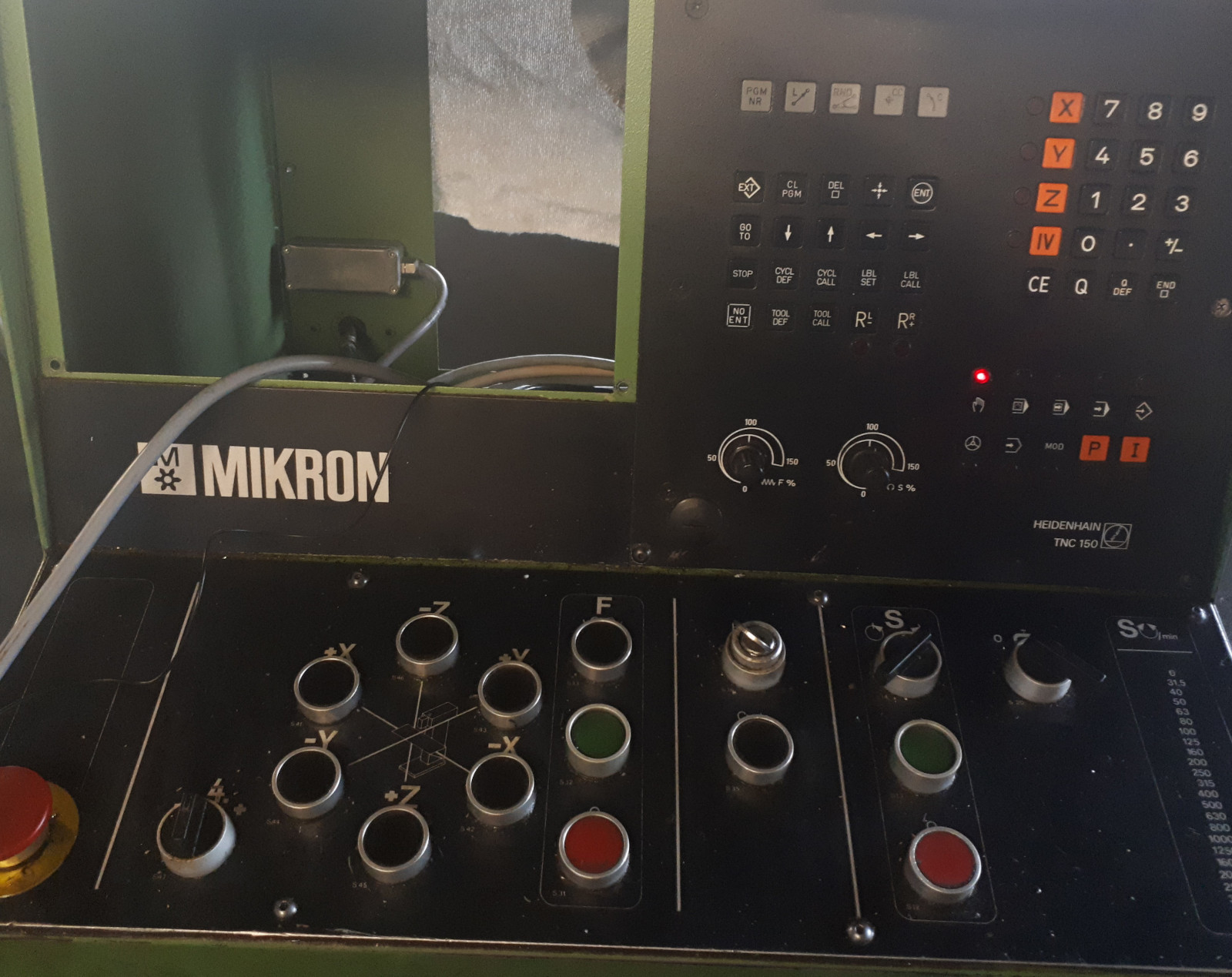

old cnc-controler, with broken crt-screen
