k8s node debugger

Spin up a privileged debug pod on any Kubernetes node and inspect its full network stack from a browser — no SSH required.

One command creates the pod, opens the browser, and cleans up when you're done.

node bin/k8s-node-debugger.js <node-name>

Screenshots

Firewall — iptables, nftables, and IPVS tabs

Conntrack — live connection tracking

Node Health — CPU, memory, disk, PSI, OOM, kubelet logs

GPU Health — temperature, power, utilization, memory, ECC errors, clock throttle

GPU Status — driver version, CUDA, per-GPU metrics, processes

Storage — partitions, folder drill-down, top containers by disk usage

Install

npm install -g @gtadi/k8s-node-debugger

Or run without installing:

npx @gtadi/k8s-node-debugger <node-name>

Requires kubectl on your PATH with an active kubeconfig. The debug image (nicolaka/netshoot) is pulled from Docker Hub on first use.

From source

git clone git@github.com:goutamtadi1/k8s-node-debugger.git
cd k8s-node-debugger
npm install
node bin/k8s-node-debugger.js <node-name>

Usage

# list nodes in the current context
node bin/k8s-node-debugger.js --list

# debug a specific node (opens http://localhost:7878)
node bin/k8s-node-debugger.js <node-name>

# options
node bin/k8s-node-debugger.js <node-name> \
  --namespace kube-system \   # namespace for the debug pod (default: default)
  --context my-ctx \          # kubeconfig context (default: current)
  --port 9000 \               # UI port (default: 7878)
  --keep \                    # leave the pod running after exit
  --no-open                   # don't auto-open the browser

Press Ctrl-C to stop the server and delete the debug pod.

What it shows

Section	Probes
Firewall	iptables (all tables), iptables nat, nftables, IPVS — each as a tab
DNS	resolv.conf, nsswitch.conf, /etc/hosts
Conntrack	connection table, per-CPU stats, count/max gauge — each as a tab
Routing	IPv4 routes, IPv6 routes, policy rules
Interfaces	ip addr, ip link stats, ARP/neighbors
Sockets	listening sockets, all TCP/UDP with process names
Kernel	key net.* sysctls
Health	CPU & load, memory, disk usage, PSI pressure, OOM kills, kubelet logs — each as a tab
Storage	physical partitions, layered du drill-down, top containers ranked by snapshot disk usage
GPU	nvidia-smi status, GPU processes, DCGM health check
Terminal	streaming terminal — run any command inside the pod (tcpdump, dig, ping, conntrack -E …)

Storage view features

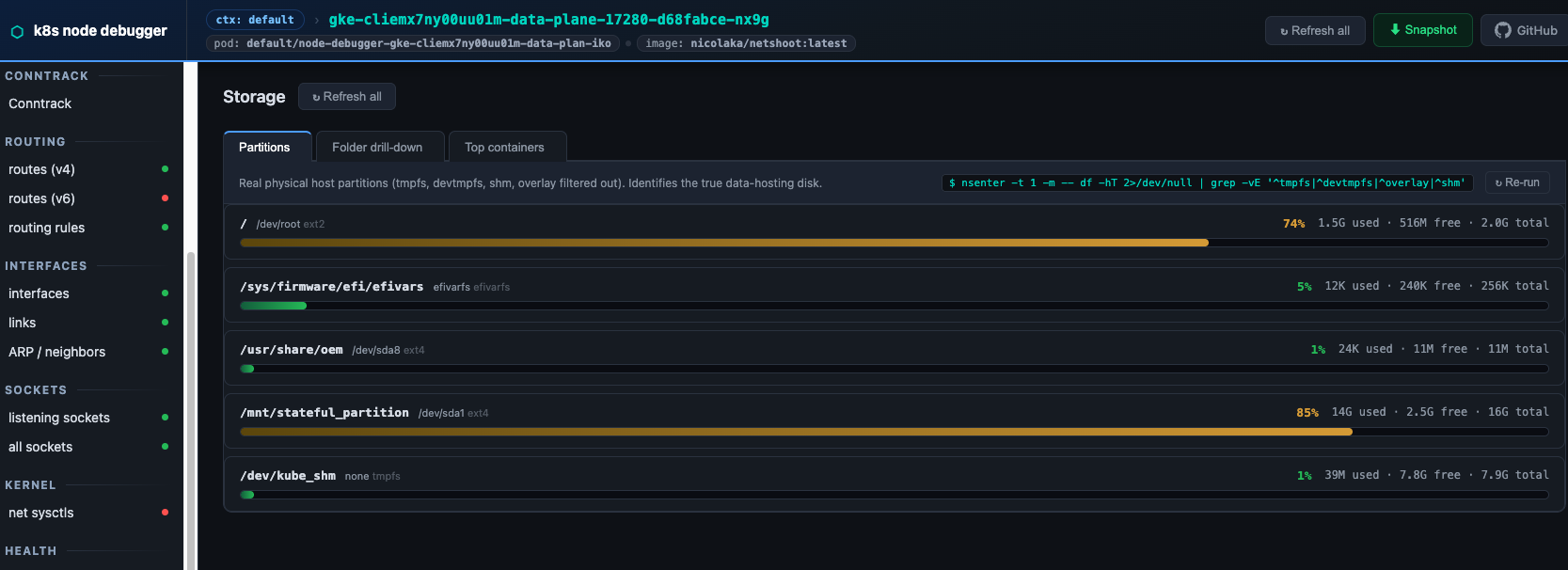

• Partitions — df -hT filtered to real physical disks (tmpfs, devtmpfs, shm, overlay excluded); usage bars per partition
• Folder drill-down — layered du bars across four levels: stateful partition → /var → /var/lib → containerd; each level shows sub-folders ranked by size

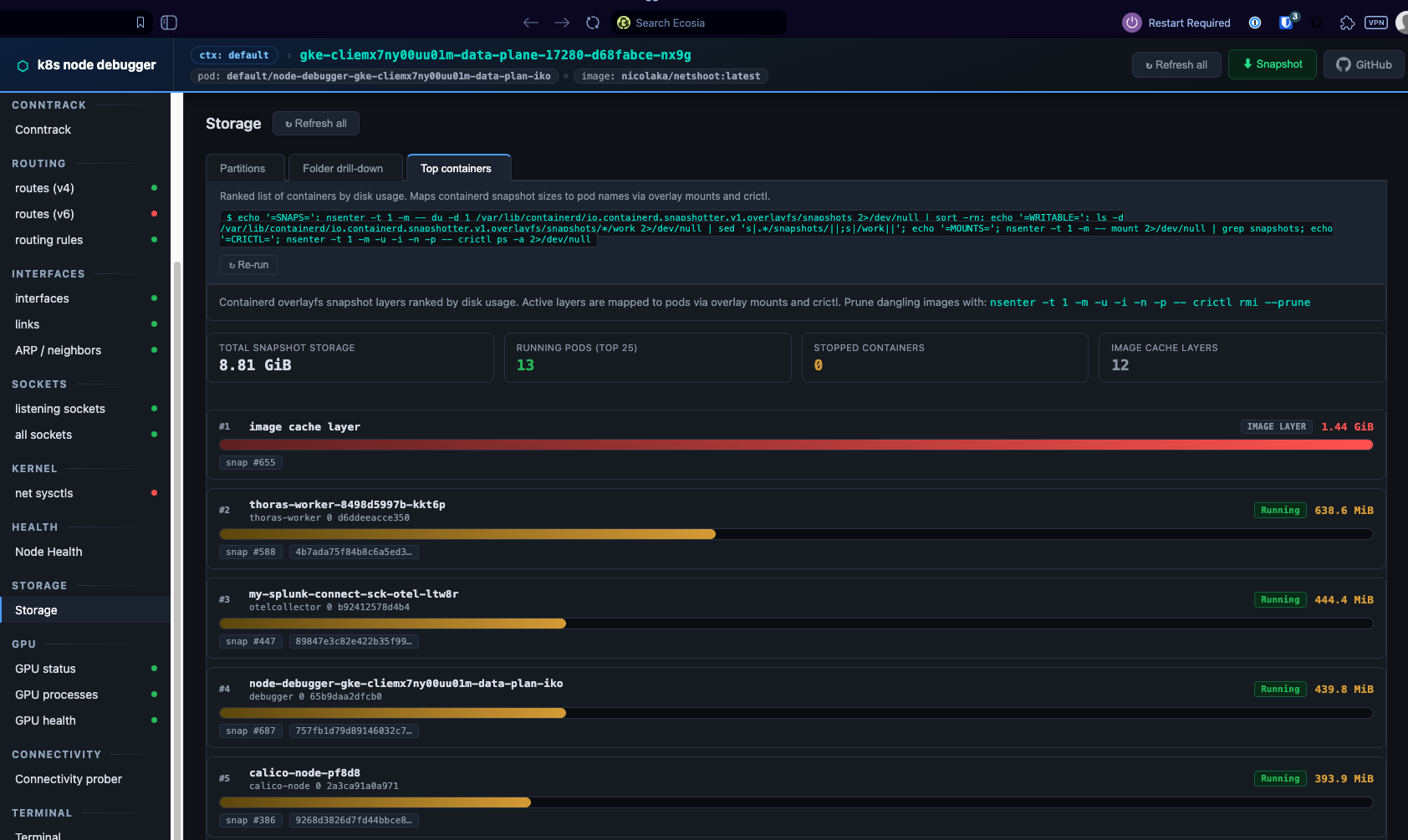

• Top containers — containerd overlayfs snapshot directories ranked by disk usage, mapped to pod names via overlay mounts and crictl ps -a; unmapped snapshots classified as stopped container (has writable work/ layer) or image layer (read-only, no work/ dir); summary shows total snapshot storage, running pods, stopped containers, and image cache layer counts

Node Health view features

• CPU & load — load averages (1/5/15 min) vs core count, CPU model, steal %, top processes
• Memory — used/available/cached/swap gauges from /proc/meminfo
• Disk usage — df -h per filesystem with usage bars
• PSI pressure — CPU, memory, and I/O stall metrics from /proc/pressure/*; colour-coded ok/warn/critical
• OOM kills — parsed dmesg entries with process names and timestamps; empty means no OOM events since boot
• kubelet logs — last 100 lines from journalctl, errors and warnings highlighted

iptables view features

• Tabs per table (mangle · security · raw · filter · nat) with rule counts
• Collapsible chain cards with default-policy badge and packet/byte counters
• Colour-coded target badges: ACCEPT / DROP / REJECT / MASQUERADE / DNAT / LOG / MARK / k8s chain / …
• Human-readable rule summaries with port service names (SSH, HTTPS, etcd, kubelet, k8s-API, NodePort range …)
• Live search across all tables and chains
• KUBE-SVC-* / KUBE-SEP-* chains collapsed by default; toggle with K8s chains button
• Click any rule to reveal the raw iptables-save line
• Raw toggle to fall back to plain text

conntrack view features

• Stat cards: Total · TCP ESTABLISHED · TCP TIME_WAIT · UDP · ICMP · total bytes
• Protocol distribution bar and TCP state breakdown bar
• Top 8 source IPs and top 8 destination ports (with service names)
• Filter by protocol and TCP state; full-text search by IP, port, or state
• Connection rows show state badge, ASSURED/UNREPLIED flag, src:port → dst:port, TTL, bytes, and a NAT tag when the reply source differs from the original destination
• Paginated 200 at a time
• Per-CPU stats table with drops/errors highlighted in red
• Count/max capacity gauge (green → amber → red at 50% / 80%)

How it works

The debug pod (nicolaka/netshoot) is created with:

• hostNetwork: true — shares the node's network namespace
• hostPID: true — allows nsenter to enter the host mount namespace
• privileged: true — required for iptables / conntrack / tcpdump
• Host root mounted at /host — for reading node files
• Tolerations for all taints — schedules onto control-plane nodes too

The server shells out to your local kubectl, so your active kubeconfig, current context, and any exec auth plugins (EKS, GKE, AKS) are reused automatically.

Environment variables

Variable	Default	Description
KUBECTL_BIN	kubectl	Path to the kubectl binary
DEBUGGER_IMAGE	nicolaka/netshoot:latest	Debug container image
