Few changes to better interact with UI

[ciechompl]

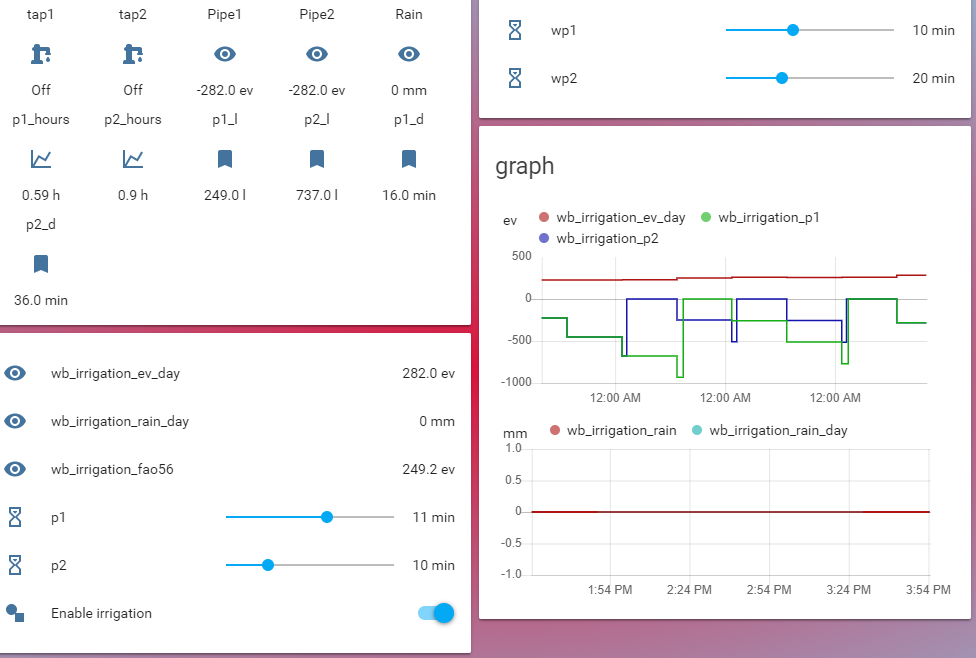

Few features to show interesting thing in the UI:

• show schedule in variable.wbi_schedule_pX
• calculate next planned irrigation duration every hour and pass it to input_number.wbi_pX_duration
• alternative for accumulator in order to show some statistics of total irrigation time (today, yesterday, current week, month, year)

Changes to be committed:
modified: apps/apps.yaml
modified: apps/heat_app.py
modified: pkgs/irrigation.yaml

[hhaim]

@ciechompl the code in AppDeamon is not needed you can do it in the UI
It is just queue_size * week duration. There is no need to run this math every hour!
The queue size is the important factor and it is exposed as a variable to Grafana

In short I suggest to remove the AppDaemon part

[ciechompl]

WBI calculate irrigation time as the following: irrigation_time_min = int((-queue) * duration_min / self.max_ev_week)
queue comes from sensor sensor.wb_irrigation_pX (available in UI)
duration_min comes from input_number.wbi_week_pX_duration (available in UI)

max_ev_week is a calculated as the following: max_ev_week = 7.0 * hours * (0.46 * tmean + 8.13)
hours comes from m_temp_hours defined only in apps.yaml
tmean comes from m_temp_celsius defined only in apps.yaml
so both are not available in UI.

Of course we can assume that we could set another variable (or whatsoever) to hard-define max_ev_week or alternatively move m_temp_hours & m_temp_celsius to some input_numbers from UI but i think we always should take up to date data :)

Please suggest which is your preferred way to modify ?
a) AppDeamon part as i proposed so far (benefit is that we use exactly the same line of code as will be used during irrigation)
b) define m_temp_hours & m_temp_celsius in the UI as input_numbers (still small AddDeamon part needs to be updated)
c) add new variable to pass max_ev_week to UI and do everything else in UI (still small AddDeamon part needs to be updated)
d) skip every change and hardcode max_ev_week and do math , all in UI only
e) any other idea ? :)

[hhaim]

@ciechompl

1. show schedule in variable.wbi_schedule_pX

[hh] good idea

2. calculate next planned irrigation duration every hour and pass it to input_number.wbi_pX_duration

[hh] I don't see a need to calculate it every hour. You can extract this info from the variable wpi_px_hours

3. Alternative for an accumulator ..

[hh] use 2 variable for that

[ciechompl]

wpi_px_hours

typo or I missed something :) ?

[hhaim]

It is not a typo:

sensor:

  - platform: accumulator
    name: wbi_p1_hours
    entity_id: switch.wbi_p1
    state_on: 'on'
    state_off: 'off'

  - platform: accumulator
    name: wbi_p2_hours
    entity_id: switch.wbi_p2
    state_on: 'on'
    state_off: 'off'

[ciechompl]

ok so I think i explained wrongly what I want to achieve :)

My main goal is to see how the elapsed time and weather conditions affecting the calculated time of the next irrigation. I understand that this might be completely not interesting for many but for me is :)
That is why - on hourly basis - I would like to get queue_sensor (sensor.wb_irrigation_pX) updated and also do maths for irrigation_time_min and pass result to manual_duration (input_number.wbi_pX_duration) to make is visible in UI.

so if you can accept the fact that I'm unusually curious :) guide me please with your preferred approach to achieve above and I will try to make appropriate changes in the code. I'm not a programmer so it takes me a while to understand things .. sorry for that :)

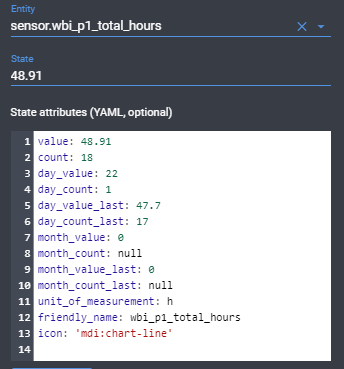

re accumulator (wbi_pX_hours) ... Accumulator for me works strange as wrote earlier (after HA restart it is counting even if switch is off) so I do not use it (I replaced by platform: history_stats) ... further even if I look at attributes of this sensor i have no clue how could I extract next calculated irrigation time from the variable wbi_pX_hours as you suggested above.

[hhaim]

My main goal is to see how the elapsed time and weather conditions affecting the calculated time of the next irrigation.
This is exactly wbi_irrigation_px (queue level)

The hours sensor just take the value. It is accumulation of time (hours) of irrigation
