feat(plotly): add Plotly backend with the four acceptance templates#61
Merged
Merged
Conversation
Add a fourth rendering backend per docs/adding-a-backend.md: an
assemblePlotly orchestrator reusing the shared core pipeline
(Phase 0 semantics / Phase 1 layout), diverging only at Phase 2 to
emit Plotly figures ({ data: traces[], layout }). Figures are pure
JSON — temporal axes use Plotly's native date axis instead of tick
callbacks, so compiled specs survive serialization.
First-merge scope (§6 acceptance): Bar, Line, Area, Scatter templates
mirroring the Chart.js templates' decisions (category order, zero
baseline, color grouping, horizontal bar transposition, interpolate /
opacity / stackMode / showPoints properties). column/row facet
encodings are dropped with an 'unsupported-channel' warning; subplot
grids are a follow-up.
Wiring per §4: barrel export, tsup entry, ./plotly subpath export,
plotly.js as an optional peerDependency (mirrors chart.js), smoke
test, and tests/plotly-backend.test.ts (10 cases incl. a recursive
no-functions JSON-purity check).
Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
PlotlyView (plotly.js-dist-min, designed-size wrapper mirroring ChartjsView), a BACKENDS adapter entry, and the per-view dispatch lines in WallChart / TripleChart / DocChart. Editor output language and ChartWall result names gain their 'plotly' entries. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Facets: column/row encodings render as a subplot grid (facet.ts) — per-panel axis pairs with explicit domains, mirroring the Chart.js backend's facet decisions: shared nice-rounded y-domain, y tick labels and title on the leftmost column only, column-only wrapping from the shared facet budget, column headers above panels. Row headers sit on the right (Vega-Lite style) because the left edge is occupied by y labels in a single combined figure; x-axis titles show on the bottom row only for the same reason. The first-merge 'unsupported-channel' warning path is gone — all four templates now declare column/row. Colors: colormap.ts mirrors chartjs/colormap.ts — core color decisions (schemeType / schemeId / categoryCount) pick from Plotly-native palettes (plotly10 / light24 qualitative, viridis sequential, RdBu diverging); templates thread the resolved palette instead of indexing the default colorway directly. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
genPlotlyCoreTests (four templates, color on/off, horizontal bar) and genPlotlyFacetTests (column / row / column-row grid), registered as 'Plotly: Core Templates' and 'Plotly: Facets' in TEST_GENERATORS per the adding-a-chart-template §4 generator pattern. The backend test file grows facet-grid assertions (axis pairs, shared range, leftmost-only labels, header annotations, legend dedupe), a diverging-vs-categorical scheme pick, a generator round-trip that assembles every dedicated case, and keeps the JSON-purity check over a facet figure. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Regenerate package-lock.json from origin/dev and re-add just the plotly entries (plotly.js-dist-min package + site dependency, plotly.js peerDependency + peerDependenciesMeta), dropping the unrelated peer-flag churn a full npm install had introduced. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Contributor
|
This is a fantastic work stream. Let me take a look. |
zl190
added a commit
to zl190/flint-chart
that referenced
this pull request
Jul 19, 2026
Contributor
|
@copilot resolve the merge conflicts in this pull request |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
2 participants
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
What
Refs #54 (scope claimed there). Adds
assemblePlotlyas a fourth backend with the four acceptance templates fromdocs/adding-a-backend.md§6: Bar Chart, Line Chart, Area Chart, Scatter Plot. Further templates as follow-ups, per the guide's parity note.Implementation
{ data, layout }figure that is plain JSON — no callback functions anywhere, asserted by a recursive check and aJSON.parse(JSON.stringify(fig))round-trip test.column/rowfacets compile to Plotly subplot grids, following the chartjs facet decisions: shared nice y-domain, y ticks and title on the leftmost column only, column-only wrapping by facet budget, column headers as annotations. Row headers sit on the right (the left edge is taken by y labels in a composed figure — noted in code comments).colormap.tsthat consumes the core color-decisions layer (explicit scheme → schemeType/cardinality-based pick → Plotly qualitative default), mirroring the chartjs colormap's strategy with Plotly-native palettes../plotlysubpath, smoke test,plotly.jsas an optional peerDependency matching the other renderers, and two dedicated test-data generators (Plotly: Core Templates,Plotly: Facets) registered inTEST_GENERATORS.PlotlyViewcomponent +supported-backends.tsentry, so the templates render on the standard gallery matrices.One known simplification: with a diverging scheme (e.g.
Temperature), a single-trace bar picks one ramp color rather than mapping values through the colorscale; continuous value→color mapping is a larger change and is left as a follow-up.Verification

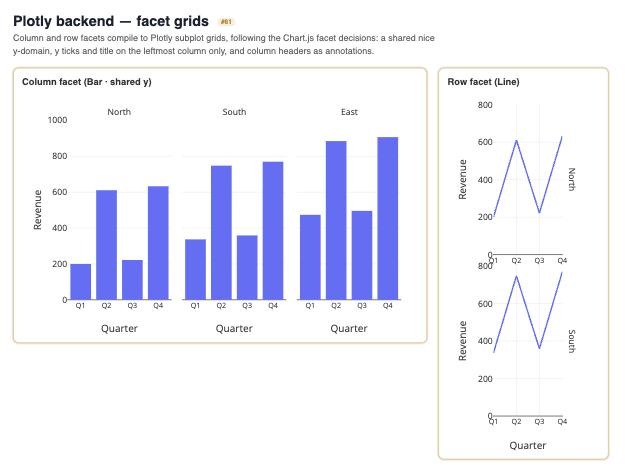

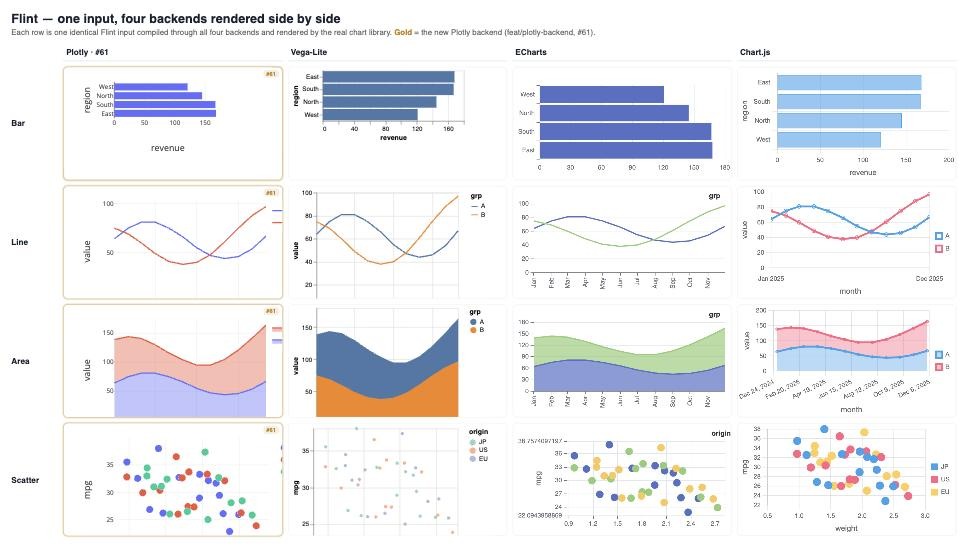

tests/plotly-backend.test.ts— 15 cases + a smoke-test addition (registry guard, per-template shape, zero baseline, color grouping, facet grids: column / row / 2×2 / legend dedup, diverging vs categorical scheme pick, generator round-trip, JSON purity incl. facet figures)npm run buildproducesdist/plotly(ESM/CJS/DTS); eslint clean on new filesplotly.js-dist-minsite dependencyRendered on the same inputs across all four backends (Vega-Lite, ECharts, and Chart.js as the parity reference), plus the facet grids:
🤖 Generated with Claude Code
