Description

Redesign Console pages around their workflows: resource lists, cluster operations, bucket rules, settings, account security, and sign-in.

• Keep object Refresh beside Upload, separate page actions from search and table tools, group navigation by task, and show account-scoped bucket usage with distinct colors and labeled shares.
• Put health beside capacity, keep pool controls with their pools, and show replication topology.
• Add section navigation for long settings and a provider rail for OIDC. Simplify S3 Tables into a warehouse, namespace selector, and table/view workspace.
• Rework dialogs with grouped fields, scrollable bodies, and consistent footers. Align page, table, dialog, and drawer controls, including completed-task actions.
• Center file selection in the upload drop area, remove empty space, and keep long queues usable on short screens.
• Preserve pending submissions, nested object dialogs, recovery codes, and drafts. Fix long catalog errors so Retry stays reachable.

Type of Change

• Bug fix (non-breaking change which fixes an issue)
• New feature (non-breaking change which adds functionality)
• Breaking change (fix or feature that would cause existing functionality to change)
• Documentation update
• Code refactoring
• Performance improvement
• Test improvements
• Security fix

Testing

• Unit tests added/updated
• Manual testing completed

pnpm install --frozen-lockfile
pnpm type-check
pnpm lint
pnpm format:check
pnpm test:run
pnpm build

763 tests passed. Production-browser checks cover 55 interaction assertions, 88 responsive checks, and 36 Chinese/German/Arabic layout checks. Dialog checks include pending submissions, failed requests, nested retention, 100-file uploads, MFA recovery, long schemas, and long error messages. Upload checks also cover native file/folder pickers, drag and drop, exact object keys, keyboard focus, RTL paths, and a 320×568 viewport. Direct object refresh was checked with pointer and keyboard input, including empty results, pagination, and 16 language/theme/viewport combinations. Bucket shares were checked across six data states and 16 language/theme/viewport combinations, including tiny shares, the combined remainder, unknown statistics, and keyboard navigation.

Two independent reviewers checked correctness and usability. The control-size audit covered 34 pages and 21 dialog states at 390, 1024, and 1440 pixels. The production export was checked under /rustfs/console, including redirects and assets.

A separate smoke test signed in to a real local RustFS server. The broader scenarios use controlled responses; they do not establish full backend integration coverage.

Checklist

• Code follows the project's style guidelines
• Self-review completed
• TypeScript types are properly defined
• All commit messages are in English (Conventional Commits)
• All existing tests pass
• No new dependencies added, or they are justified

Related Issues

Follow-up to #269, requested as a separate page redesign.

Screenshots (if applicable)

100 scenarios, 200 before/after pairs. All captures are desktop light/dark at 1440×1000 with full-page content. Both versions use production exports and the same controlled responses. No mobile screenshots are included.

The full gallery includes every page and state; selected comparisons are shown below.

Full before/after gallery · Manifest and checksums

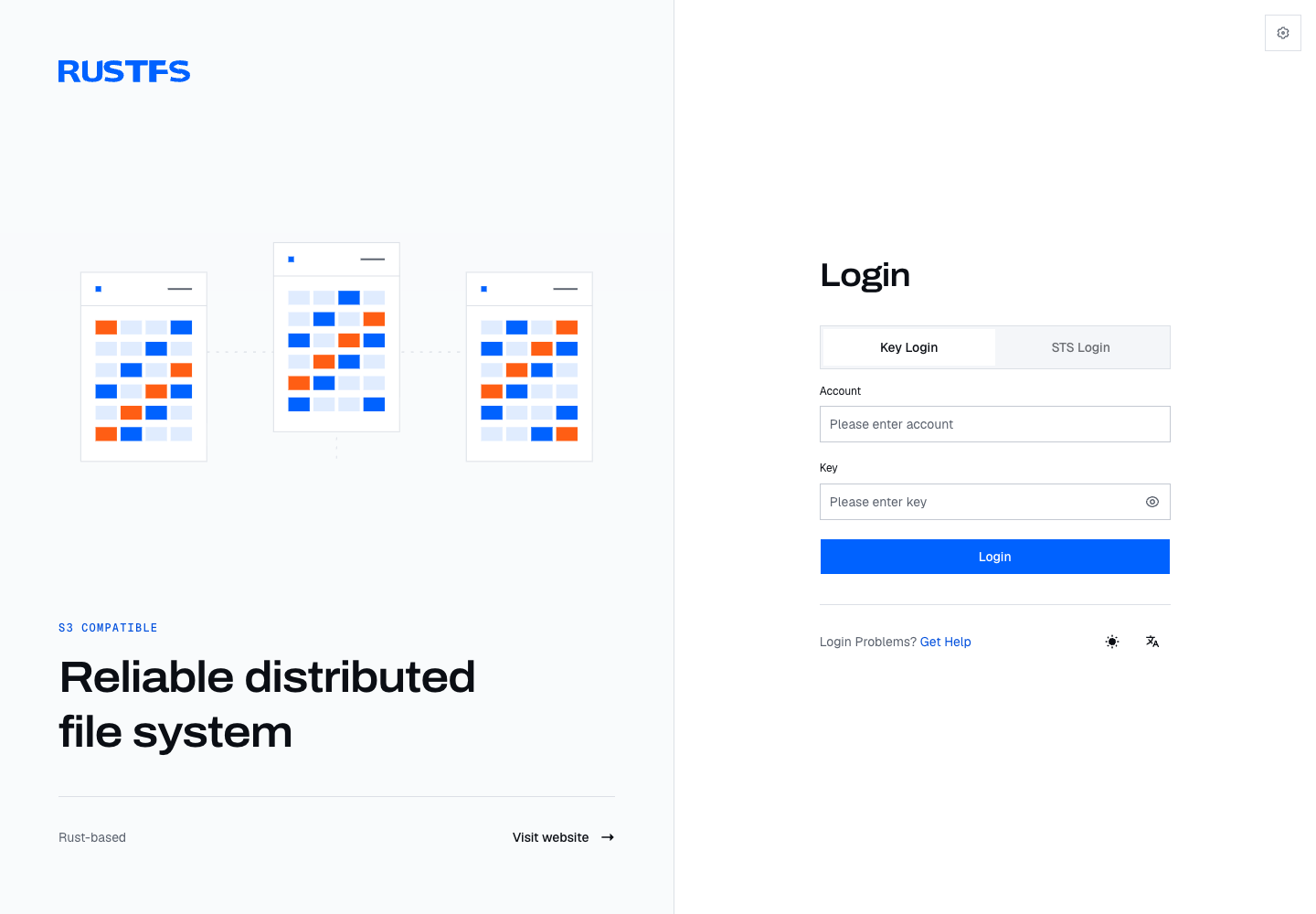

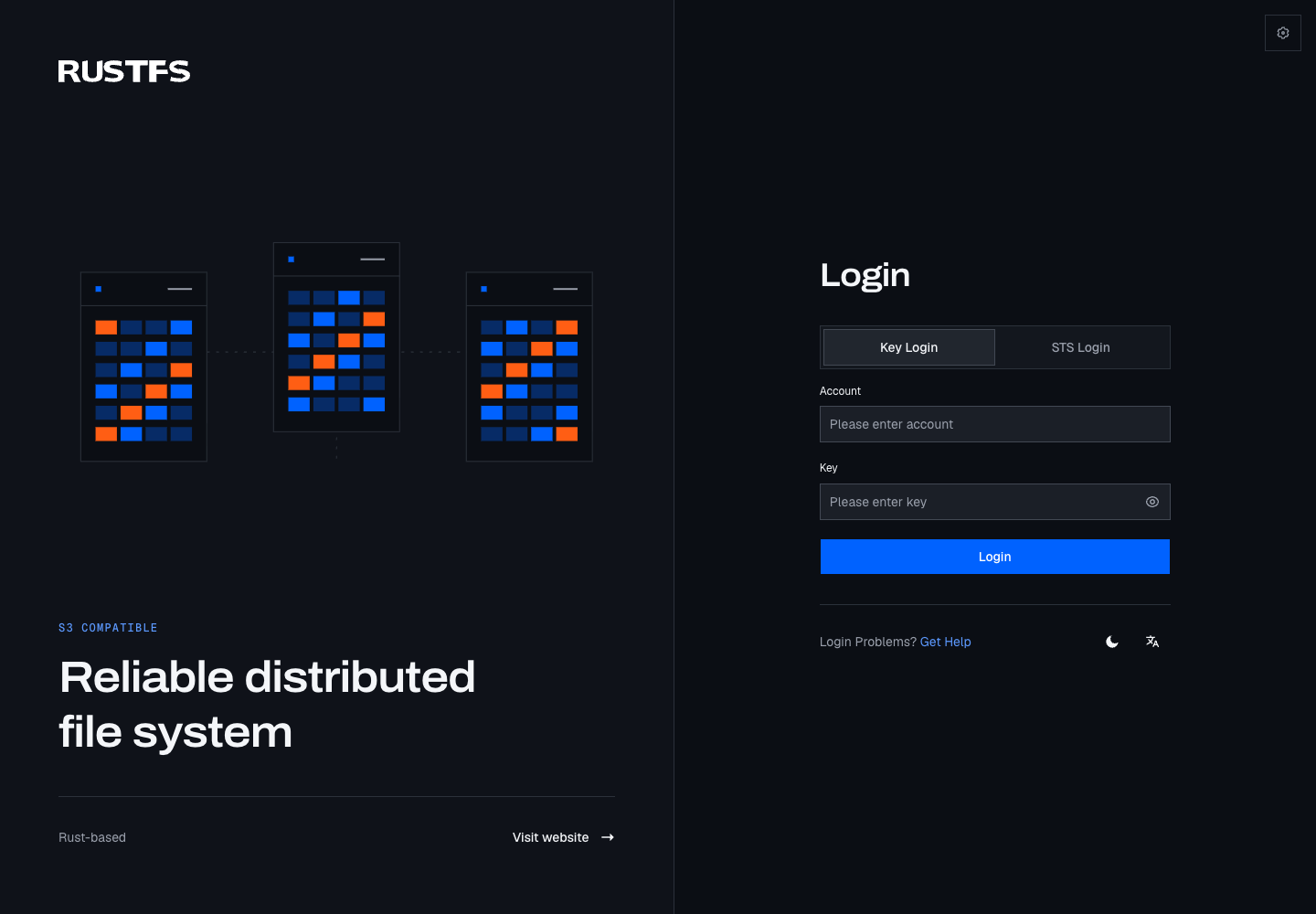

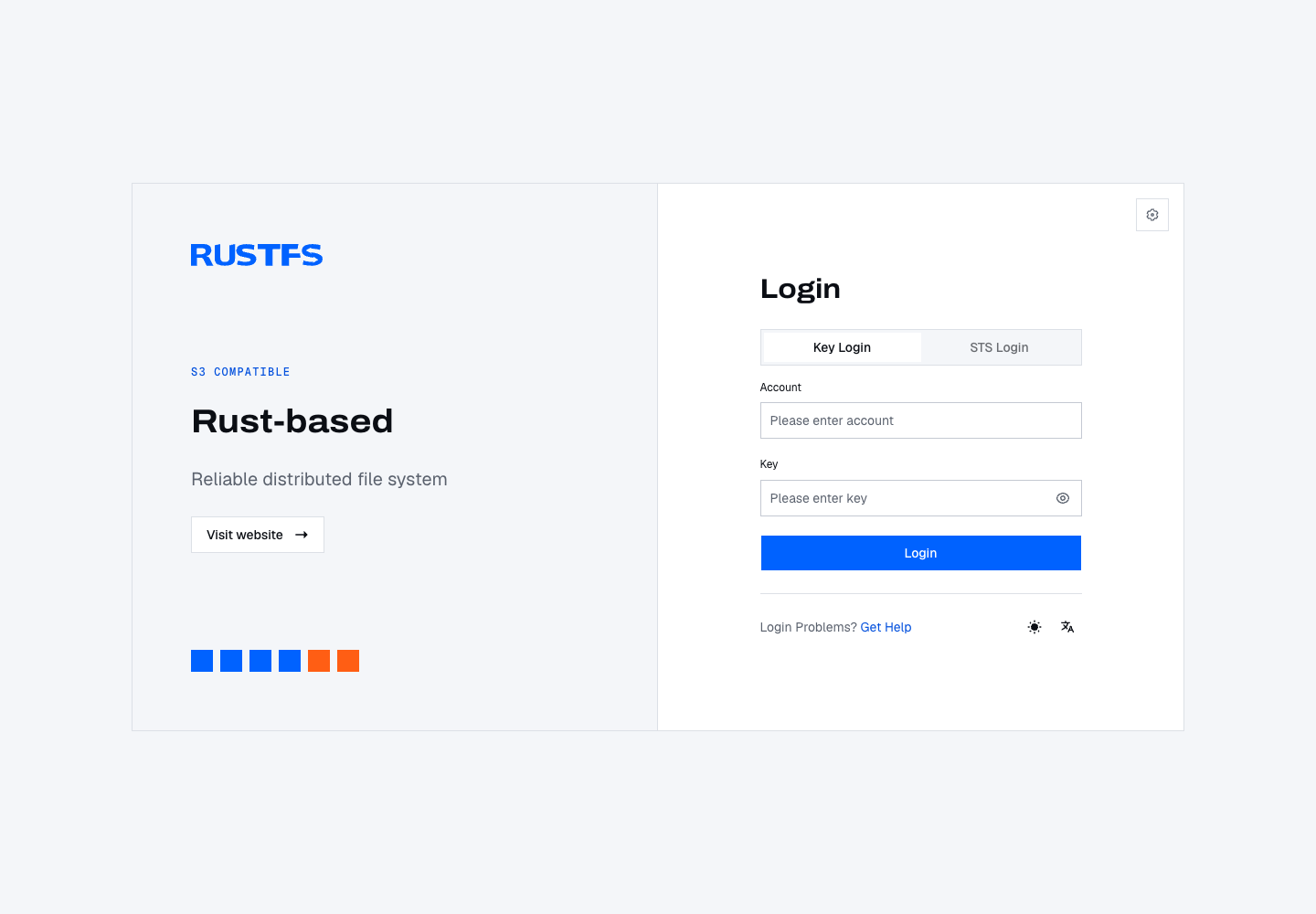

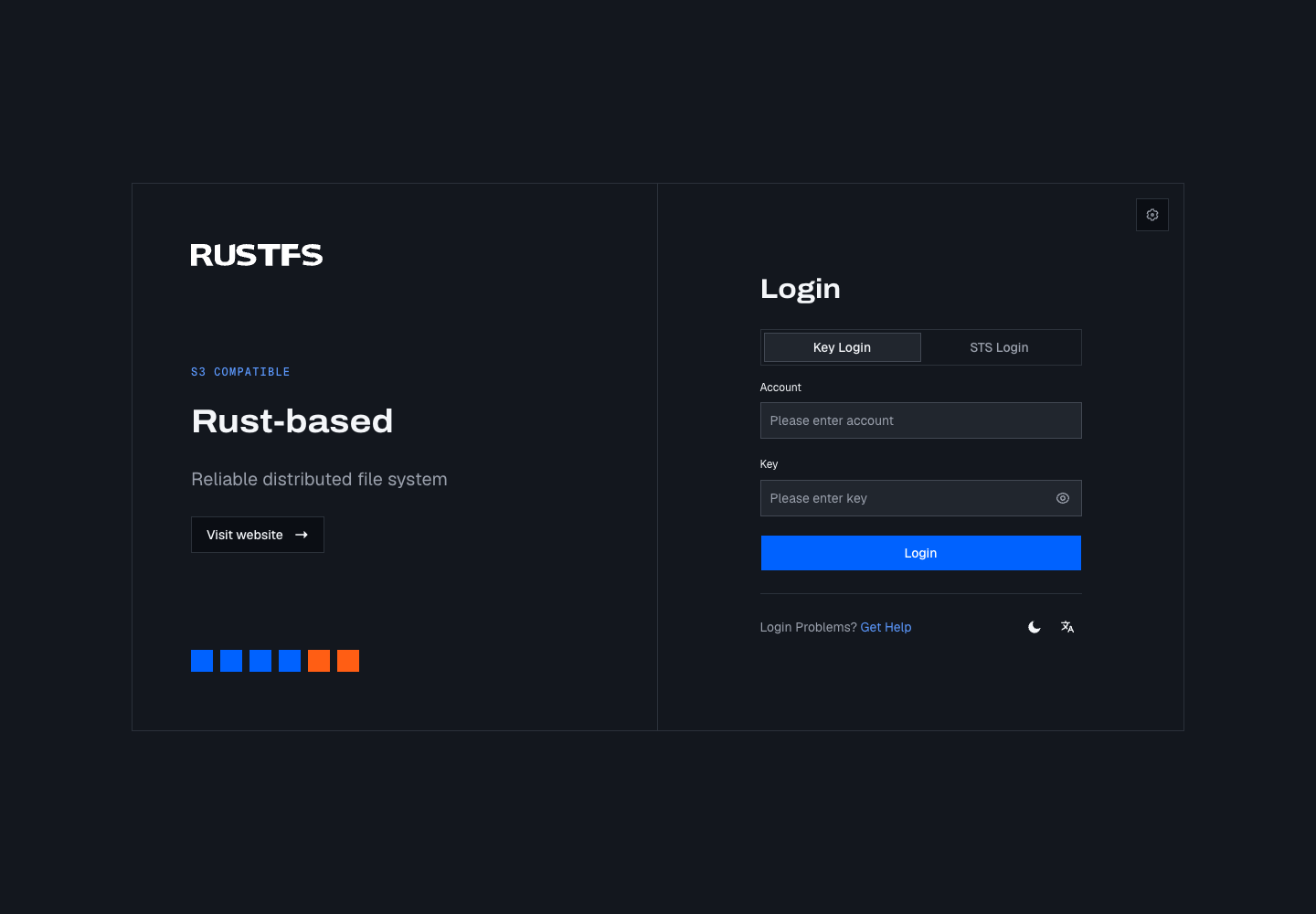

Login — /auth/login/

View	Before	After
Light
Dark

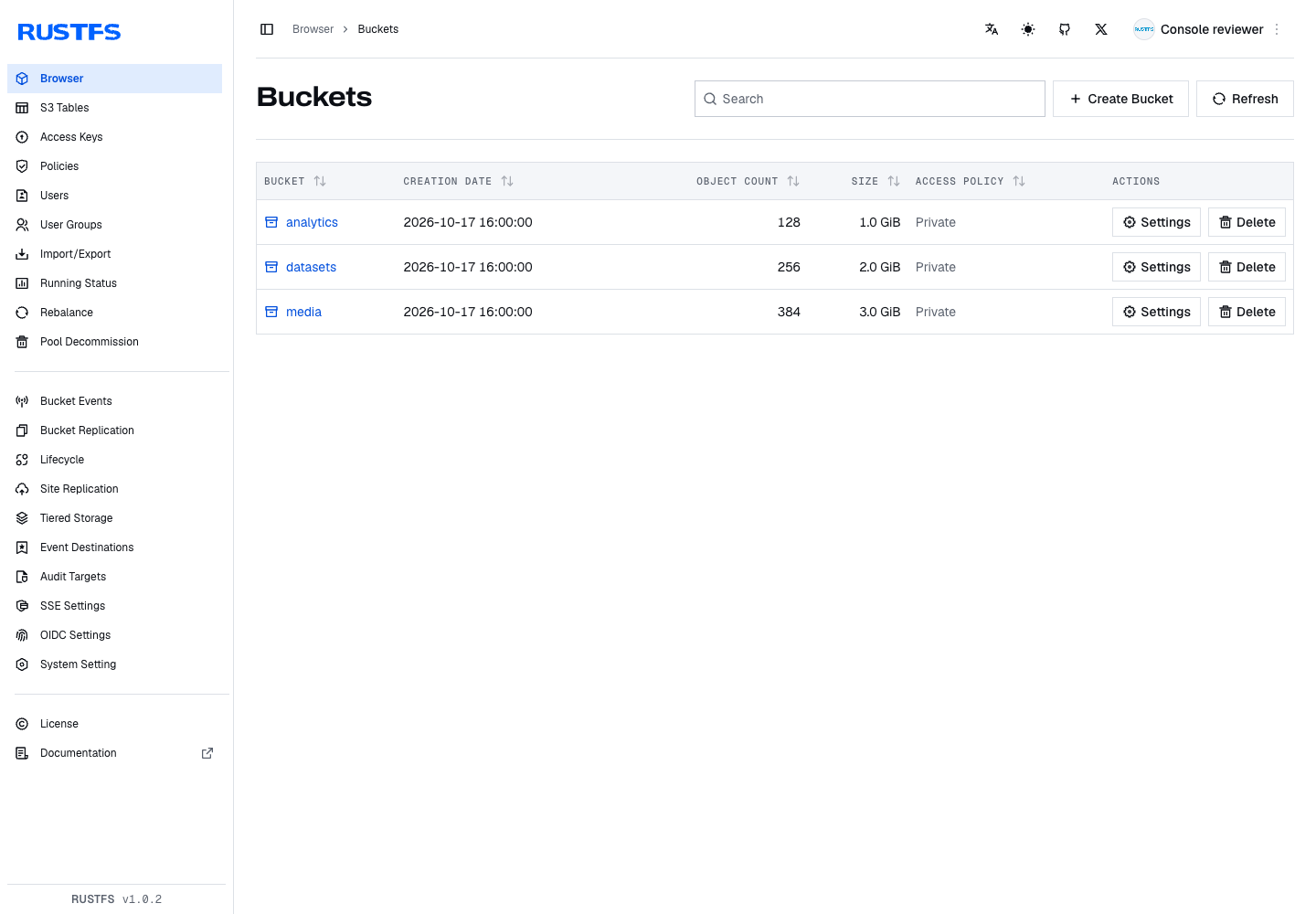

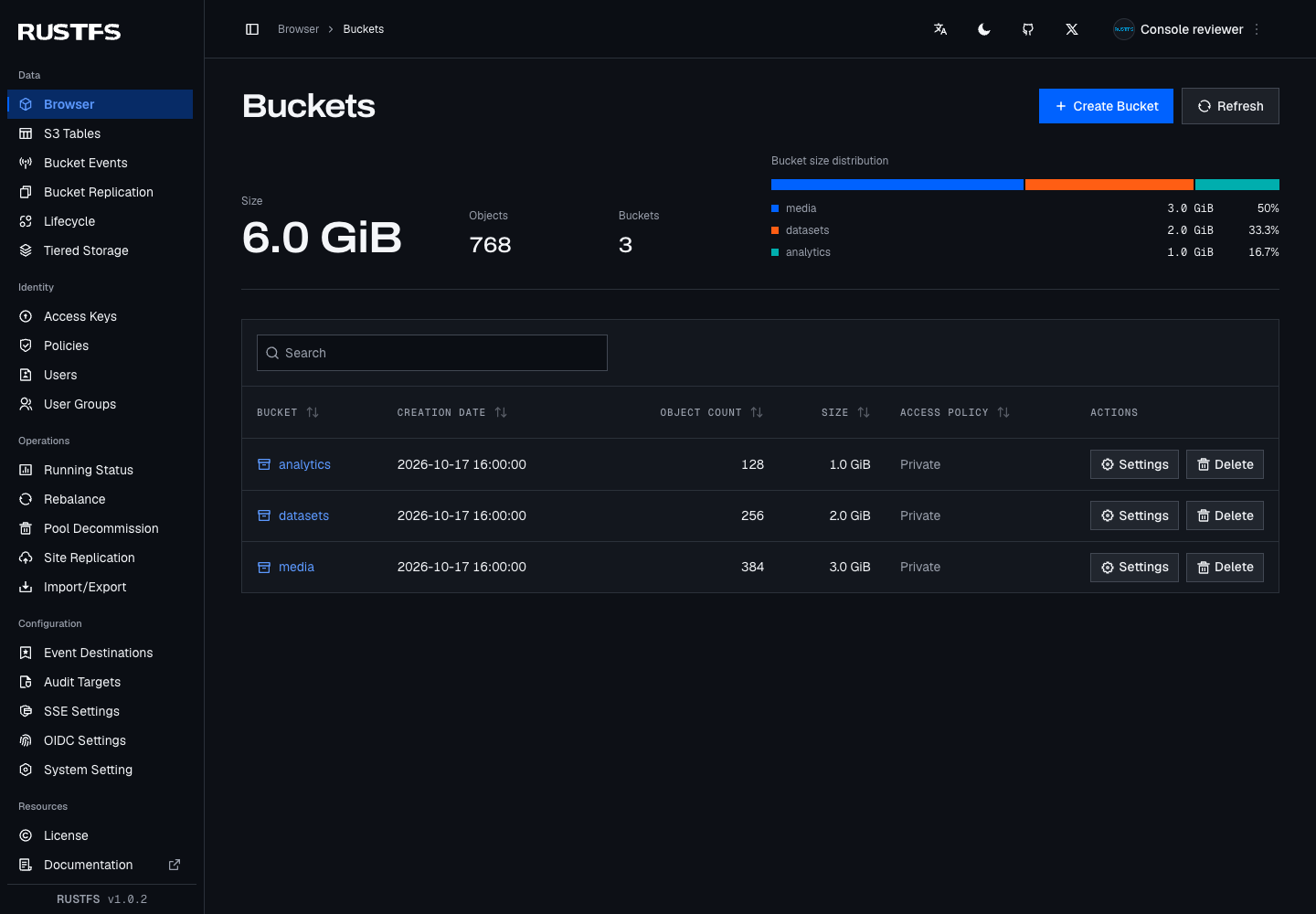

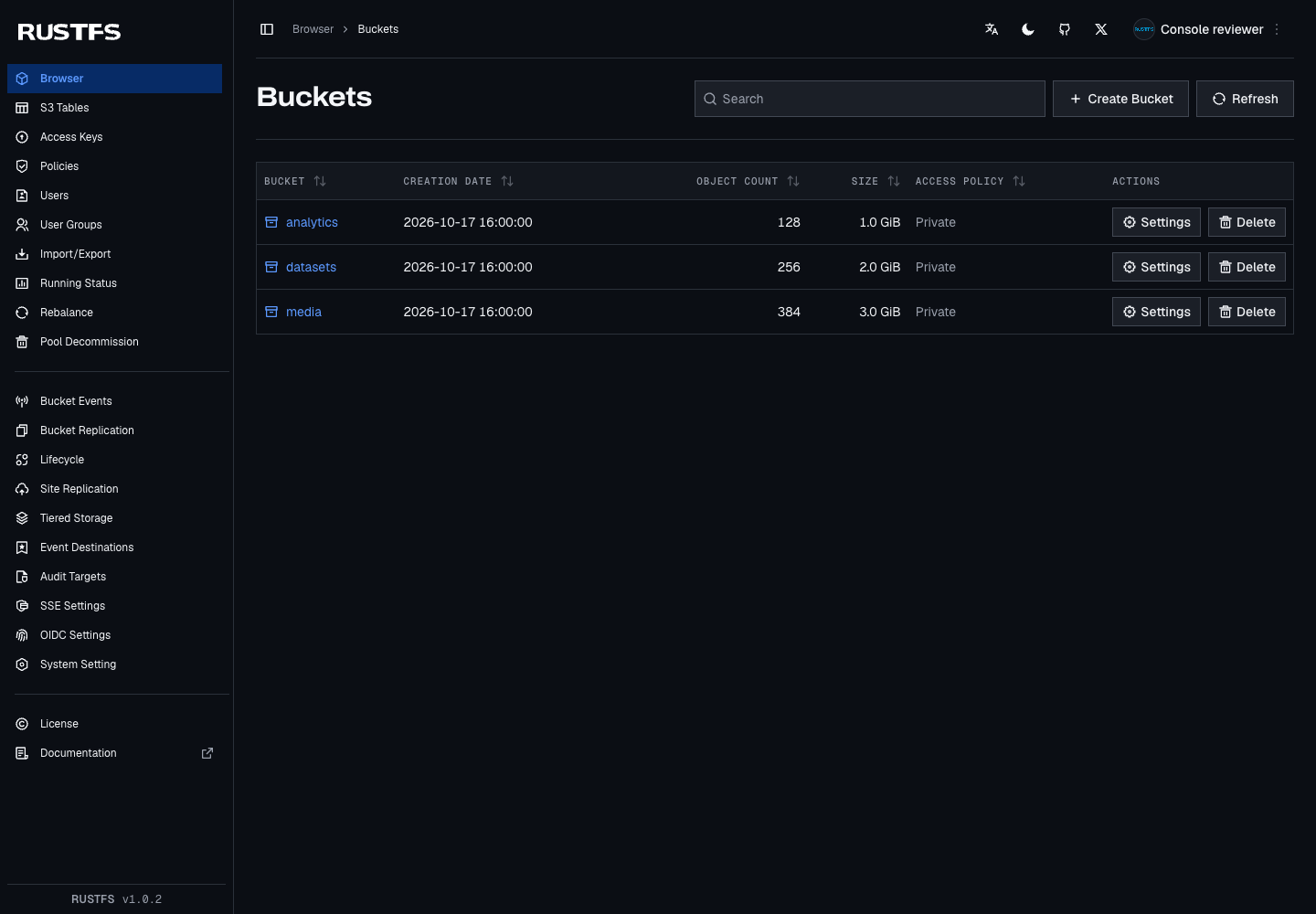

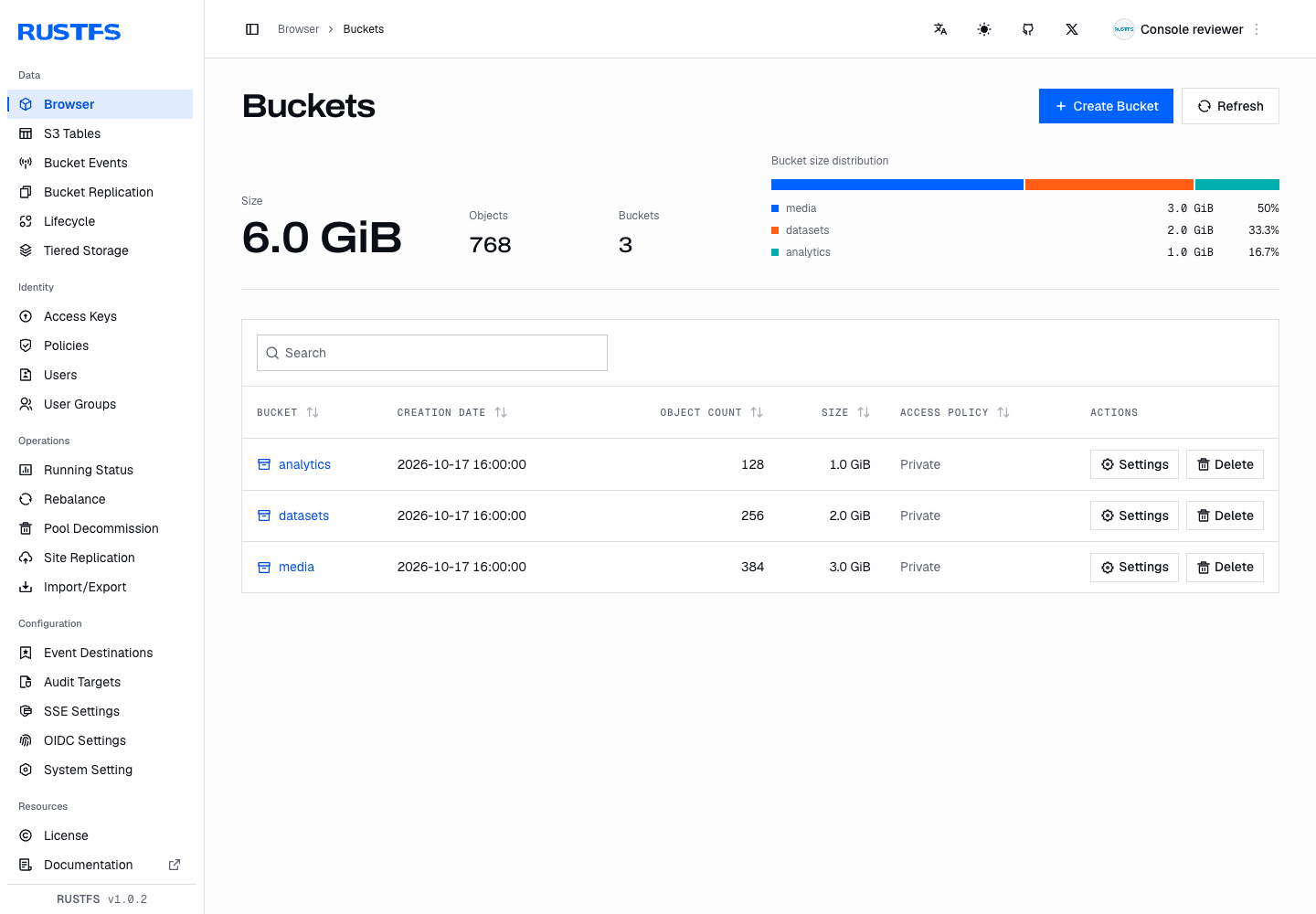

Browser — /browser/

View	Before	After
Light
Dark

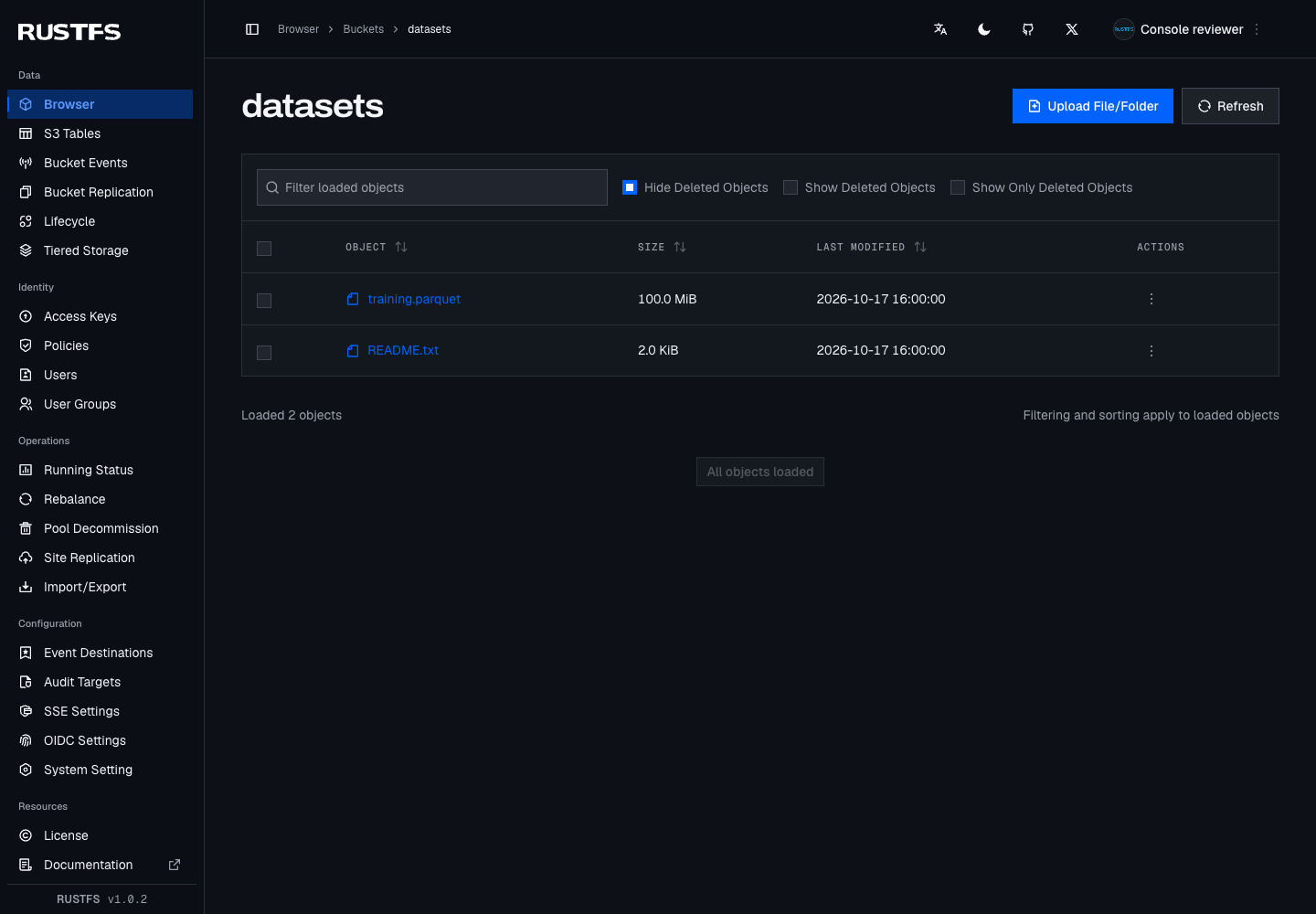

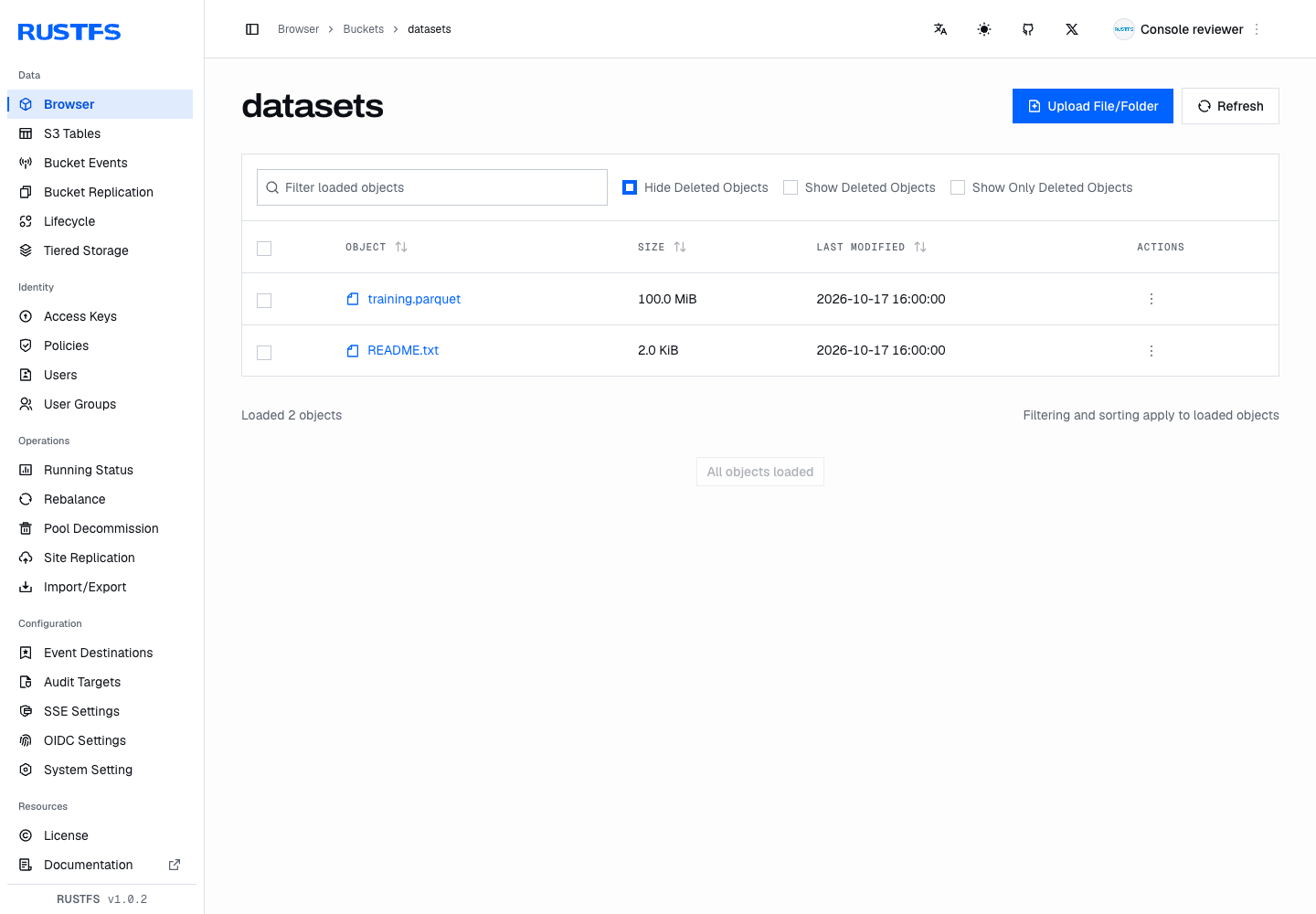

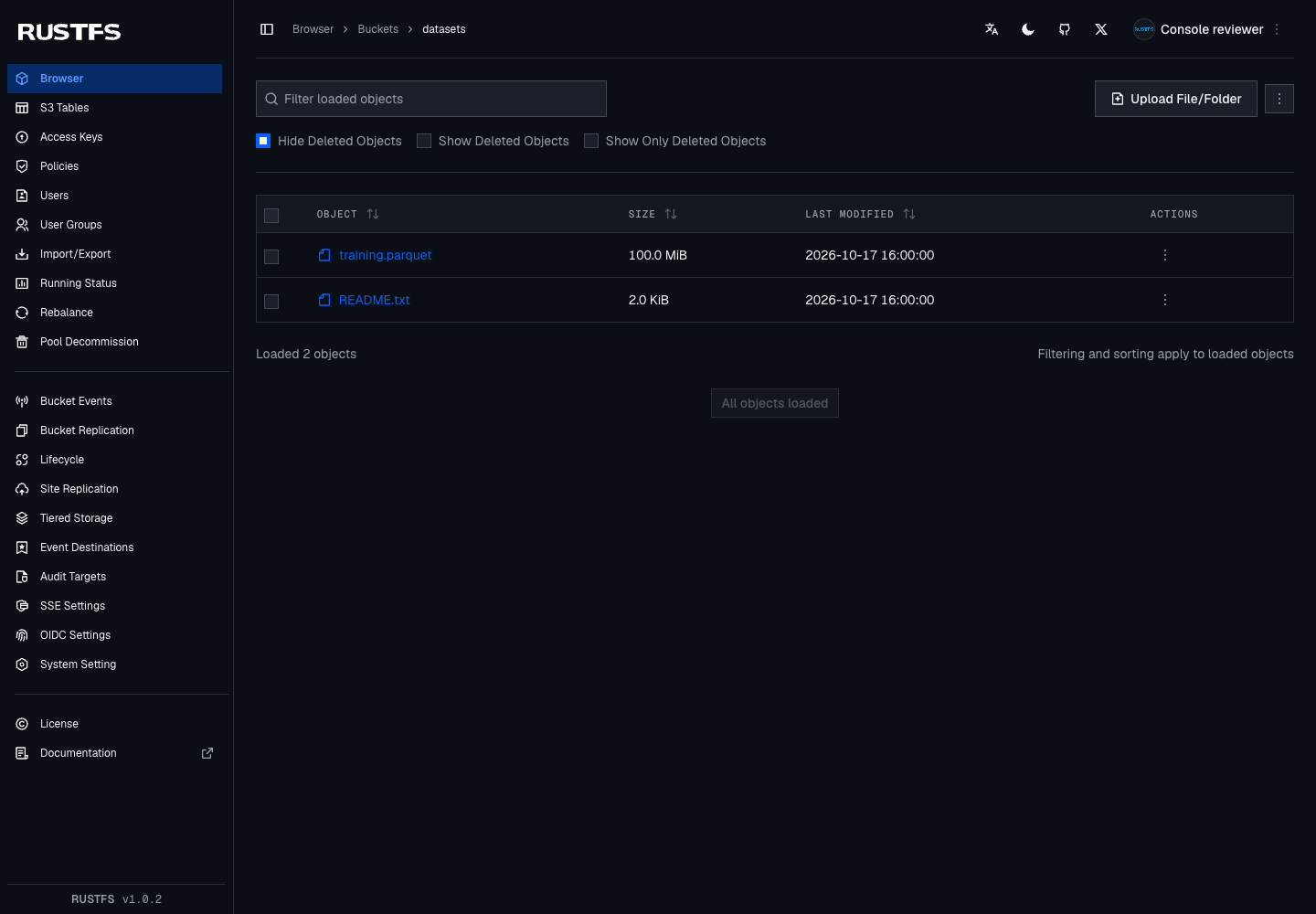

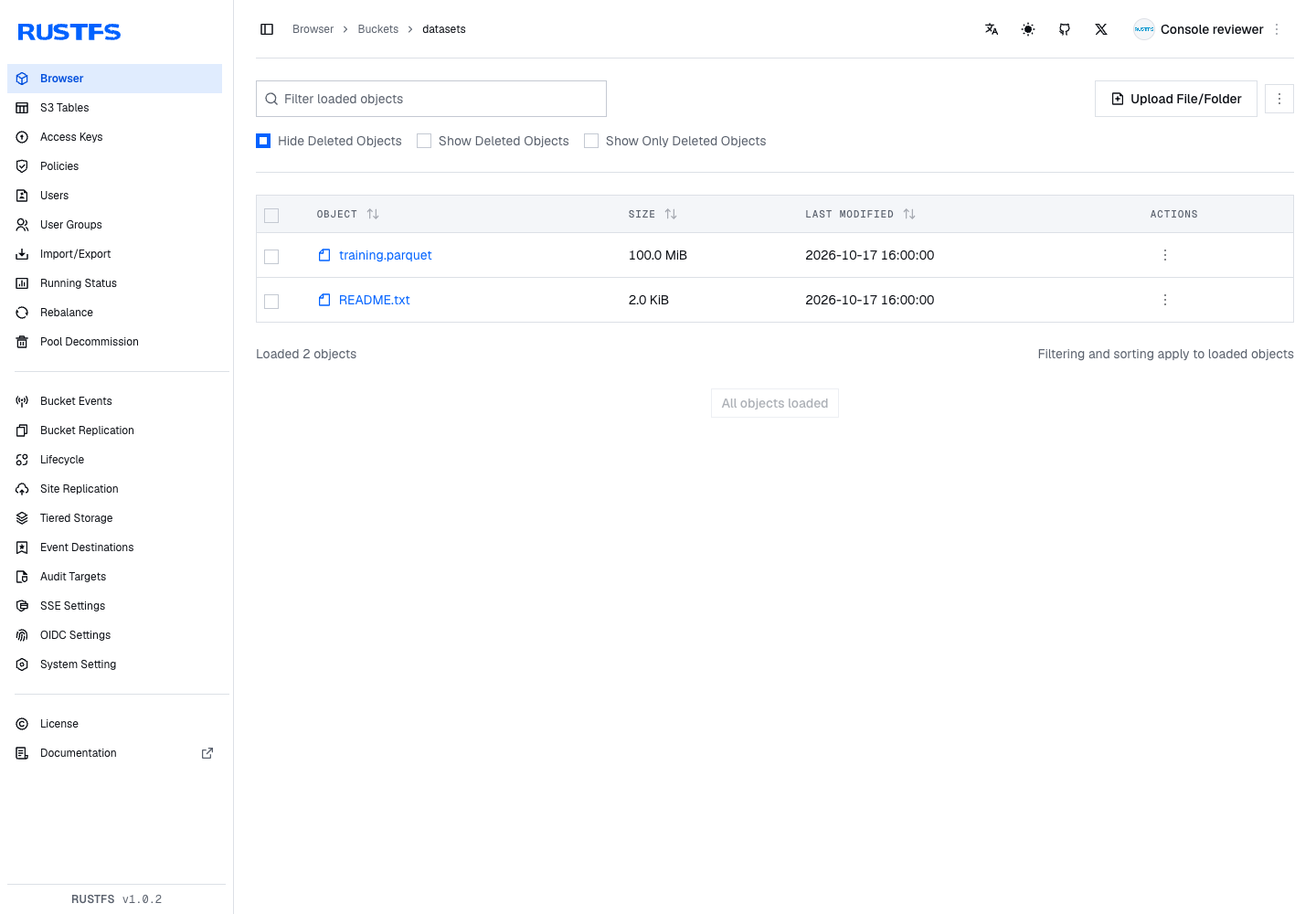

Objects — /browser/?bucket=datasets

View	Before	After
Light
Dark

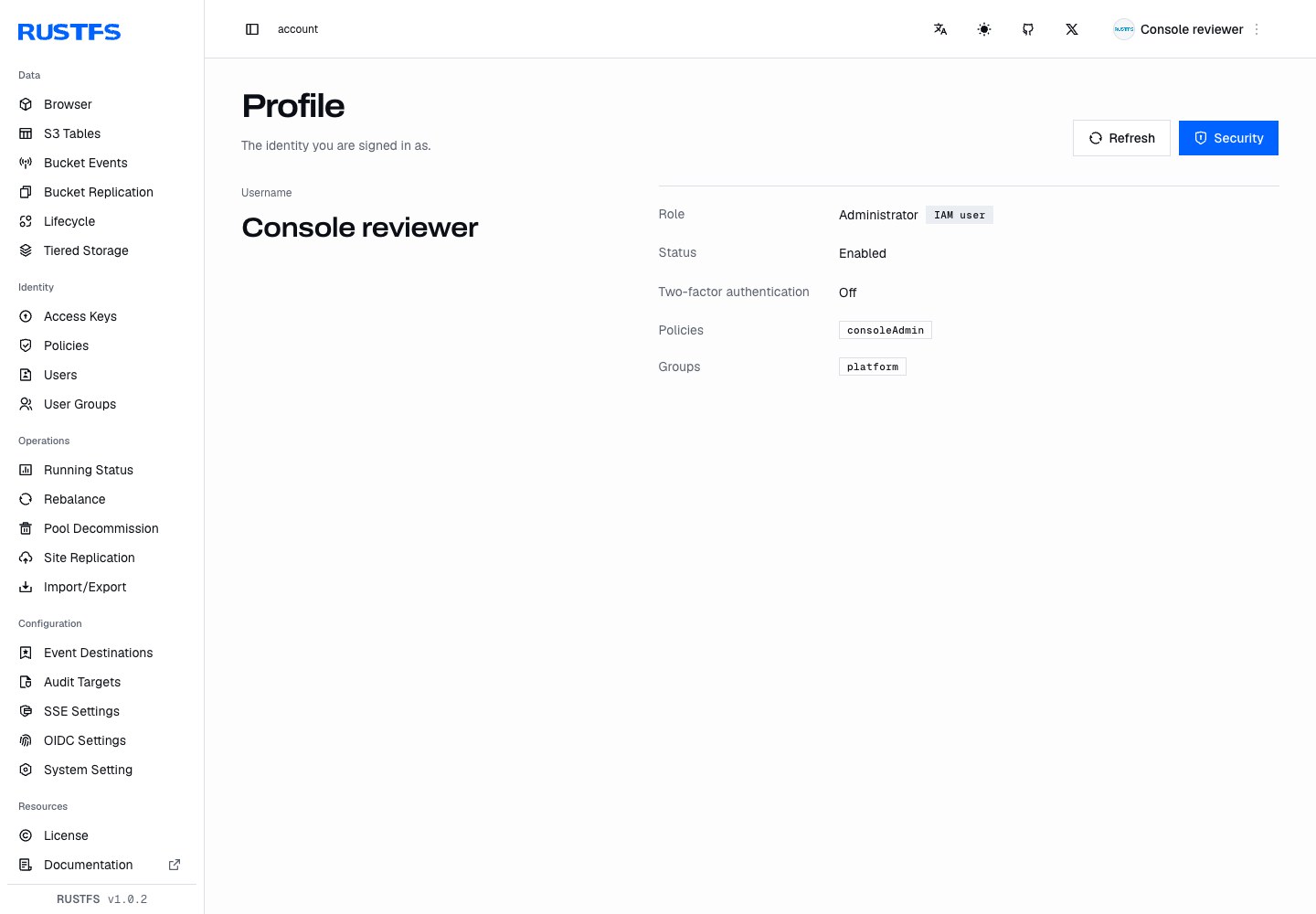

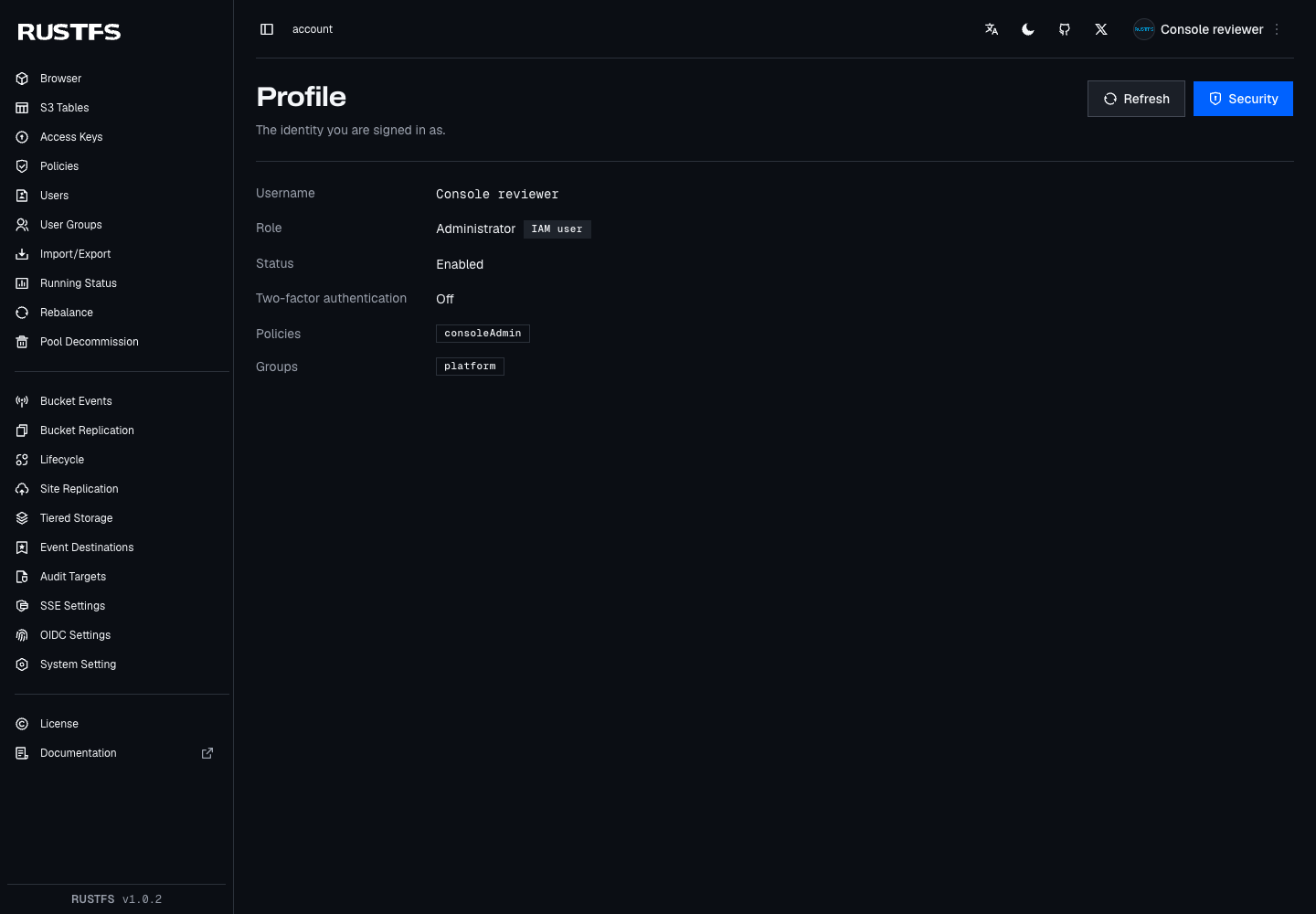

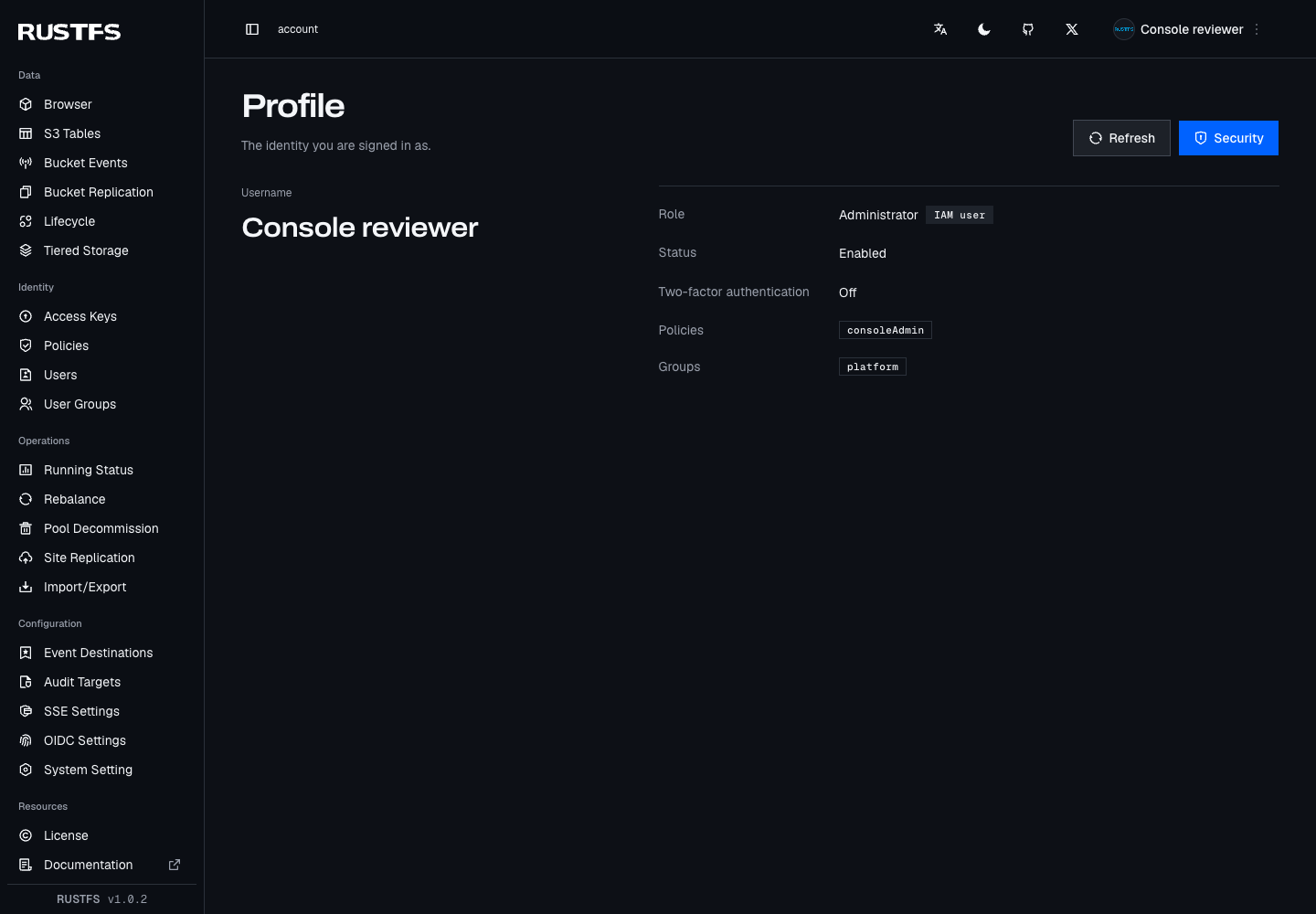

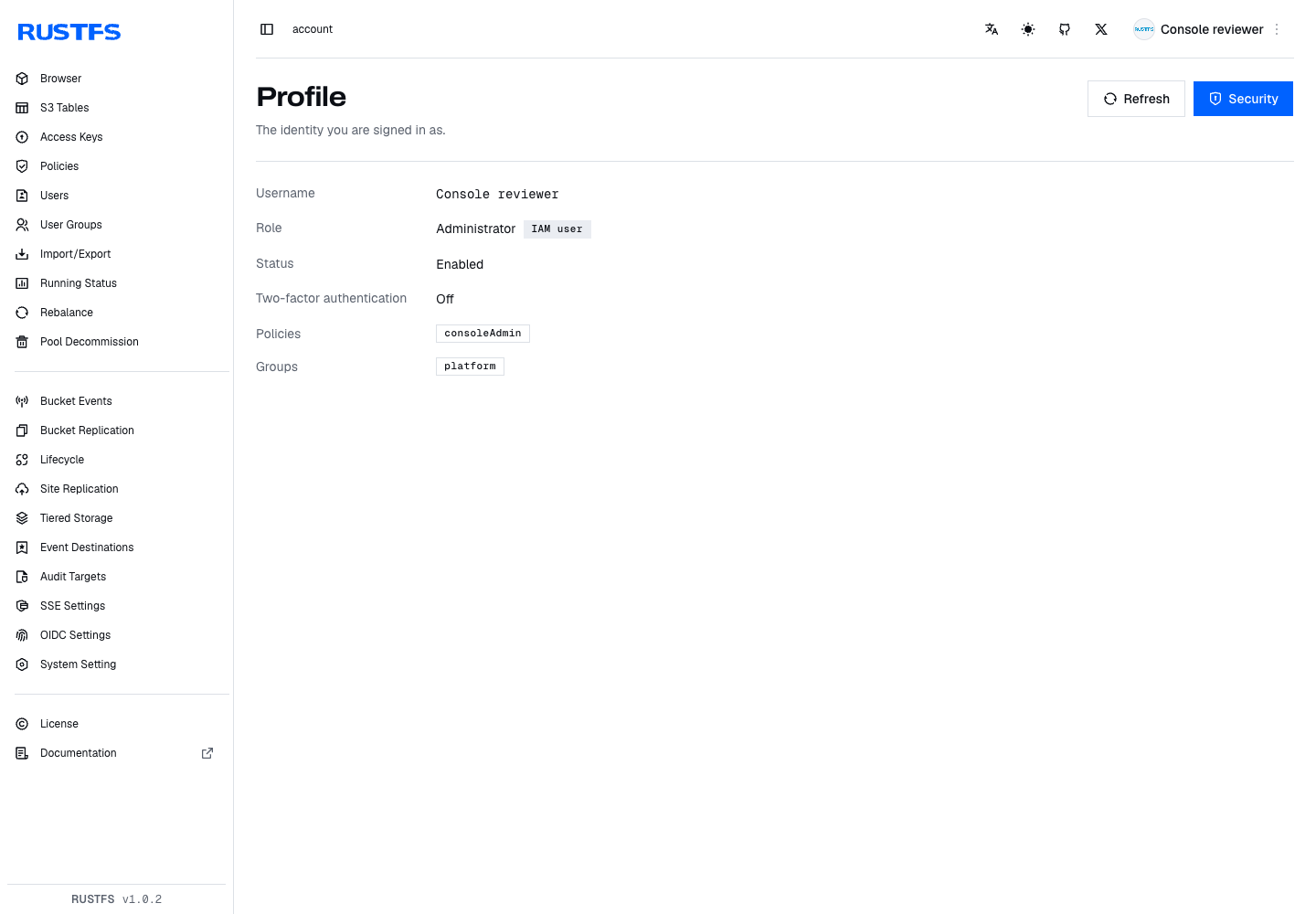

Account — /account/

View	Before	After
Light
Dark

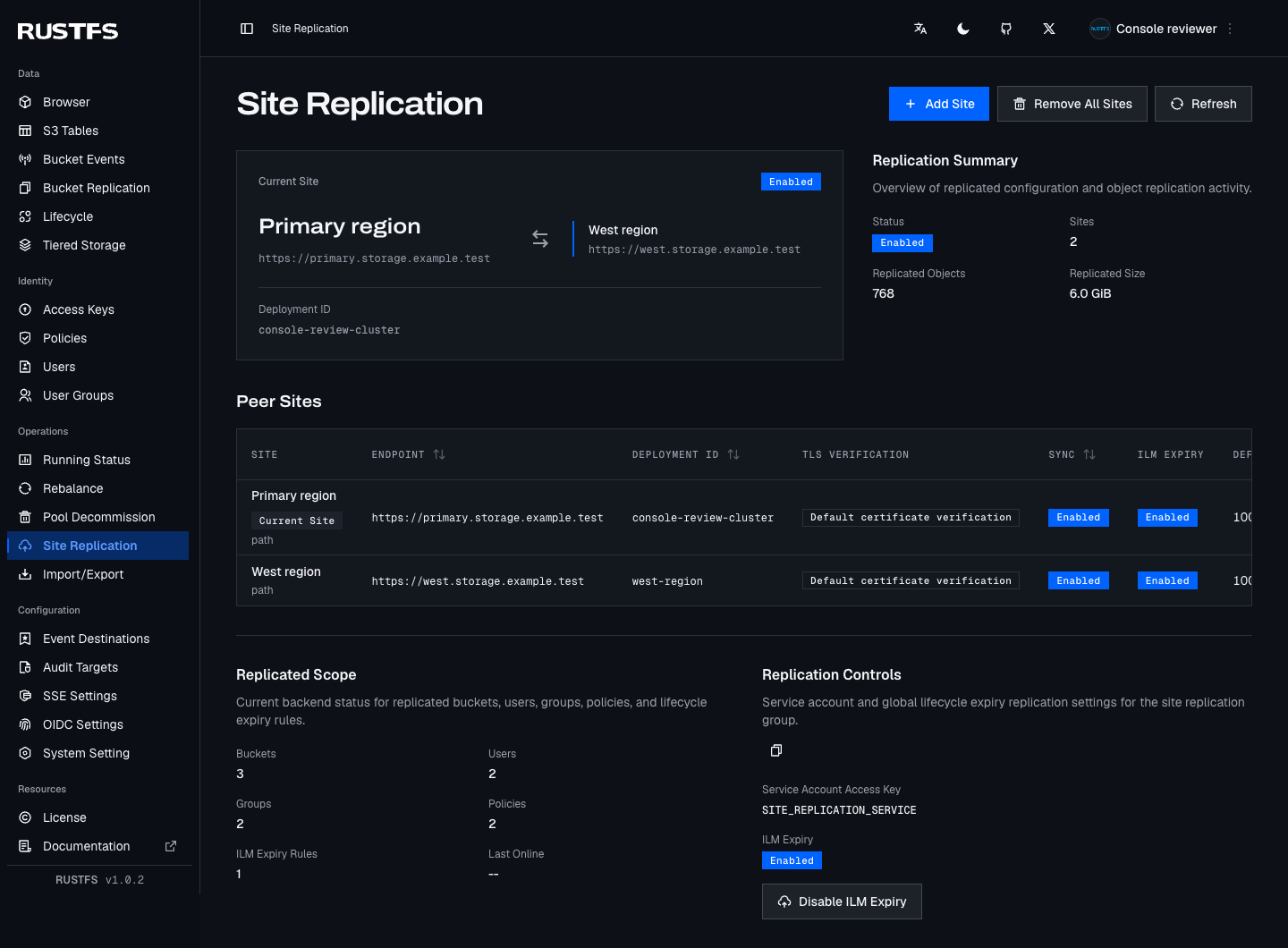

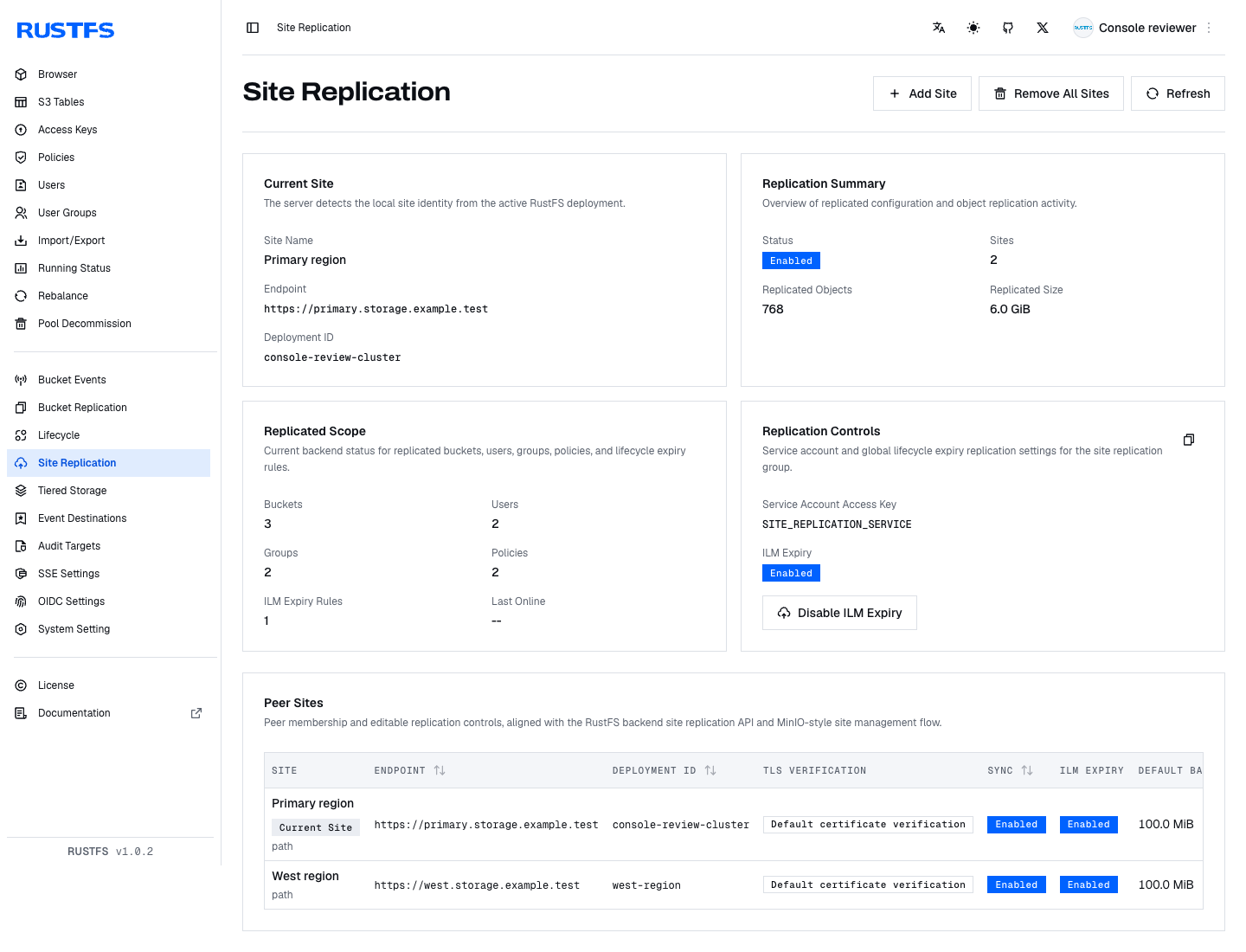

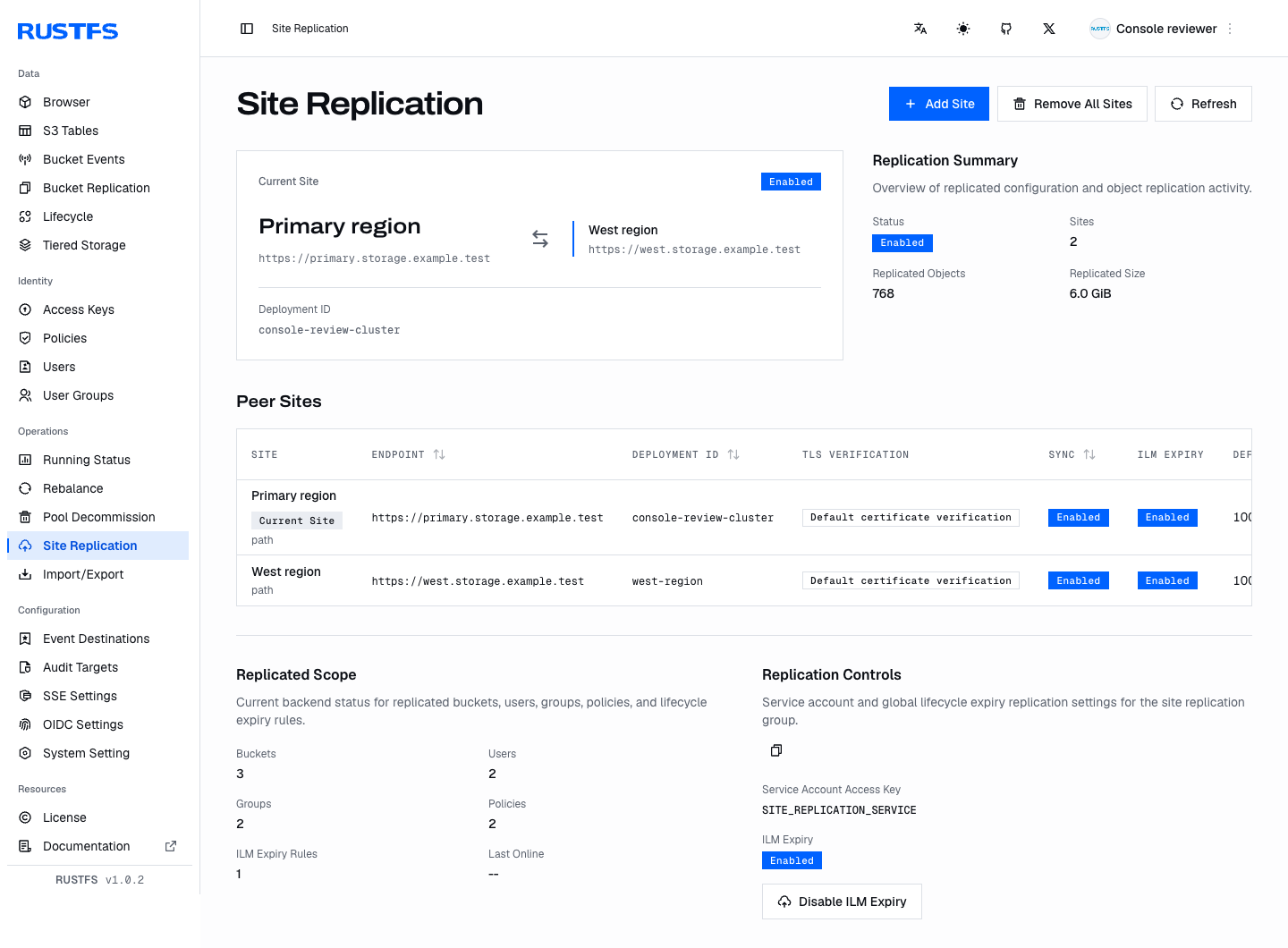

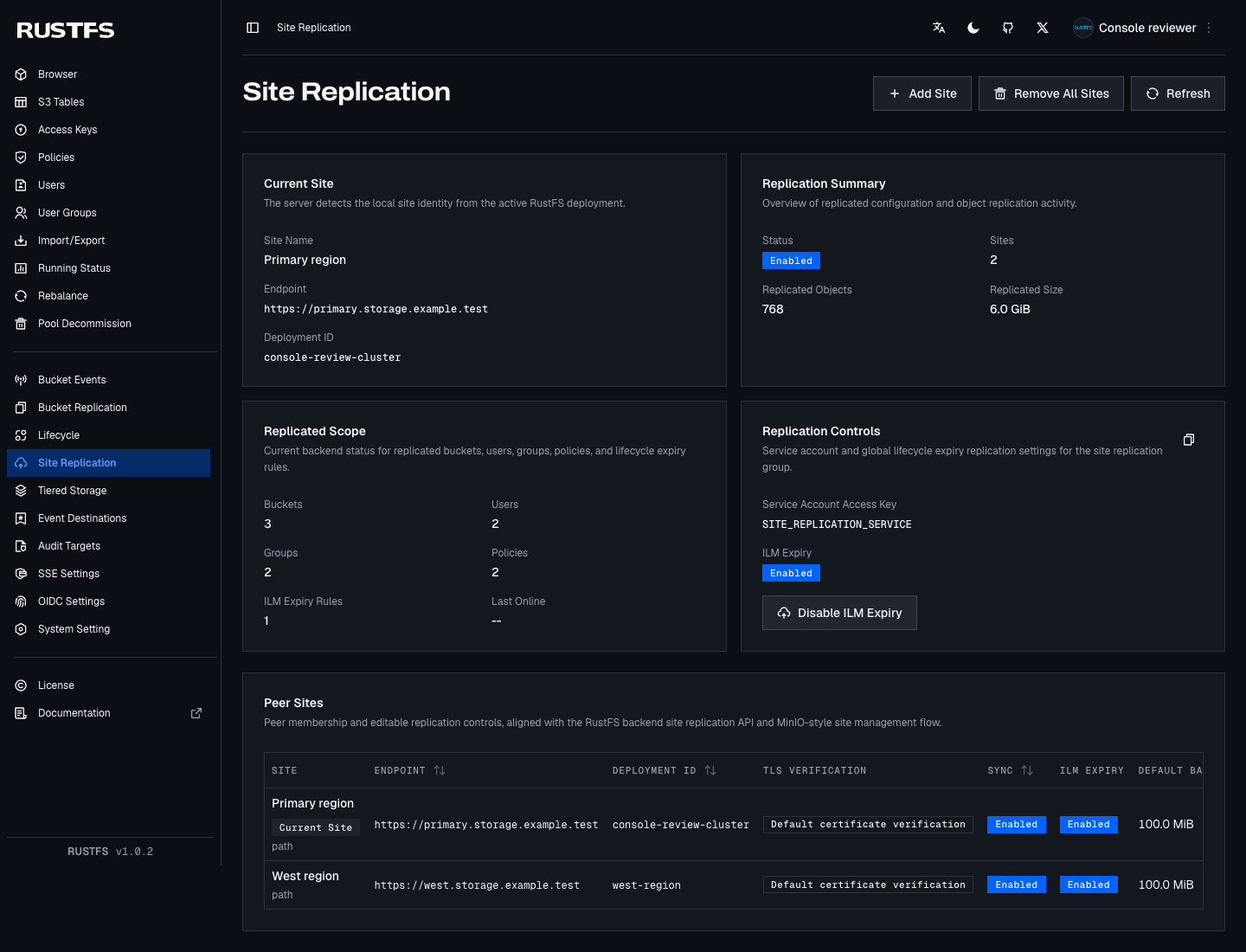

Site Configured — /site-replication/

View	Before	After
Light
Dark

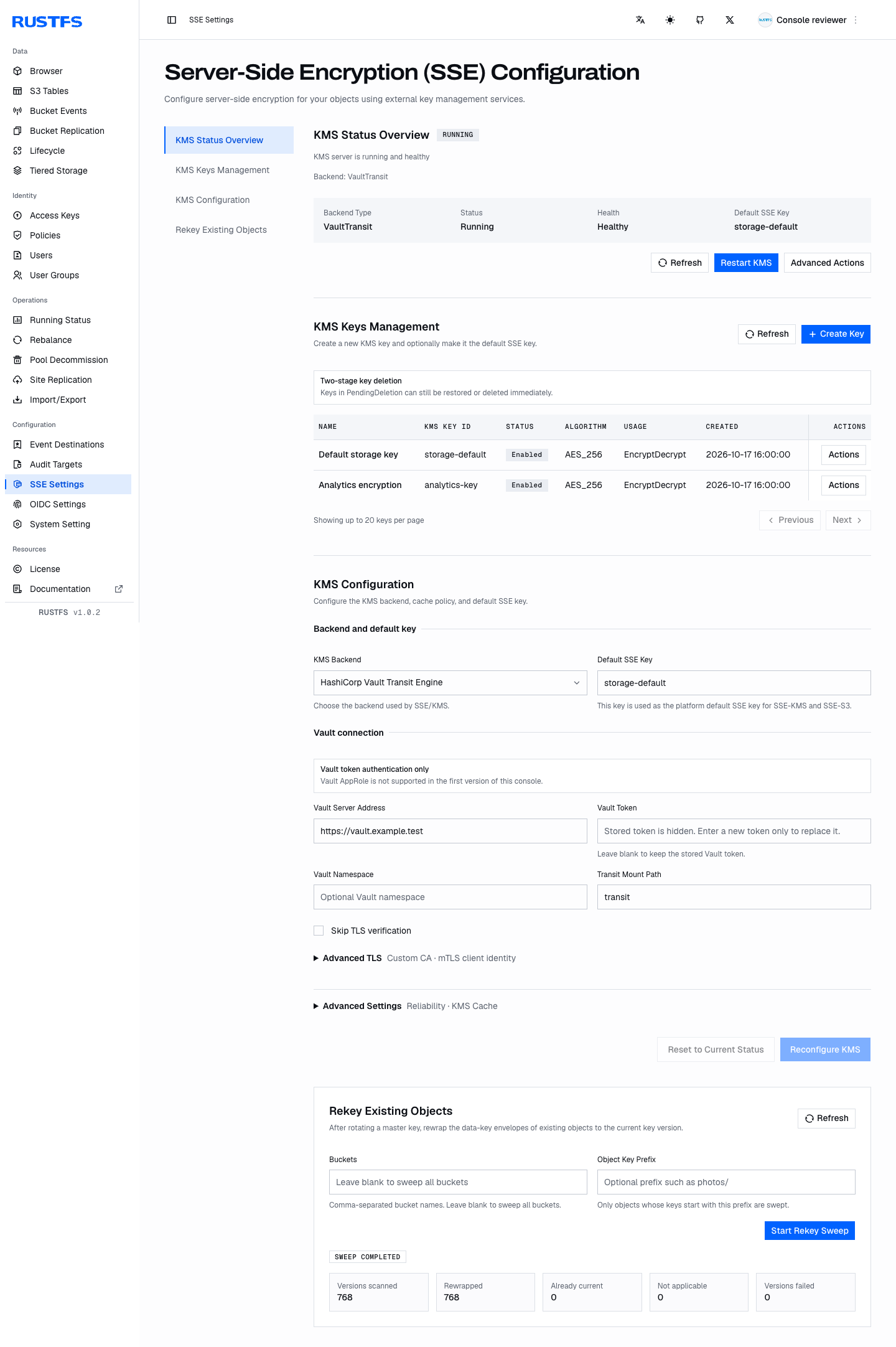

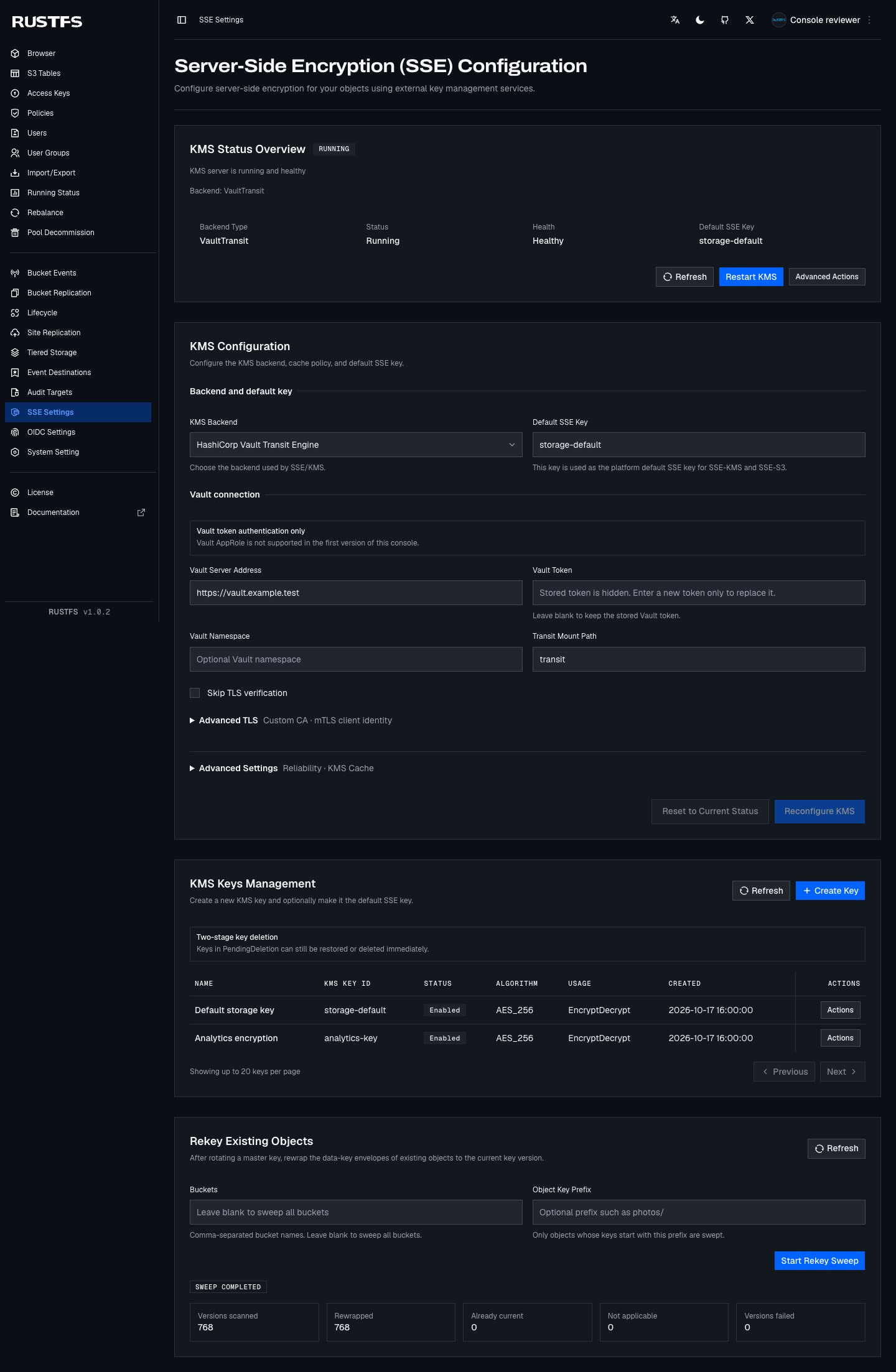

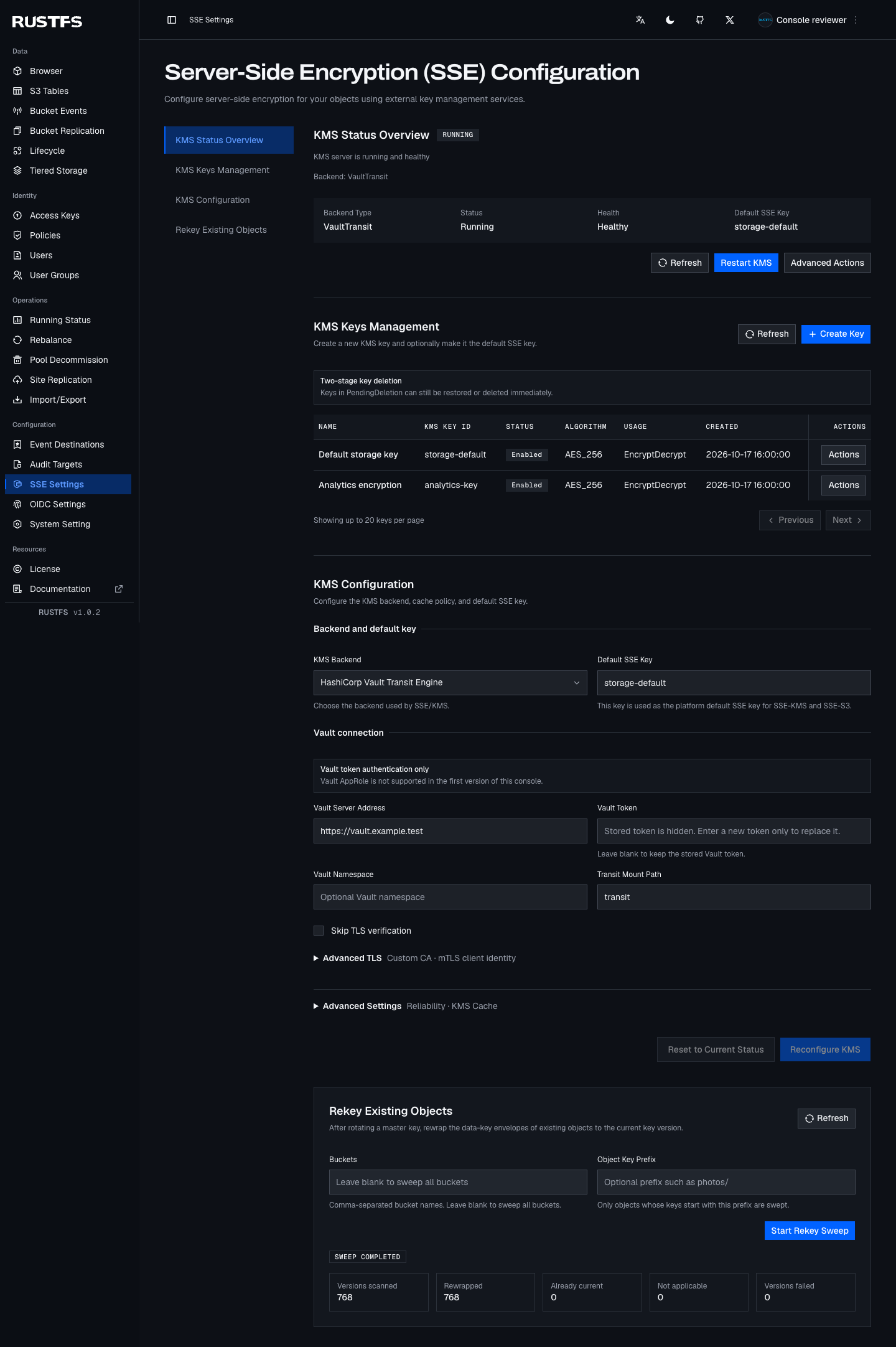

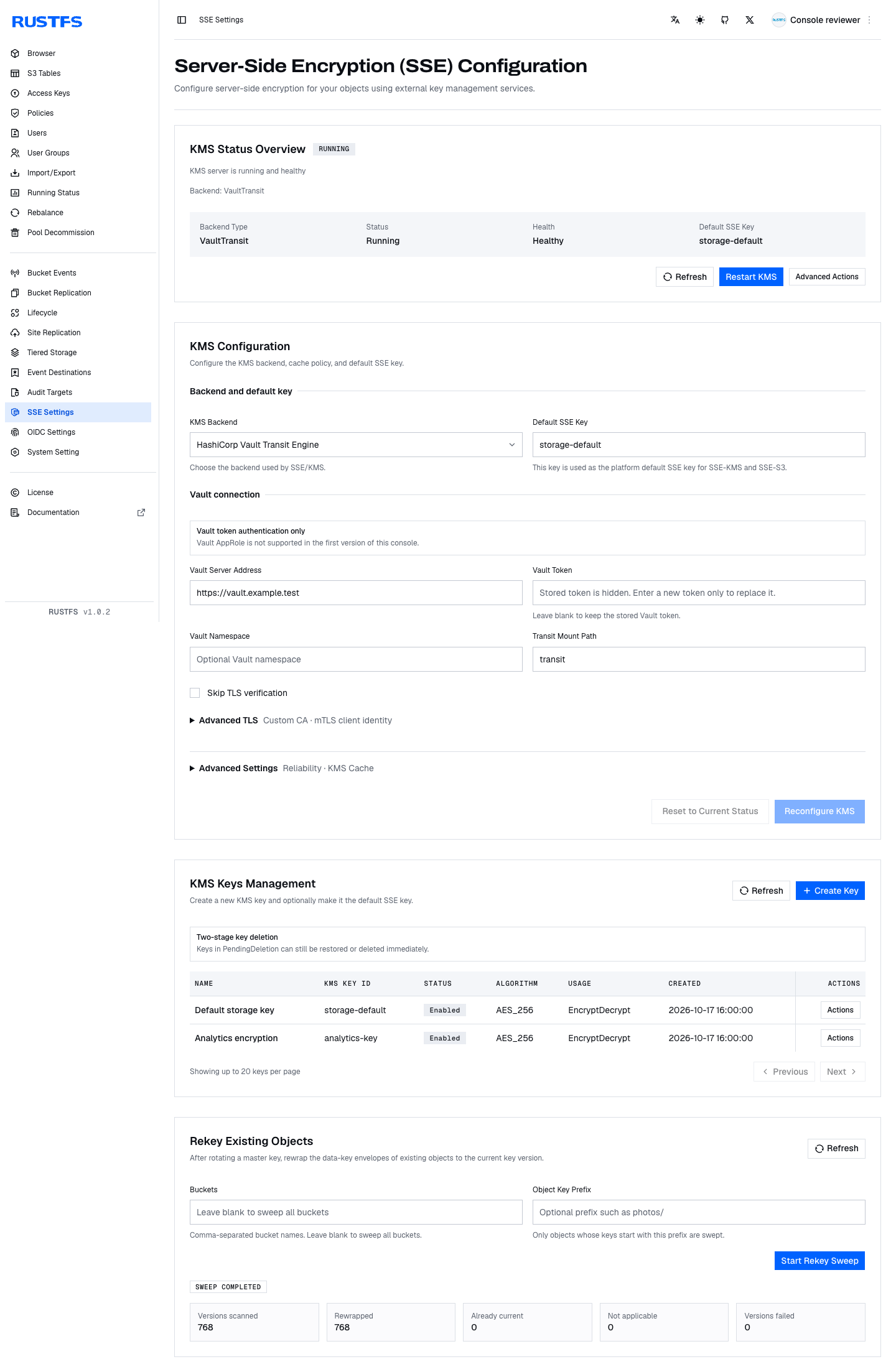

SSE Running — /sse/

View	Before	After
Light
Dark

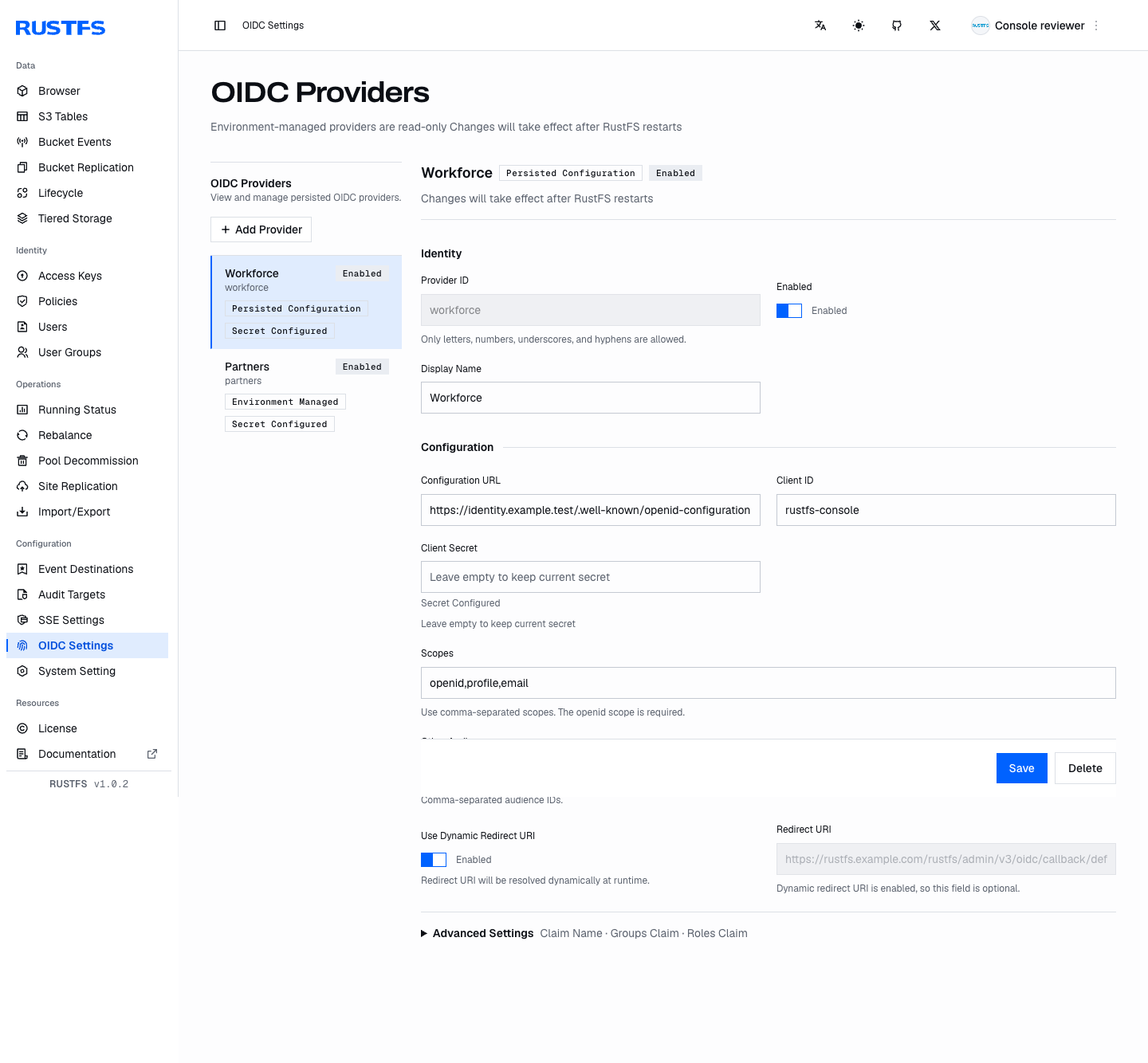

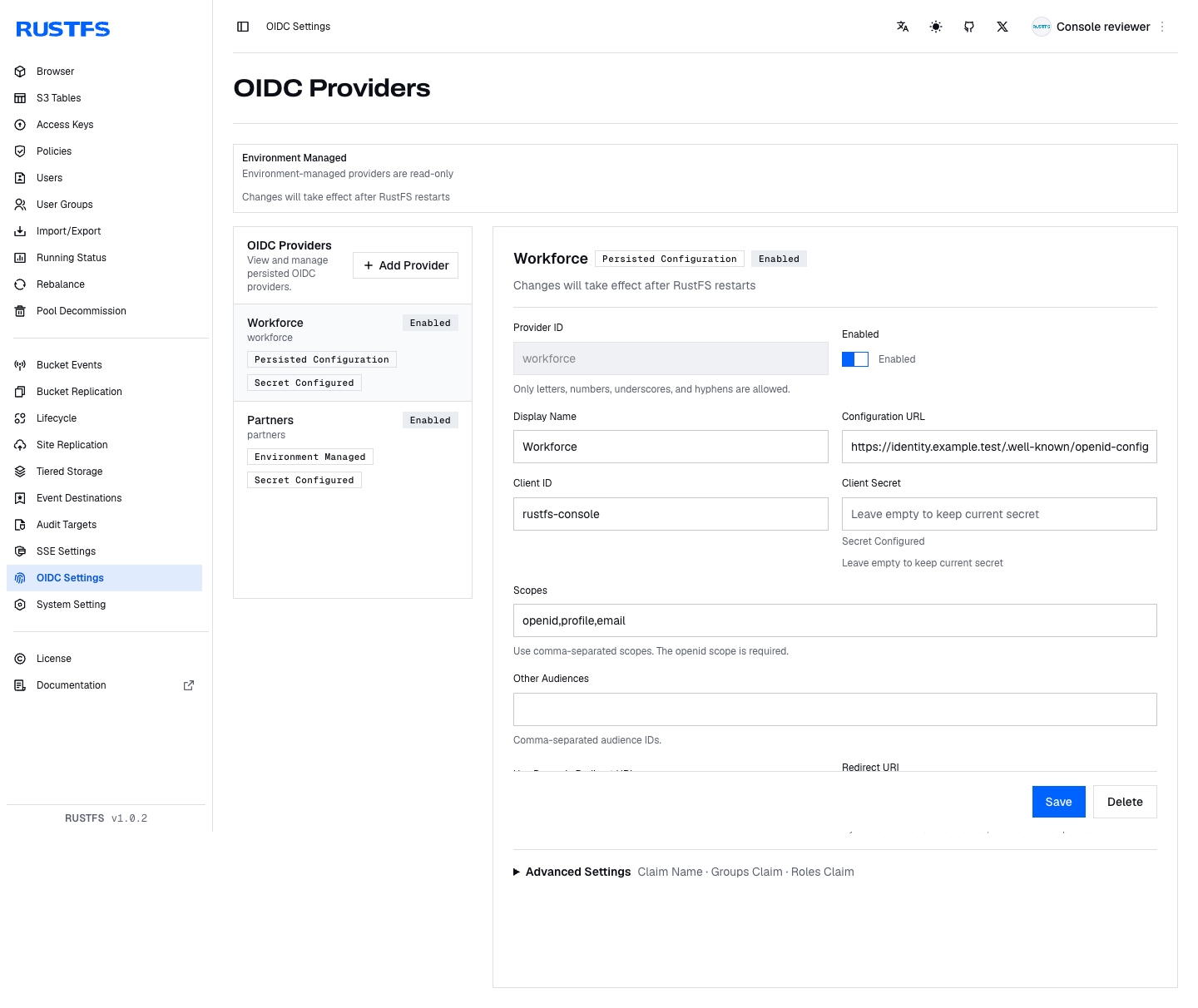

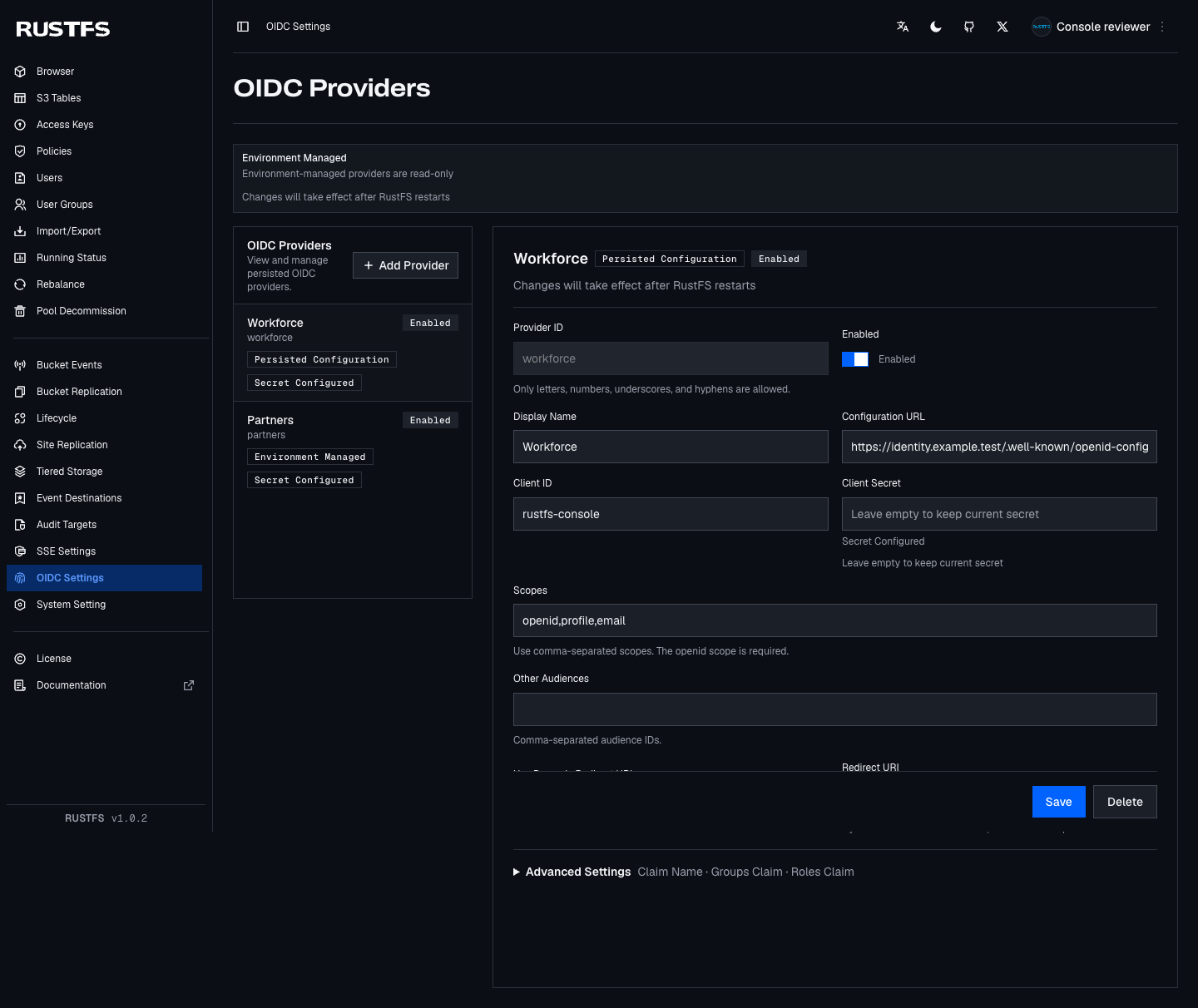

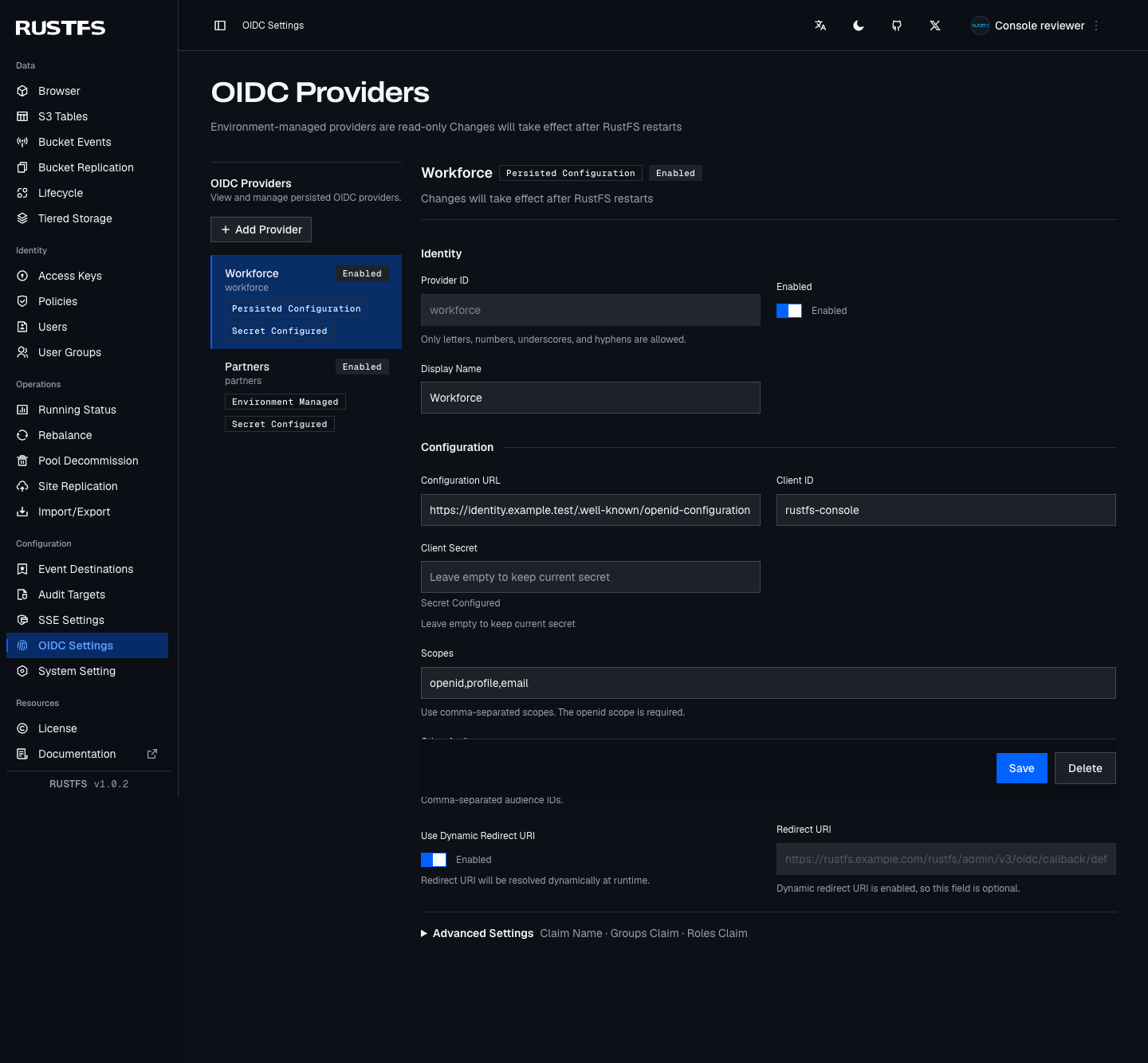

OIDC Configured — /oidc/

View	Before	After
Light
Dark

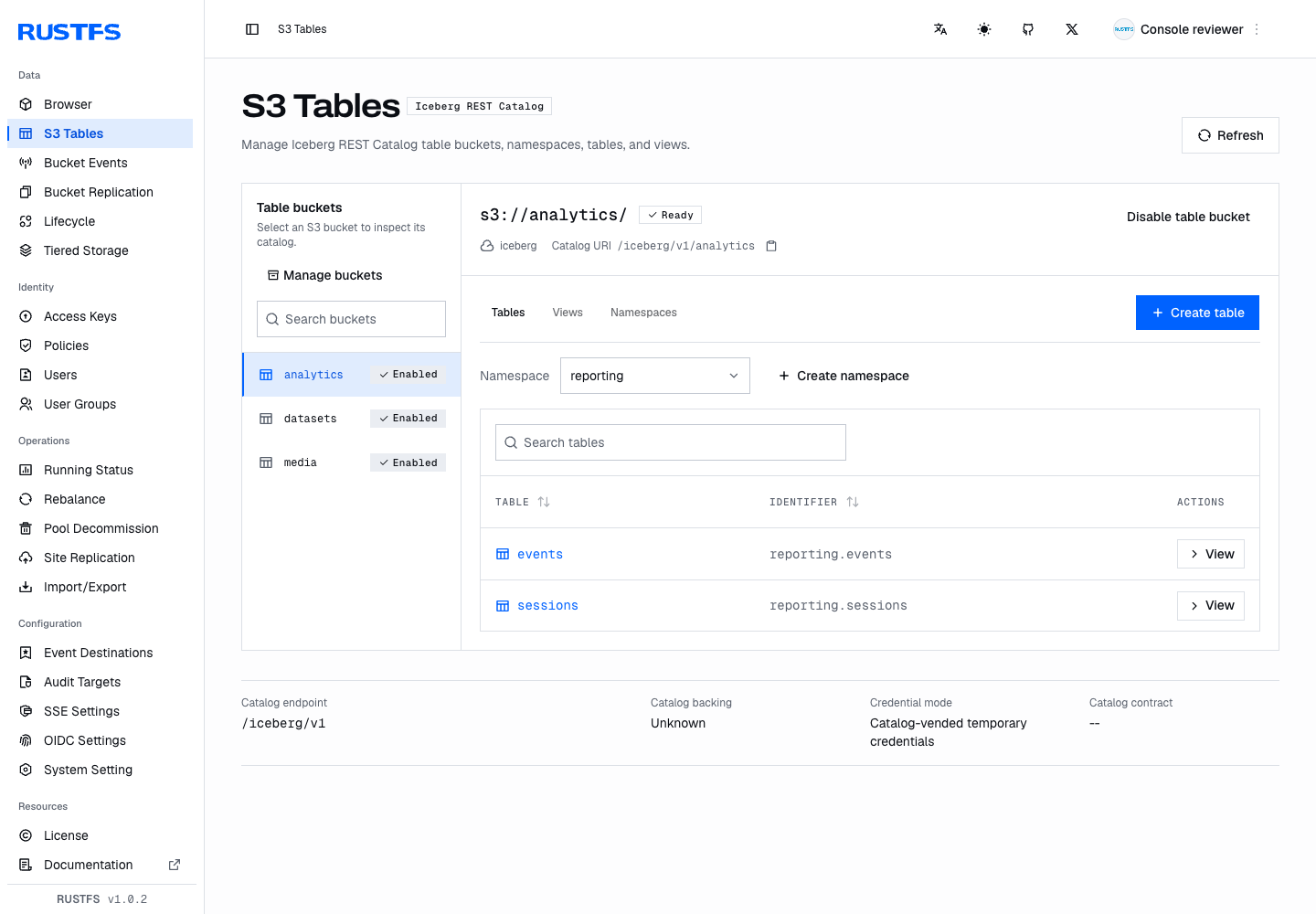

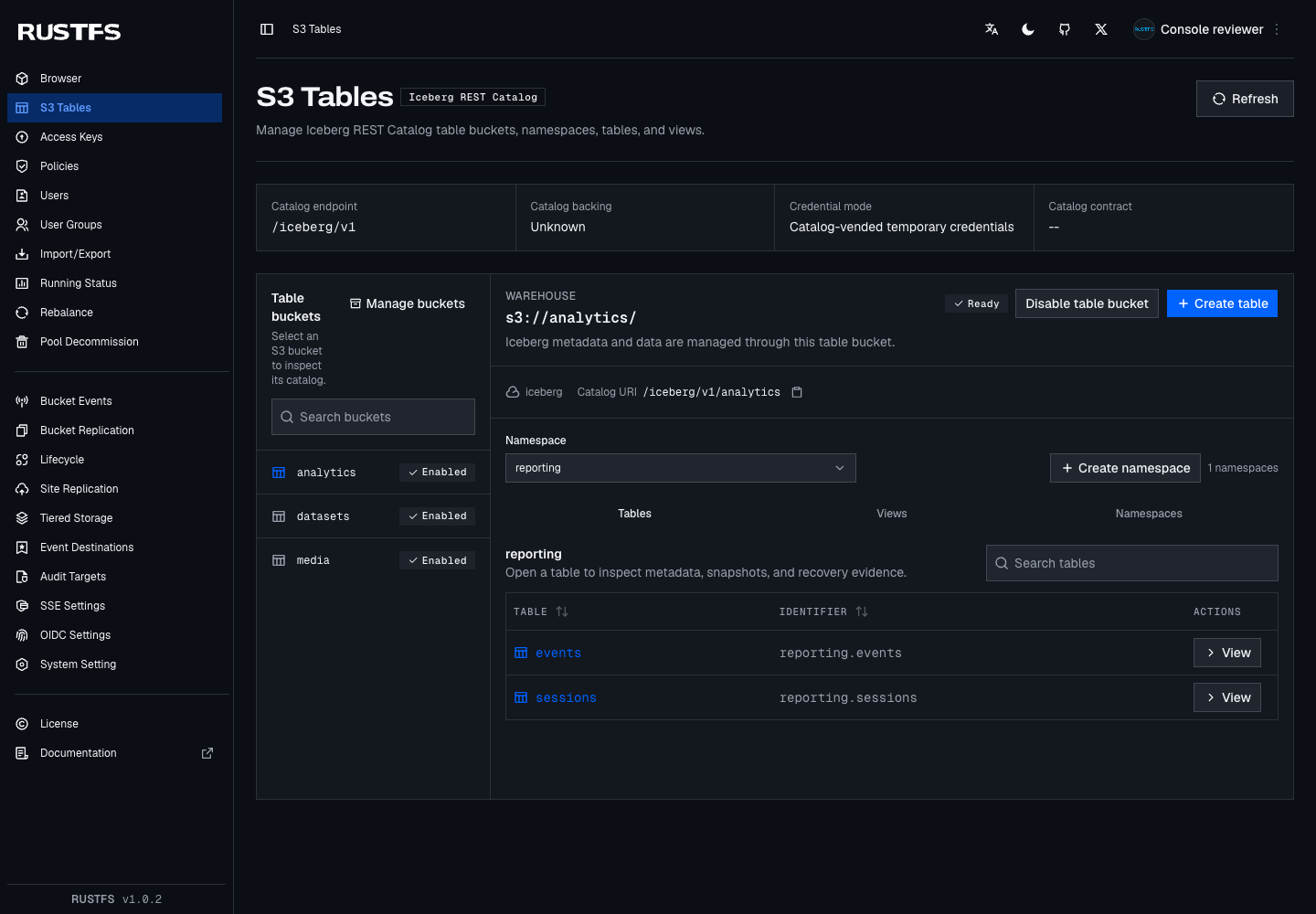

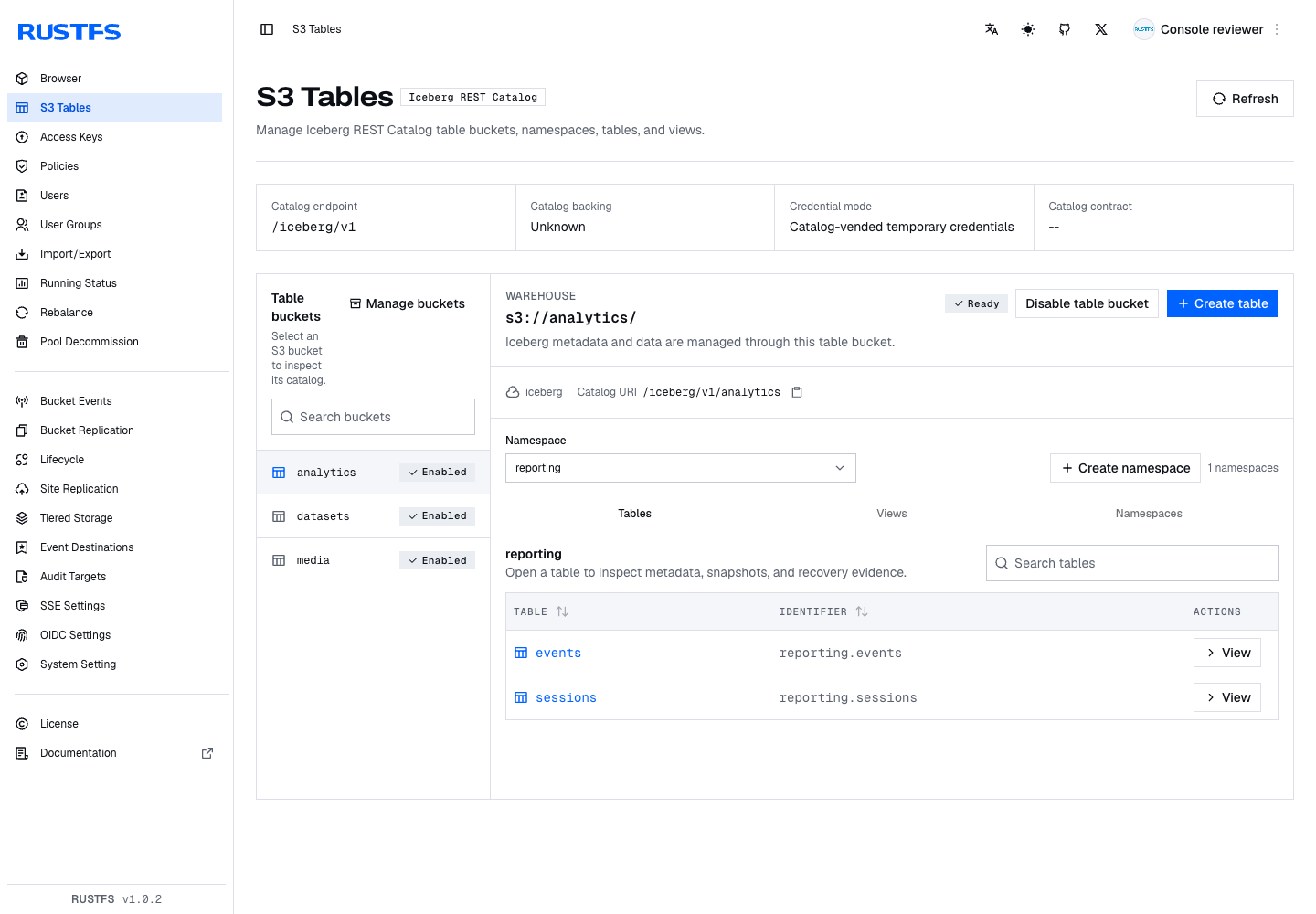

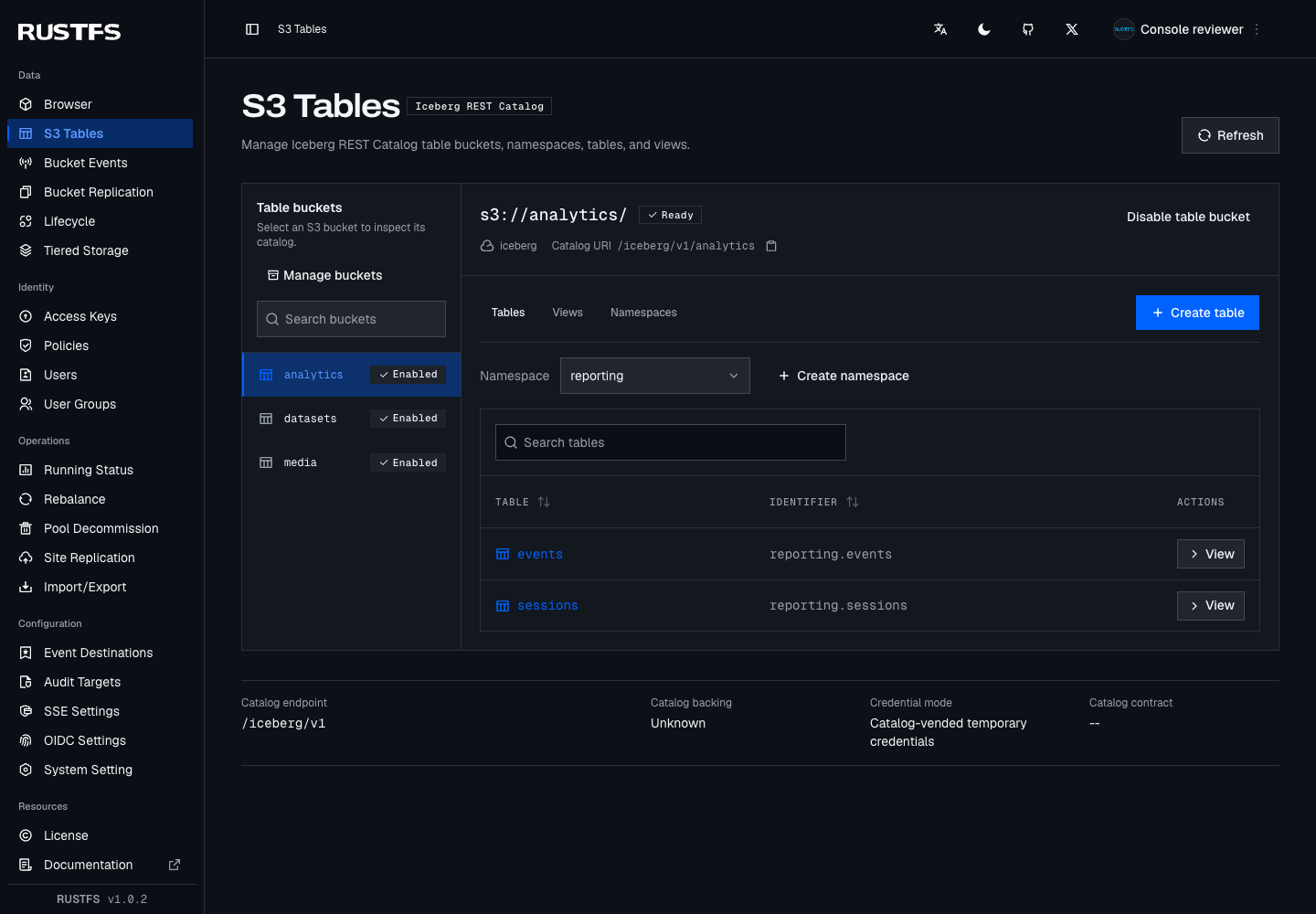

Table Catalog Loaded — /table-catalog/

View	Before	After
Light
Dark

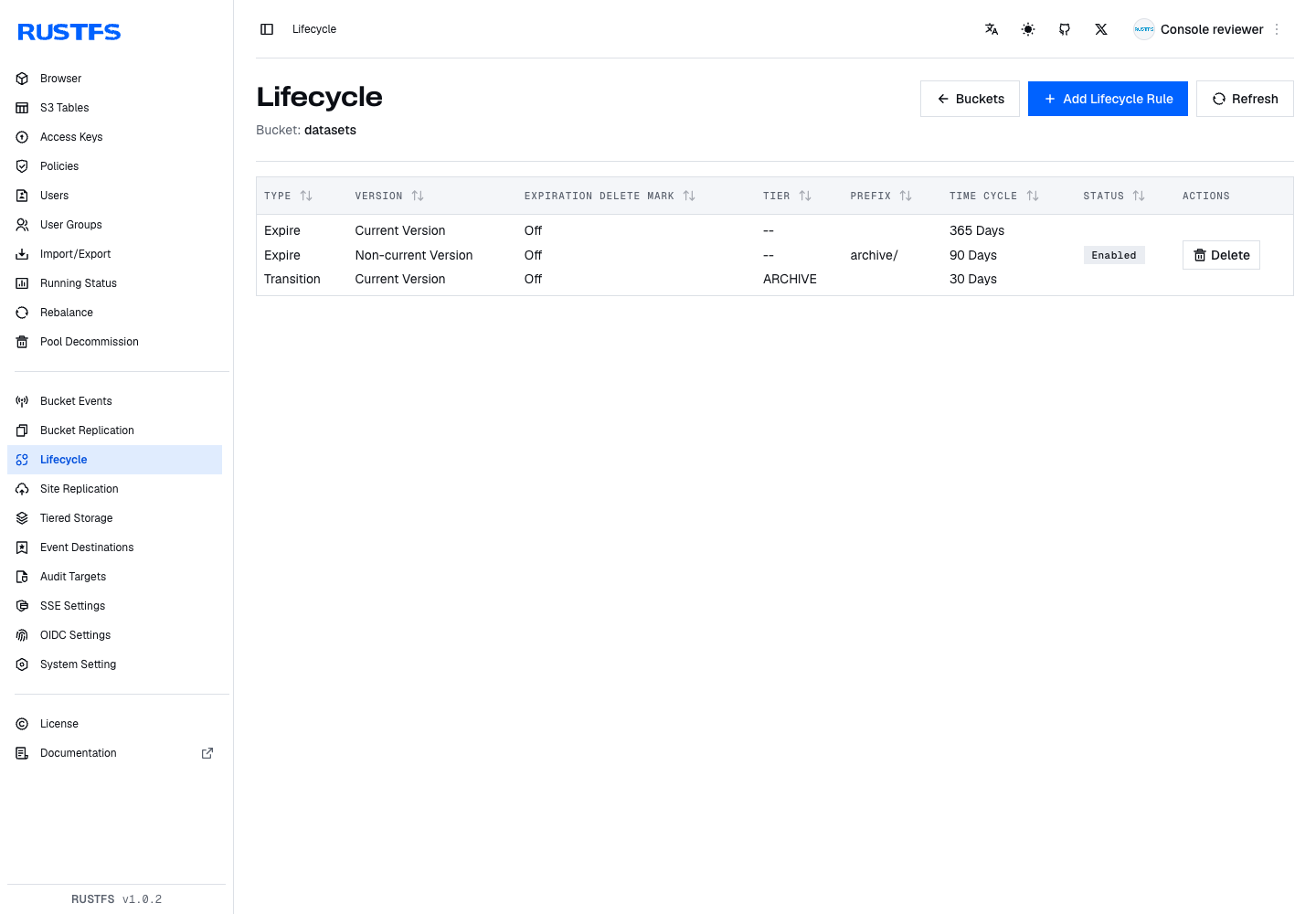

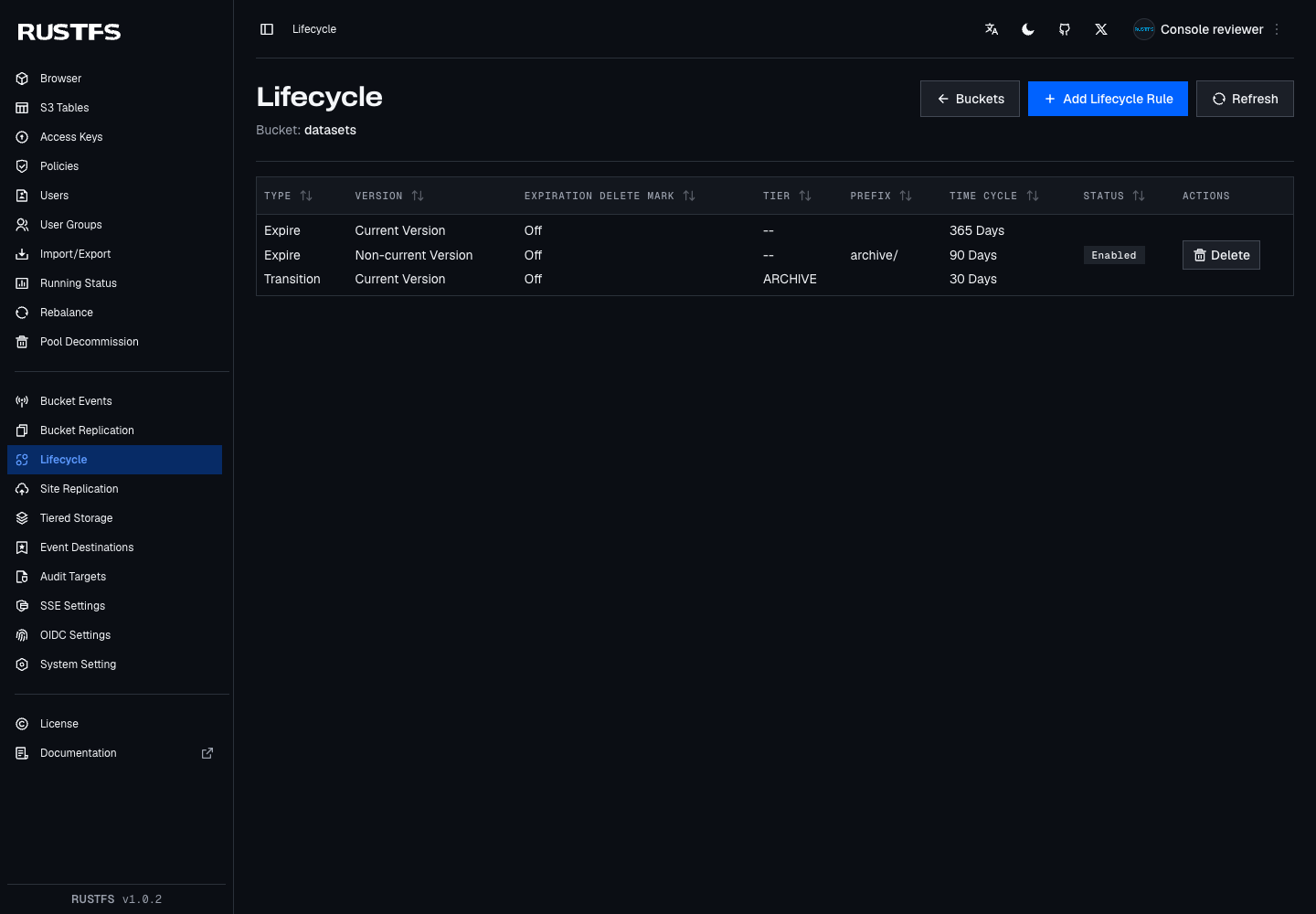

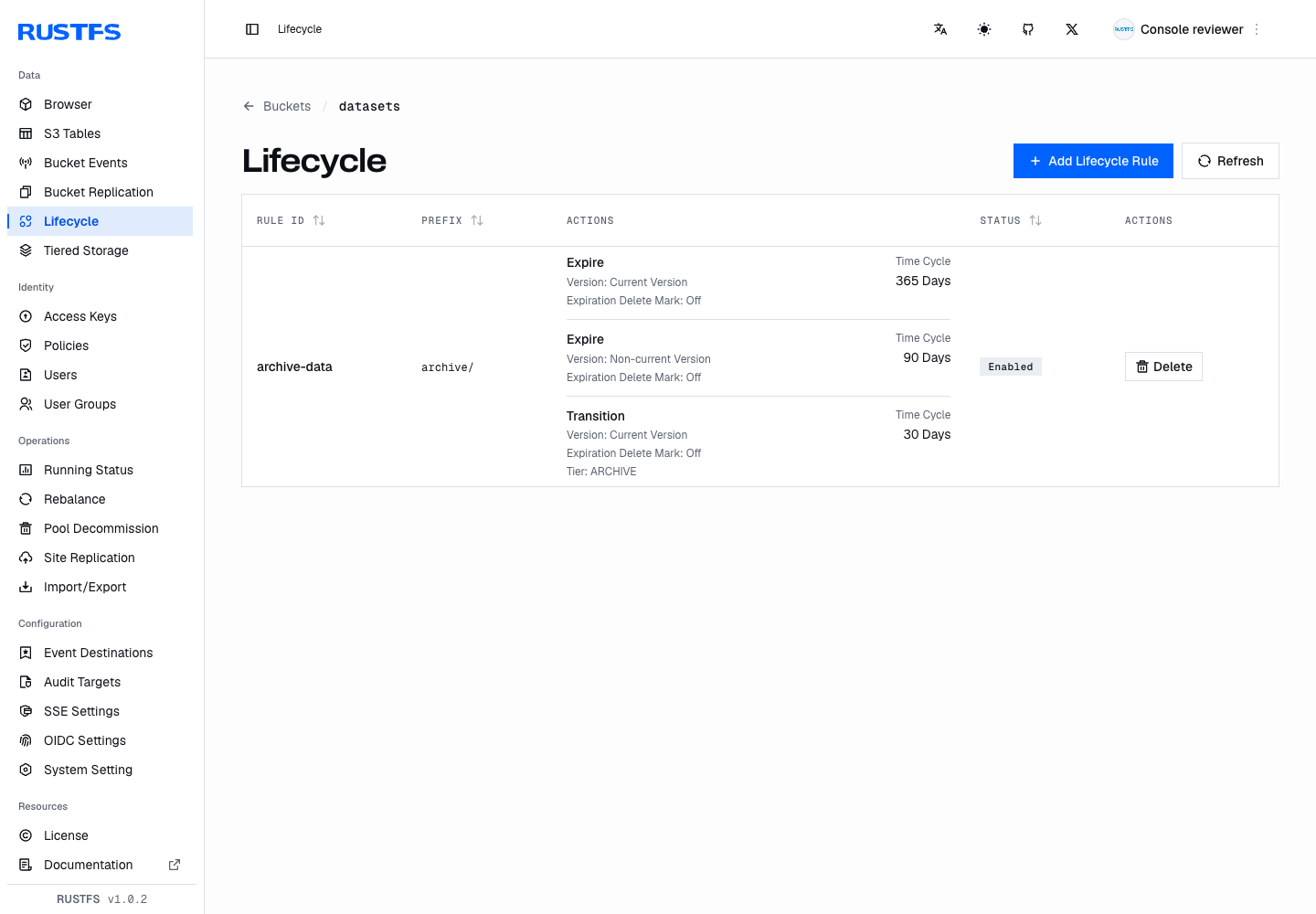

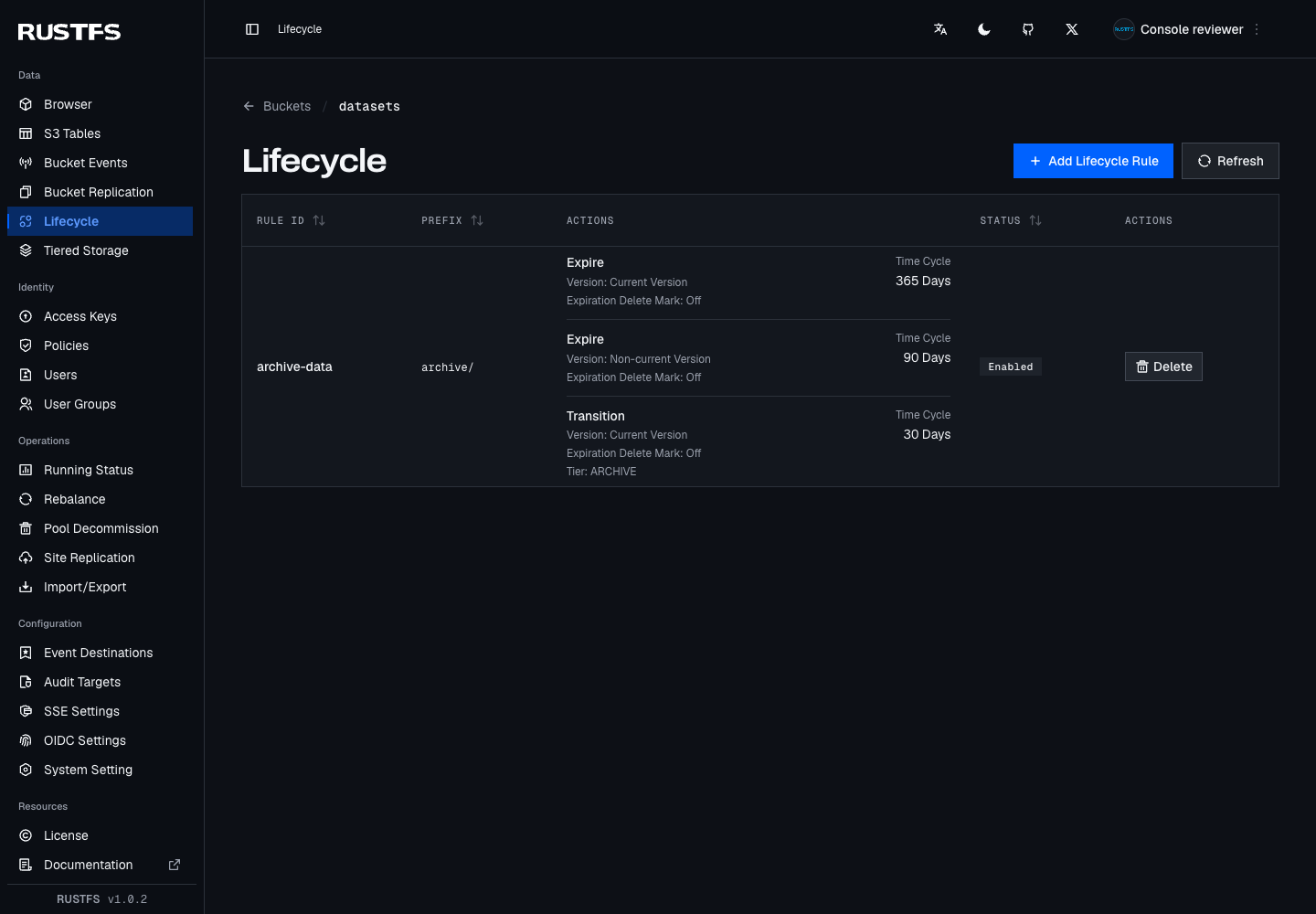

Lifecycle Multiple Actions — /lifecycle/?bucket=datasets

View	Before	After
Light
Dark

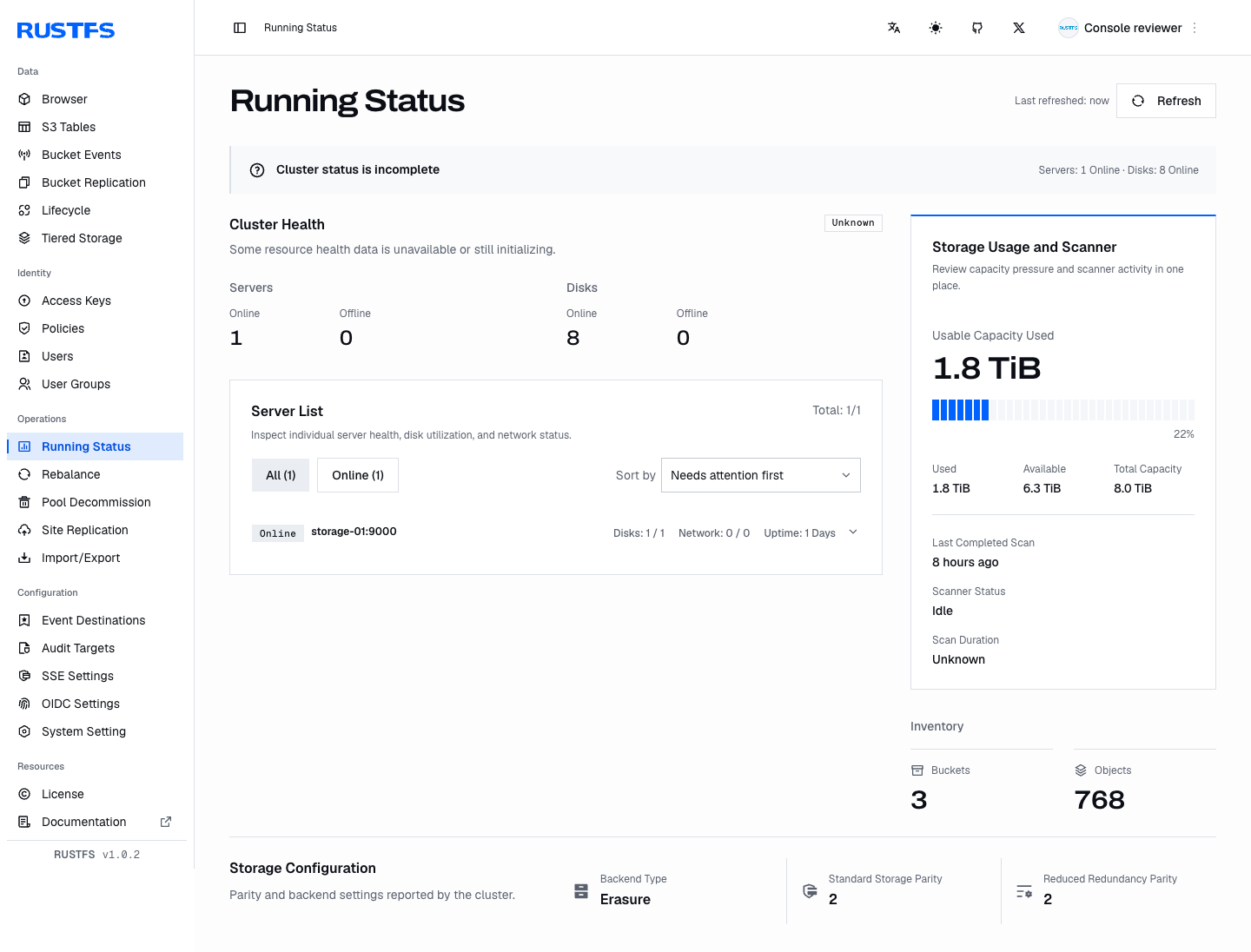

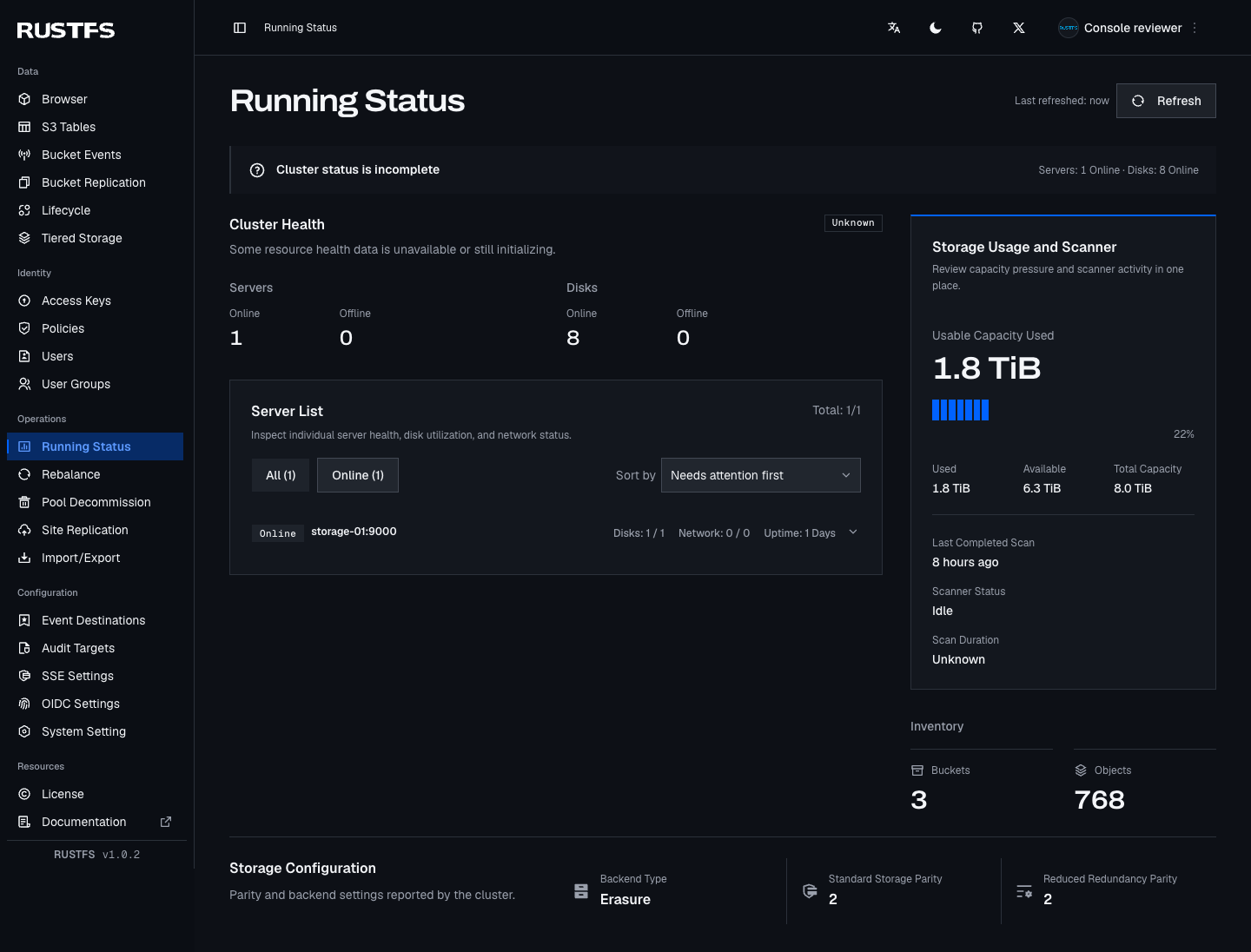

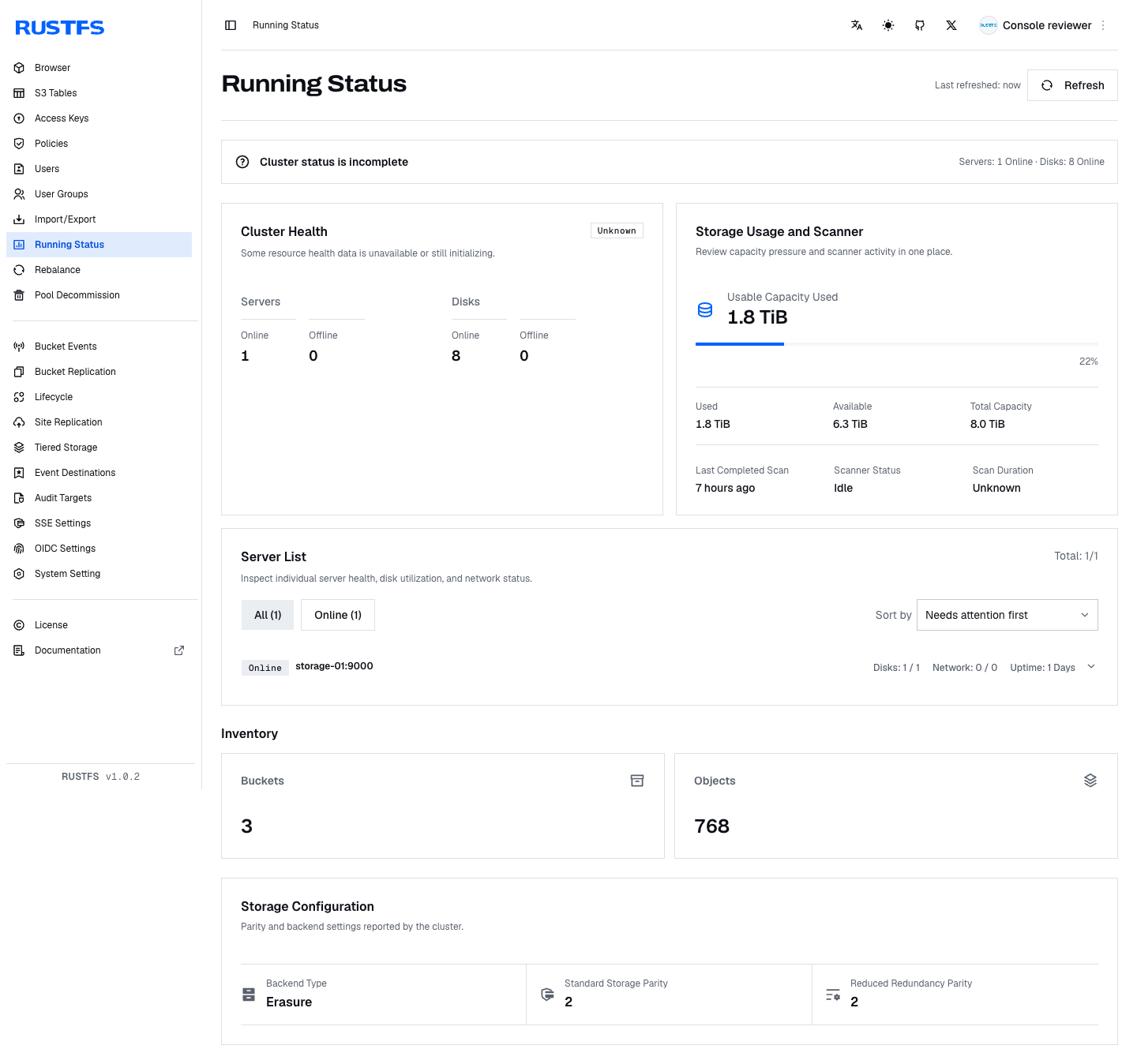

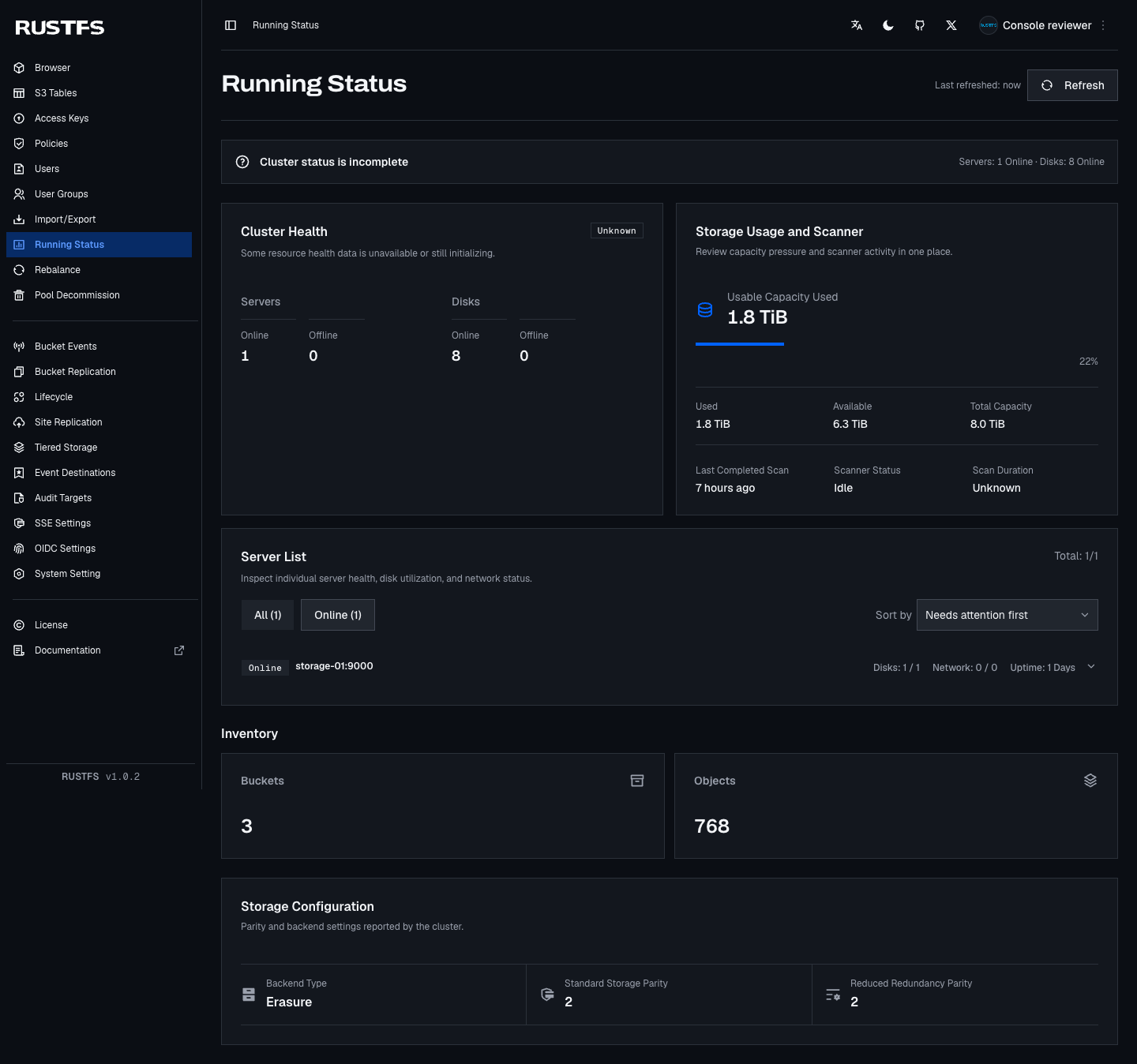

Status Healthy — /status/

View	Before	After
Light
Dark

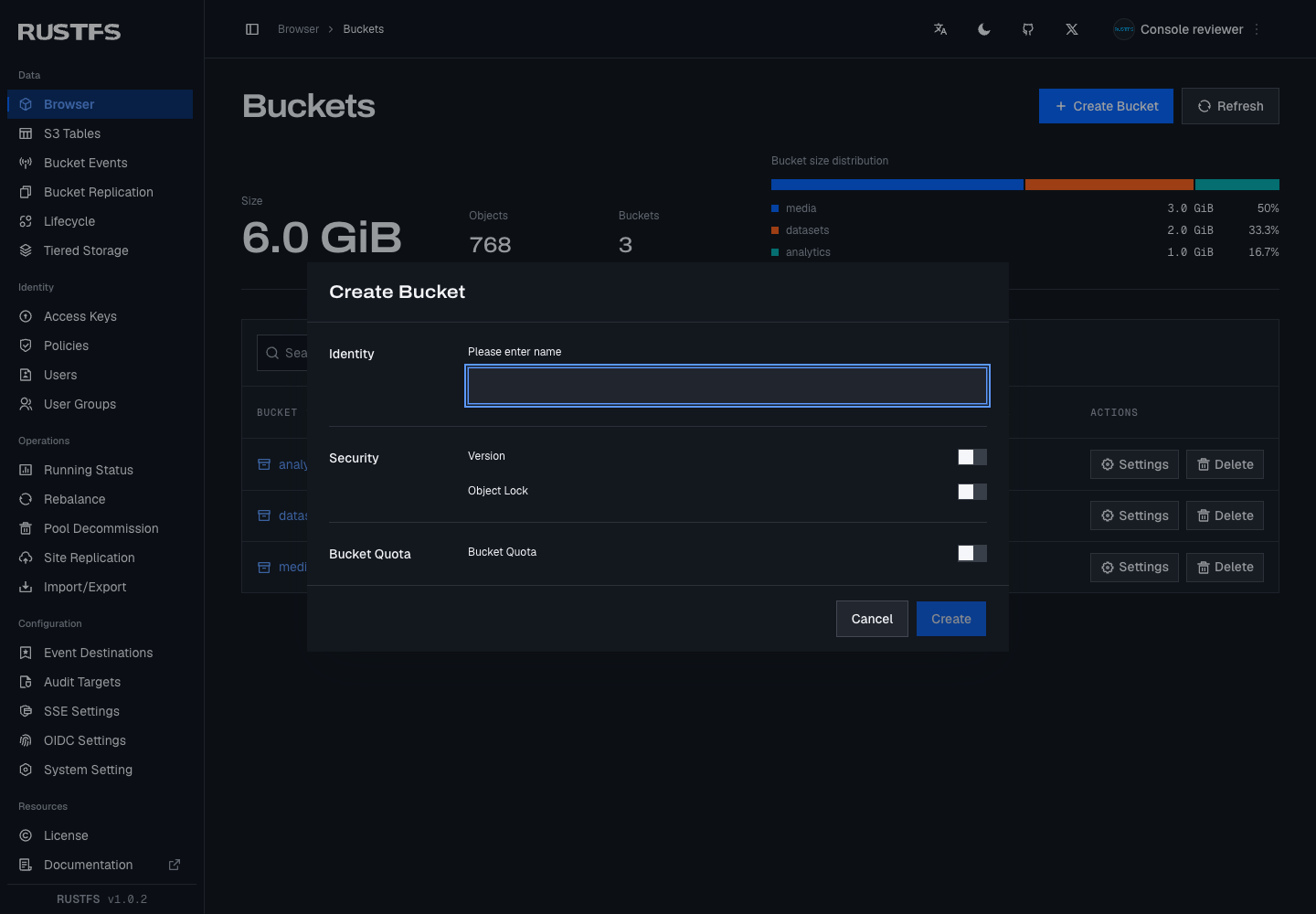

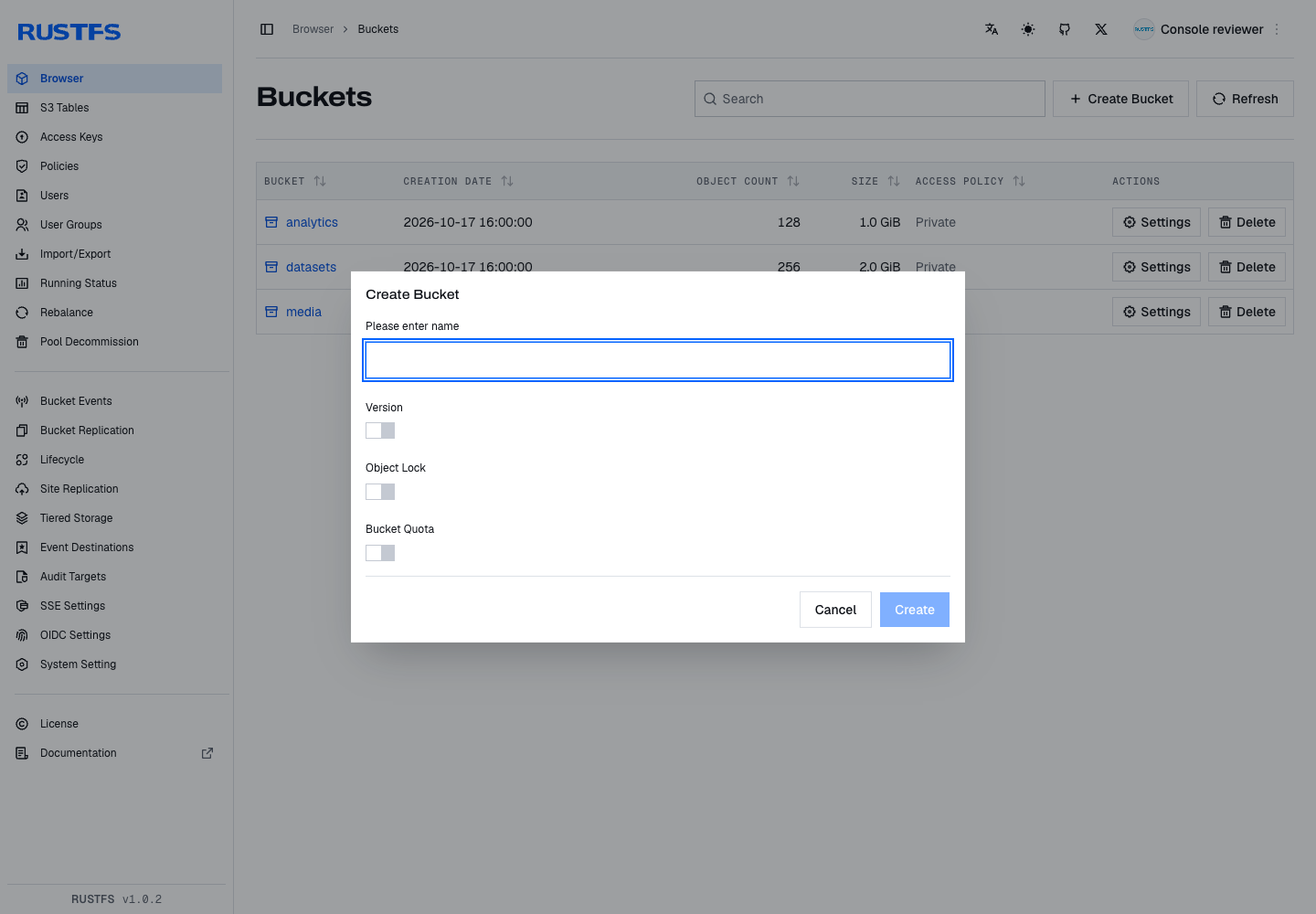

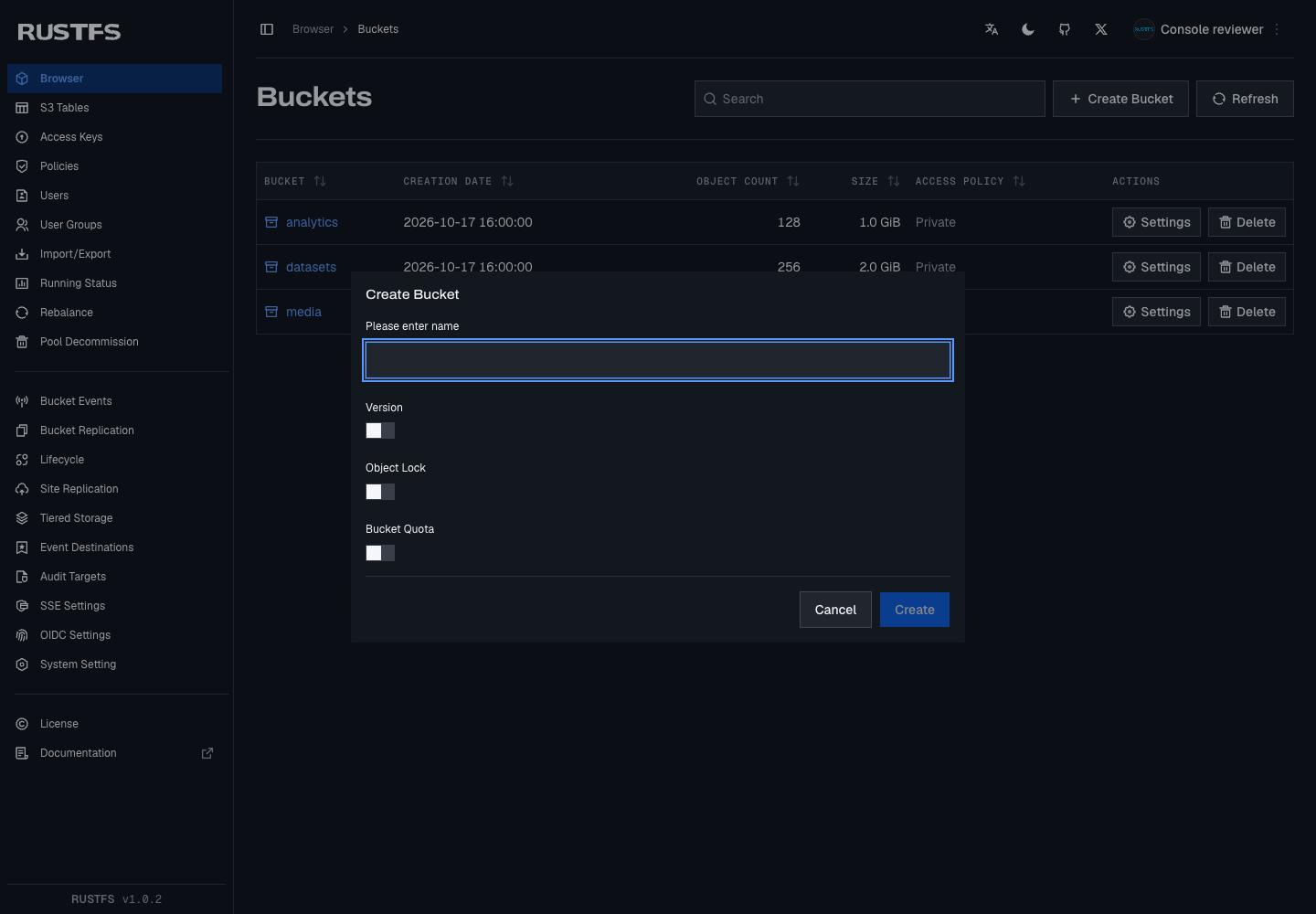

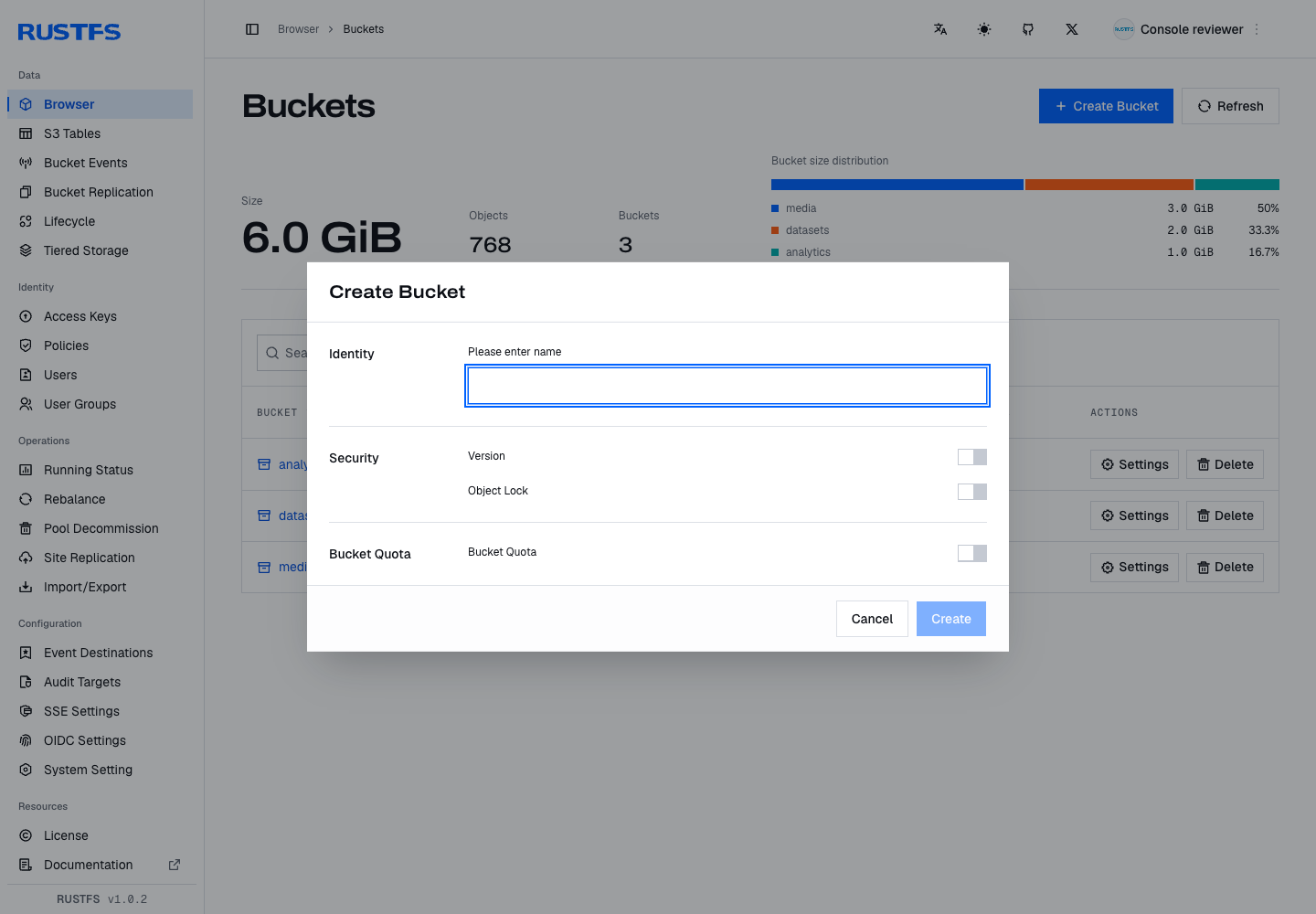

Dialog Bucket Create — /browser/

View	Before	After
Light
Dark

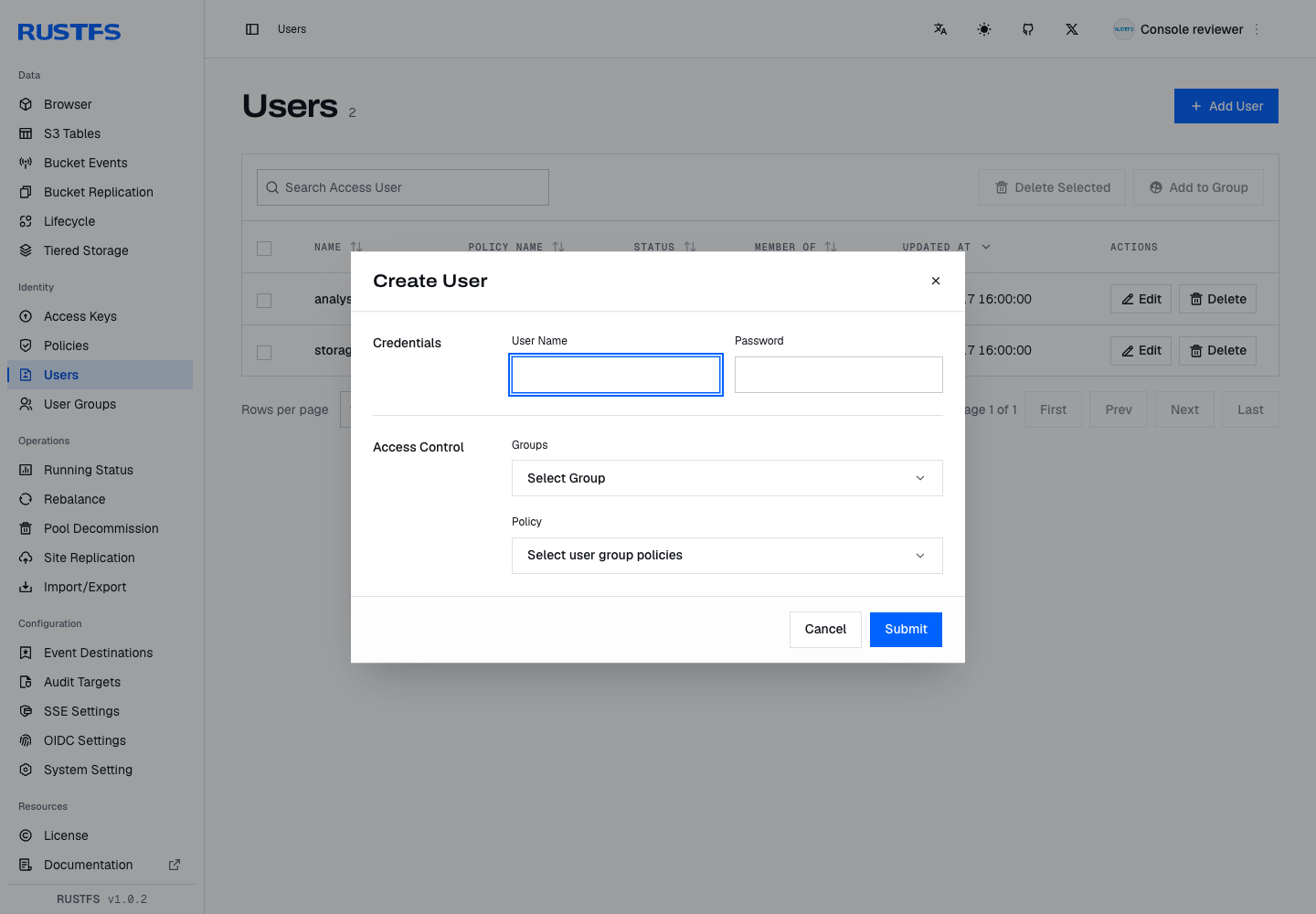

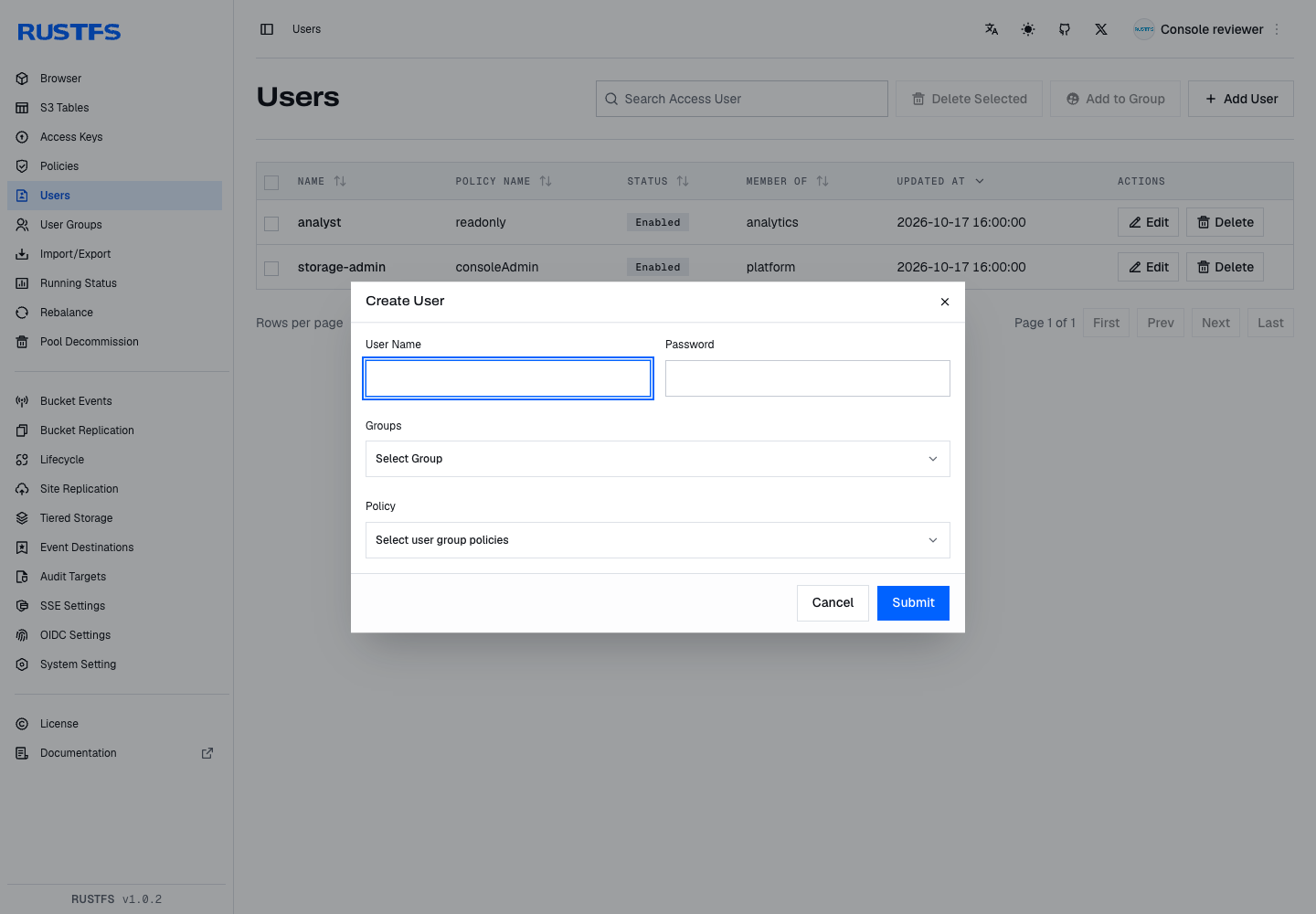

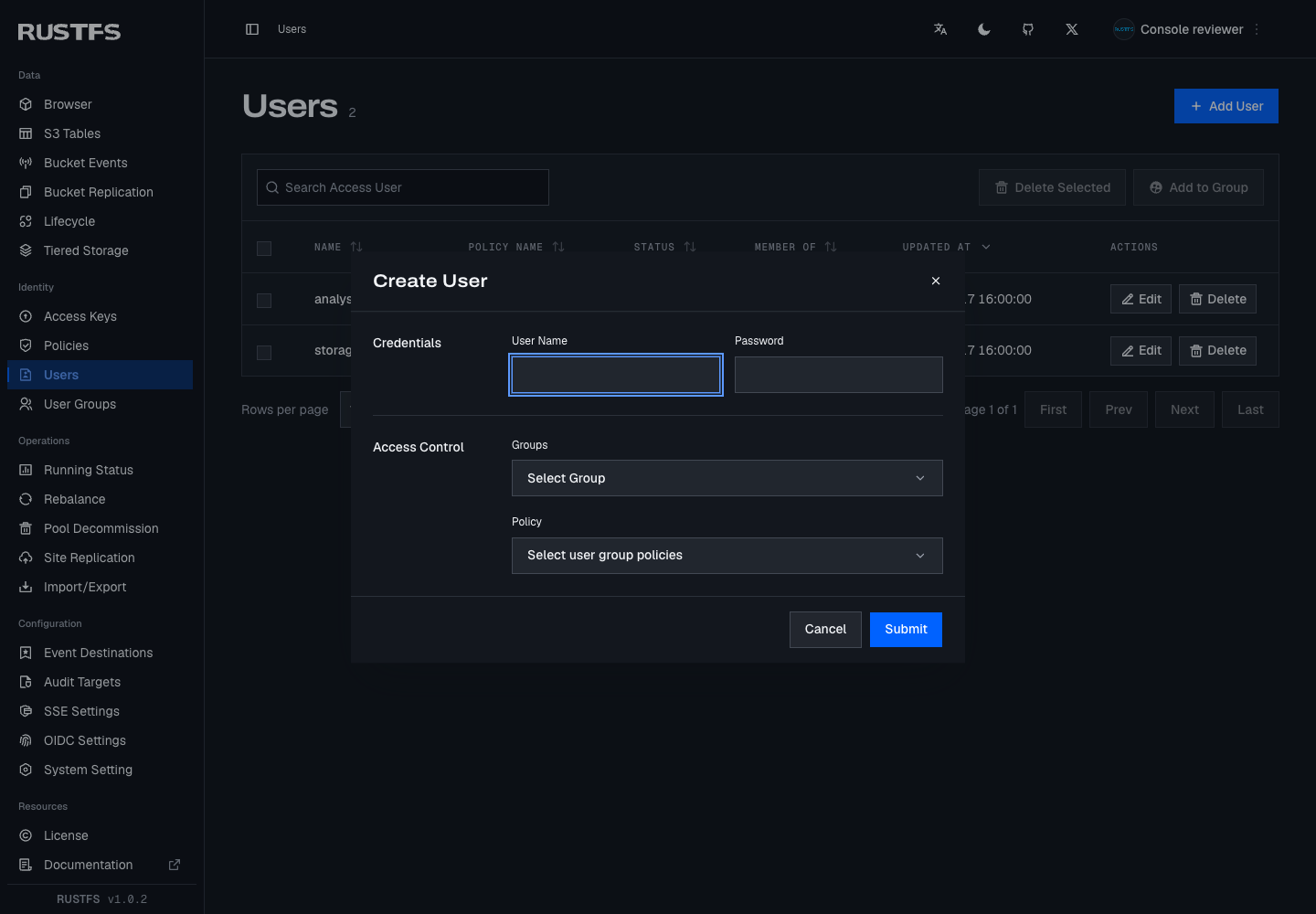

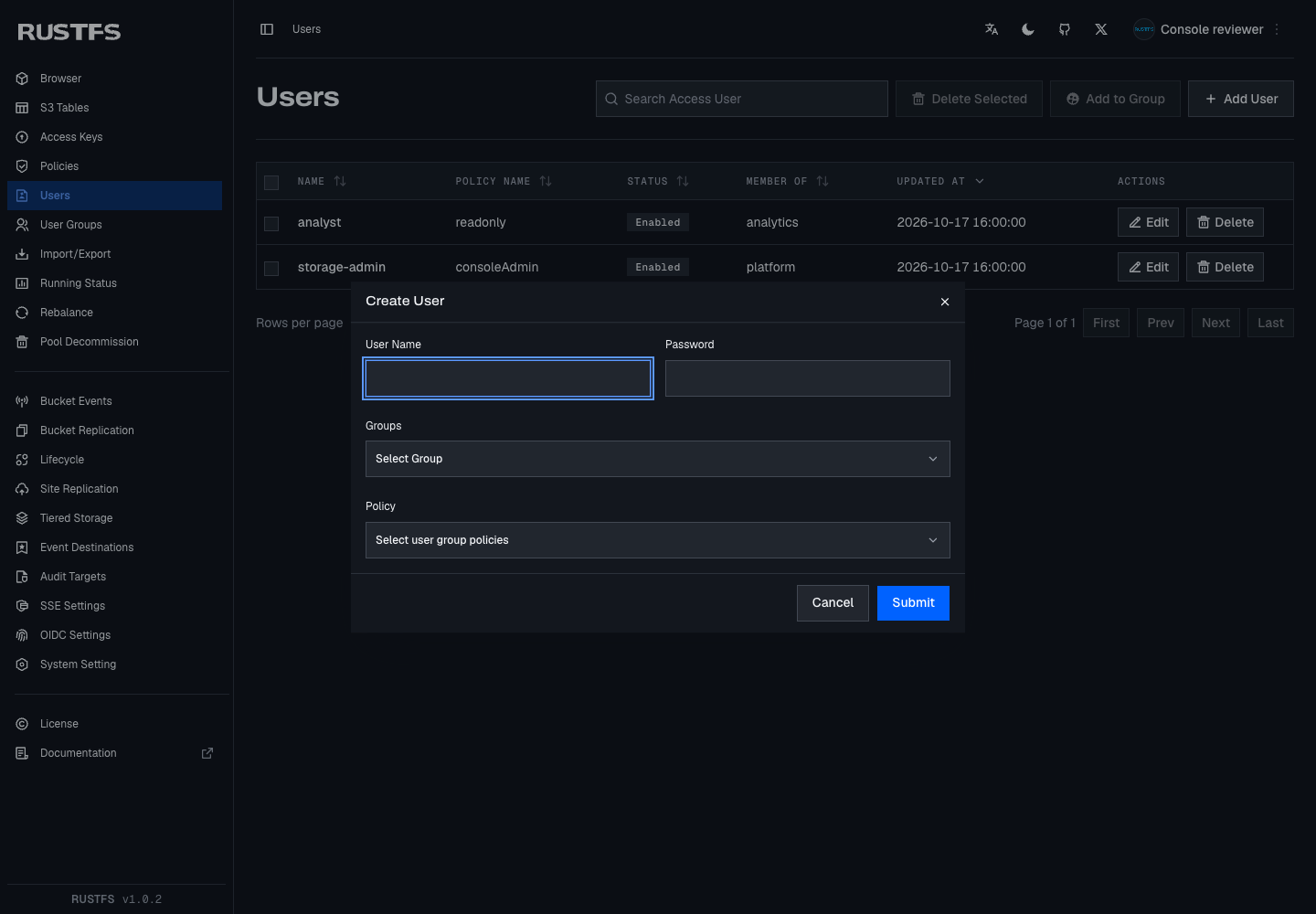

Dialog User — /users/

View	Before	After
Light
Dark

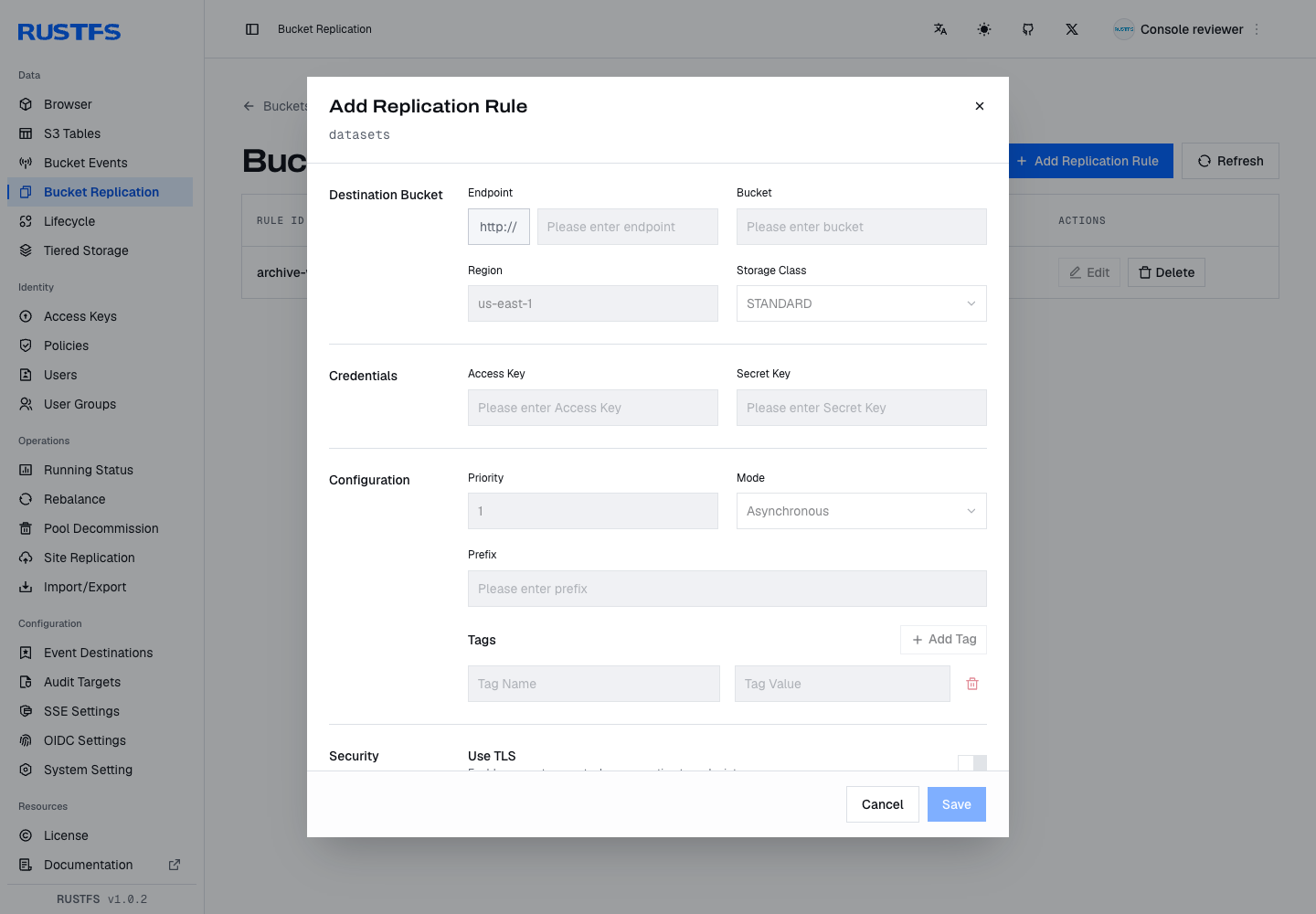

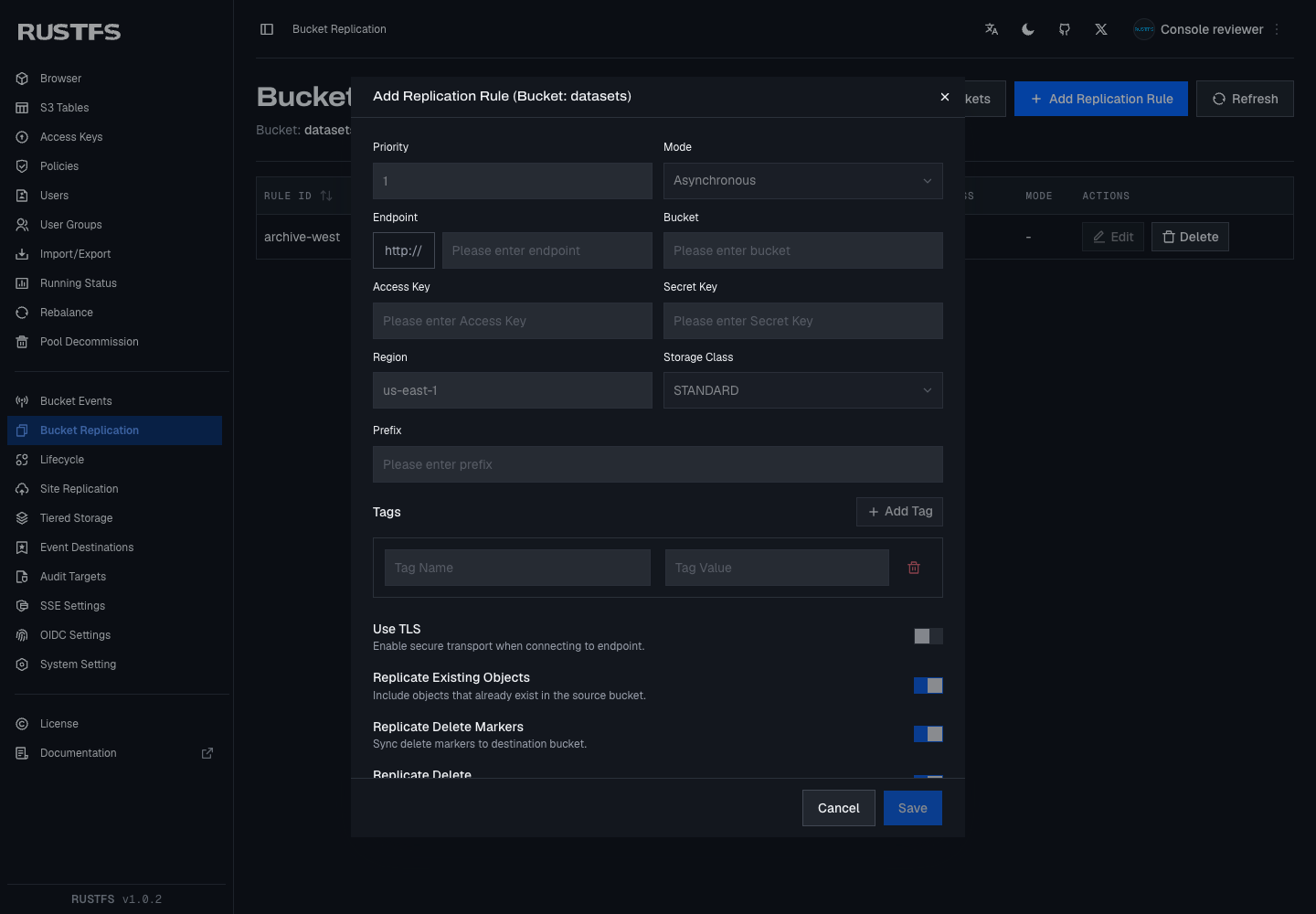

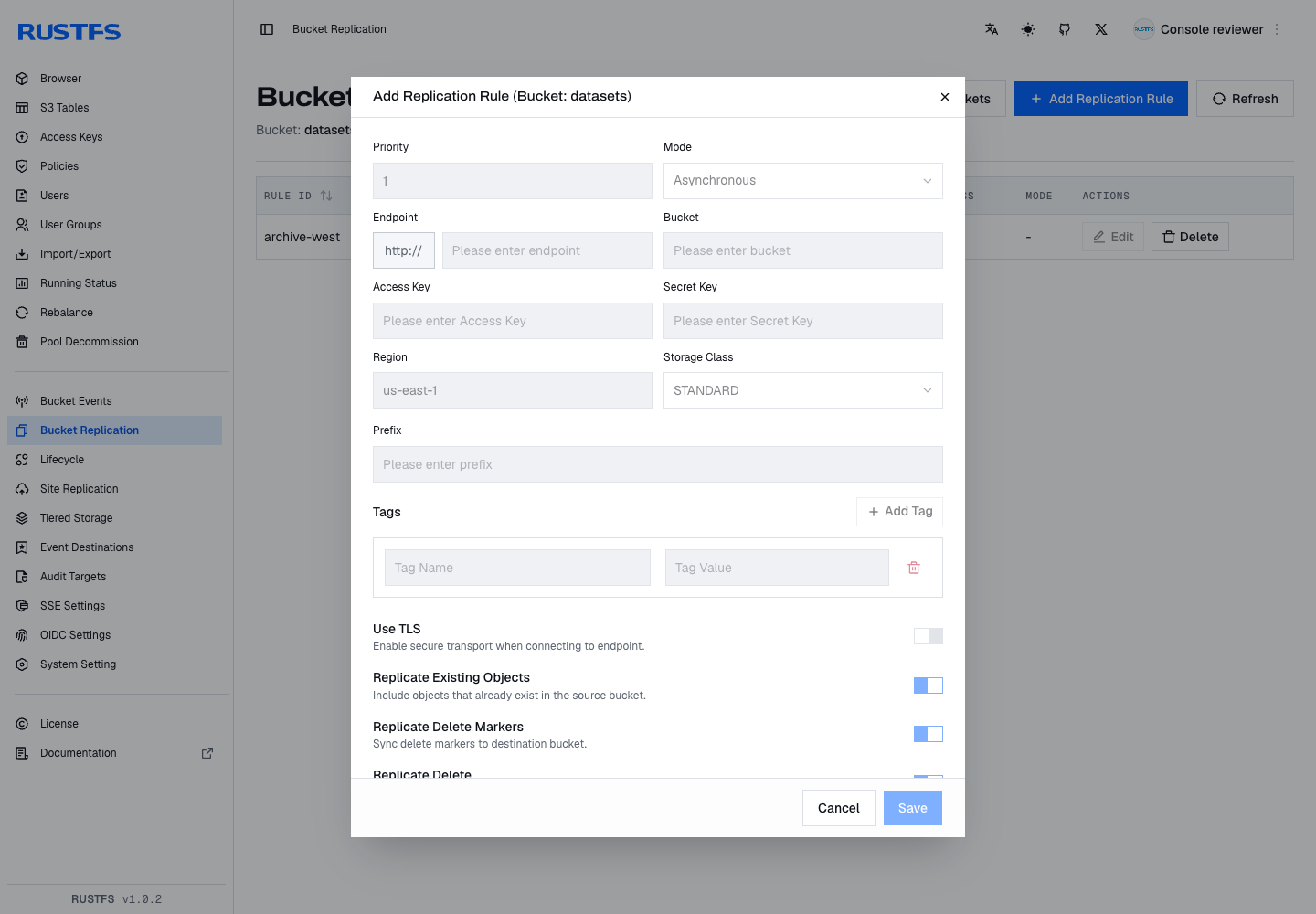

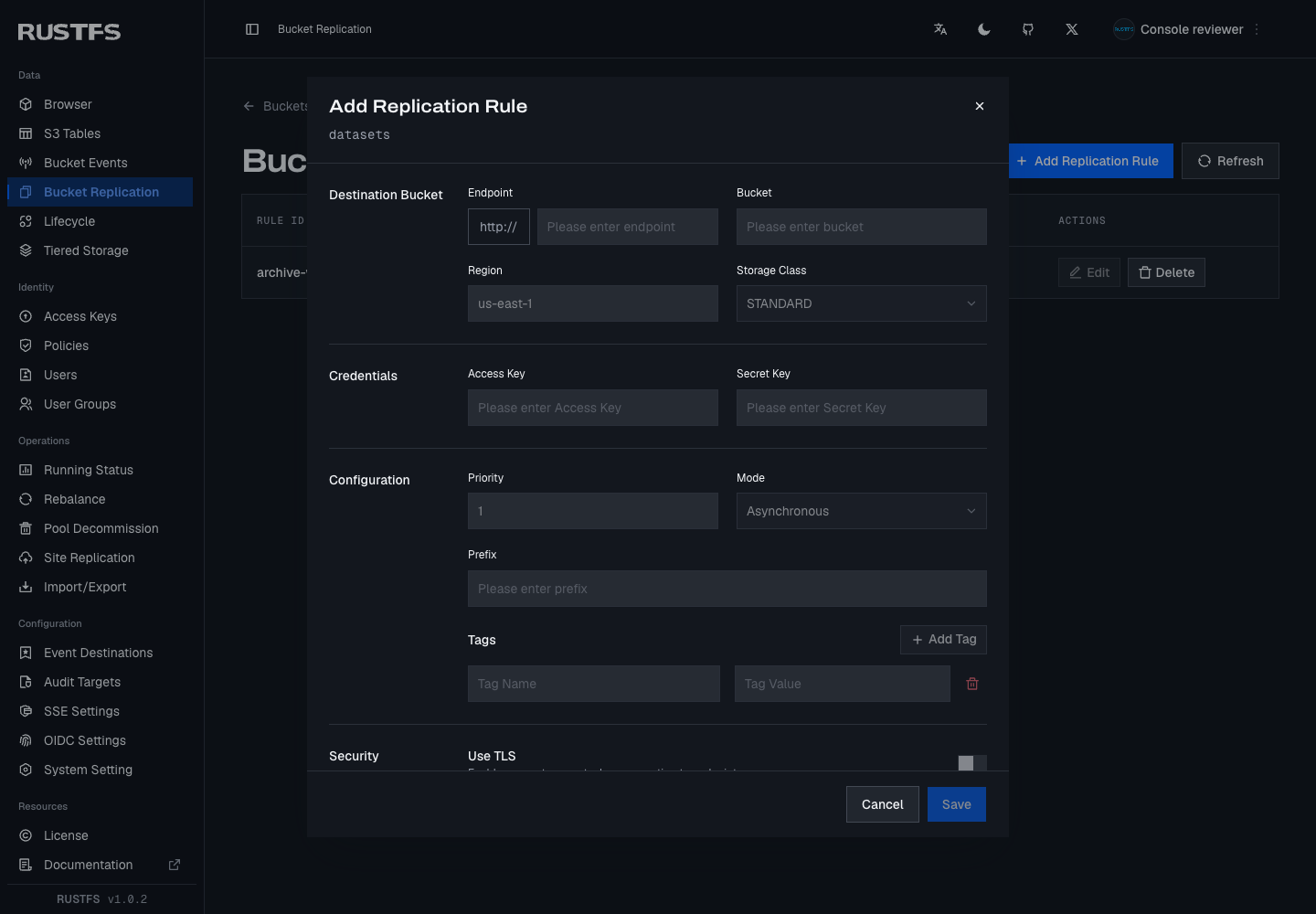

Dialog Replication Rule — /replication/?bucket=datasets

View	Before	After
Light
Dark

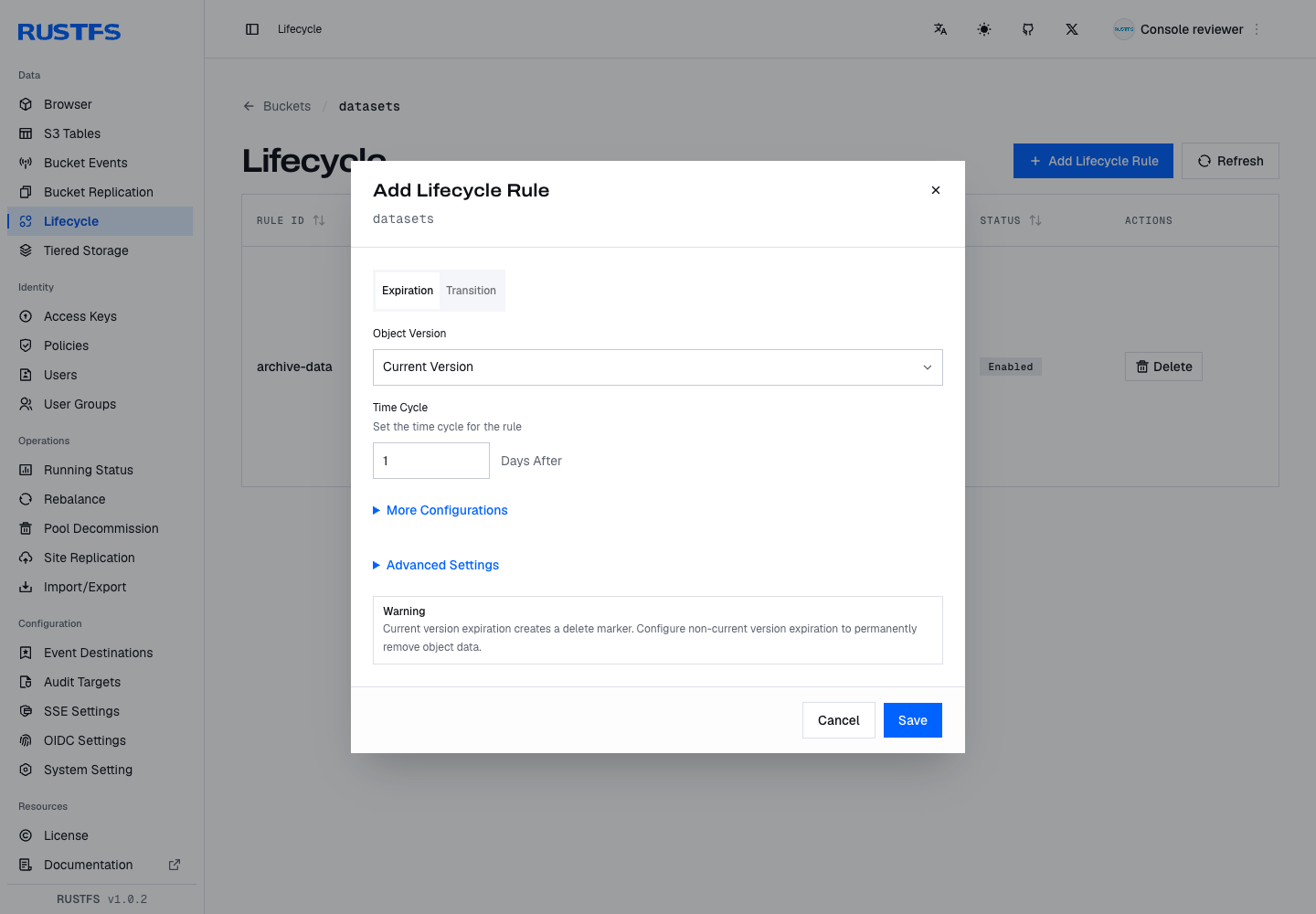

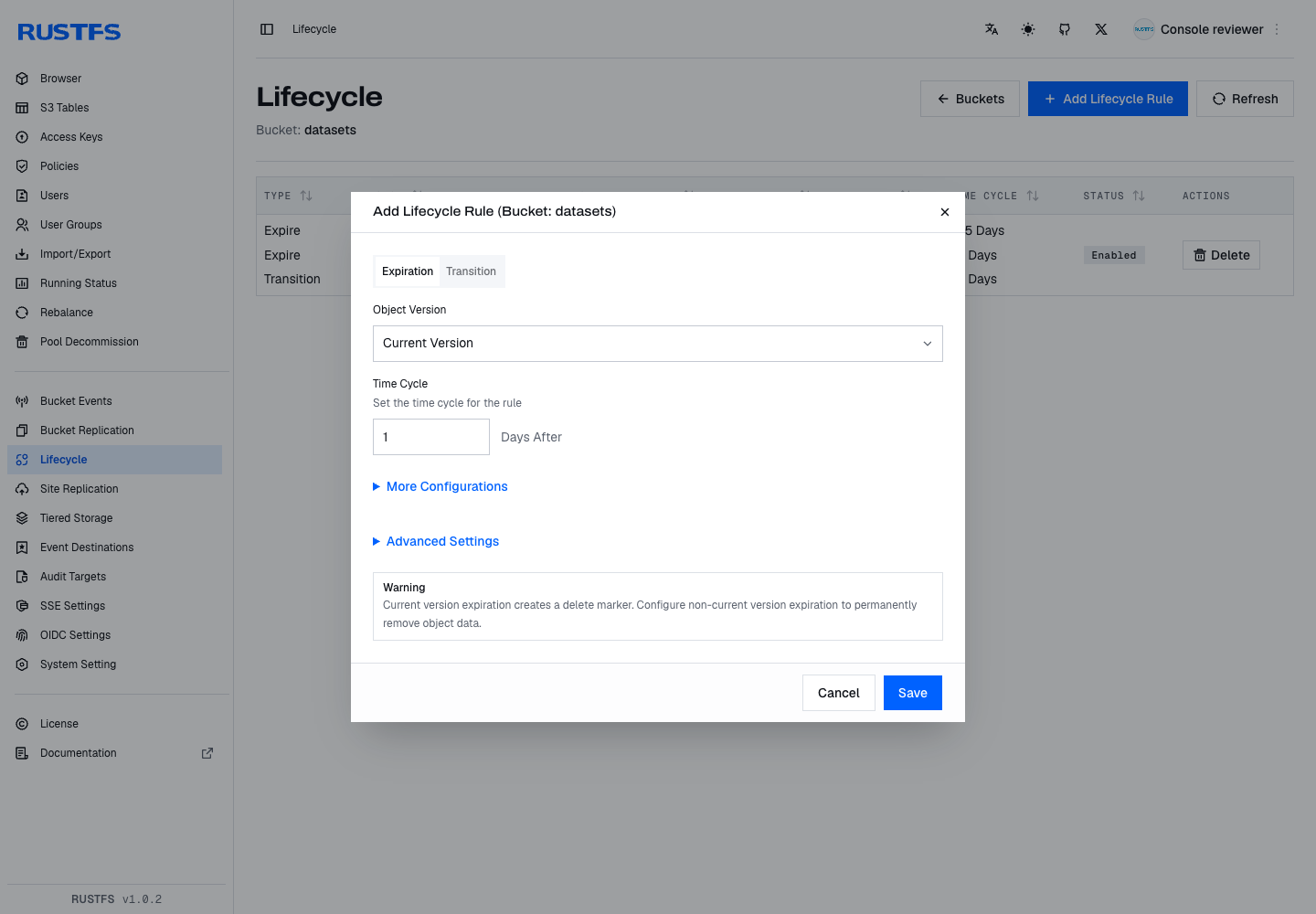

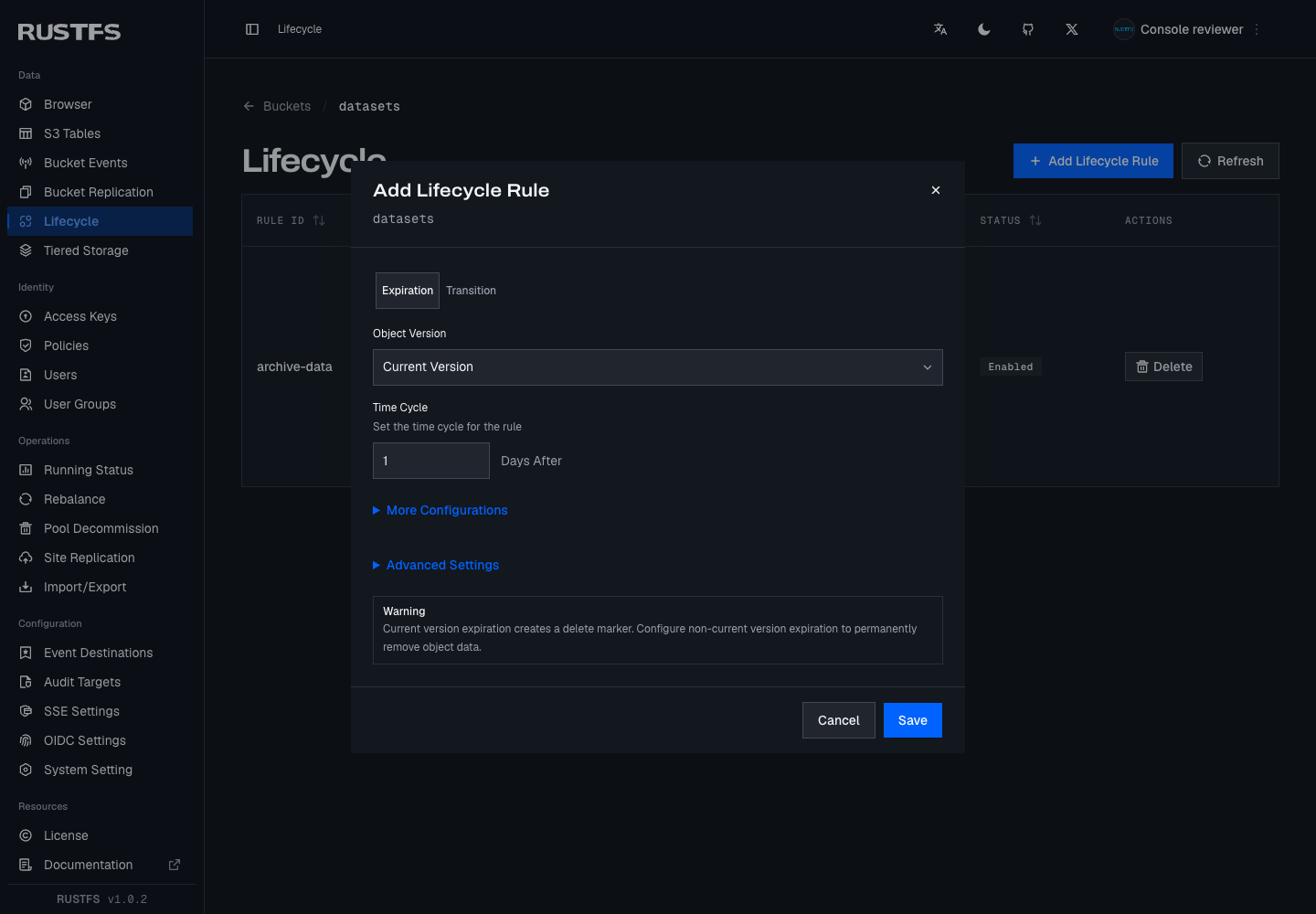

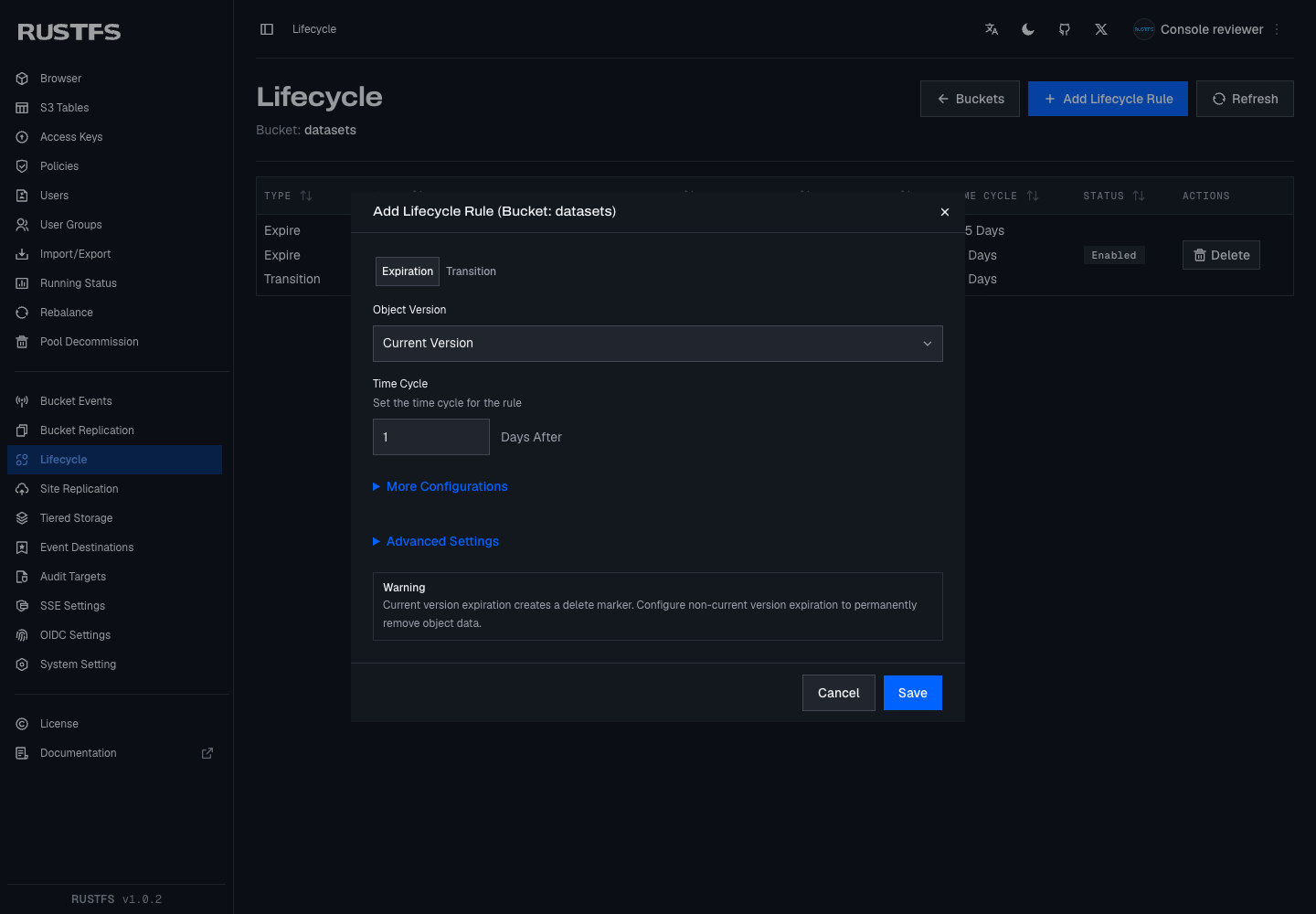

Dialog Lifecycle Rule — /lifecycle/?bucket=datasets

View	Before	After
Light
Dark

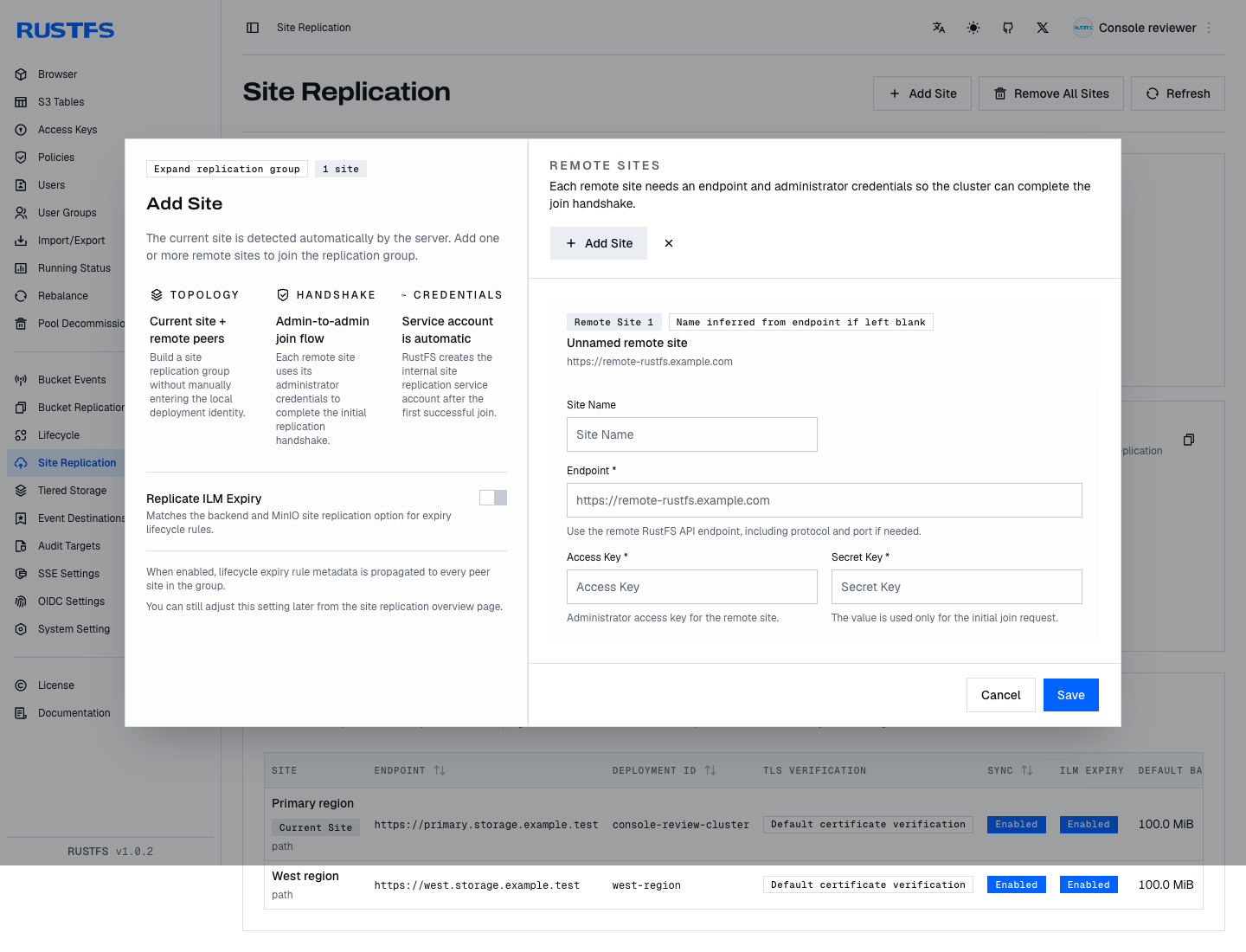

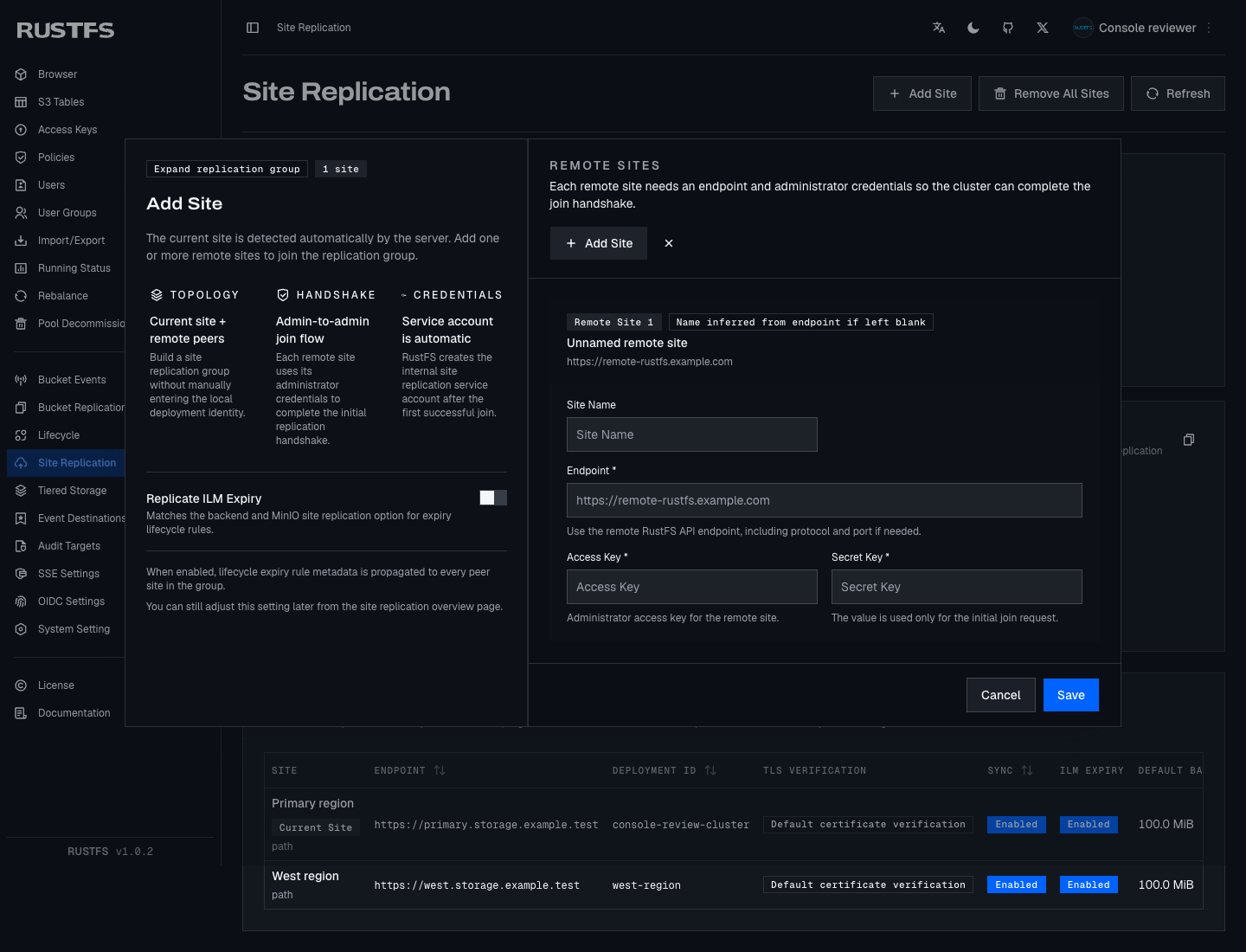

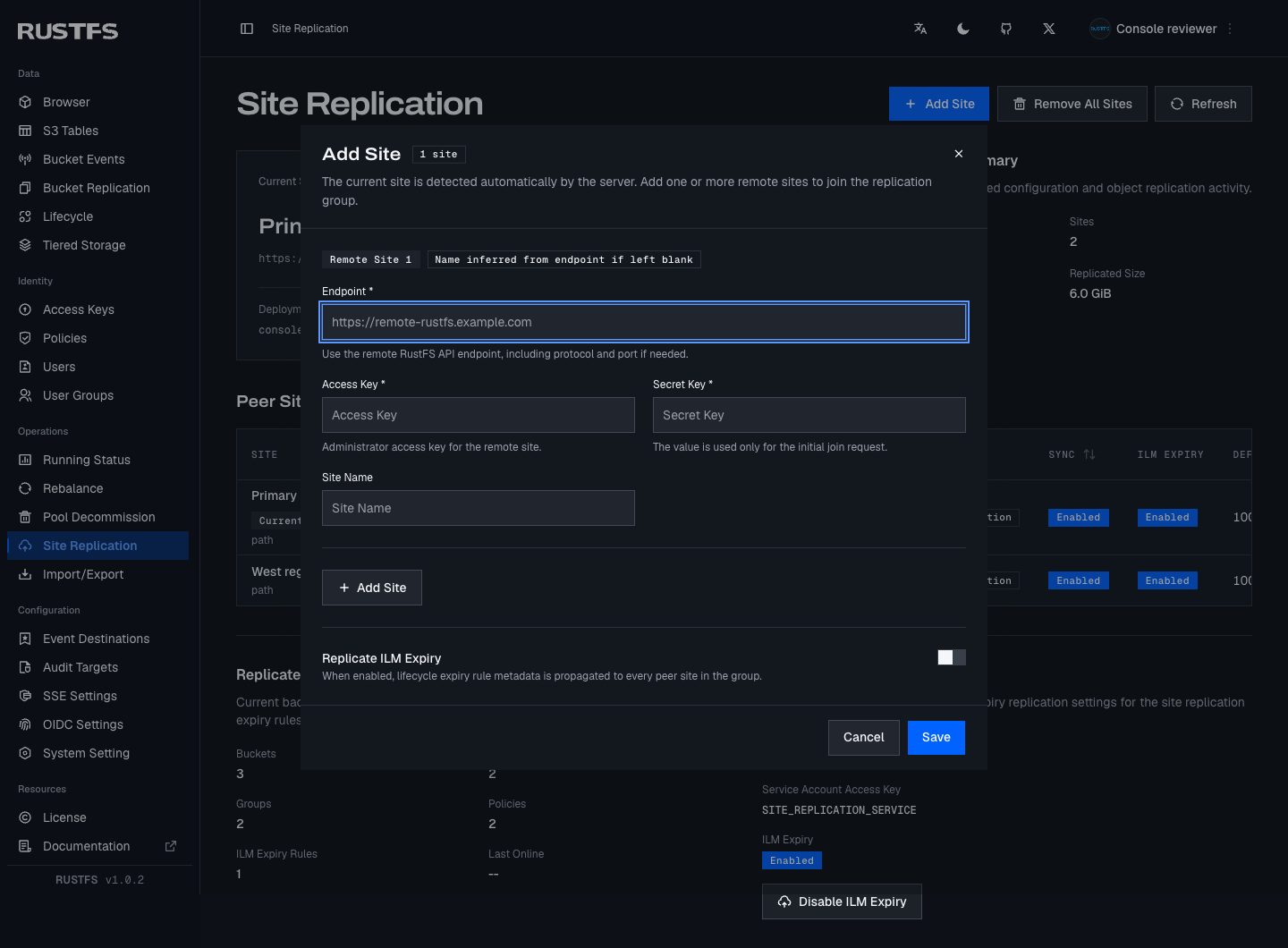

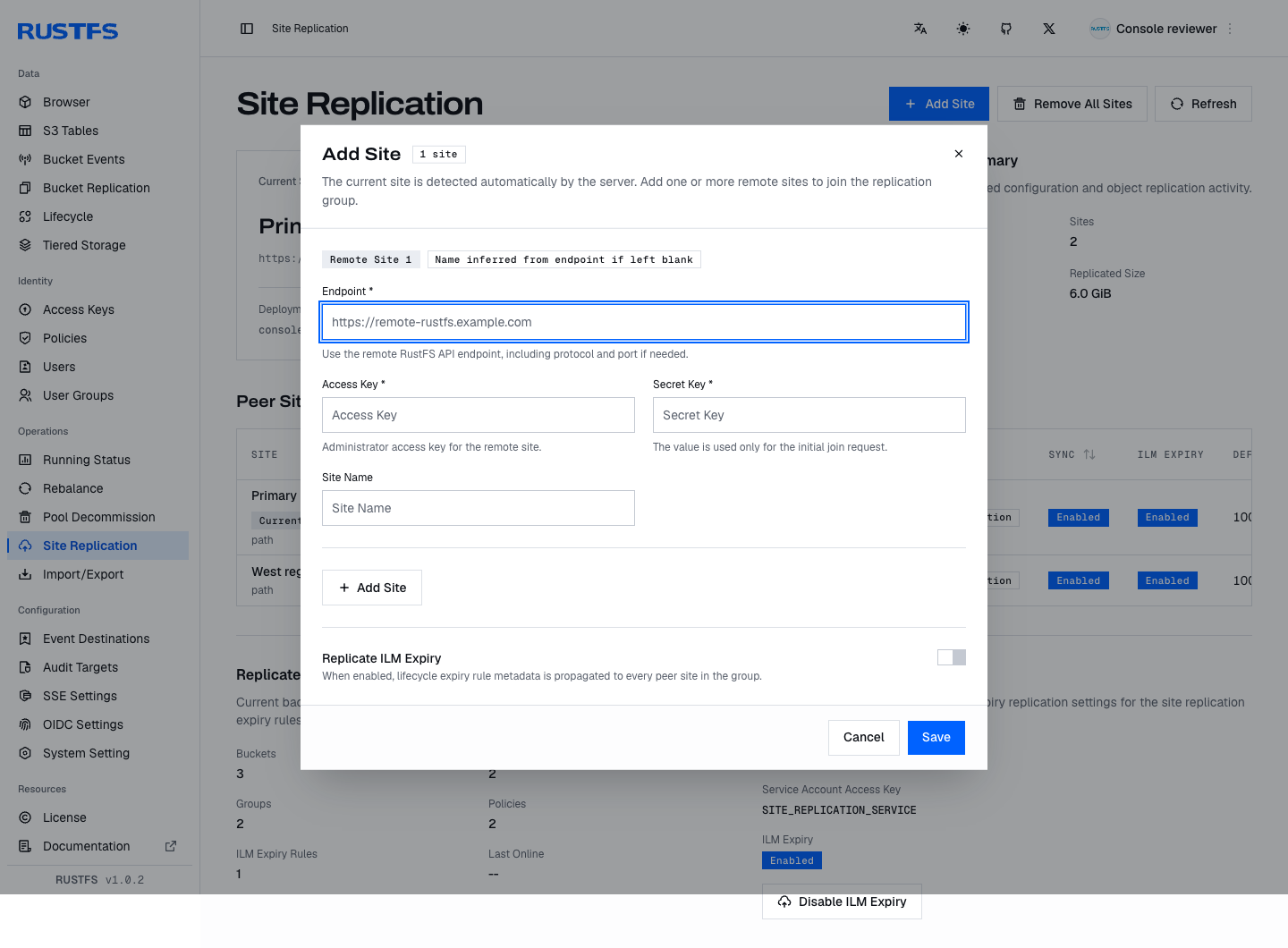

Dialog Site — /site-replication/

View	Before	After
Light
Dark

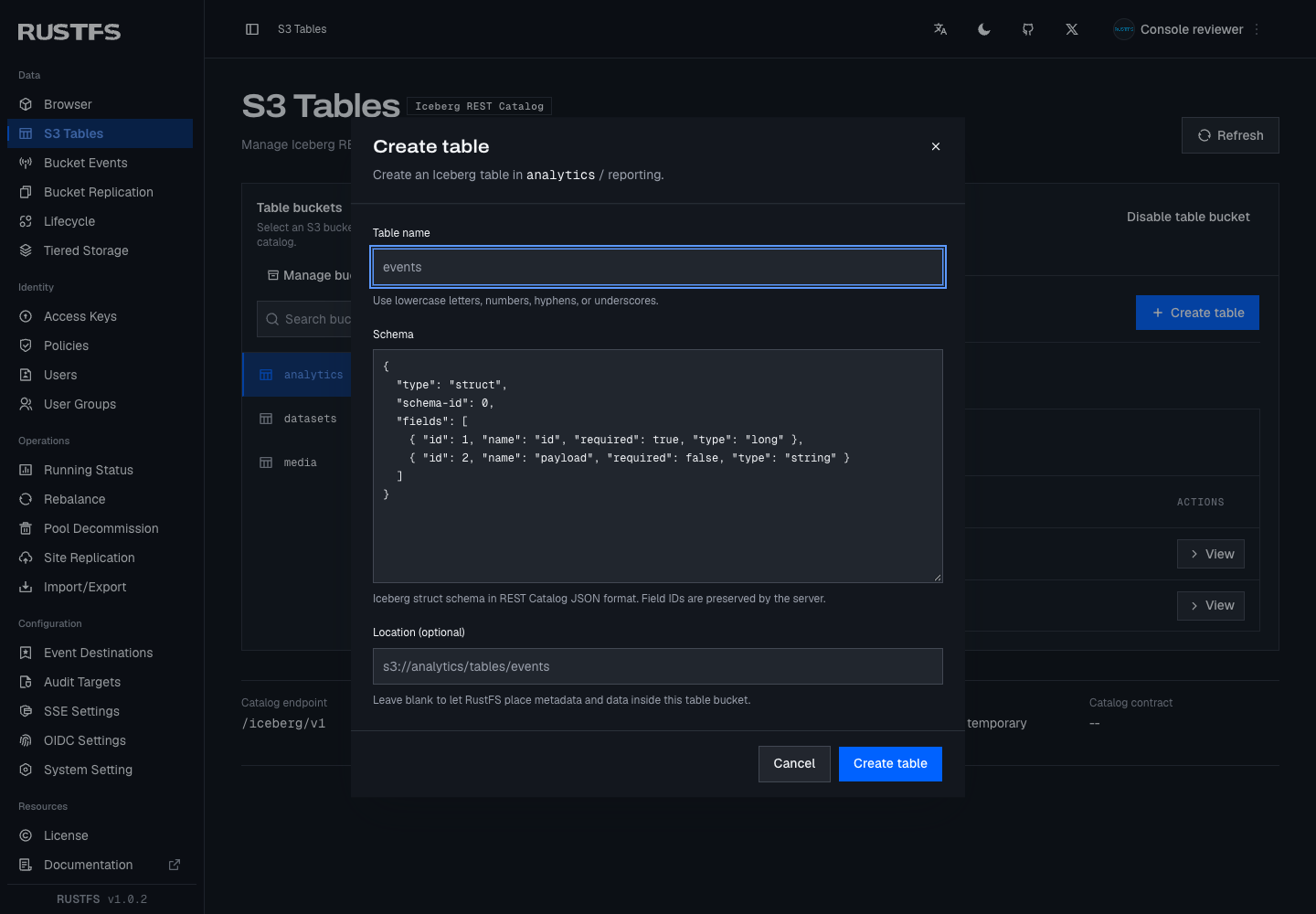

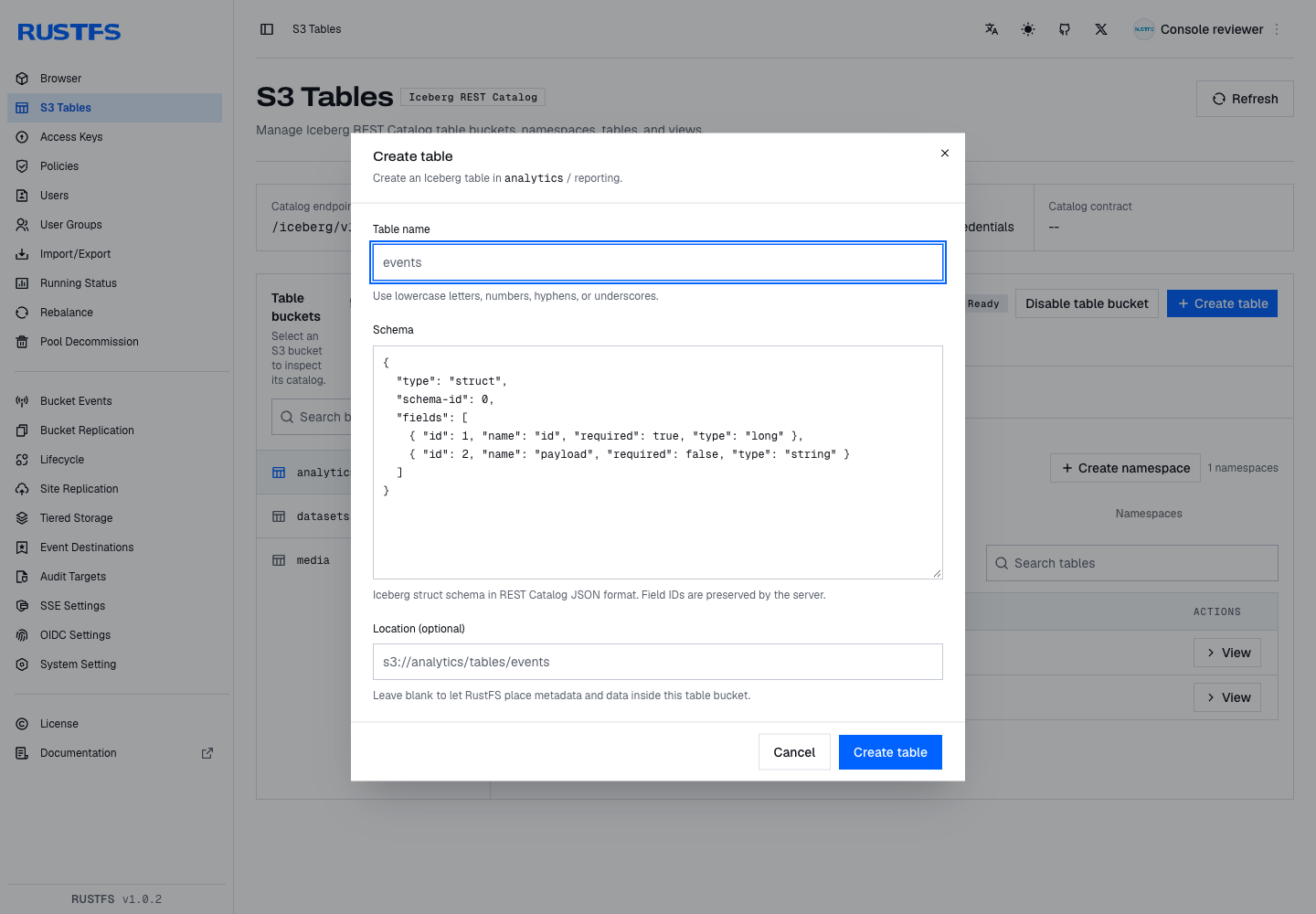

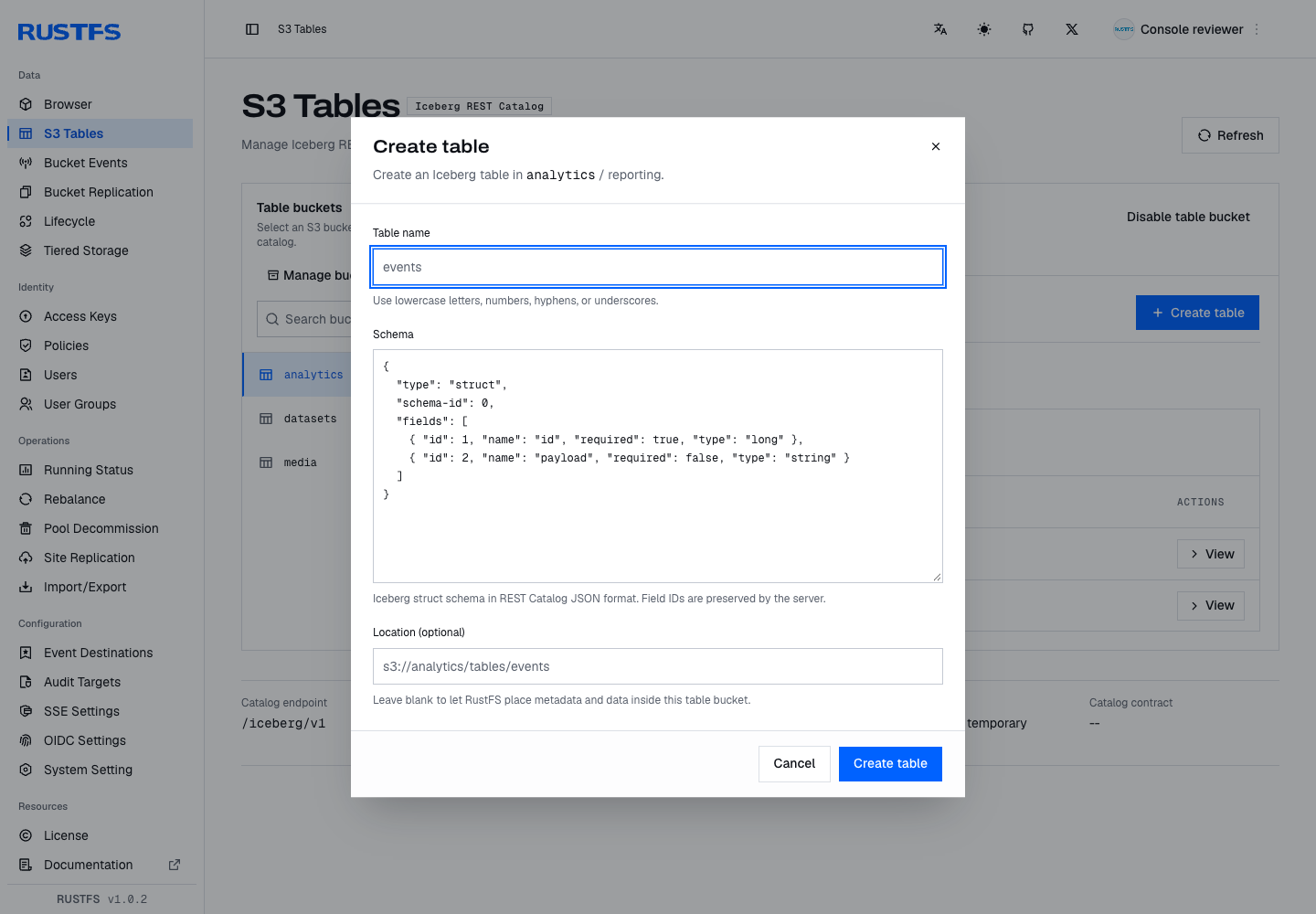

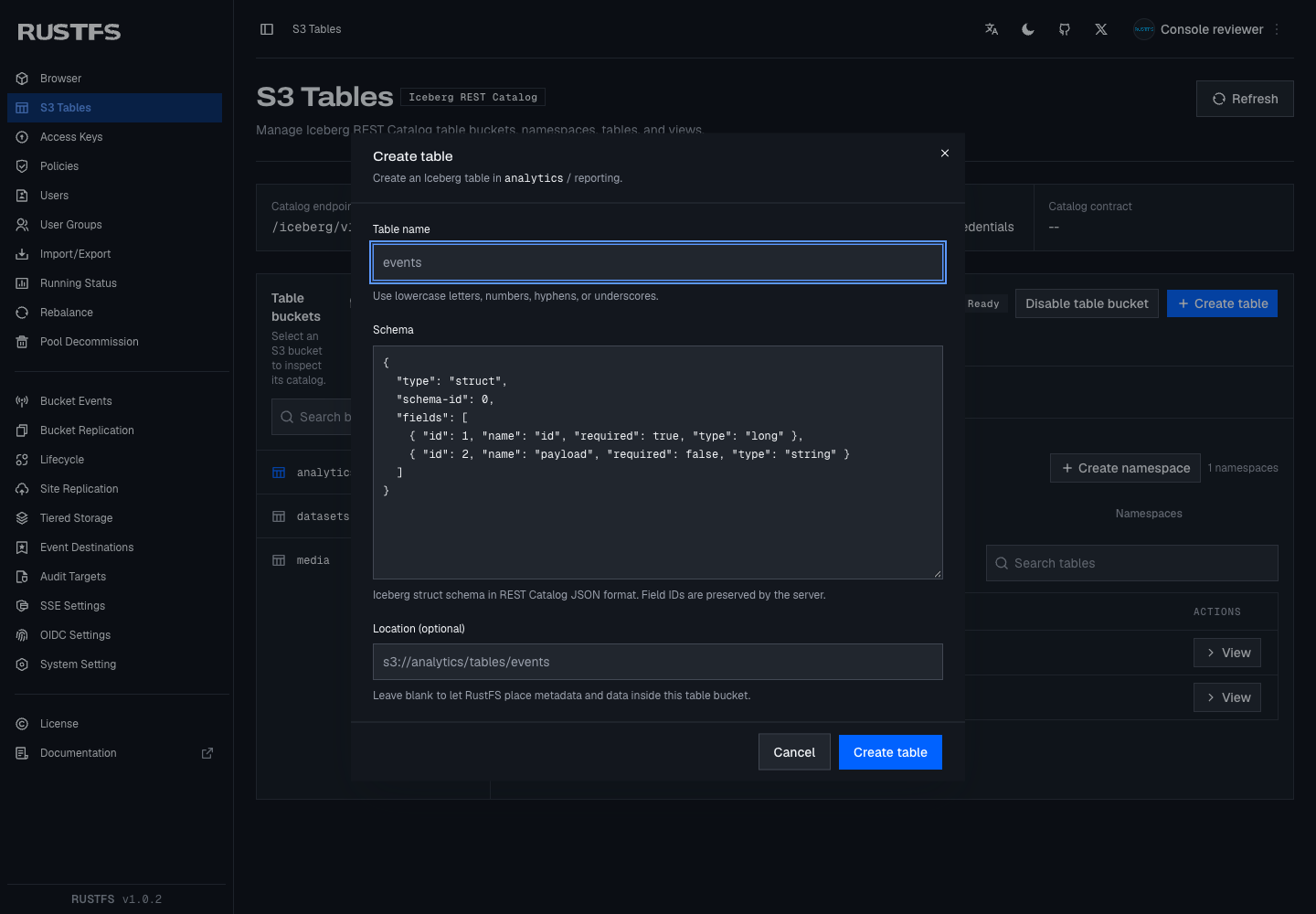

Dialog Catalog Table — /table-catalog/

View	Before	After
Light
Dark

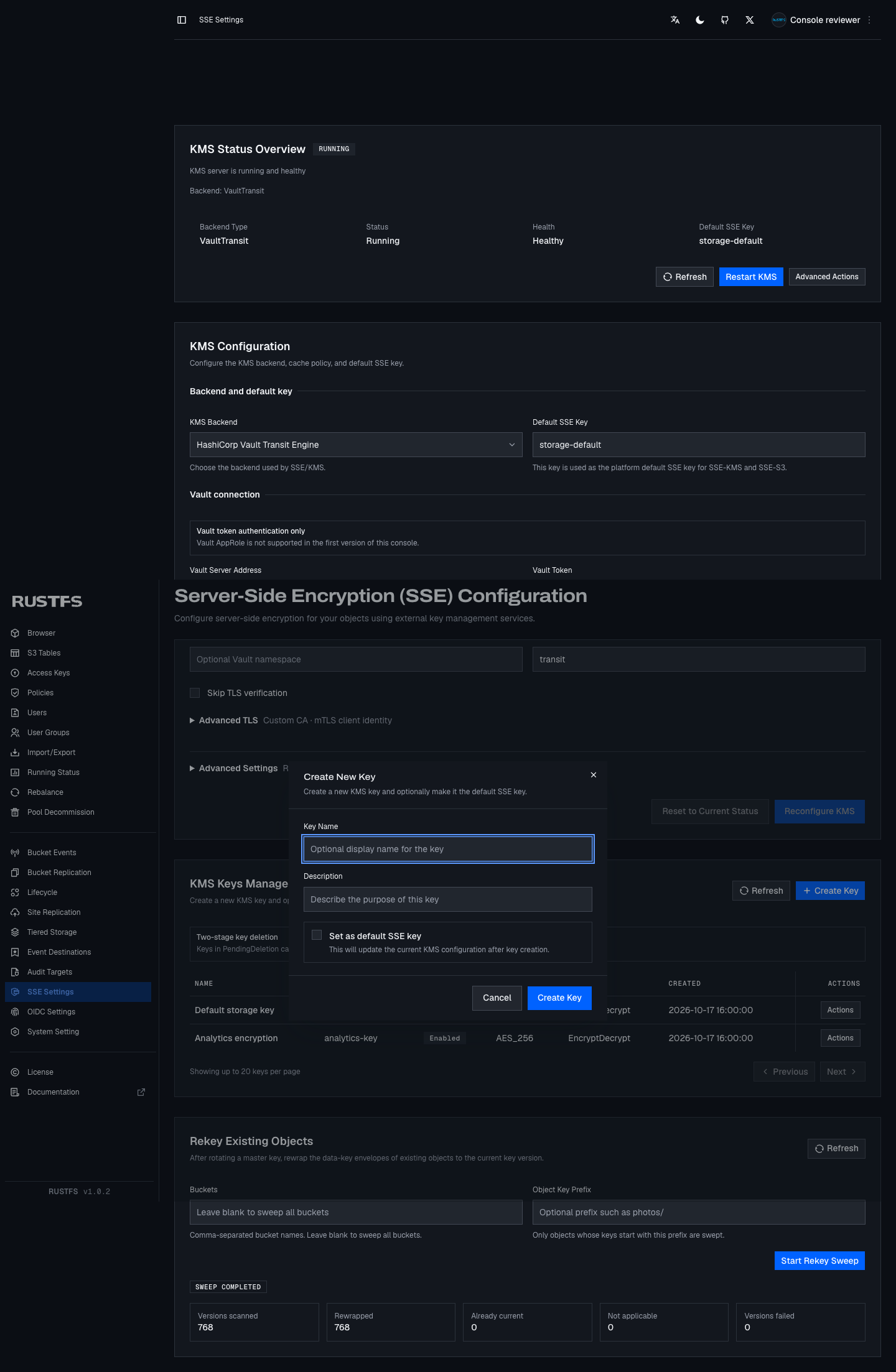

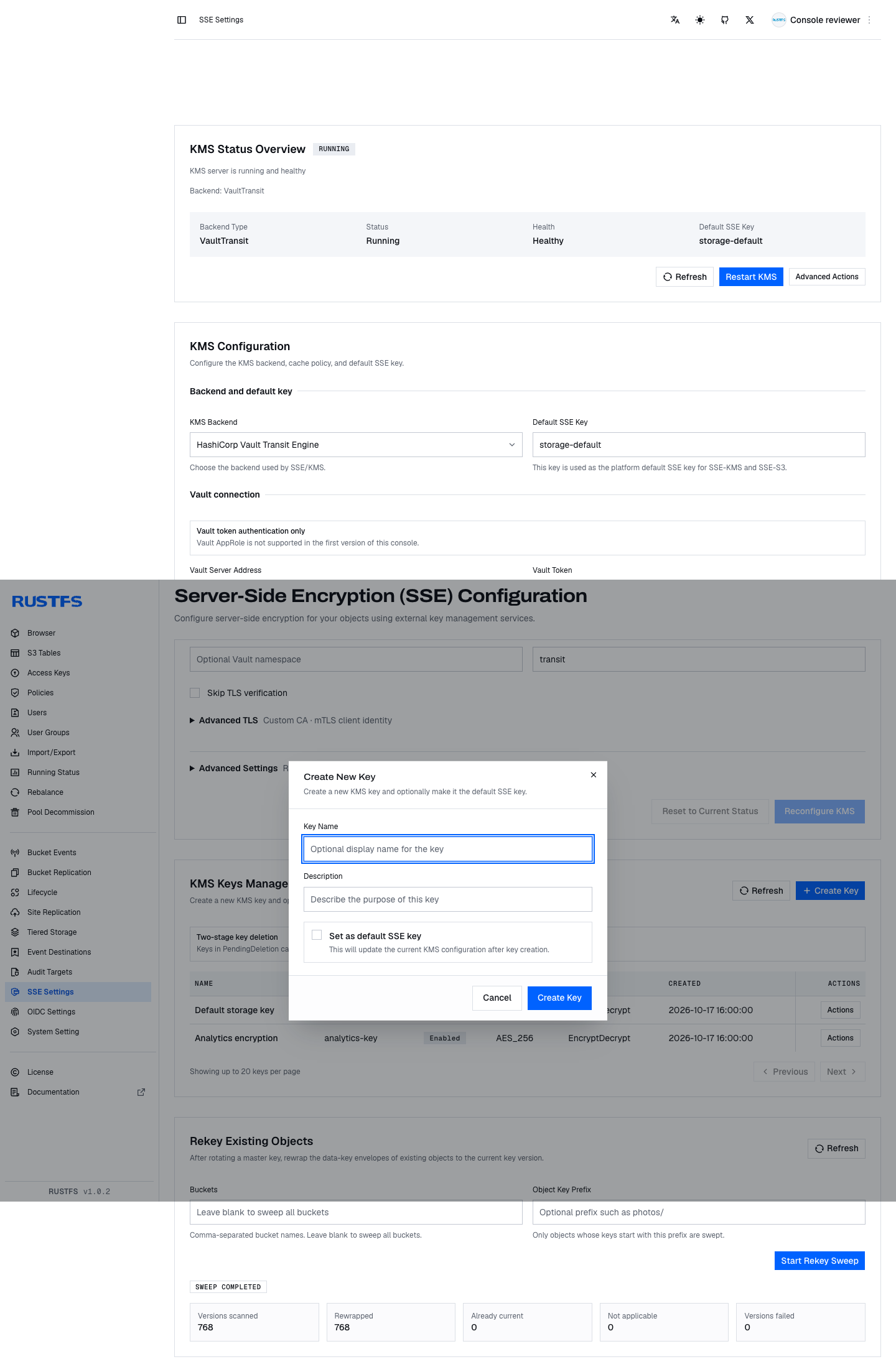

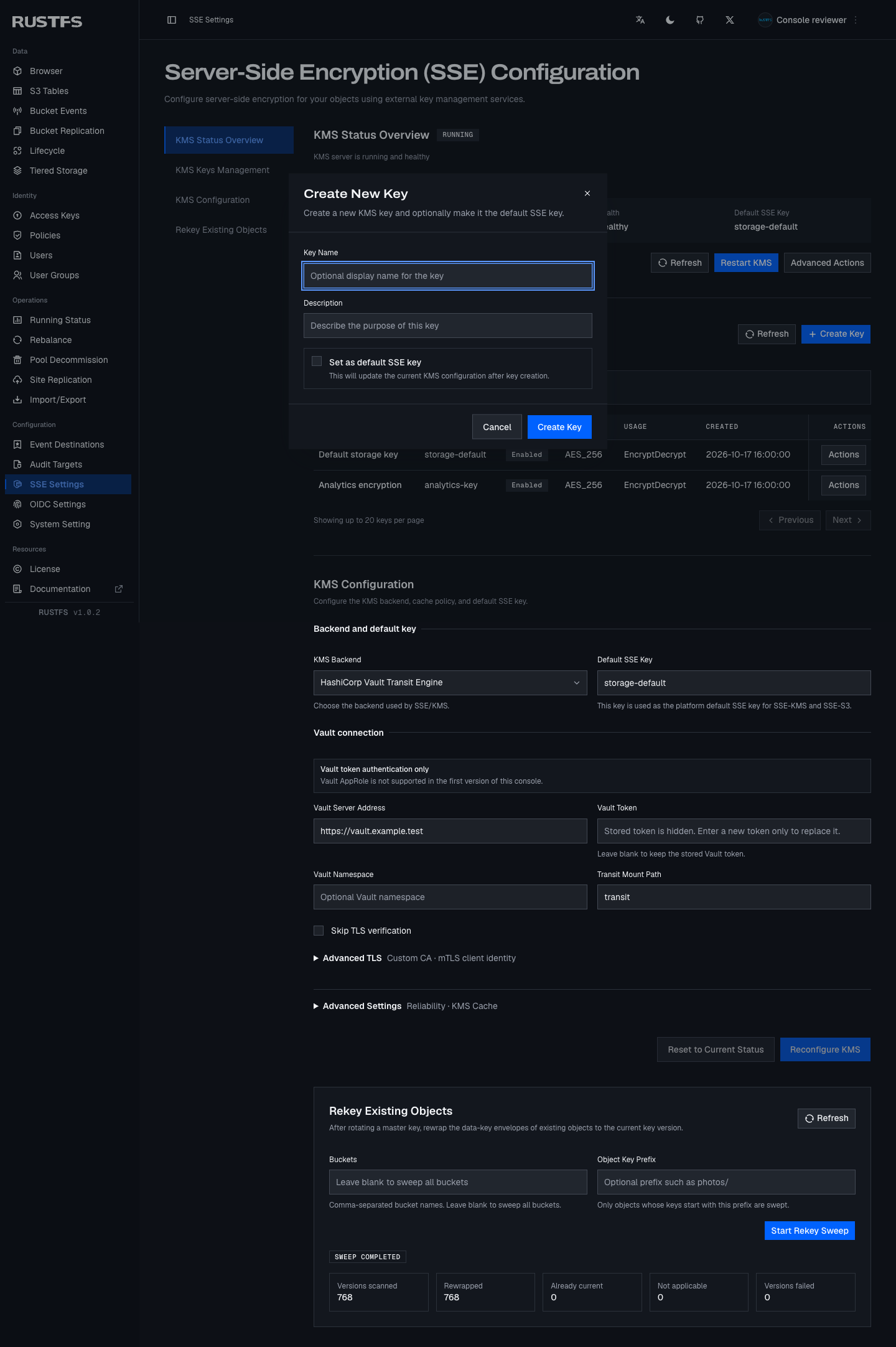

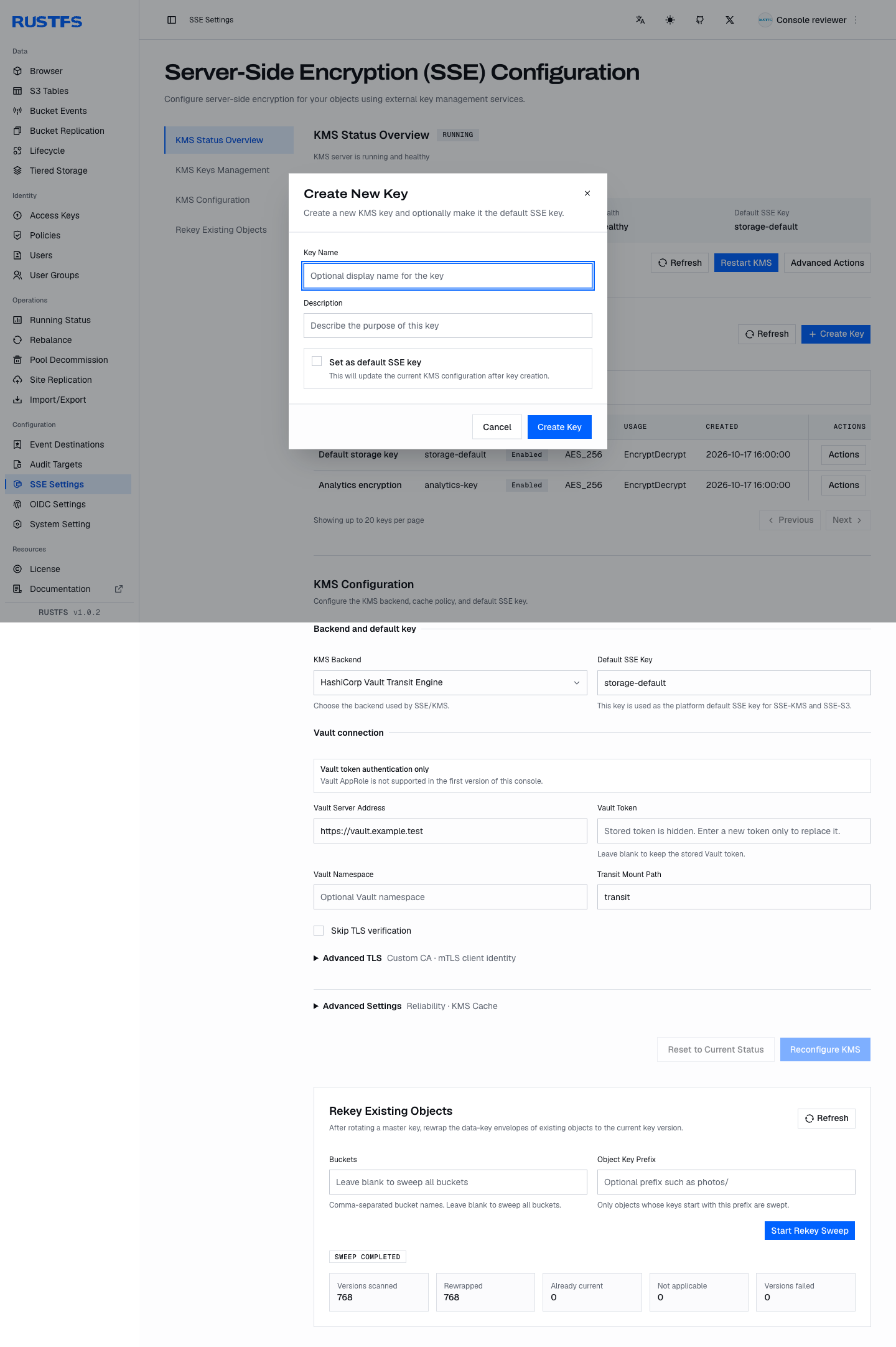

Dialog Kms Key — /sse/

View	Before	After
Light
Dark

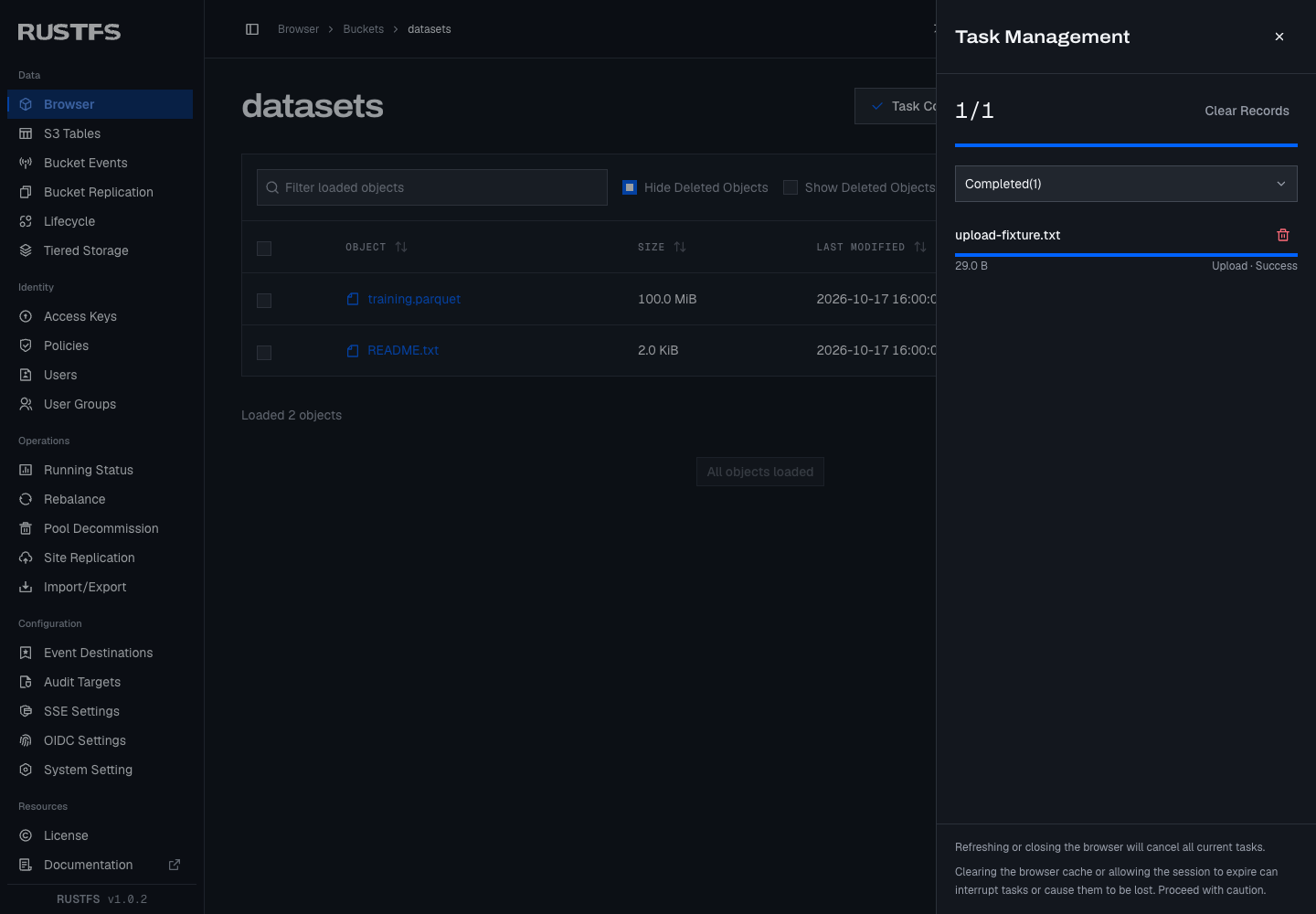

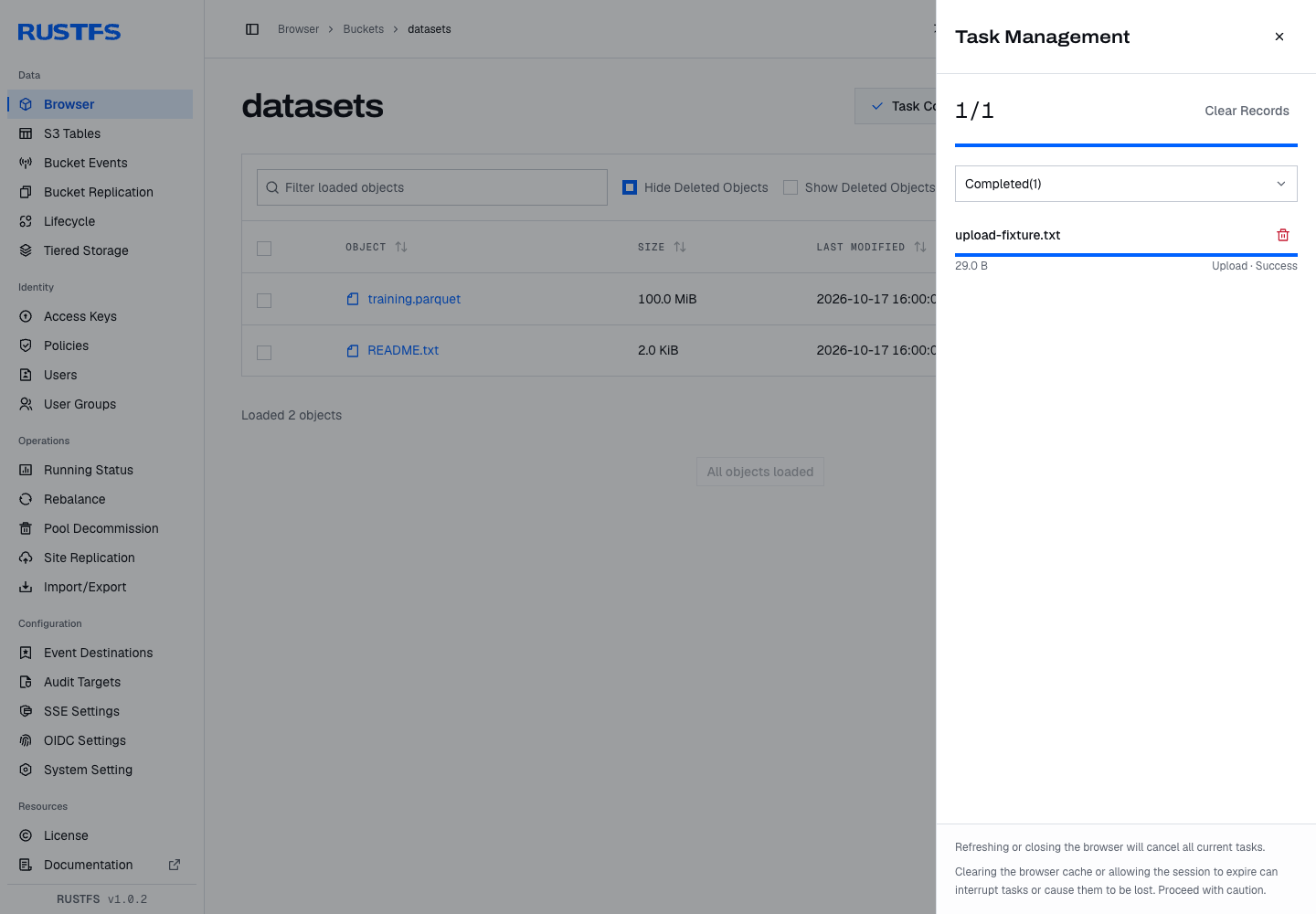

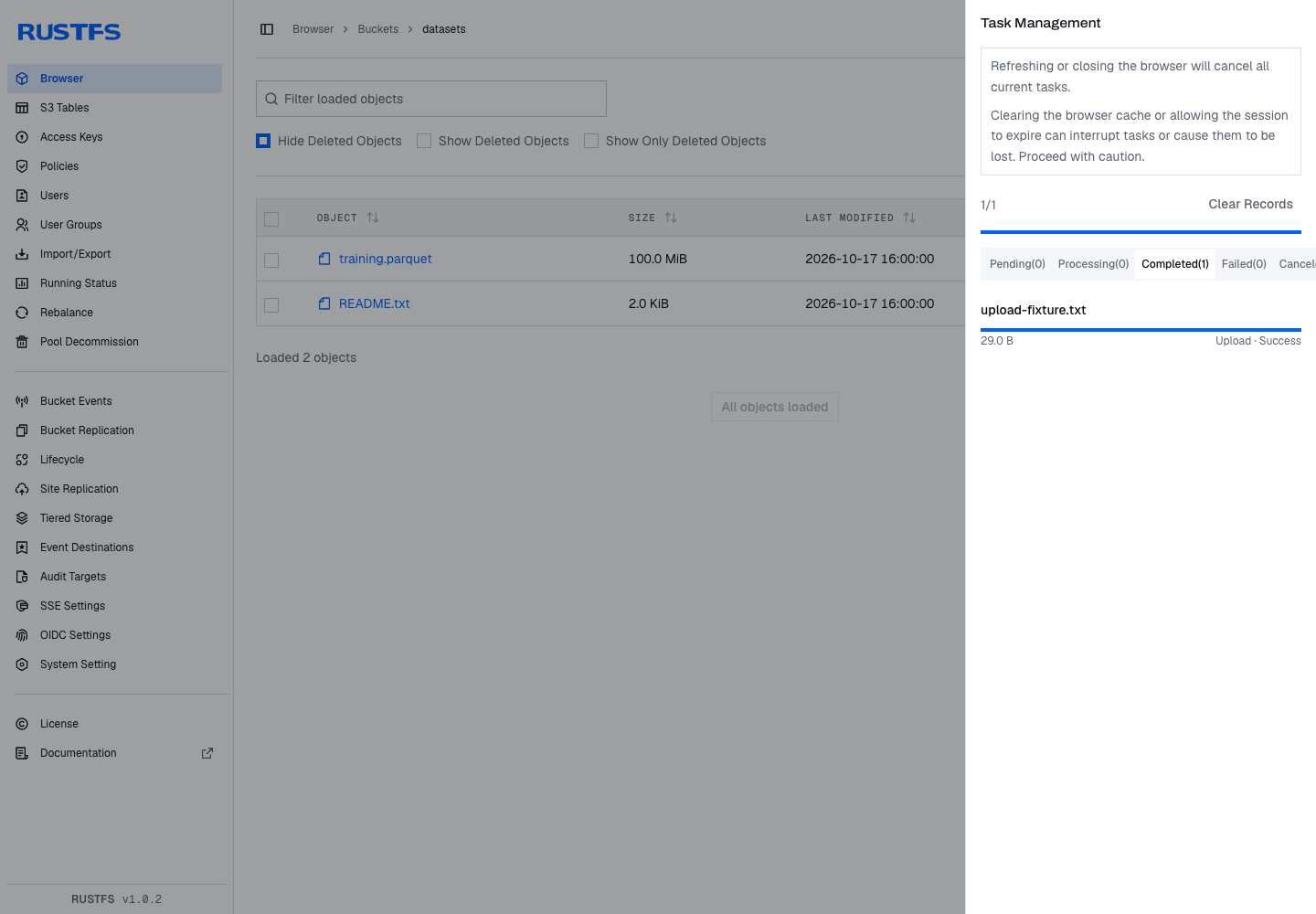

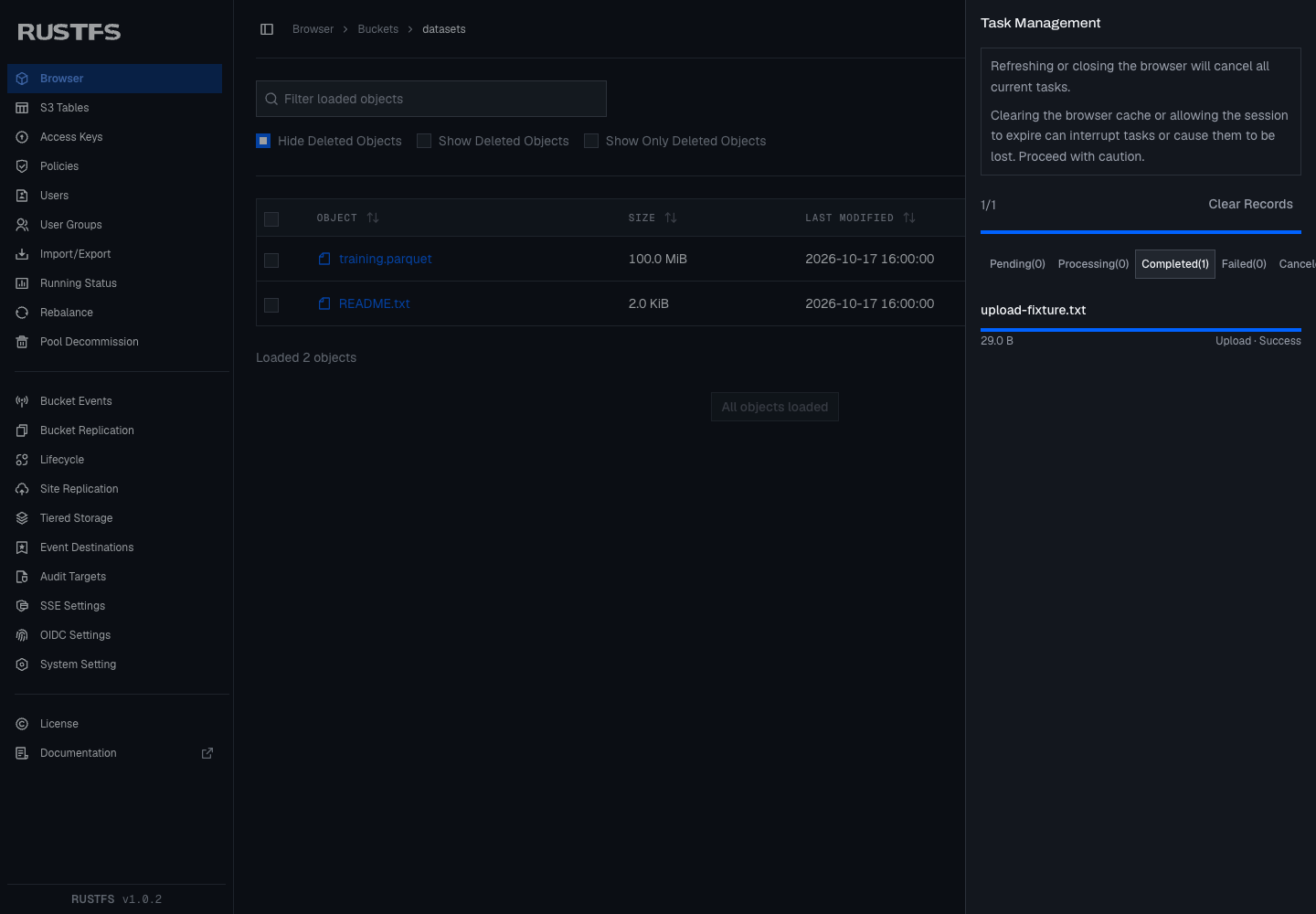

Tasks Completed — /browser/?bucket=datasets

View	Before	After
Light
Dark

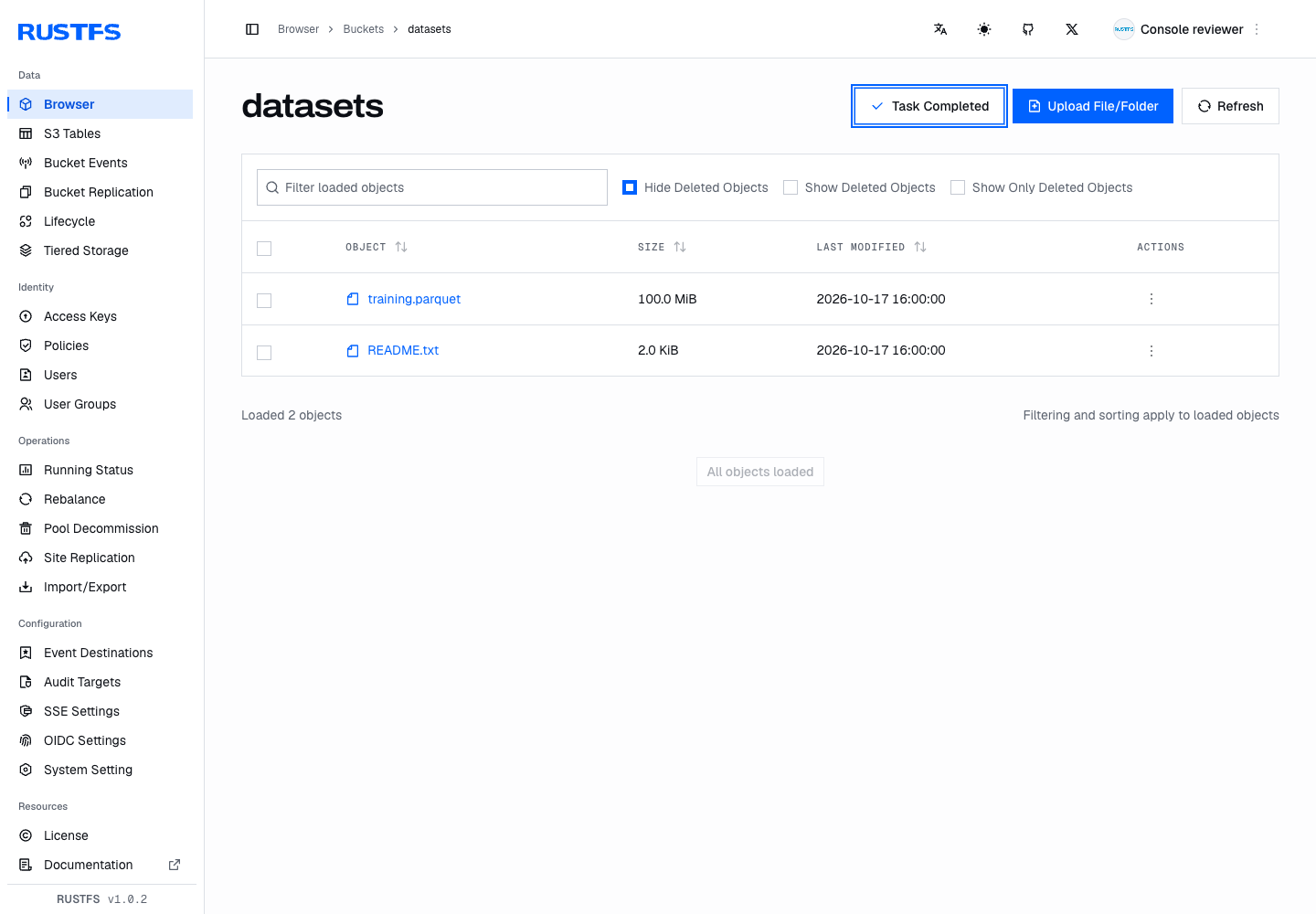

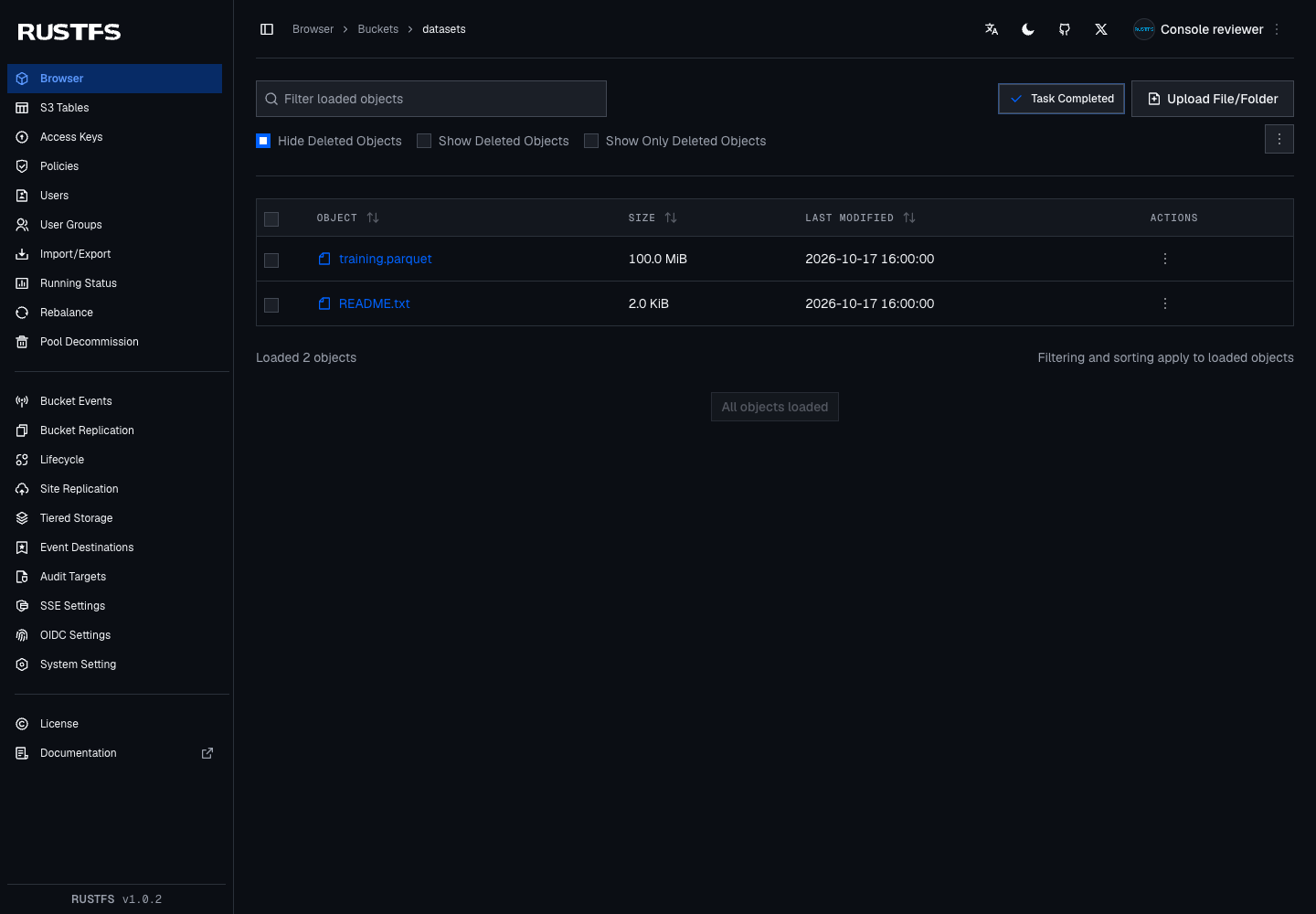

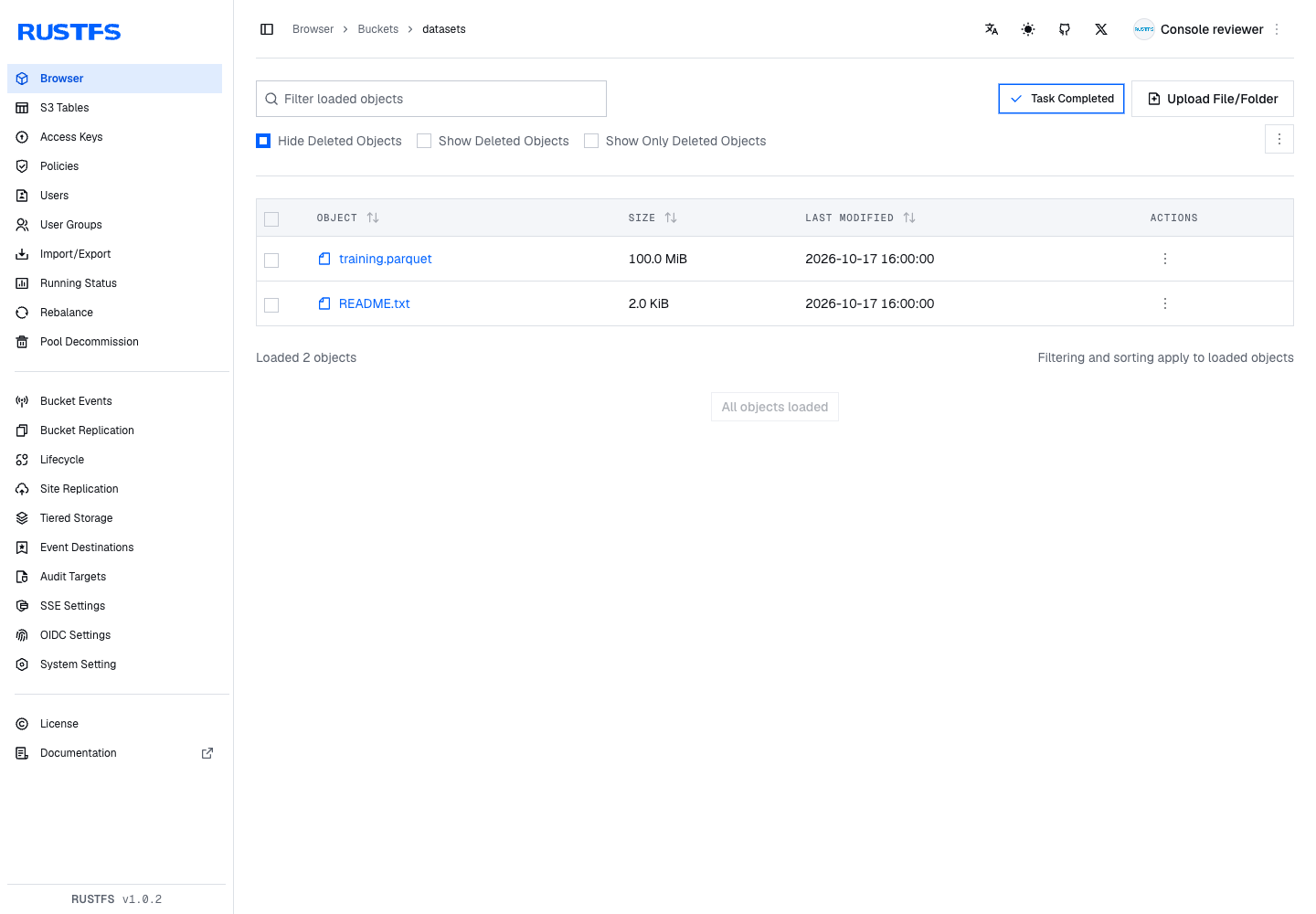

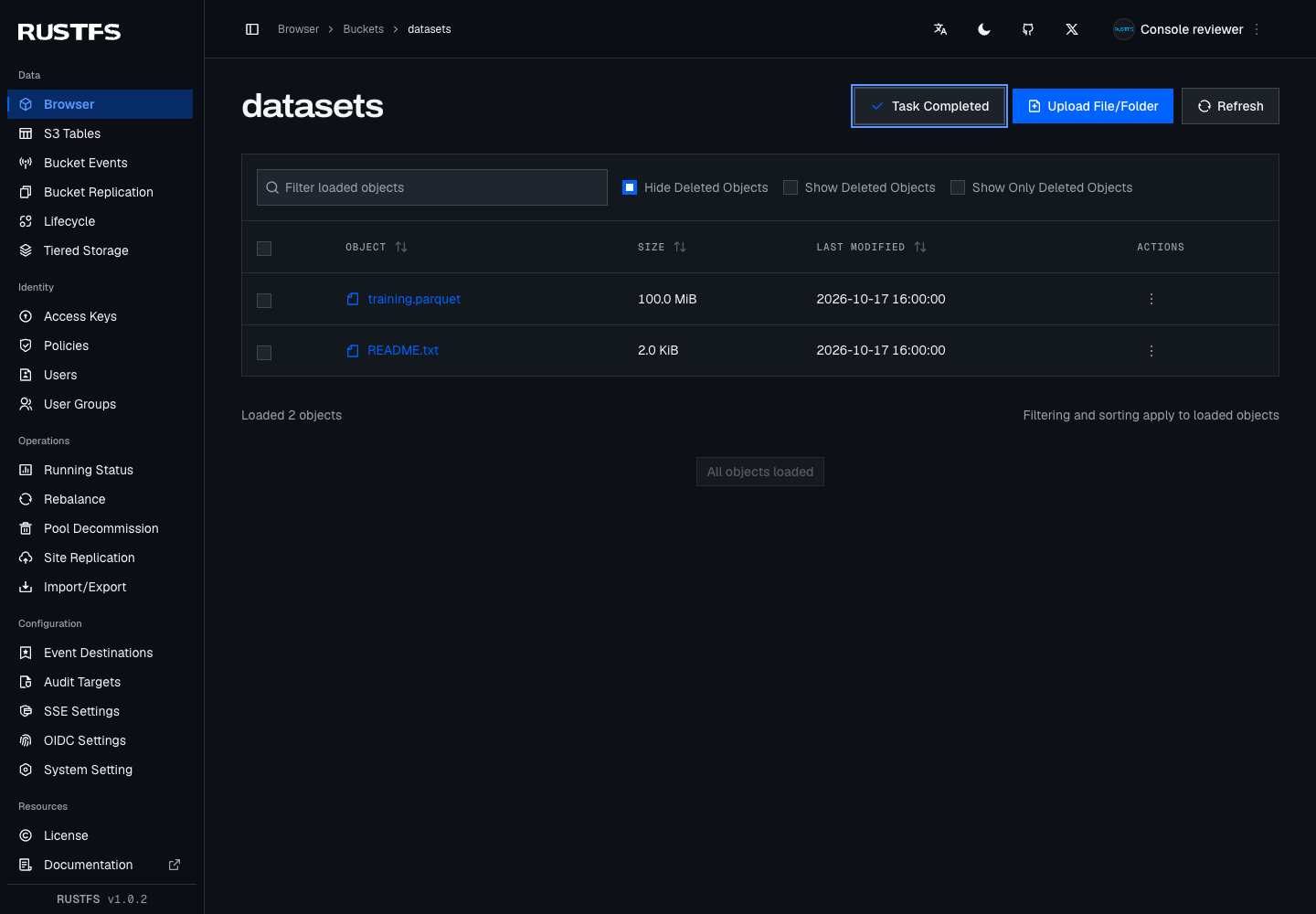

Tasks Toolbar — /browser/?bucket=datasets

View	Before	After
Light
Dark

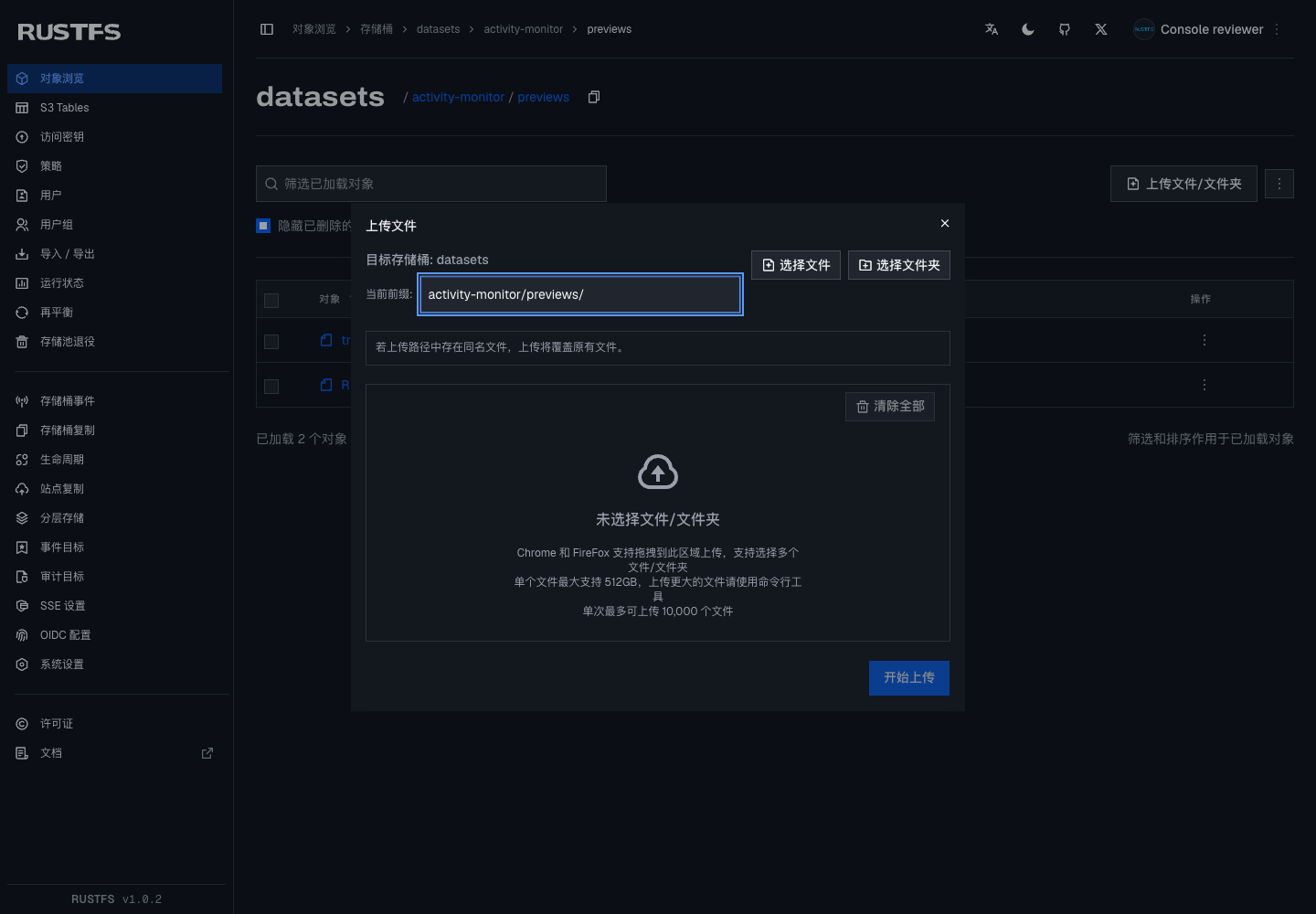

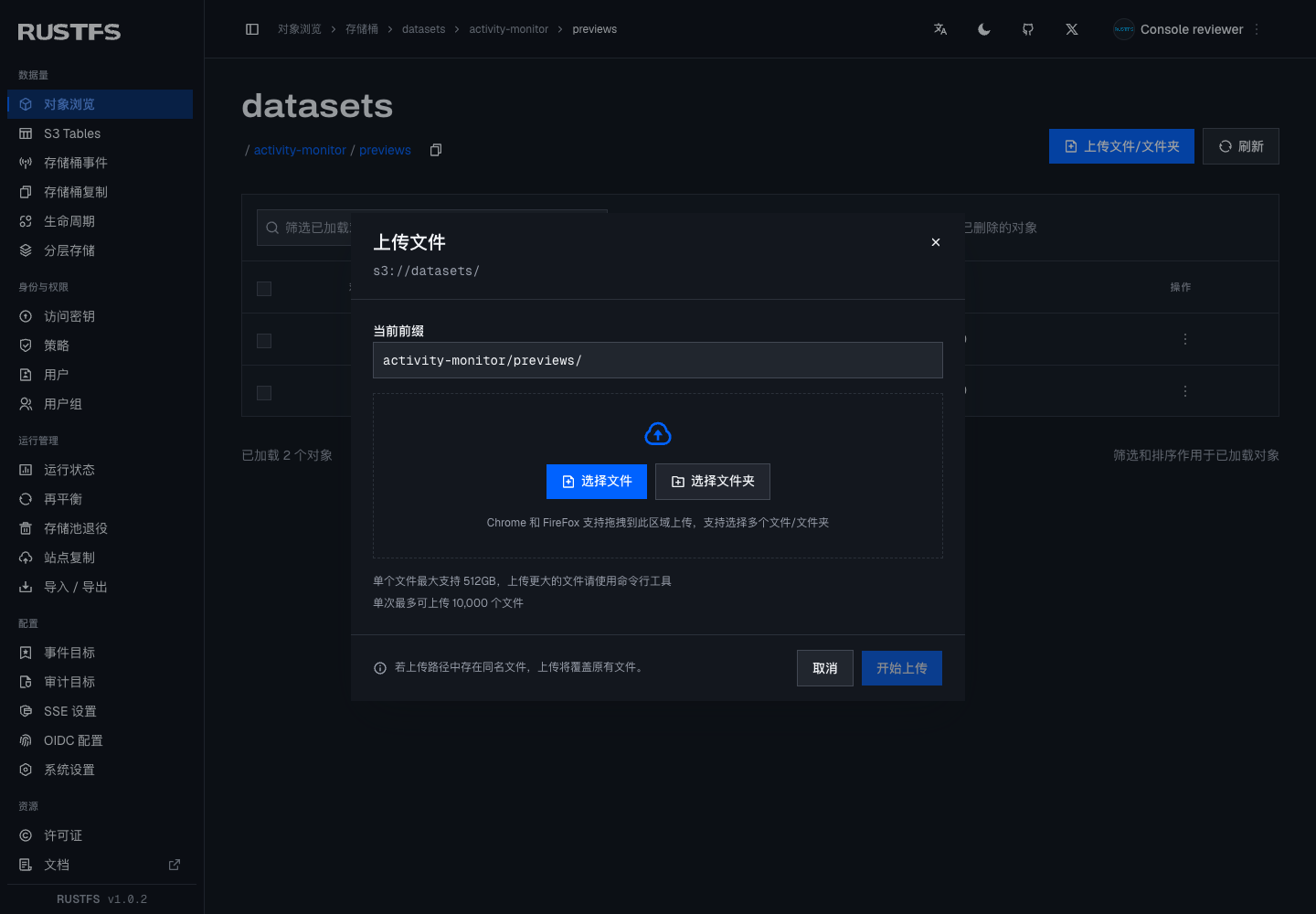

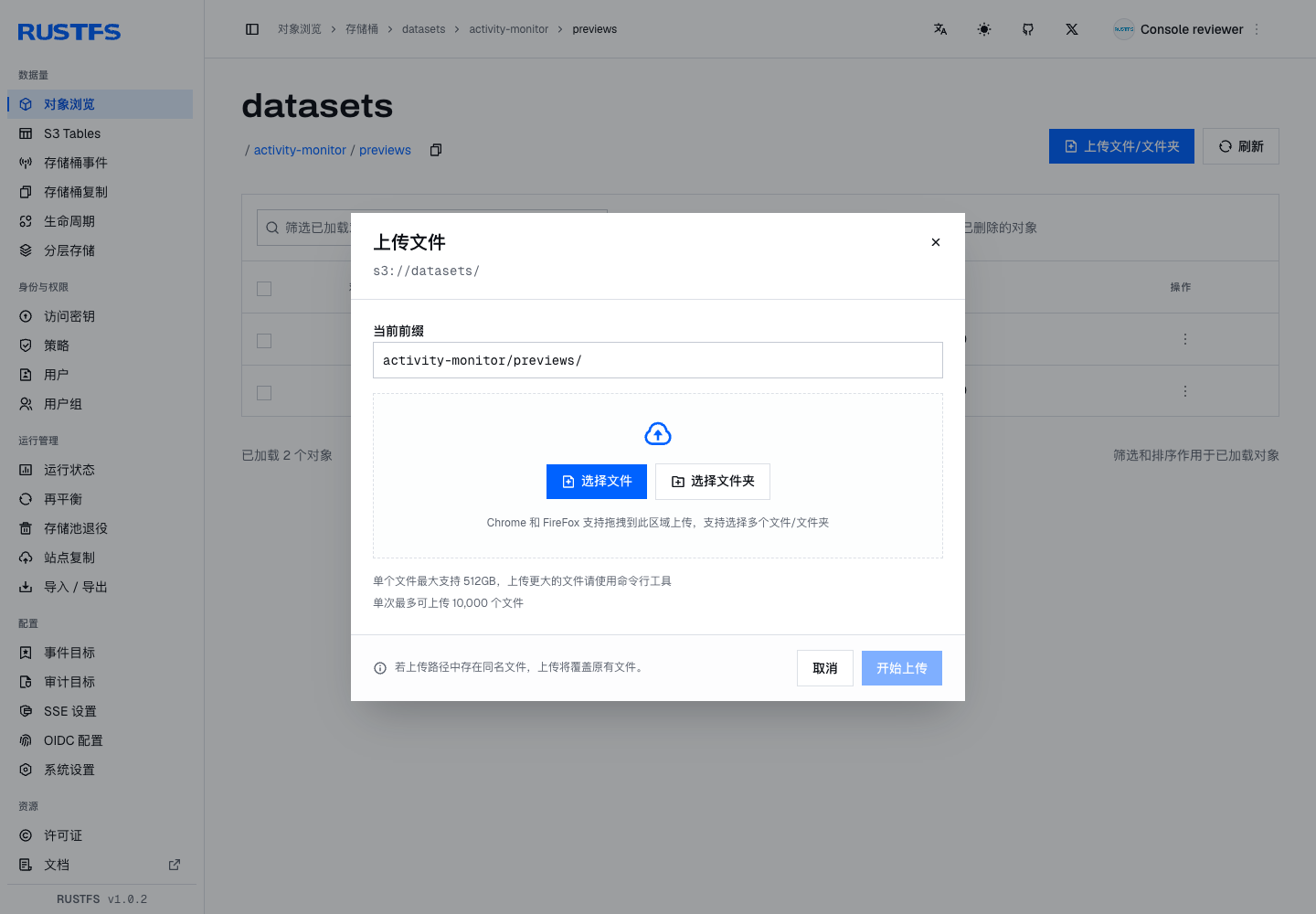

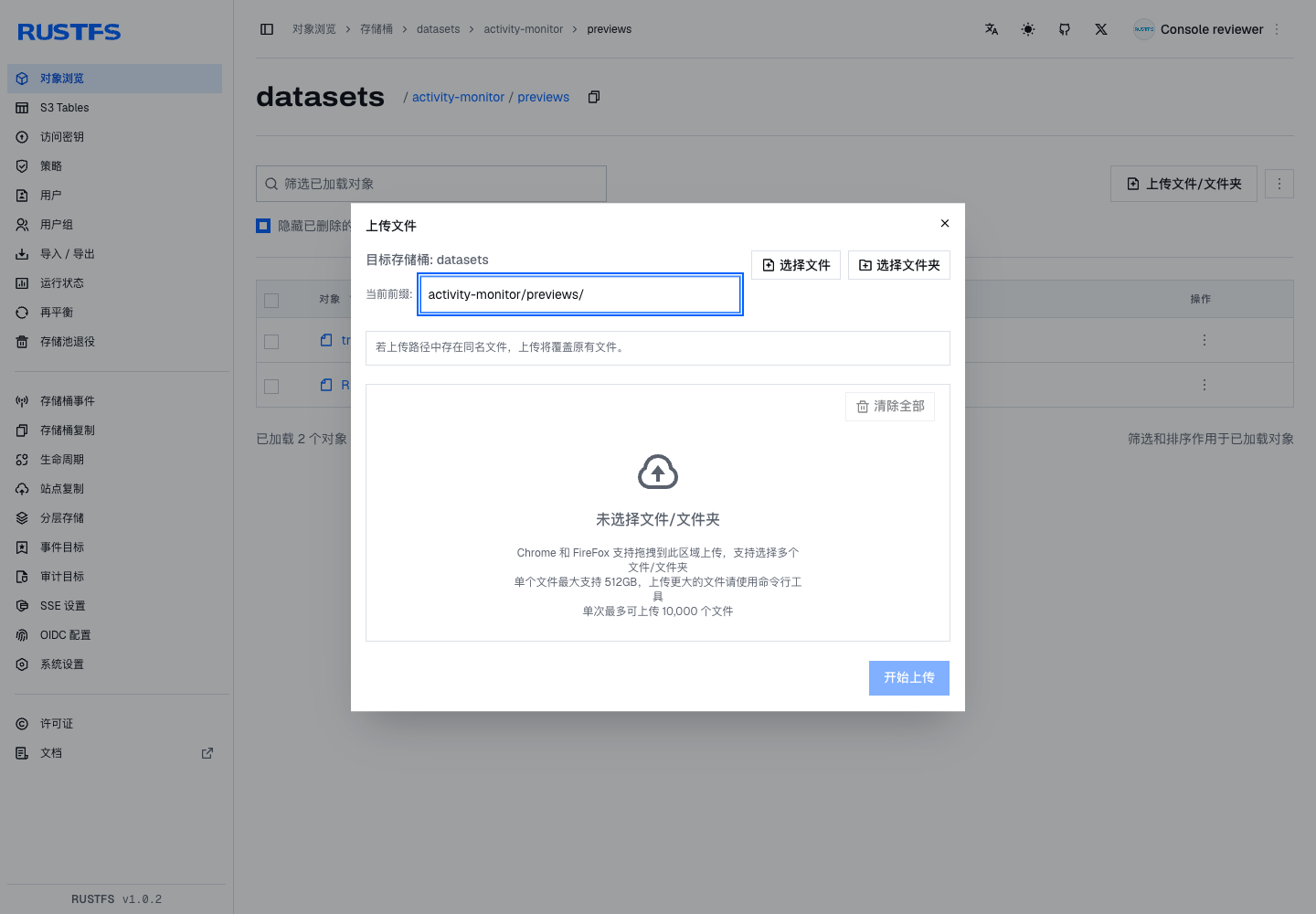

Upload Destination — /browser/?bucket=datasets&key=activity-monitor%2Fpreviews%2F&lang=zh

View	Before	After
Light
Dark

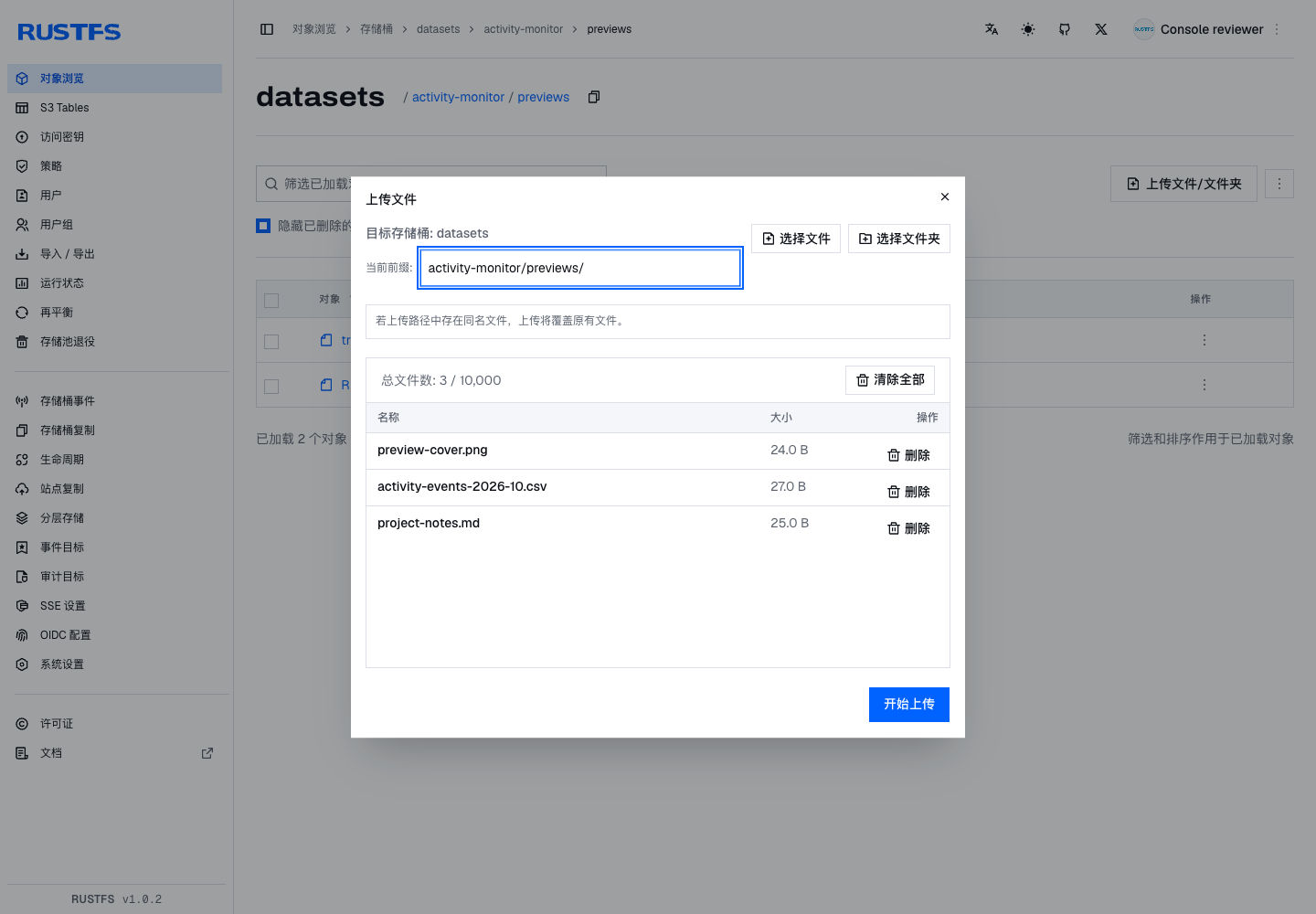

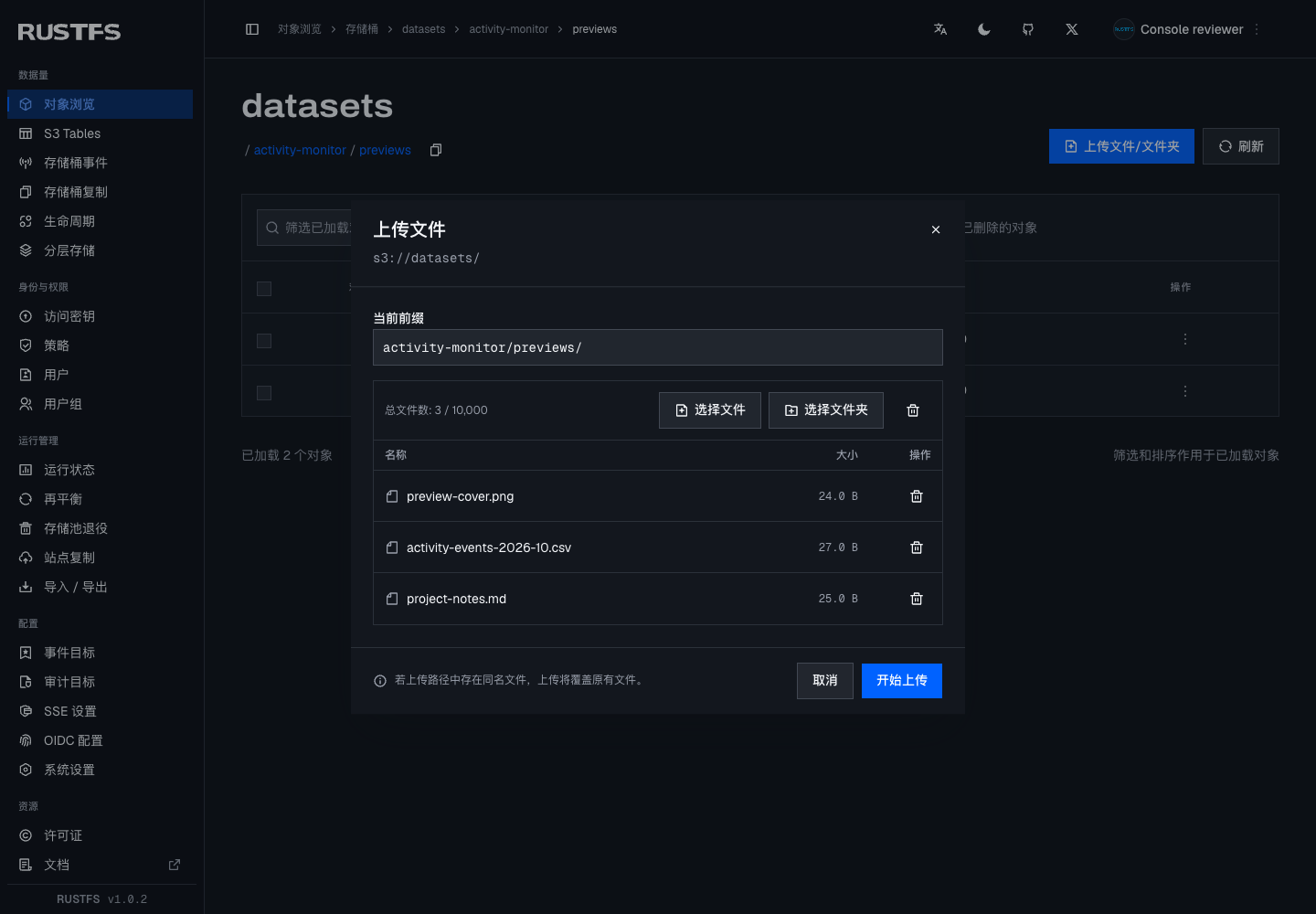

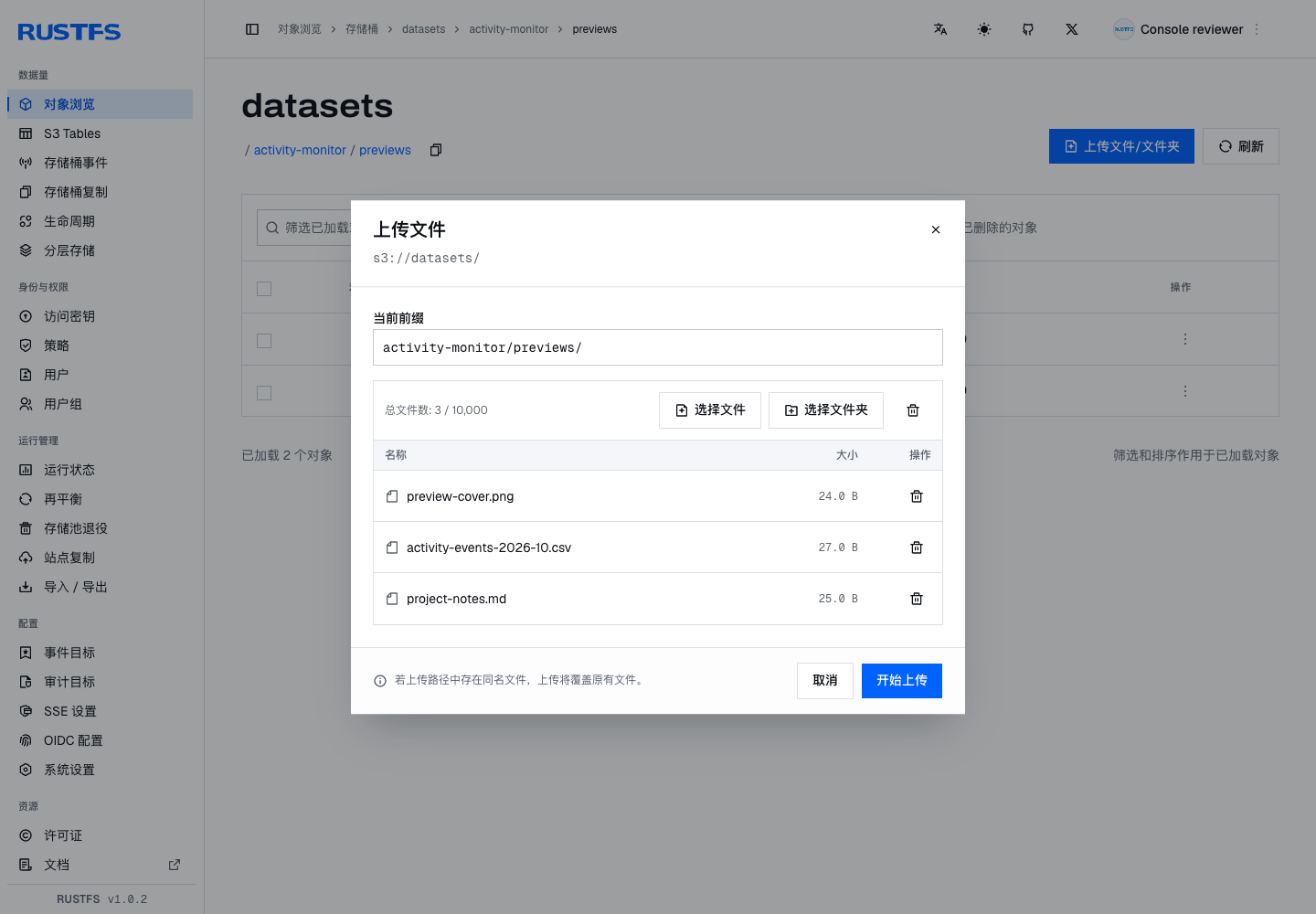

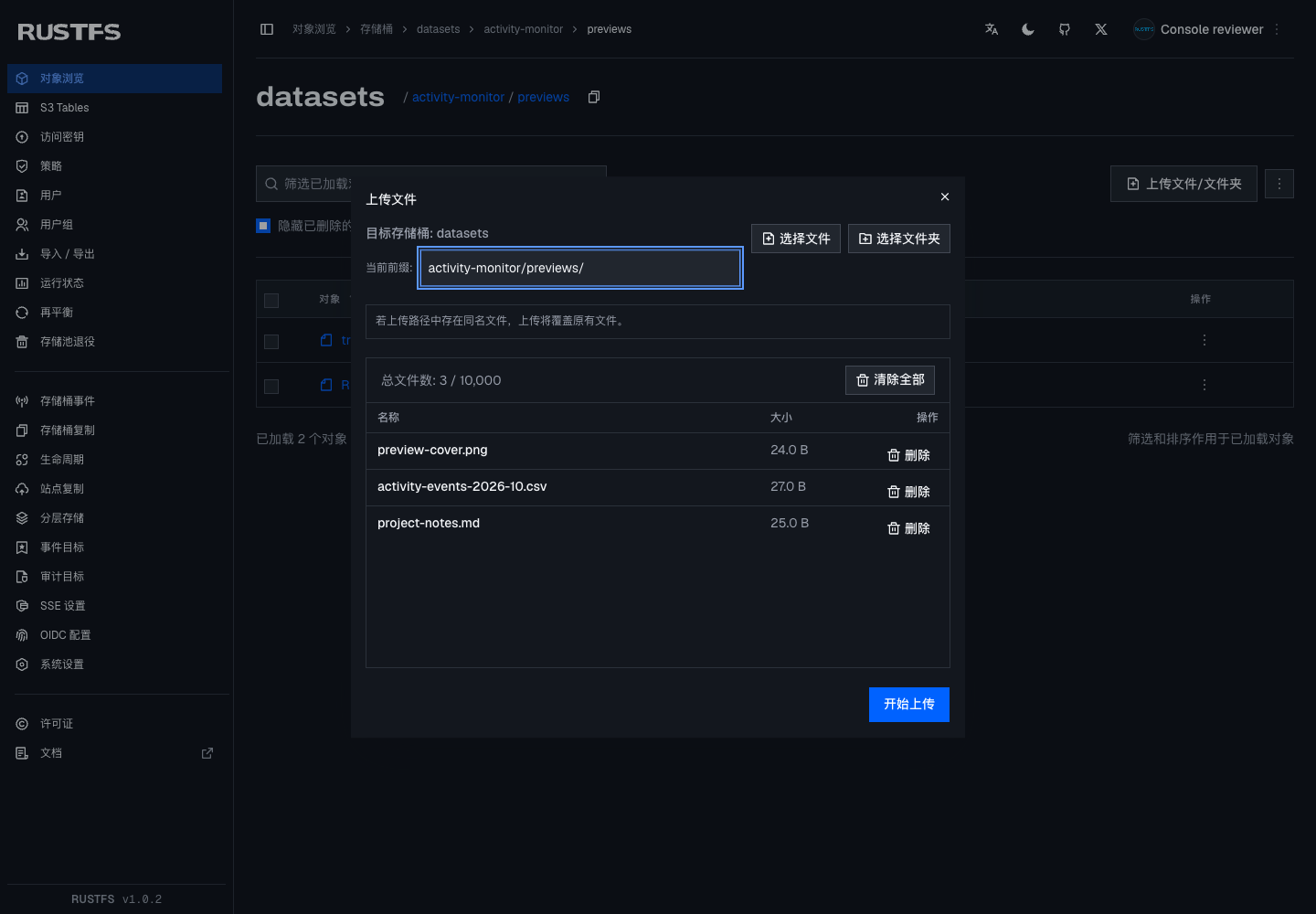

Upload Selected — /browser/?bucket=datasets&key=activity-monitor%2Fpreviews%2F&lang=zh

View	Before	After
Light
Dark

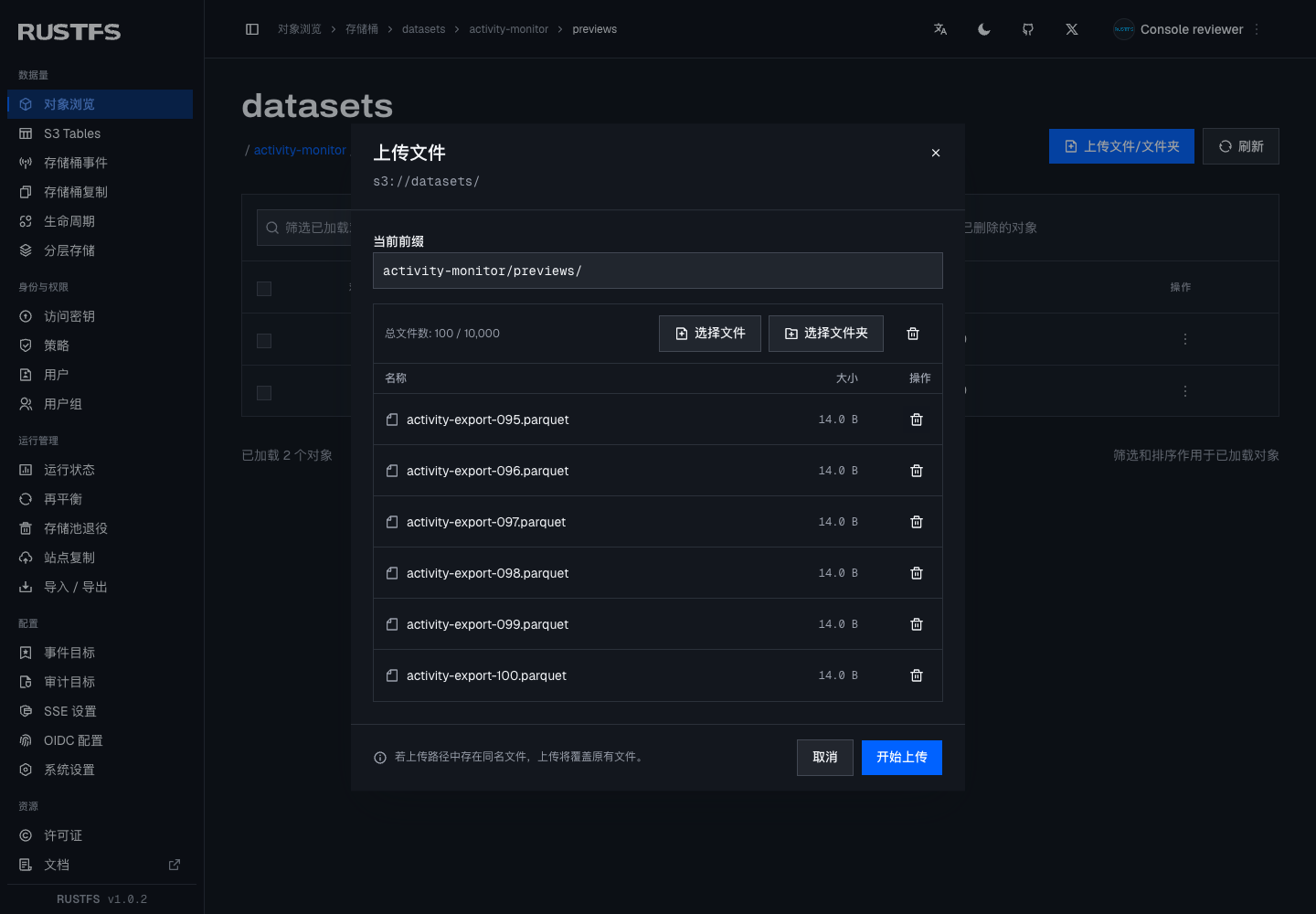

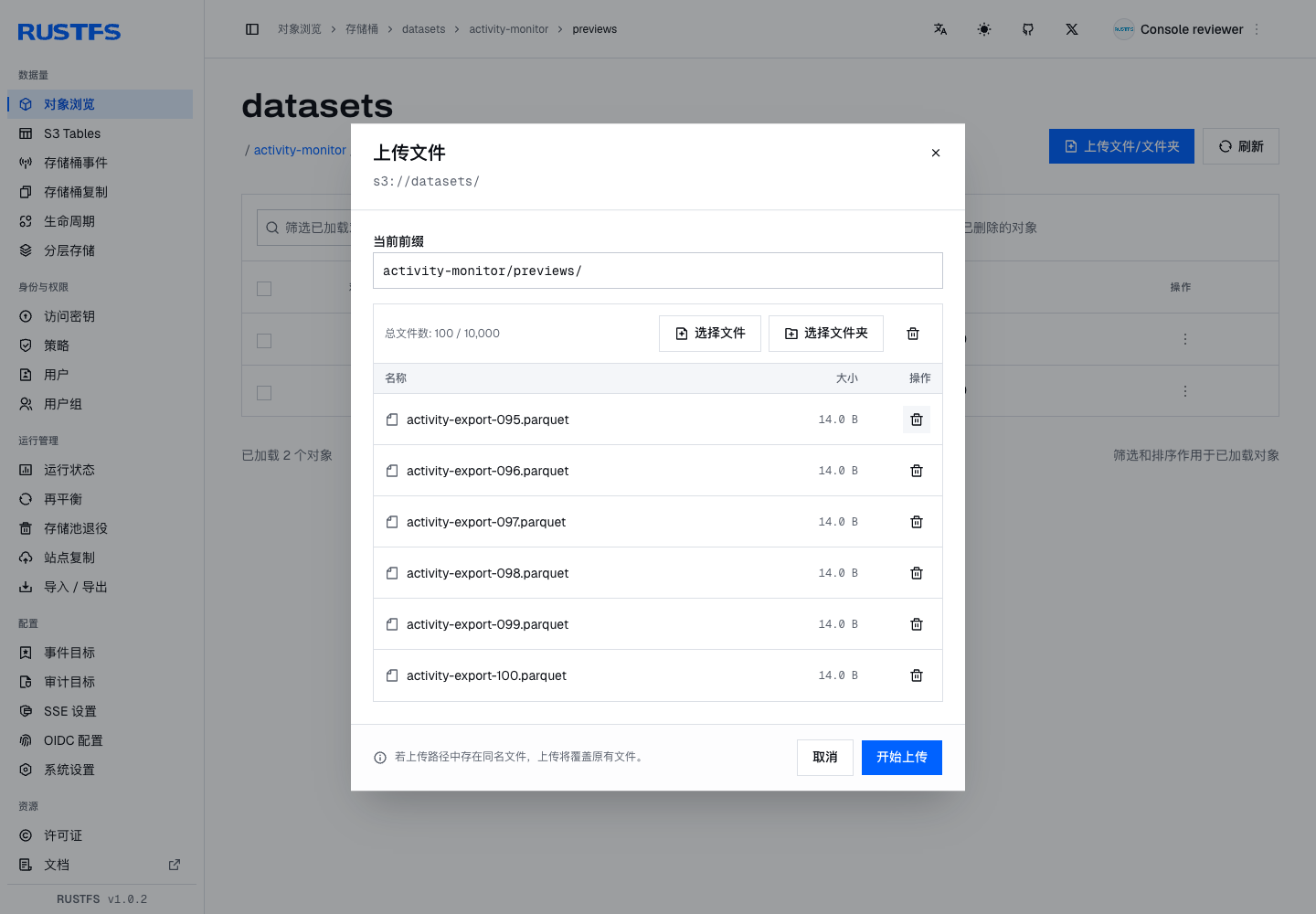

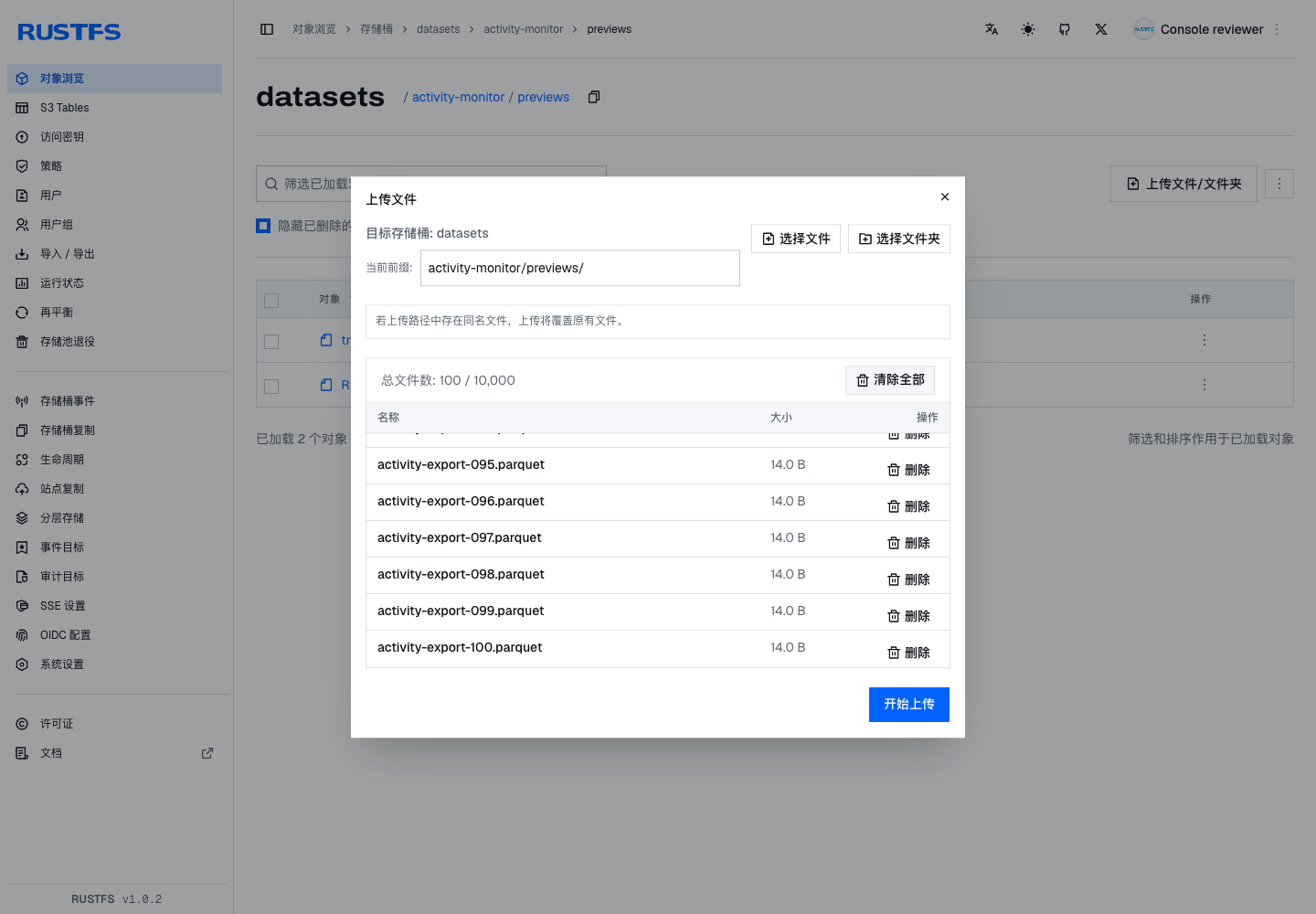

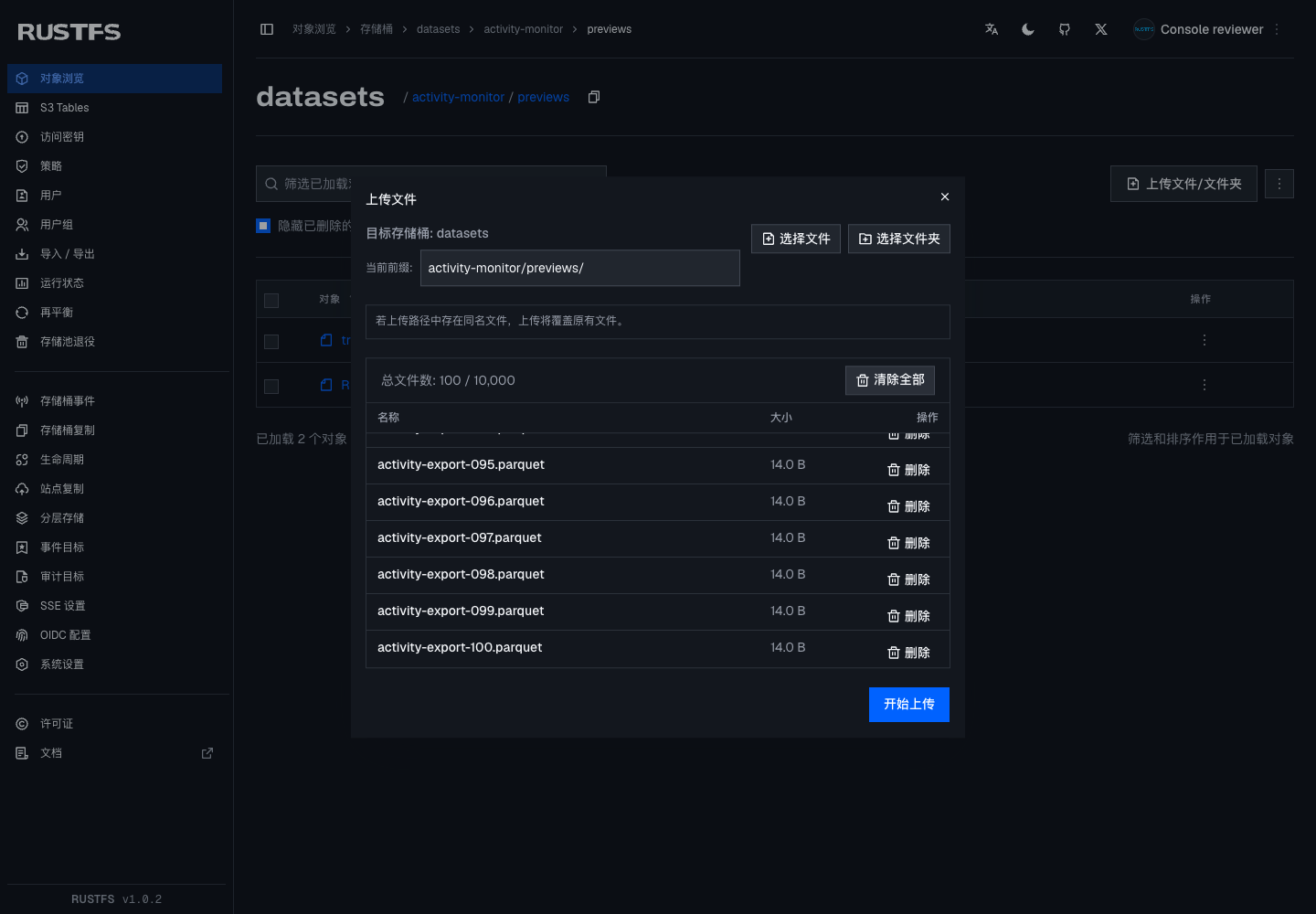

Upload Queue End — /browser/?bucket=datasets&key=activity-monitor%2Fpreviews%2F&lang=zh

View	Before	After
Light
Dark

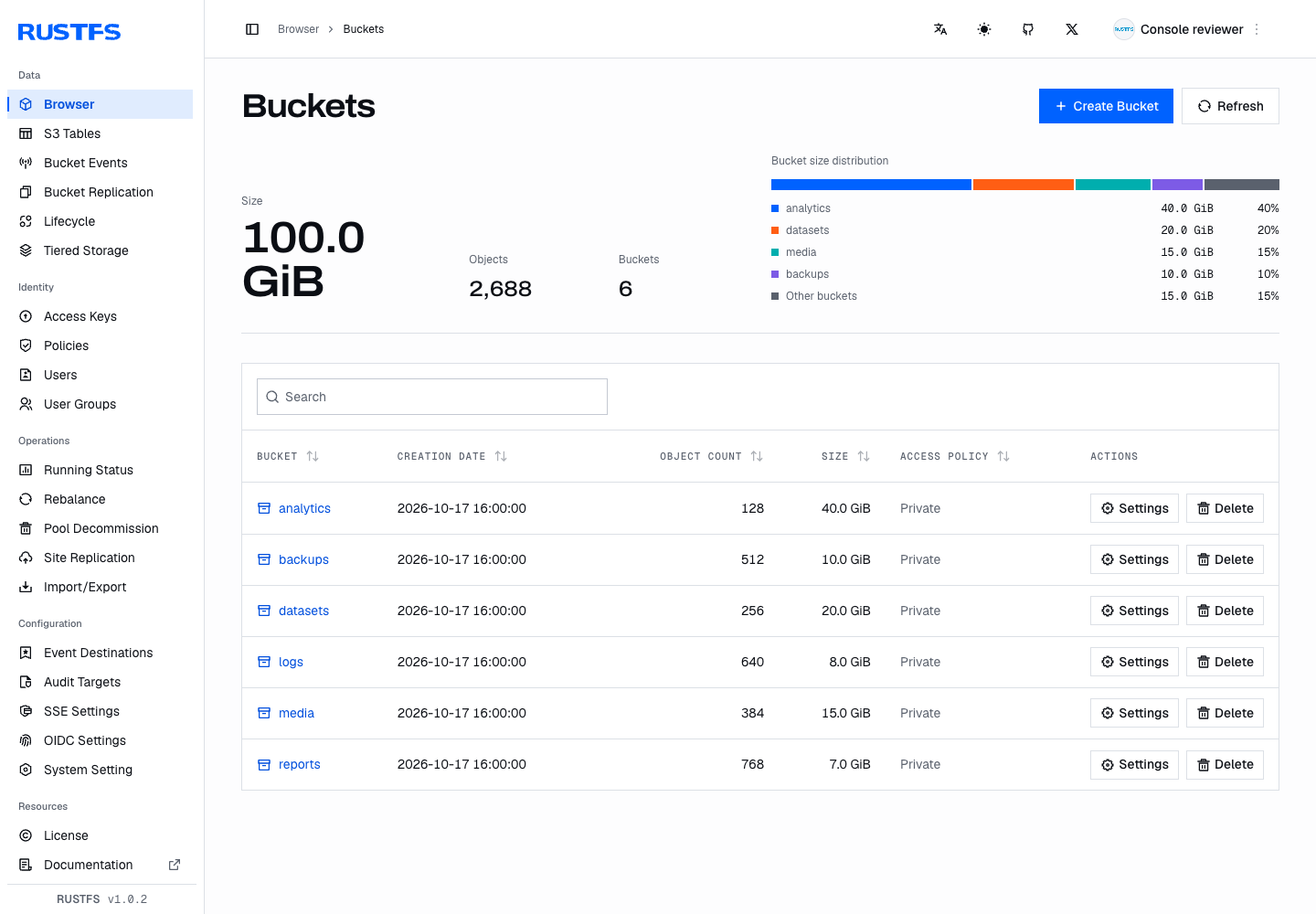

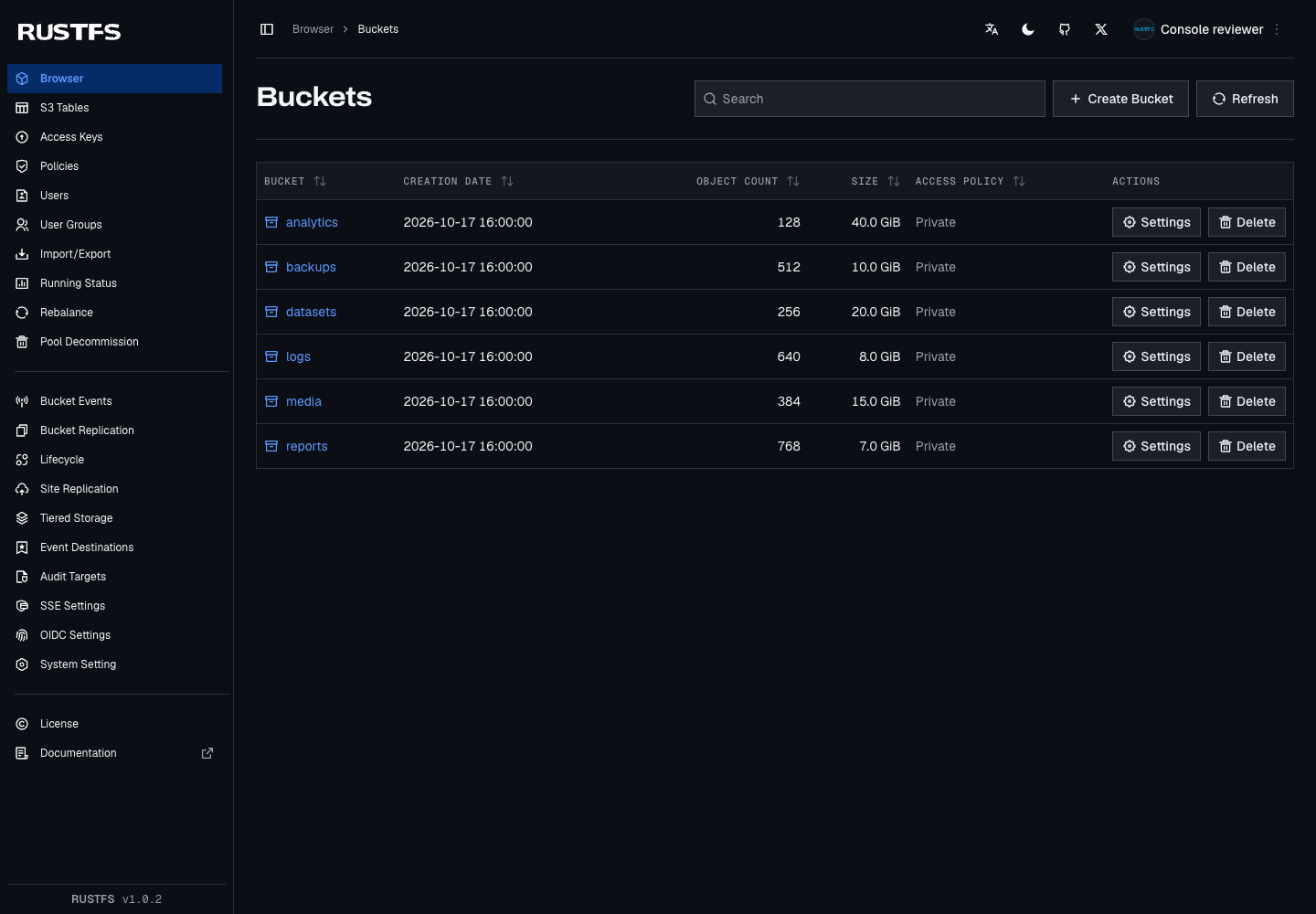

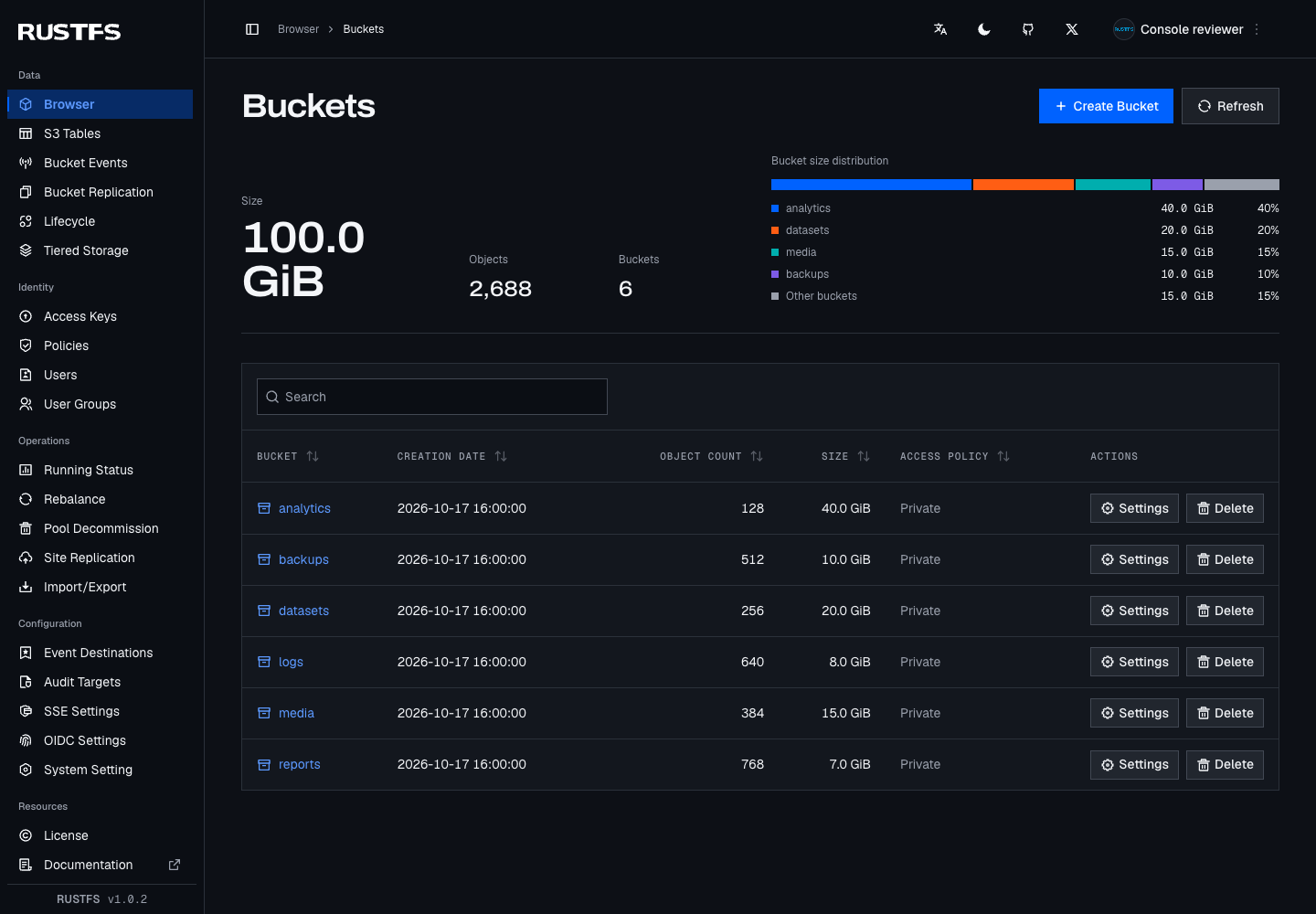

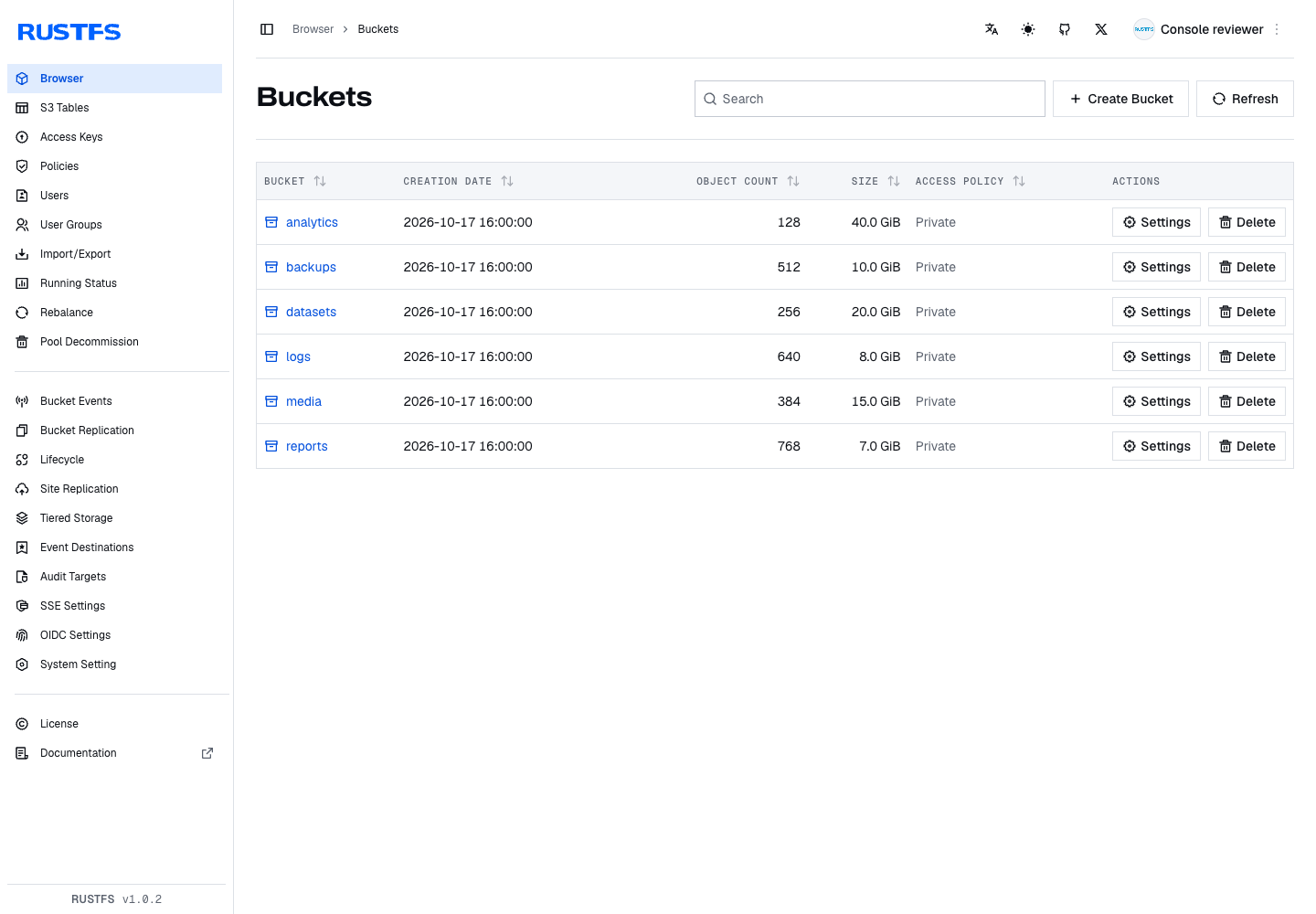

Bucket Distribution Many — /browser/

View	Before	After
Light
Dark

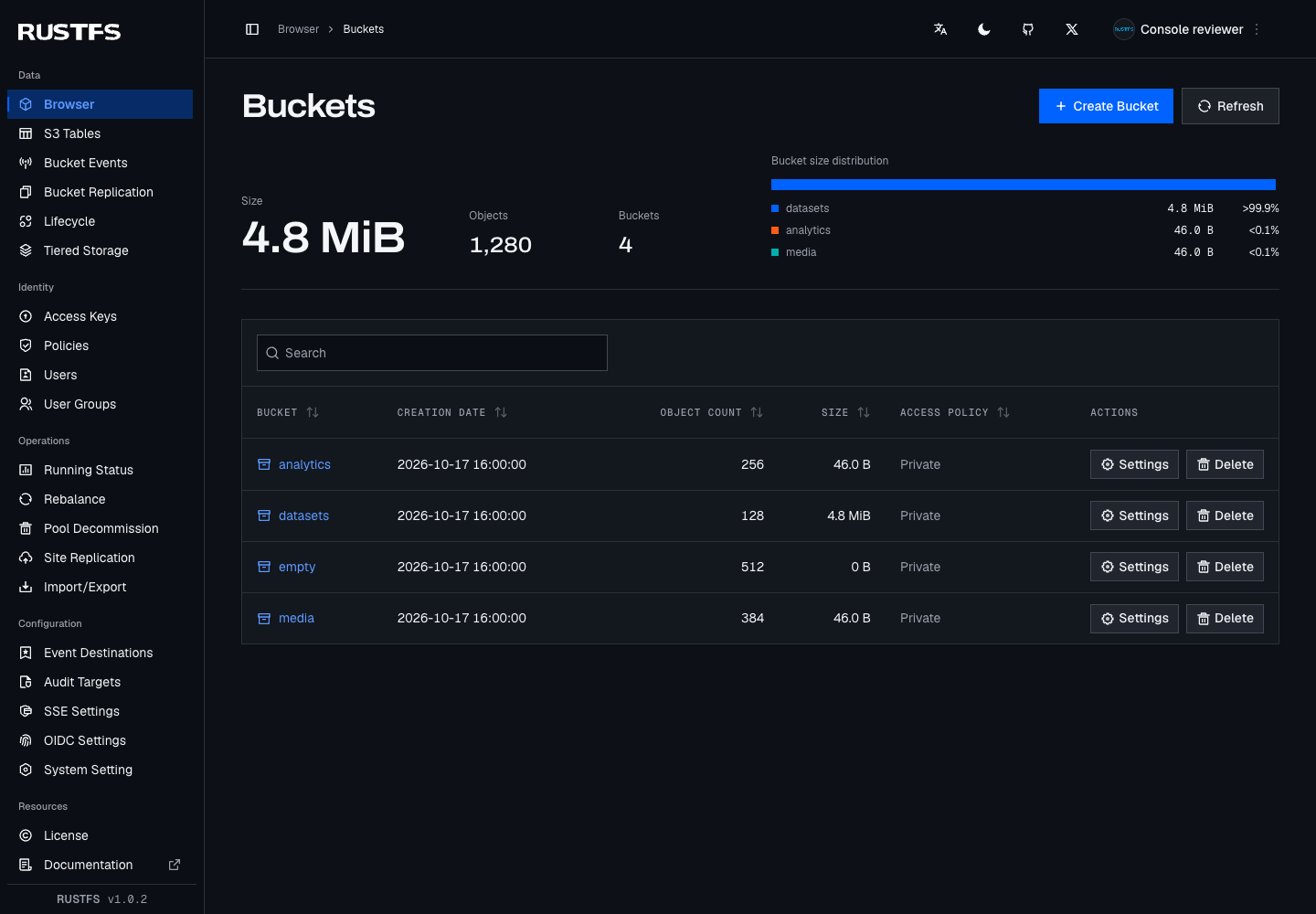

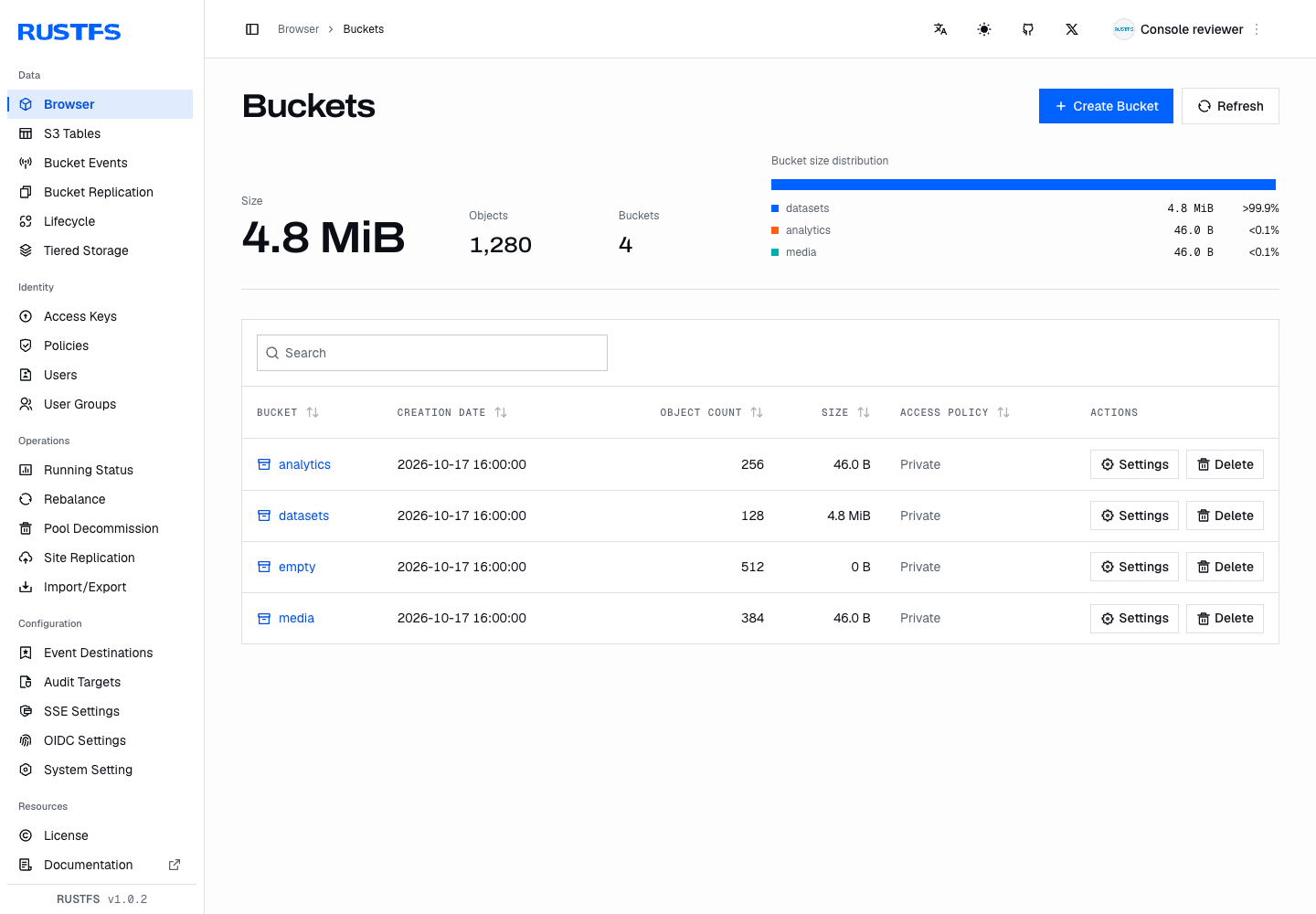

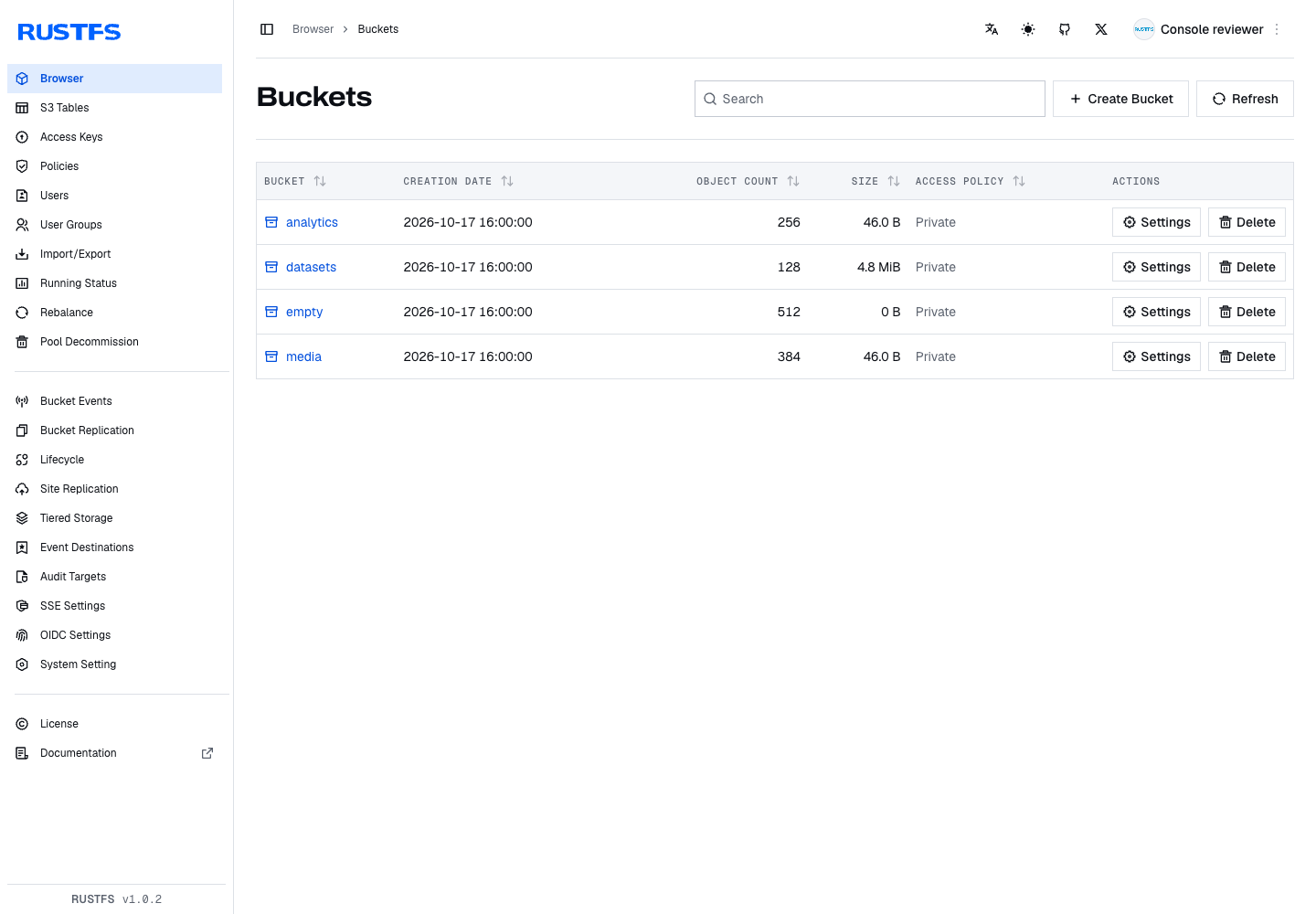

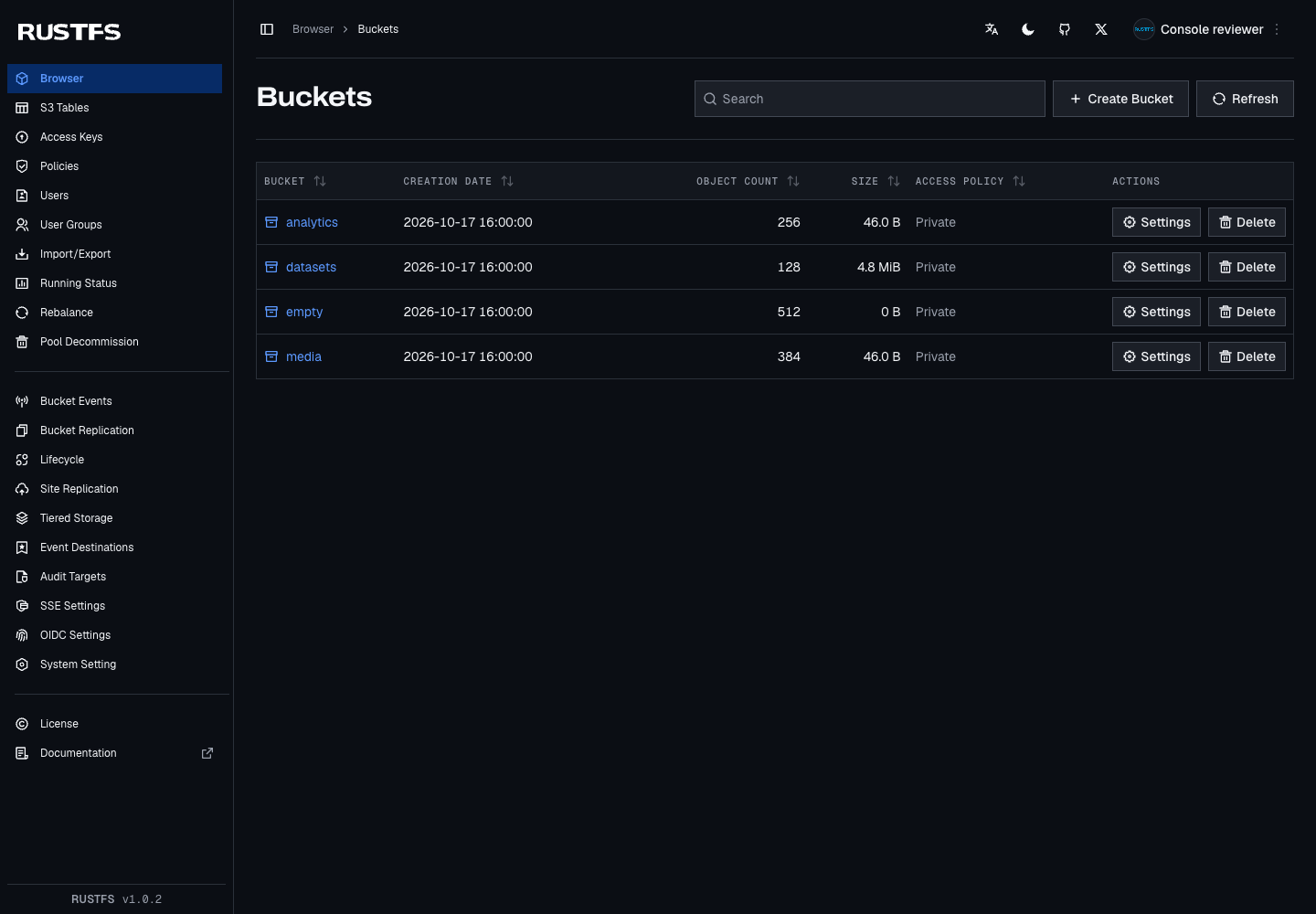

Bucket Distribution Skewed — /browser/

View	Before	After
Light
Dark

Additional Notes

The existing RustFS palette and typography are retained. No dependencies or upstream components/ui/ primitives were changed. Screenshots and their manifest are kept outside the application diff.
