What is this?

Tools to display the Linux console/framebuffer using a ST7789 SPI 320x170 1.9" TFT display and Raspberry Pi 1 model B 512MB running Raspbian 10 (Buster). The whole code is ready for this scenario, but can be adapted to yours. Each file at the top have options that can be changed like the display size, offset, SPI speed and so on.

The tools

• constant.c: CPU hungry version that constantly updates the screen, may update screen faster than the partial version
• partial.c: Less CPU hungry because updates only what changed from the previous frame, usually update screen slower than the constant version

Aside from their algorithm difference, both have these same features:

• Use legacy dispmanx API/driver to leverage GPU
• Optional show FPS
• Optional interlaced video

Here is my /boot/config.txt settings:

disable_overscan=0
framebuffer_width=320
framebuffer_height=170
framebuffer_depth=16
sdram_freq=600
arm_freq=1000
dtparam=audio=on
hdmi_group=2
hdmi_mode=87
hdmi_cvt=320 170 60 1 0 0 0
hdmi_force_hotplug=1
dtparam=spi=on
max_framebuffers=2
gpu_mem=128
core_freq=500
over_voltage=6

Basically full overclock and match the resolution of the TFT display, but you can use higher framebuffer resolutions (than the TFT), the tools will scale it down to match the display resolution, but that will make things harder to read and a little blurry

How to build and run?

First install the pre-requisites:

wget http://www.airspayce.com/mikem/bcm2835/bcm2835-1.75.tar.gz
tar xvfz bcm2835-1.75.tar.gz
cd bcm2835-1.75
./configure
make
sudo make install

Then clone this repo and run make, that will create both tools binaries. Now run with sudo, ex: sudo ./partial

Tip

Don't forget to edit the tools .c file to tweak the settings and enable/disable the features you want before compiling them

Wiring

VCC              -> 3.3V (Pin 1)
GND              -> GND (Pin 6)
SCL (SCK)        -> GPIO 11 (SPI0 SCLK, Pin 23)
SDA (MOSI)       -> GPIO 10 (SPI0 MOSI, Pin 19)
RES (Reset)      -> GPIO 25 (Pin 22)
DC (Data/CMD)    -> GPIO 24 (Pin 18)
CS (Chip Select) -> GPIO 8 (SPI0 CE0, Pin 24)
BL (Backlight)   -> 3.3V (Pin 1)

Tests

Tool	Framebuffer Resolution	Tool CPU Usage %	doing what?
constant	320x170	79-84	console idle
constant interlaced	320x170	78-84	console idle
constant	640x340	75-84	console idle
constant interlaced	640x340	75-84	console idle
partial	320x170	60-70	console idle
partial interlaced	320x170	54-60	console idle
partial	640x340	60-65	console idle
partial interlaced	640x340	52-60	console idle

In conclusion use the partial interlaced for best performance

Demo

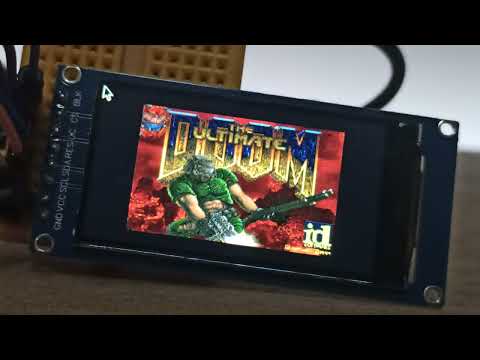

Here's a demo using the partial tool, no interlacing and framebuffer same resolution as display (320x170):

Interlaced text:

Normal text:

Interlaced image:

Normal image:

640x340 framebuffer (scaled down to 320x170 display automatically by the tool), text: 640x340 framebuffer (scaled down to 320x170 display automatically by the tool), image:

FAQ

Can I still use the HDMI when the SPI display is being used and/or the tool is running?

Yes, the tool won't interfere with the HDMI. The HDMI options in the /boot/config.txt are also optional

Can I see the same resolution from the display, ie 320x170 on the HDMI too?

I couldn't get an HDMI signal for such small resolution like 320x170, but once I increased to 320x200 my monitor detected the HDMI signal and showed the same as the display, they will mirror each other

Is there any performance hit by using a framebuffer/console resolution higher than the display resolution, since it needs to be scale down to fit?

I haven't noticed any difference in performance, check comparison table above

What about audio?

Yes you can use the 3.5mm audio jack or HDMI output:
https://github.com/themrleon/rpi-experiments?tab=readme-ov-file#audio

If I increase the SPI speed will that increase the display FPS?

I tried that and didn't notice any difference, by default it's 32Mhz, for the 320x170 display that seems to be maxed out already, the bottleneck is the Pi CPU itself!

I am having trouble to compile/run the tools!

Make sure to be on the same environment I targeted: http://downloads.raspberrypi.com/raspios_oldstable_armhf/images/raspios_oldstable_armhf-2023-05-03/2023-05-03-raspios-buster-armhf.img.xz

What exactly is the ST7789 model used in this lib code ?

Some models like this one have an internal framebuffer size bigger than the display resolution, so we have to always compensate that by putting a 35px offset from the top (idk why they don't simply compensate/abstract that internally to avoid all this hassle for us)

Why not using existing solutions?

I decided to do my own tools since I already spent a huge amount of time without success with:

• https://github.com/juj/fbcp-ili9341 (edit: got it working later, details here)
• The drivers included in the OS (fb_st7789v and fbtft)

$ modinfo fb_st7789v
filename:       /lib/modules/5.10.103+/kernel/drivers/staging/fbtft/fb_st7789v.ko
license:        GPL
author:         Dennis Menschel
description:    FB driver for the ST7789V LCD Controller
alias:          platform:st7789v
alias:          spi:st7789v
alias:          platform:fb_st7789v
alias:          spi:fb_st7789v
srcversion:     BF07DFBB8EEBB1E7159E694
alias:          of:N*T*Cfbtft,minipitft13C*
alias:          of:N*T*Cfbtft,minipitft13
alias:          of:N*T*Csitronix,st7789vC*
alias:          of:N*T*Csitronix,st7789v
depends:        fbtft
staging:        Y
intree:         Y
name:           fb_st7789v
vermagic:       5.10.103+ mod_unload modversions ARMv6 p2v8

$ modinfo fbtft
filename:       /lib/modules/5.10.103+/kernel/drivers/staging/fbtft/fbtft.ko
license:        GPL
srcversion:     D9040A657CB2AD182932EE2
depends:        fb_sys_fops,backlight,syscopyarea,sysfillrect,sysimgblt
staging:        Y
intree:         Y
name:           fbtft
vermagic:       5.10.103+ mod_unload modversions ARMv6 p2v8
parm:           debug:override device debug level (ulong)

• Custom overlays with the drivers mentioned bove
• Also tried some Python solutions but they ended up all being too slow compared to C

CPU usage is too high, SPI display solutions are all like that ?

No, for a far better option, try an ILI9341 based display with the fbcp-ili9341 lib, details here
